Boring Heads
Regular price
From
$119.00 CAD
Unit price
/
Unavailable

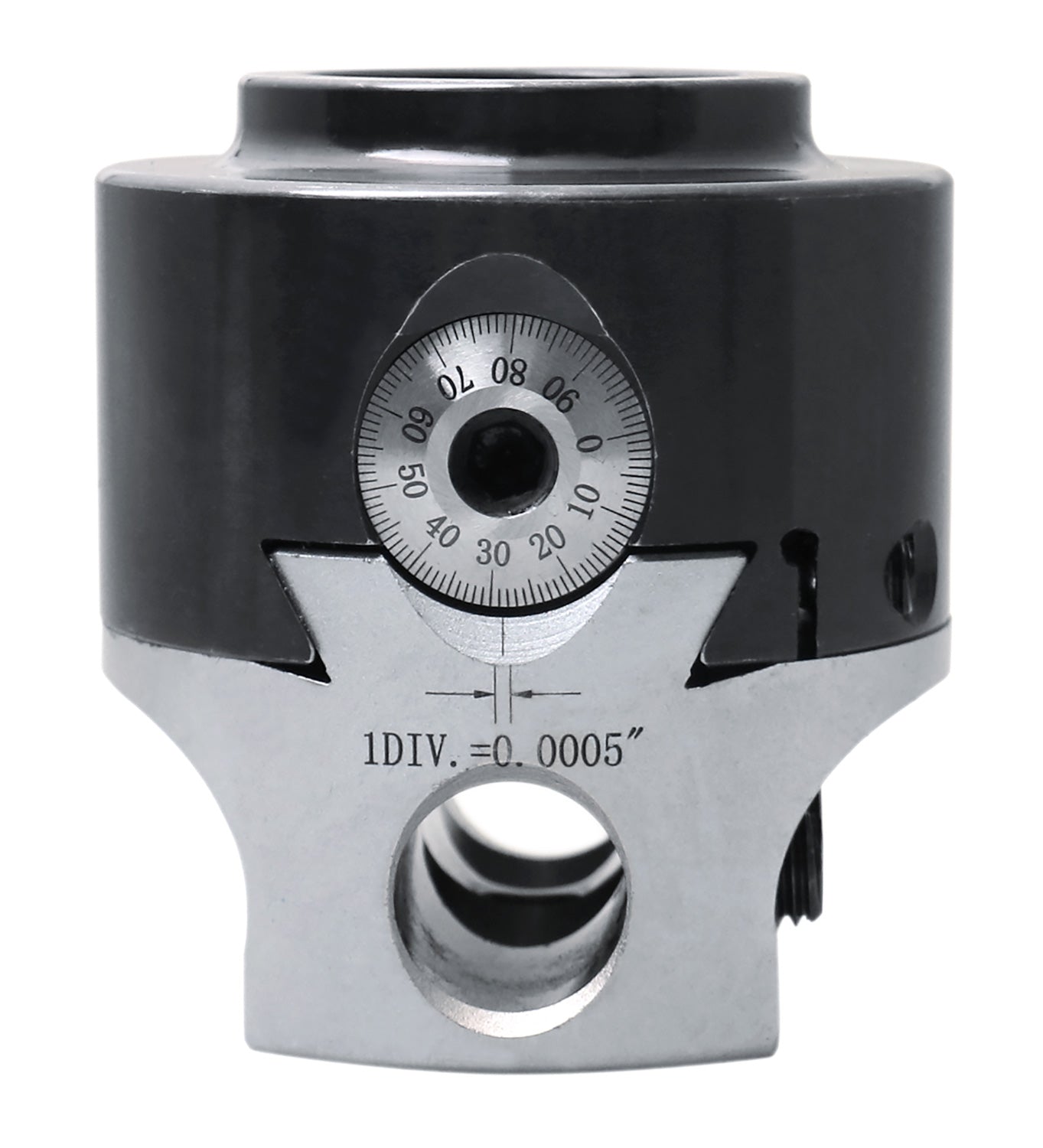

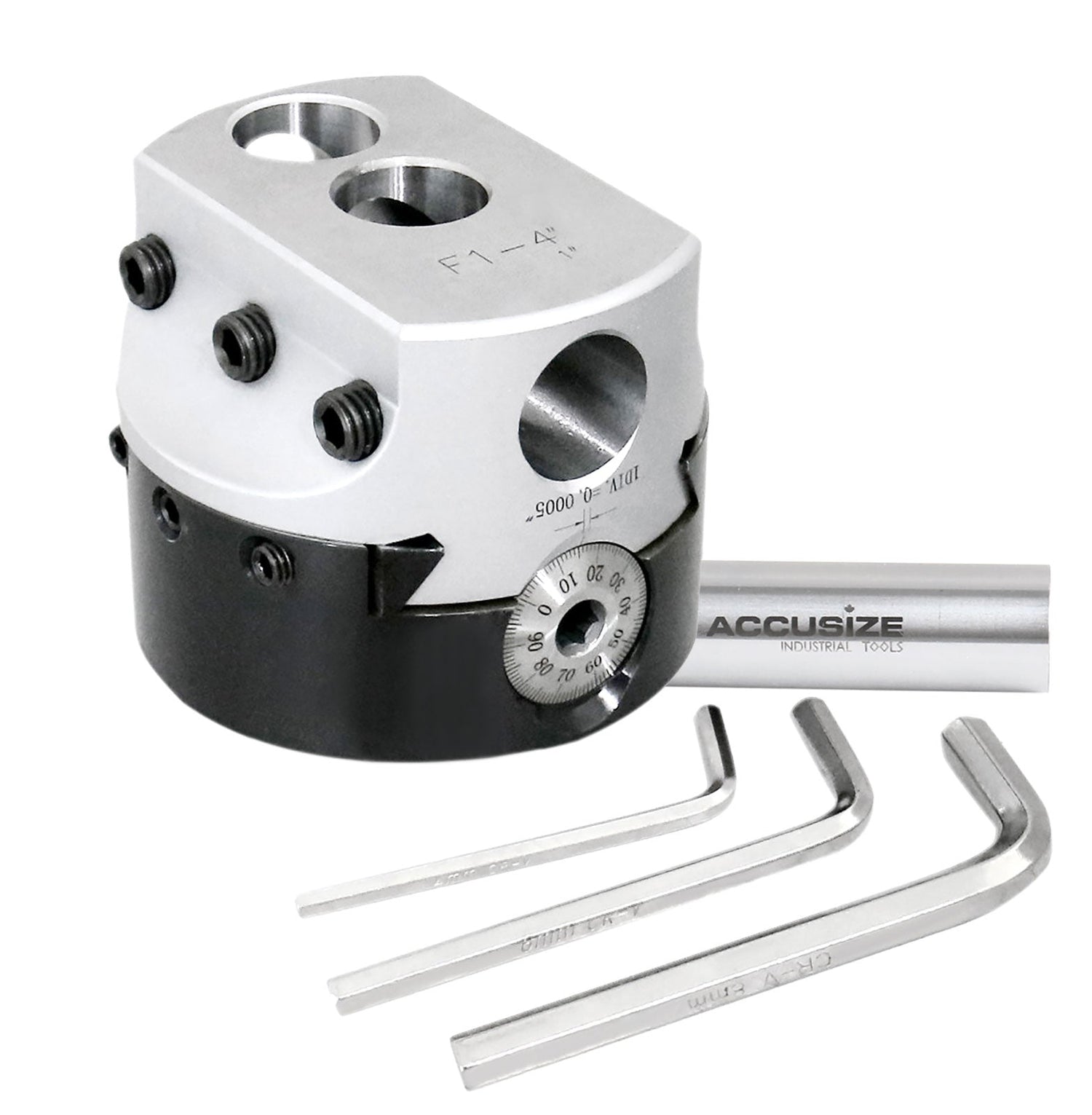

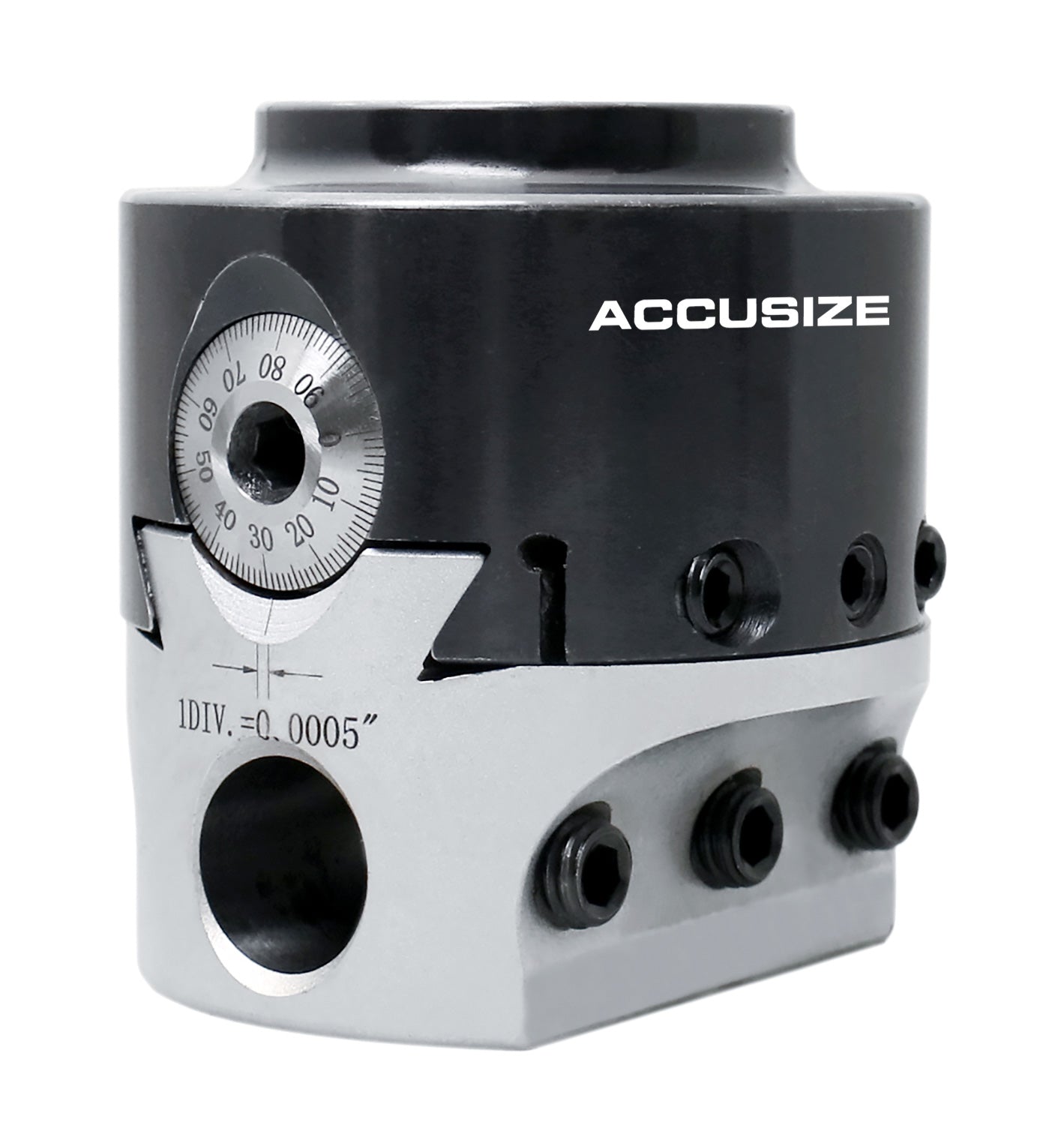

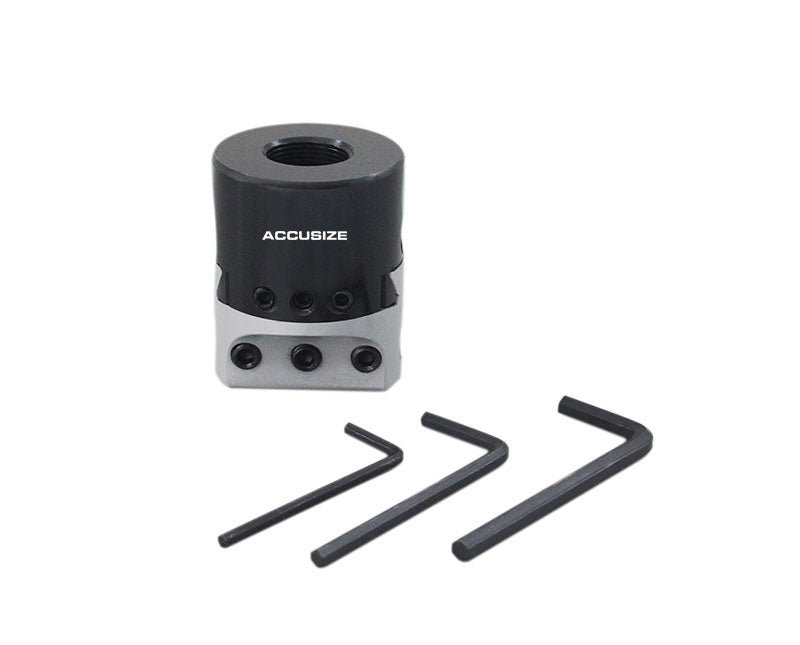

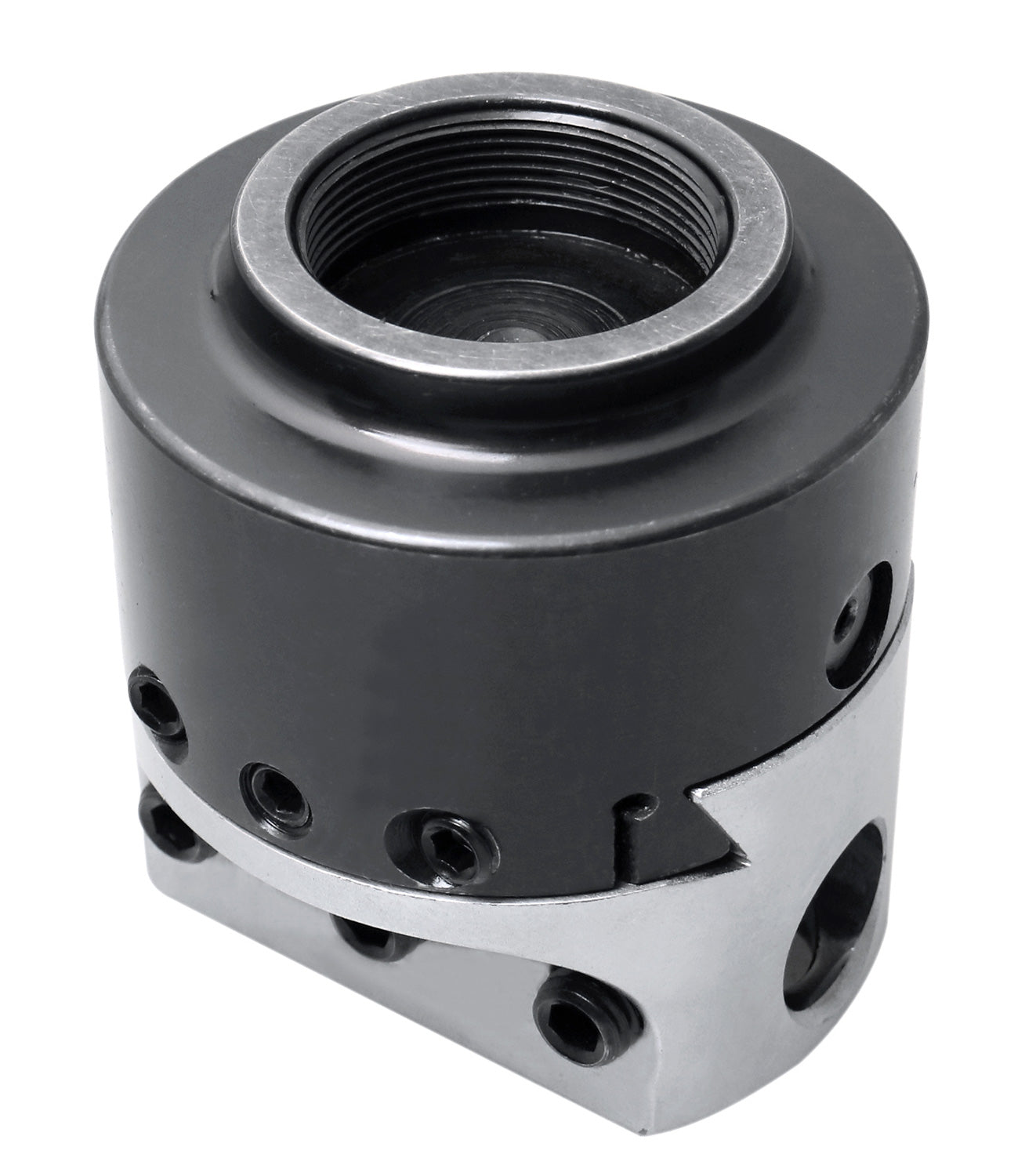

Boring Heads
- High quality, excellent performance and practical design at an affordable price.
- Maximum rigidity is assured when a boring bar holder is used in an offset position.
- Hardened and ground adjusting screw along with our wide base design guarantees long life and trouble-free use
| Item |
Actual Size (D) |
Overall length |
Boring bar hole size (d1) |
Center dist between holes |
Cross hole dia (d2) |
Offset |
N.W (lbs) |
Thread Mount |
| 0350-0002 | 2" | 2-1/2" | 1/2" | 5/8" | 1/2" | 5/8" | 1.55 | 7/8~20" |
| 0350-0003 | 3" | 3-5/32" | 3/4" | 15/16" | 3/4" | 3/4" | 4.4 | 1-1/2~18" |
| 0350-0004 | 4" | 3-43/64" | 1" | 1-1/4" | 1" | 1" | 8.8 | 1-1/2~18" |
