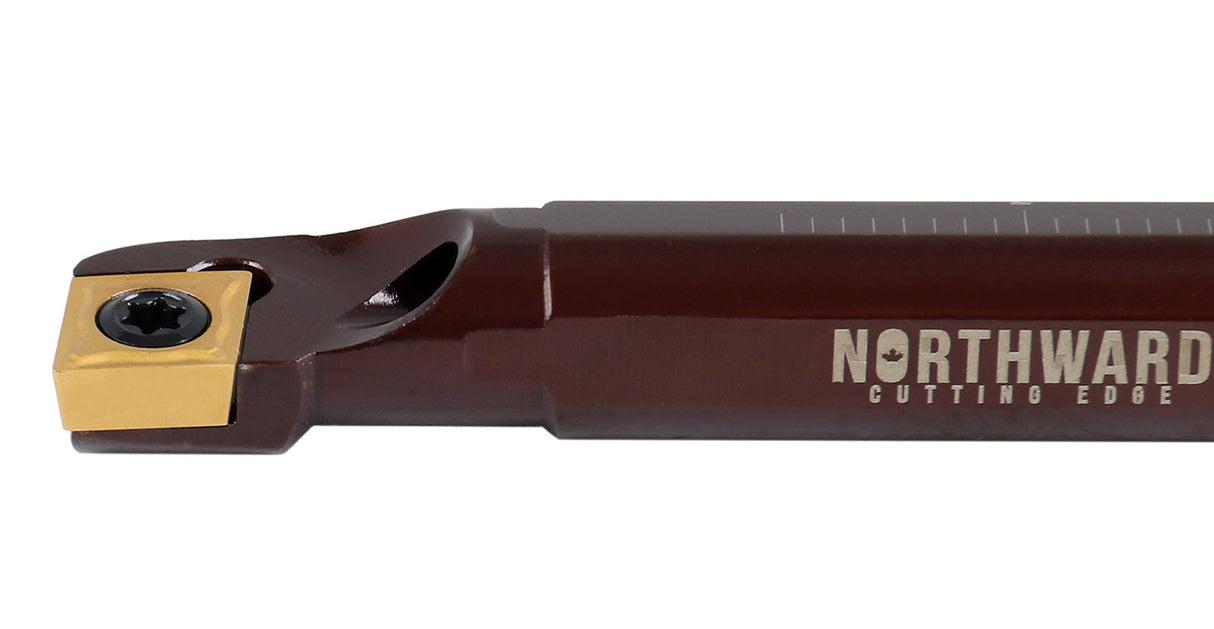

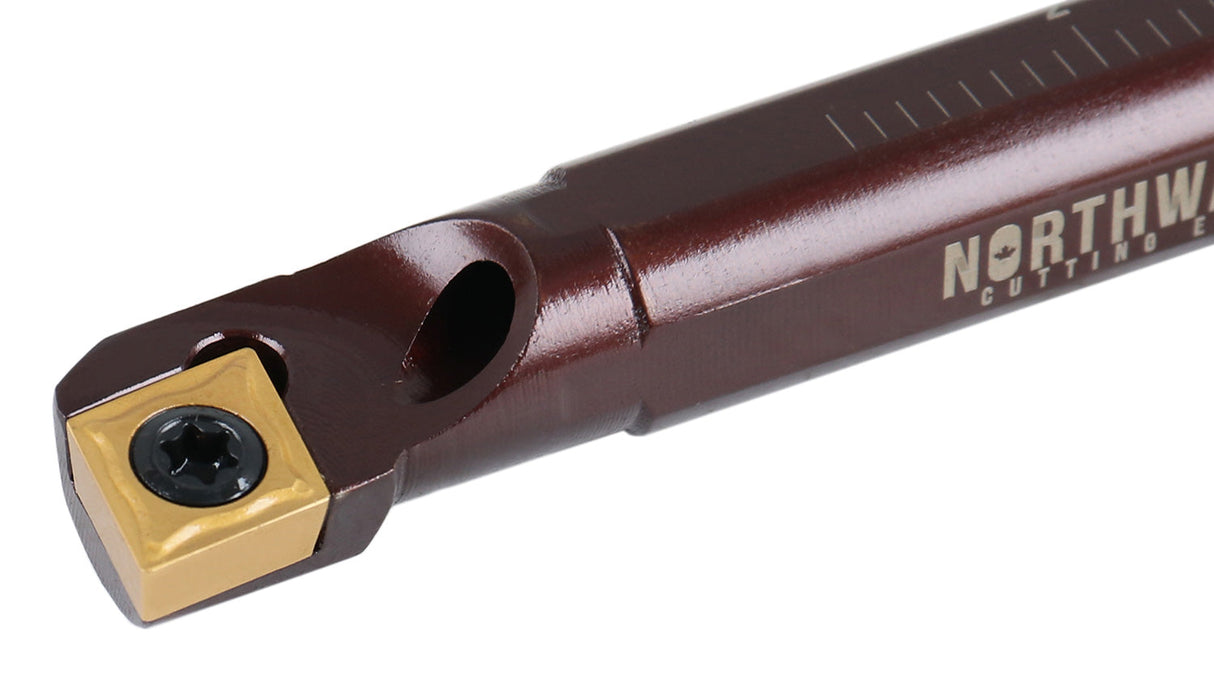

RH SCLCR Coolant Through Indexable Boring Bars with CCMT Inserts
From
$49.00 CAD
Unit price
/
Unavailable
RH SCLCR Coolant Through Indexable Boring Bar
- Right Hand, 3 Cutting Edge, and 7° Relief
- Profiling bar for semi-finishing and finishing operations
- Bar hardness approximately 45HRC
- Extreme gloss finish
- Negative 5 degree end & side cutting angle
- Positive 80 degree diamond CCMT inserts
- Boring from Light roughing to finishing in small bores.
- General purpose boring bar fitted with rhomboidal positive inserts (80°angle) which are free cutting with strong cutting edges.
- The coolant hole with a diameter range varying between 3/32" and 5/32" in accordance to the bar size allows to cool the cutting edge and remove chips.
- The inserts is set with a 0° rake angle and an inclination angle shown in the table below.
- Made of tool steel with nitrogen superficial treatment, Hardness 60 HRC, blackening by PVD coating, thickness 0.0002".
- Insert CCMT 21.51 Included & Key Included
L: Overall Length
B: Min. Bore
| Item | Model |
Shank Dia. D |
Overall Length L |
Neck Diameter d |
A | aº | F |
Min Bore B |
Insert |
| 2800-0034 | A05H SCLCR-2 | 5/16" | 4.000" | 0.276" | 0.945" | 15° | 0.187" | 0.315" | CCMT 21.5 |

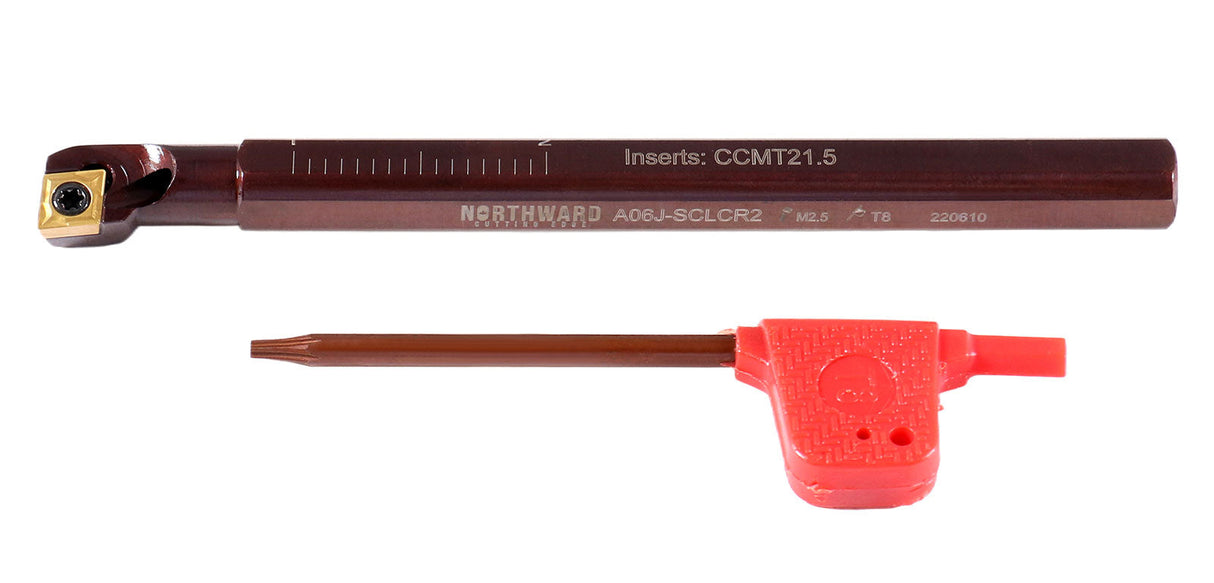

| 2800-0035 | A06J SCLCR-2 | 3/8" | 4.500" | 0.336" | 1.000" | 13° | 0.250" | 0.480" | CCMT 21.5 |

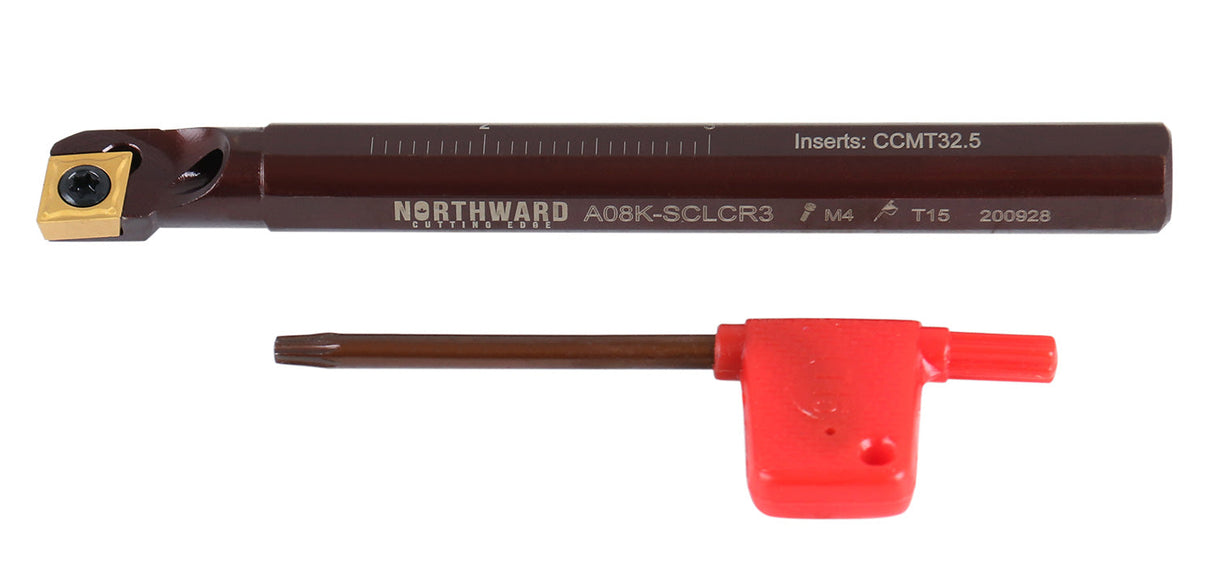

| 2800-0036 | A08K SCLCR-3 | 1/2" | 5.000" | 0.461" | 1.220" | 10° | 0.312" | 0.600" | CCMT 32.5 |
| 2800-0037 | A10M SCLCR-3 | 5/8" | 6.000" | 0.586" | 1.339" | 7° | 0.406" | 0.770" | CCMT 32.5 |

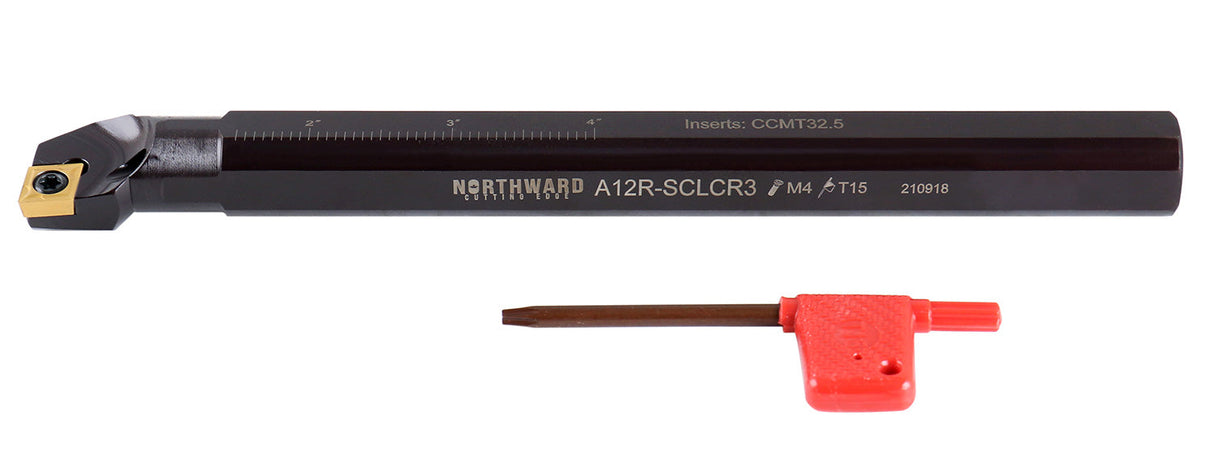

| 2800-0038 | A12R SCLCR-3 | 3/4" | 8.000" | 0.712" | 1.418" | 7° | 0.500" | 0.930" | CCMT 32.5 |
| 2800-0039 | A16S SCLCR-3 | 1" | 10.000" | 0.961" | 1.540" | 3° | 0.651" | 1.300" | CCMT 432 |
