RH SCLCR Indexable Boring Bars with Inserts for Cutting Aluminum, K...
From
$38.00 CAD
Unit price
/
Unavailable

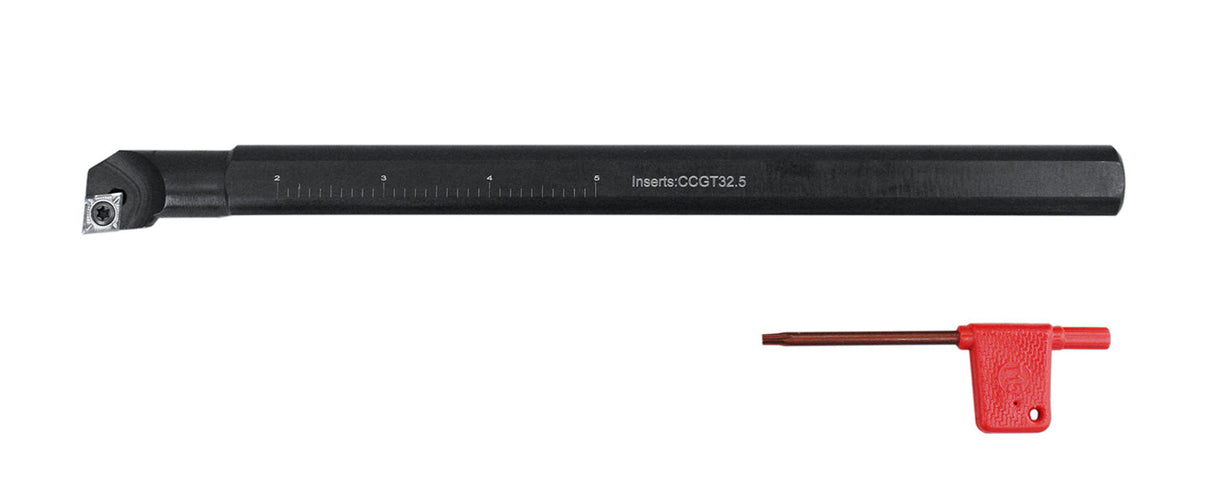

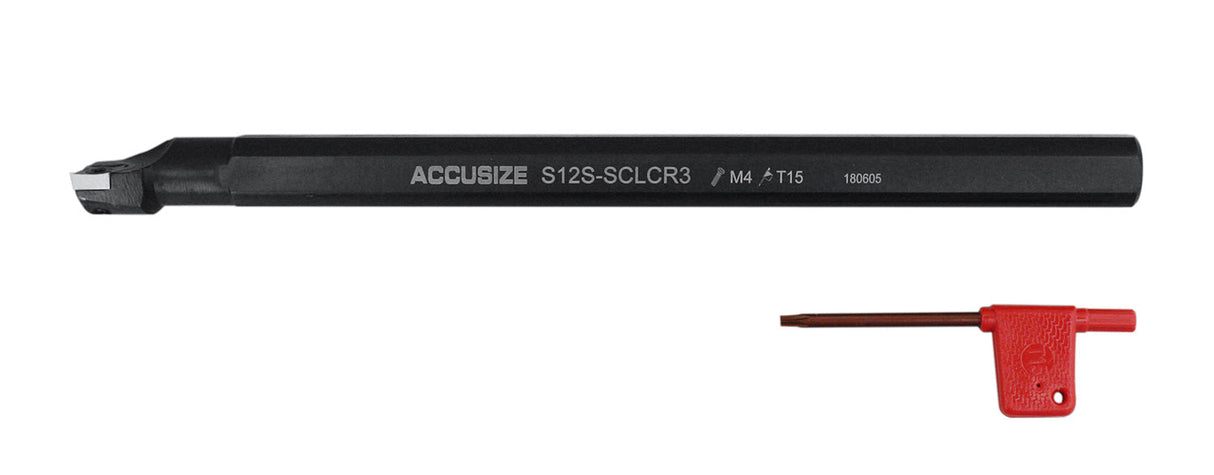

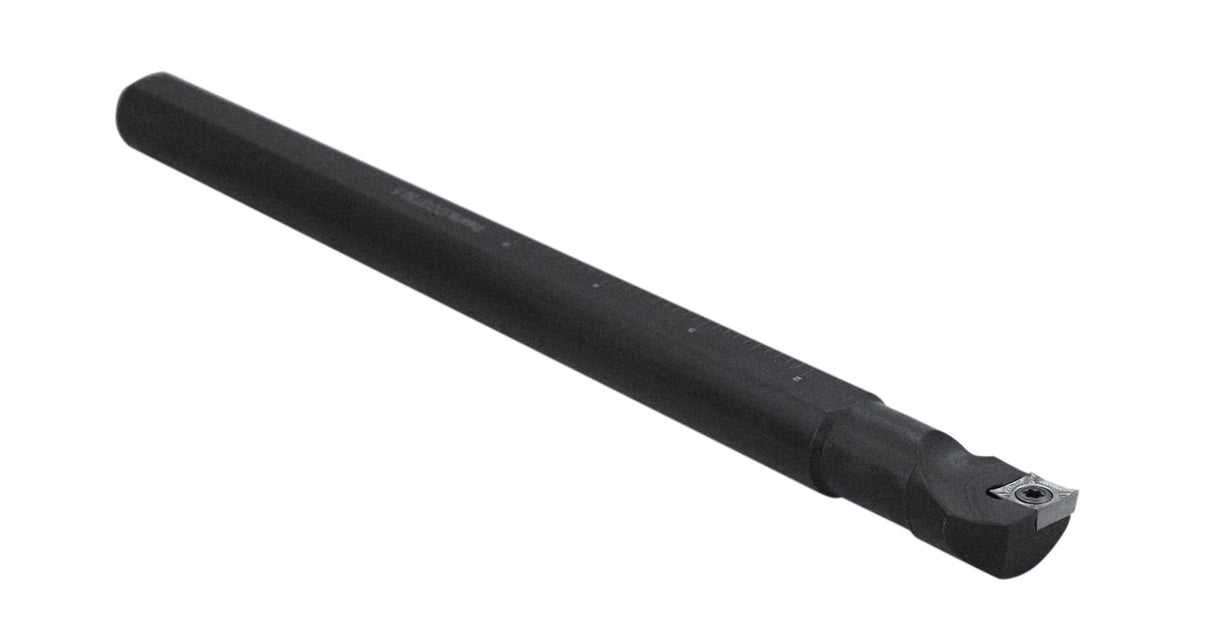

RH SCLCR Indexable Boring Bars with with Inserts Cutting Aluminum, Key included
- Boring from light roughing to finishing in small bores
- Insert & Key Included
- Accepts Inserts #AKH01 and #0.05AKH01 cutting Aluminum
- Profiling bar for semi-finishing and finishing operations
- Bar hardness approximately 45HRC
- Extreme fine gloss finish
- Negative 5 degree end & side cutting angle
| Item | Item Code | Shk. | Carbide Inserts Uncoated | O.A.L | Min. Bore |
| P252-S501 | S08Q-SCLCR3 | 1/2" | CCGT32.51-0.05AKH01 (CCGT09T302-AK) | 7" | .600" |
| P252-S503 | S10R-SCLCR3 | 5/8" | CCGT32.51-AKH01 (CCGT09T304-AK) | 8" | .866" |
| P252-S505 | S12S-SCLCR3 | 3/4" | CCGT32.51-AKH01 (CCGT09T304-AK) | 10" | .920" |
| P252-S507 | S16T-SCLCR4 | 1" | CCGT32.51-AKH01 (CCGT09T304-AK) | 12" | 1.25" |
