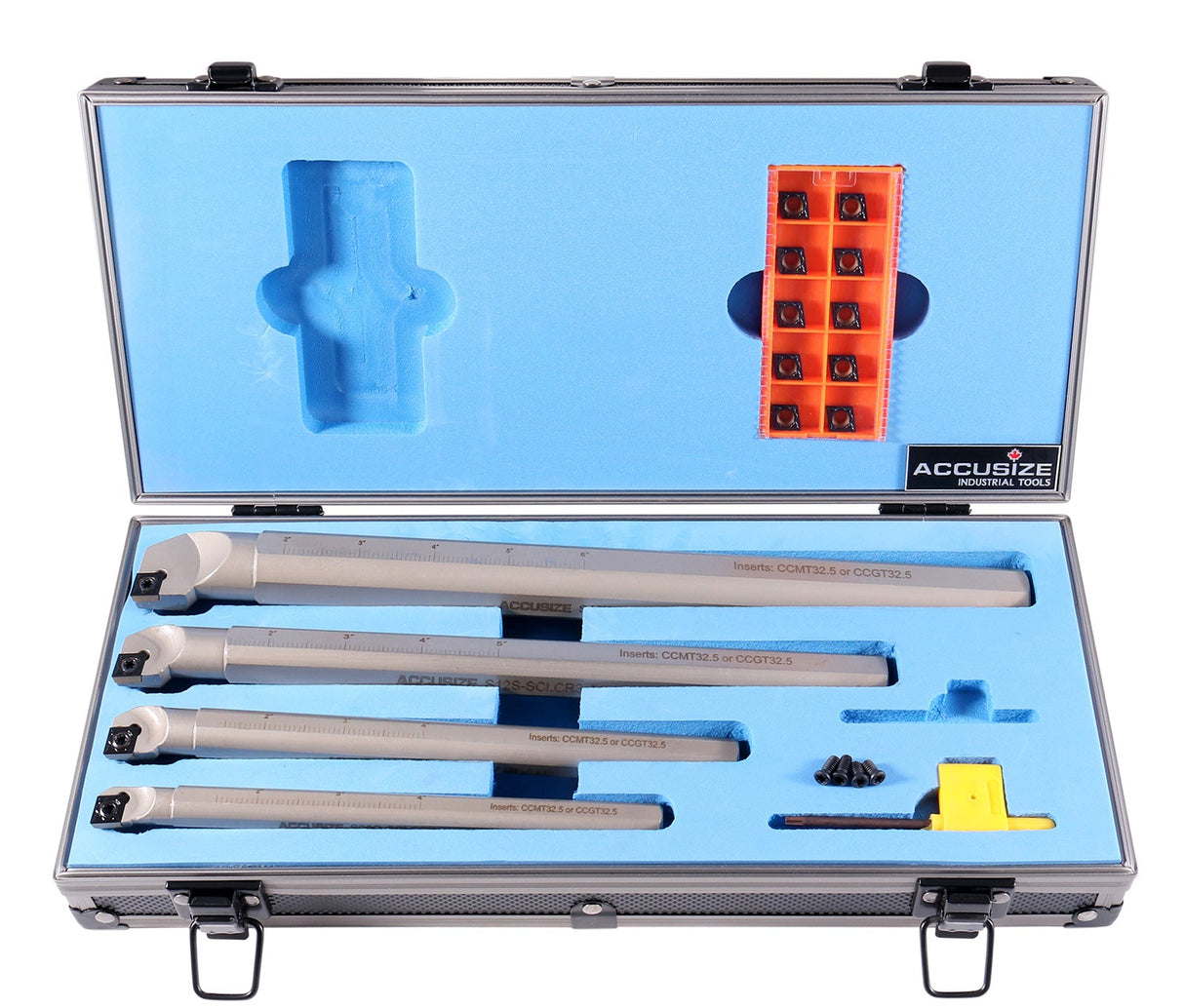

SCLCR 4 Pc Indexable Boring Bar Set, 14 Carbide Black/White, CVD Coating CCMT32.51 Inserts, 1/2", 5/8", 3/4", & 1"

SCLCR 4 Pc Indexable Boring Bar Set with 14 CCMT32.51 Inserts, 1/2, 5/8, 3/4, & 1"

---

• Extreme Gloss Finish
• Utilizes 80° Diamond CCMT inserts
• Negative 5° End side cutting angle
• Bar hardness approx. 45HRC
• The insert is securely held with a torx screw to reduce tool slipping
• Includes:
• 4 Indexable boring bars
• 1 each of 1/2'', 5/8", 3/4'' and 1"
• 14 Carbide CVD Coated CCMT 32.5 black-and-white Inserts
• 1 - Torx Wrench
• 1 - Fitted Case

Item	Item Code	Shank Diameter	Inserts	Overall Length
P252-S403	RH SCLCR3	1/2"	CCMT32.51	7"
P252-S405	RH SCLCR3	5/8"	CCMT32.51	8"
P252-S407	RH SCLCR3	3/4"	CCMT32.51	10"
P252-S408	RH SCLCR3	1"	CCMT32.51	12"

10 Pcs/Box Carbide Inserts CVD Coated CCMT32.51 Black/Yellow, #2200-1014x10

---

• ANSI #: CCMT32.51
• Insert Style: CCMT
• Insert Size: 32.51
• IC: 3/8
• Thickness: 5/32
• Thru Hole: 0.17
• Radius: 1/64
• 7 degree
• Insert Grade: BPS101
• Chip Breaker: MD
• Material: Carbide
• Coating: CVD Al2O3 TICN
• Machining Parts Material: Steel
• Machining Process: Finish

�/p>

Product features

• BPS101 Black/Yellow Coating Grade
• CVD coated carbide grade, wear-resistance materials coated on the gradient sintered substrate which has both good hardness, toughness
• Can bear high temperatures
• For steel and steel castings finishing to roughing processing
• Continue cutting to light interrupted cutting
• Machining of gray and ductile iron at low to medium cutting speed
• For hard materials continuous cutting and light interrupted cutting from finishing to roughing
• Wet and dry processing
• Combination of fibrous TICN and fine grained Al2O3 increases abrasion resistance and anti-chipping
• Preferred choice chip breaker on General Purpose Finishing

Features of chipbreaker

• For medium-duty turning With broad capability for steel, stainless steel, grey and nodular cast-iron
• Operations: turning, facing and profiling
• Advantages: all-round, reliable with problem-free machining
• Limitations: depth of cut and feed, risk of overloading the cutting edge
• Components typically: axles, shafts, hubs, gears, etc.
