CBN Pins - "BX" Series
From
$27.92 CAD
Unit price
/
Unavailable
Our CBN pins are recommended for use on high carbon, high chrome, high speed steels, such as: M2, M3, M7 and T15; die steels, such as: D2, D3, HB, A & O; alloy steels (harder than 50Rc); nickel and cobalt base super alloys; titanium and stainless steels. The cutting edges will last longer, resist breakdown better, produce more ground parts per hour, and improve the quality of the finished product. Overall costs are reduced.
When heat distortion is an important factor, CBN is the wise choice because it runs cooler than diamond.

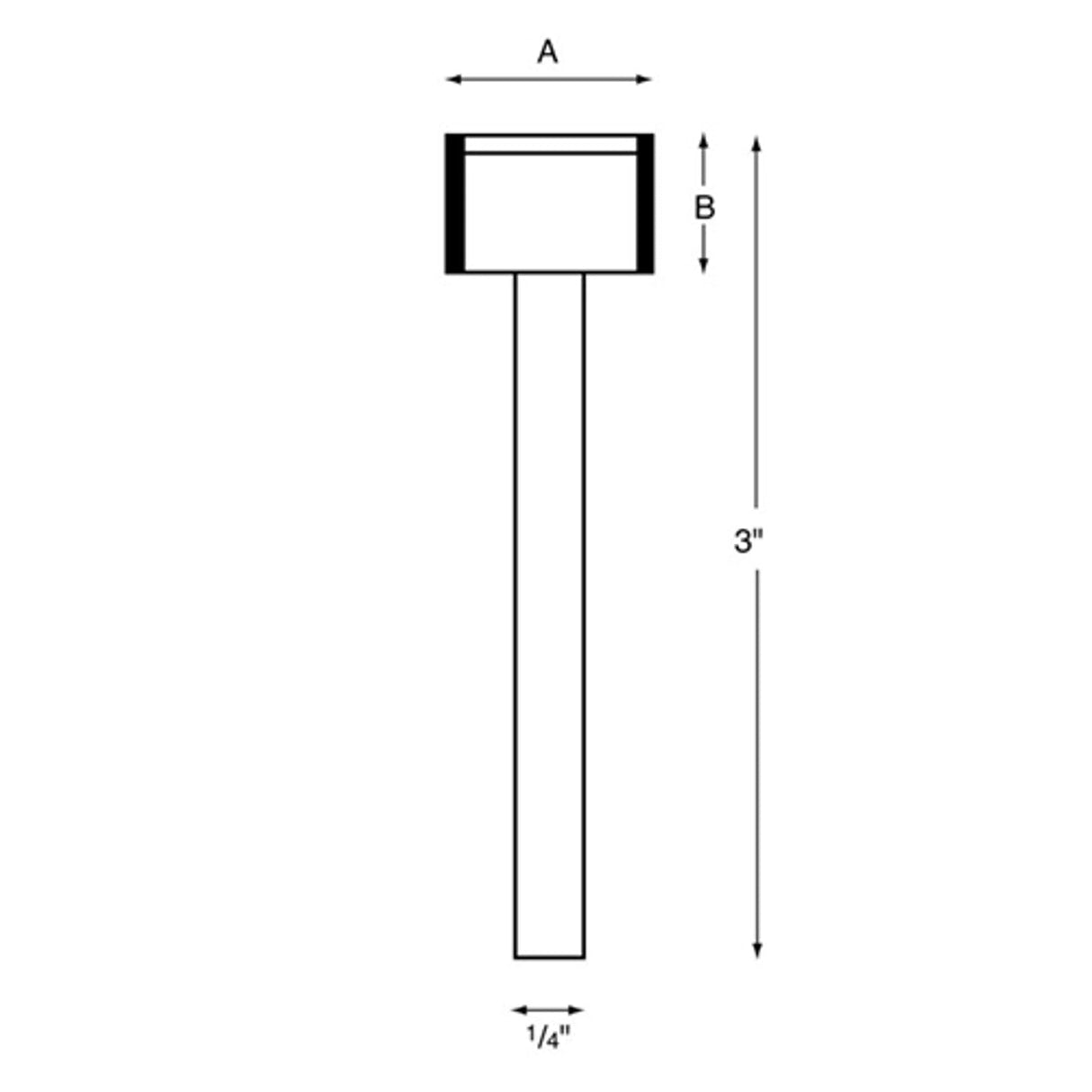

All CBN "BX" Series Pins measure 3" long overall on 1/4" shanks. All are 80/100 grit.
(For carbides and extremely hard steels and ceramics, we recommend our Diamond Pins.)
|
Style#
|
Diameter
(A) |
Cutting
Length (B) |
|---|---|---|
|
BX-141
|
9/64"
|
1/4"
|
|
BX-156
|
5/32"
|
1/4"
|
|

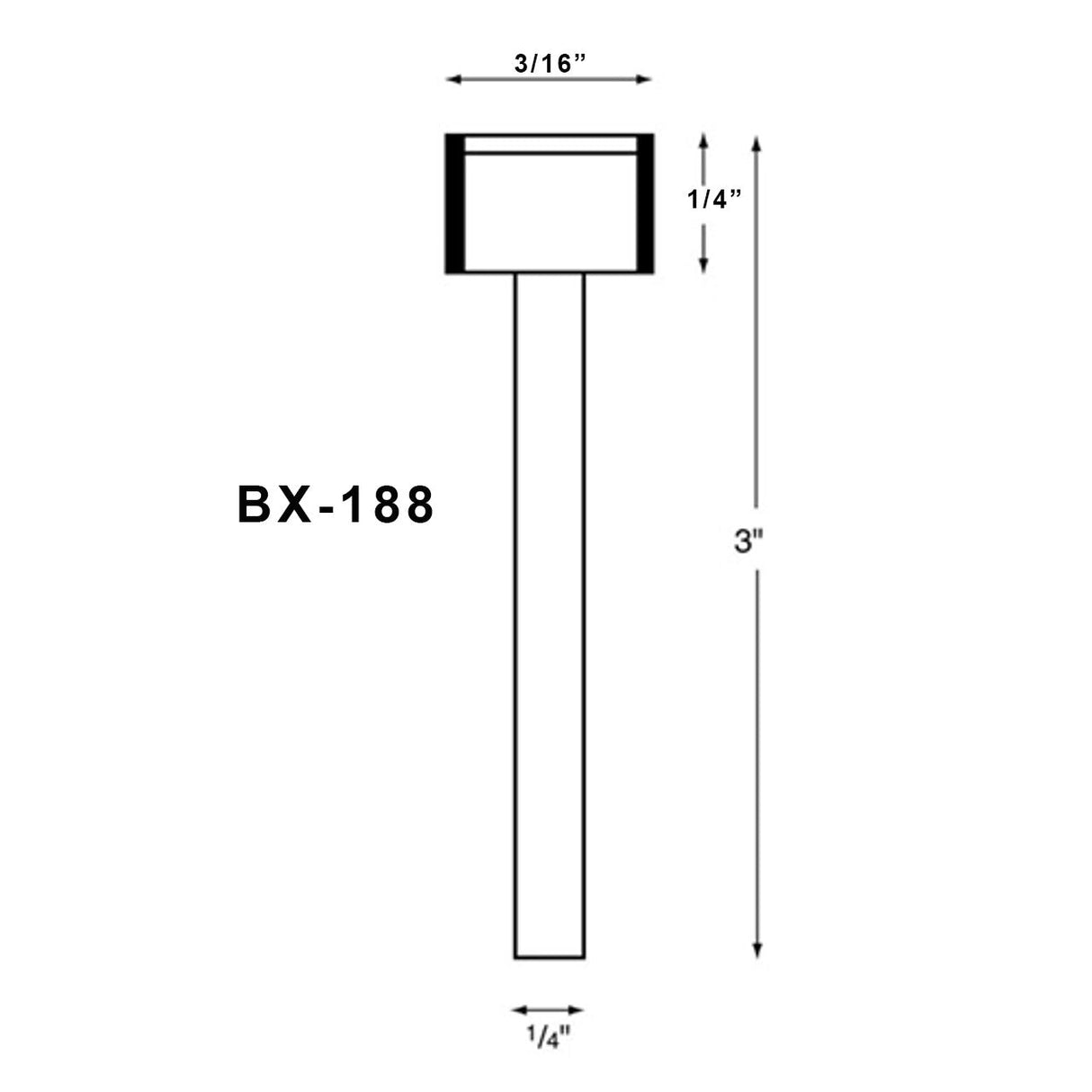

BX-188
|
3/16"
|
1/4"
|
|
BX-218
|
7/32"
|
1/4"
|
|
BX-250/2
|
1/4"
|
1/8"
|
|

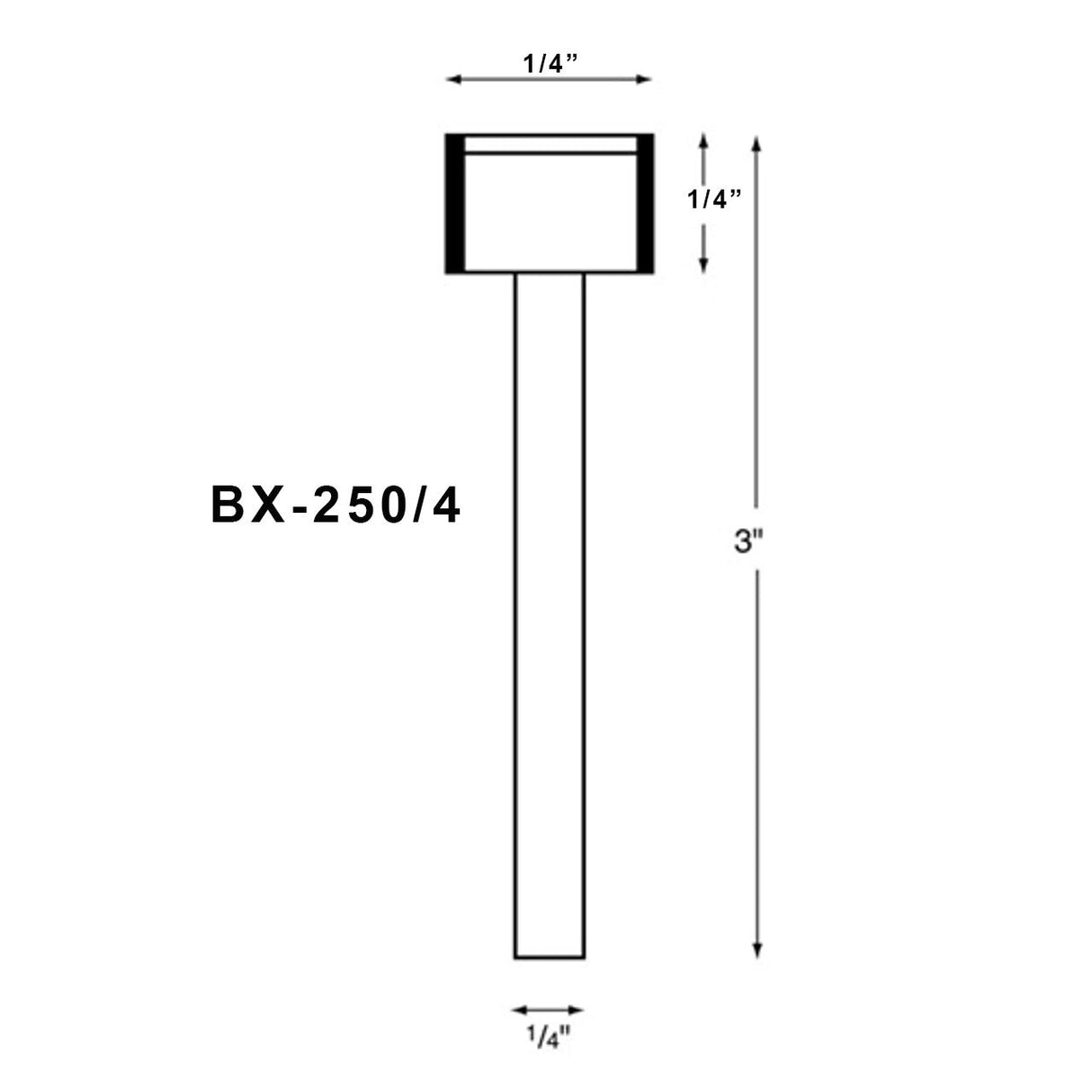

BX-250/4
|
1/4"
|
1/4"
|
|
BX-312/4
|
5/16"
|
1/4"
|
|

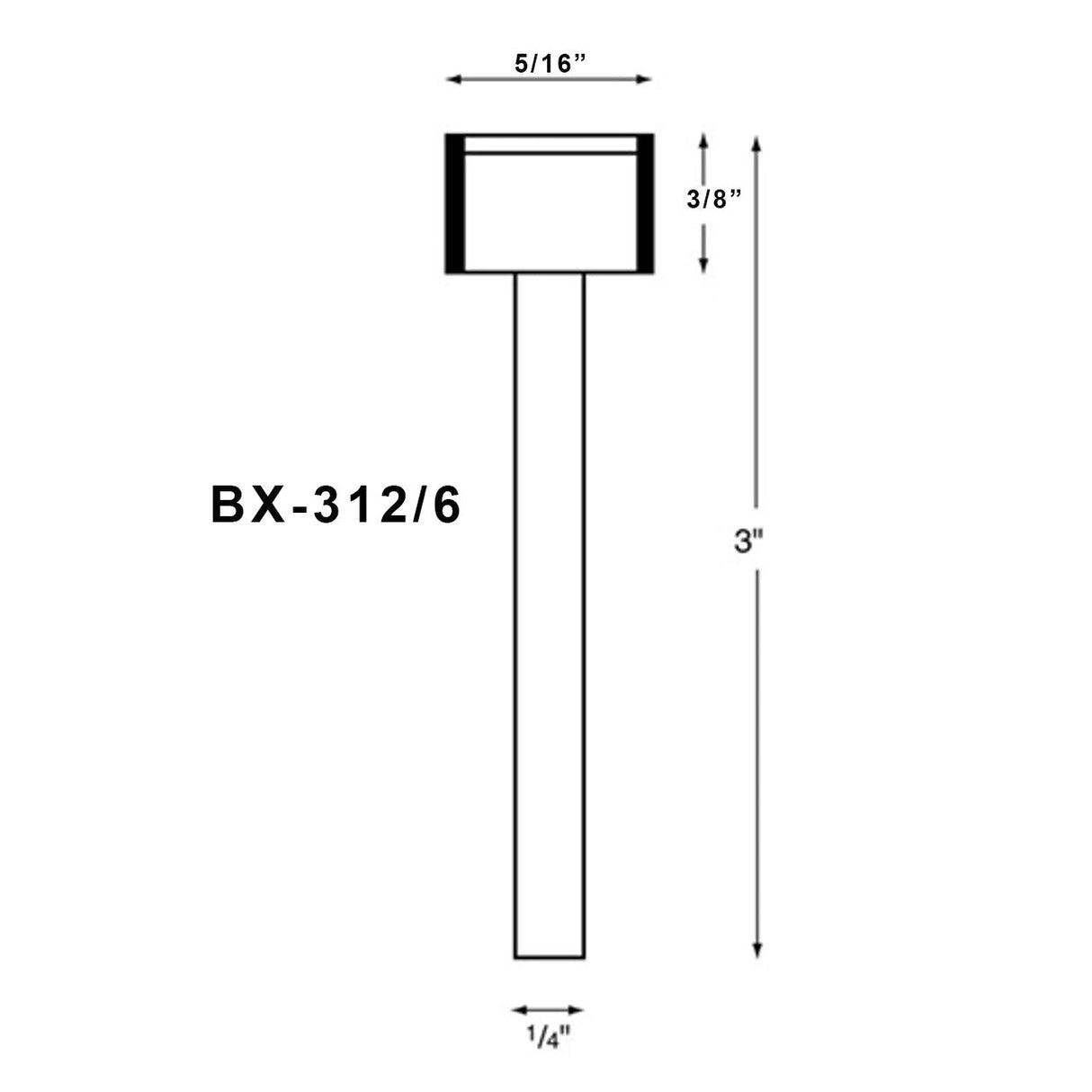

BX-312/6
|
5/16"
|
3/8"
|
|
BX-375/2
|
3/8"
|
1/8"
|
|
BX-375/4
|
3/8"
|
1/4"
|
|
BX-375/6
|
3/8"
|
3/8"
|
|
BX-500/4
|
1/2"
|
1/4"
|
|

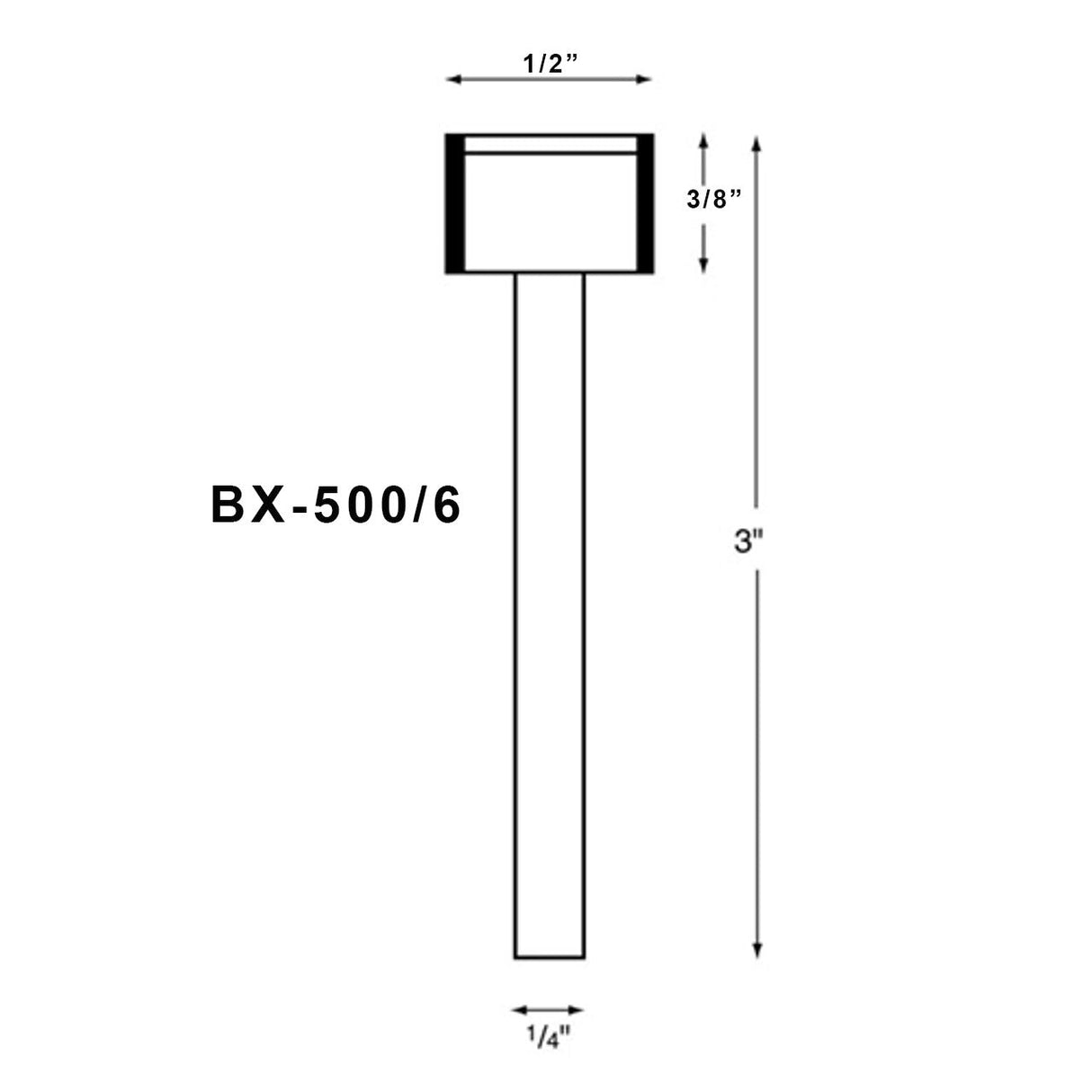

BX-500/6
|
1/2"
|
3/8"
|
|
BX-500/8
|
1/2"
|
1/2"
|
|
BX-750/4
|
3/4"
|
1/4"
|
|

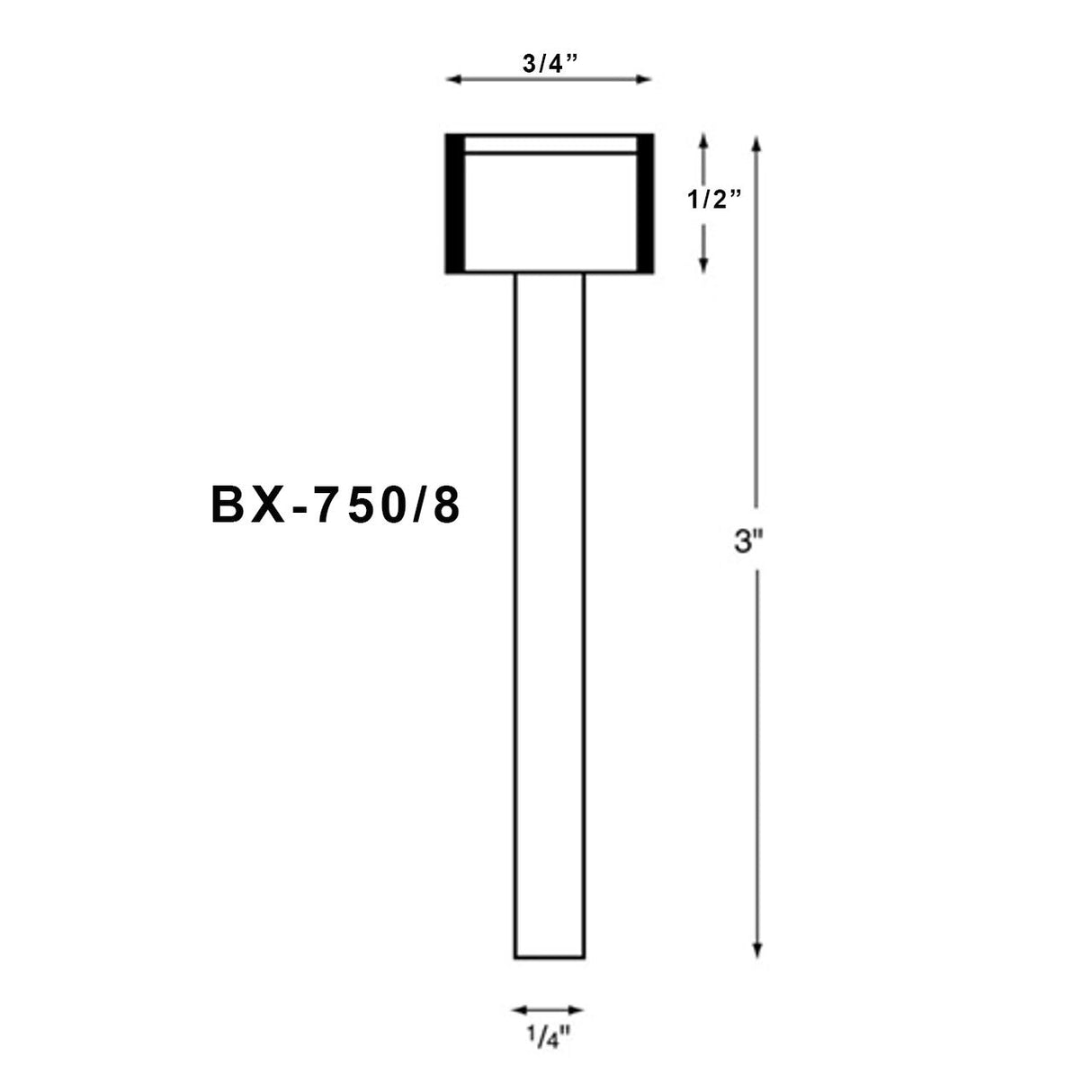

BX-750/8
|
3/4"
|
1/2"
|
