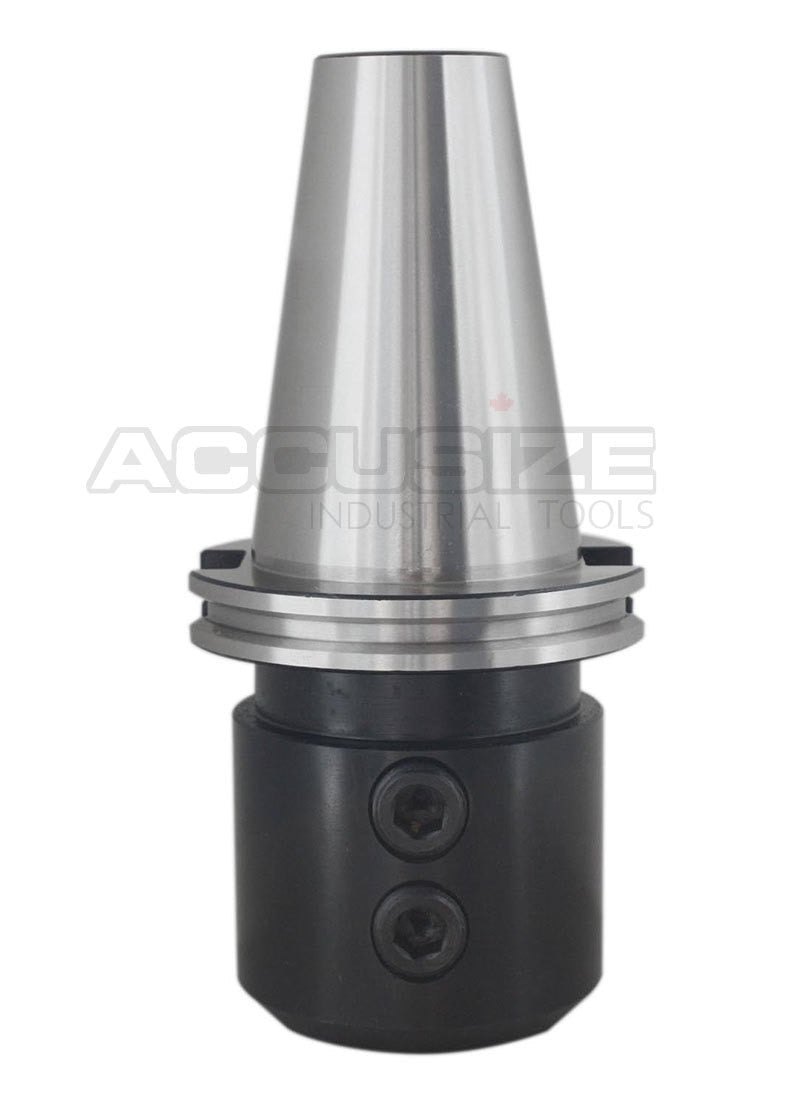

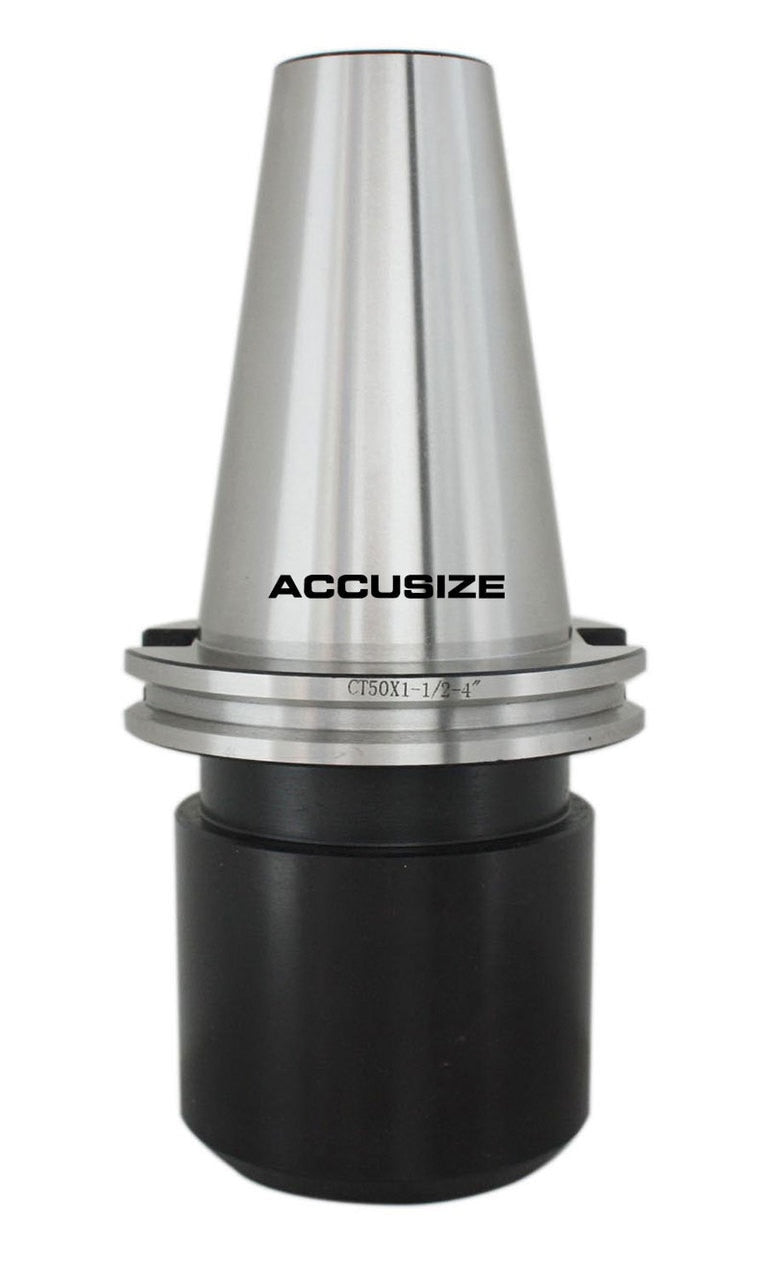

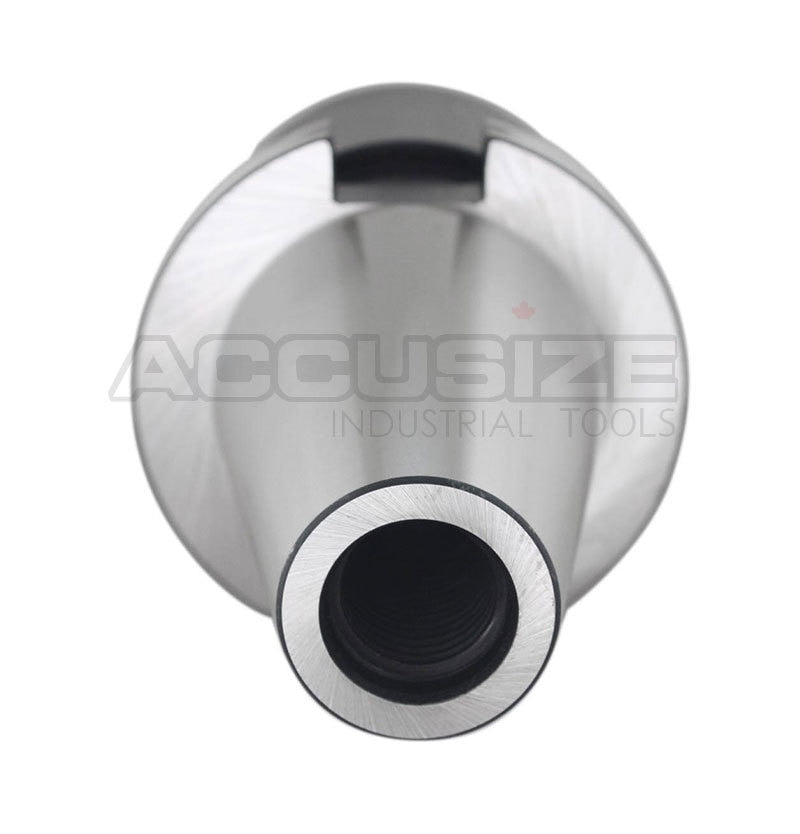

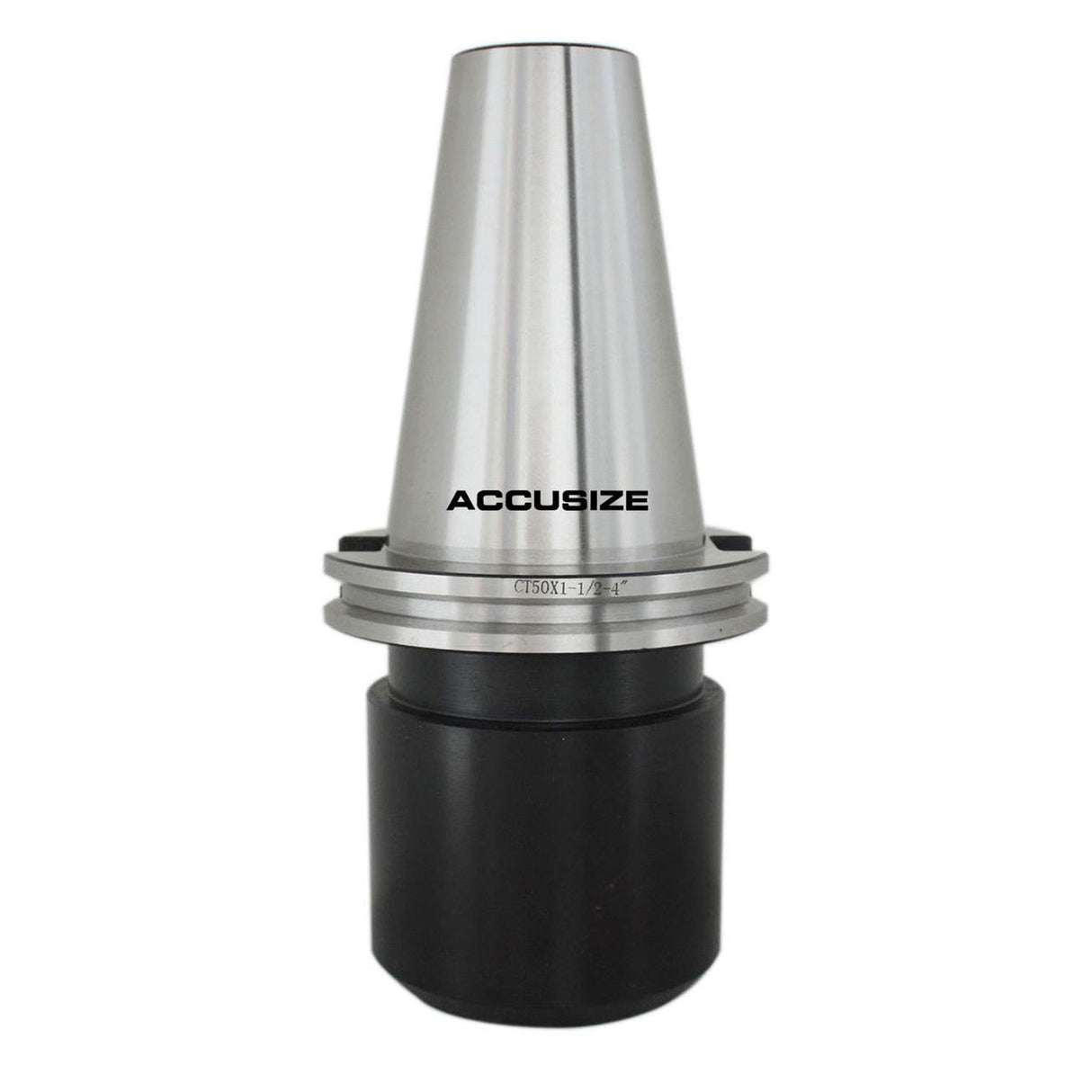

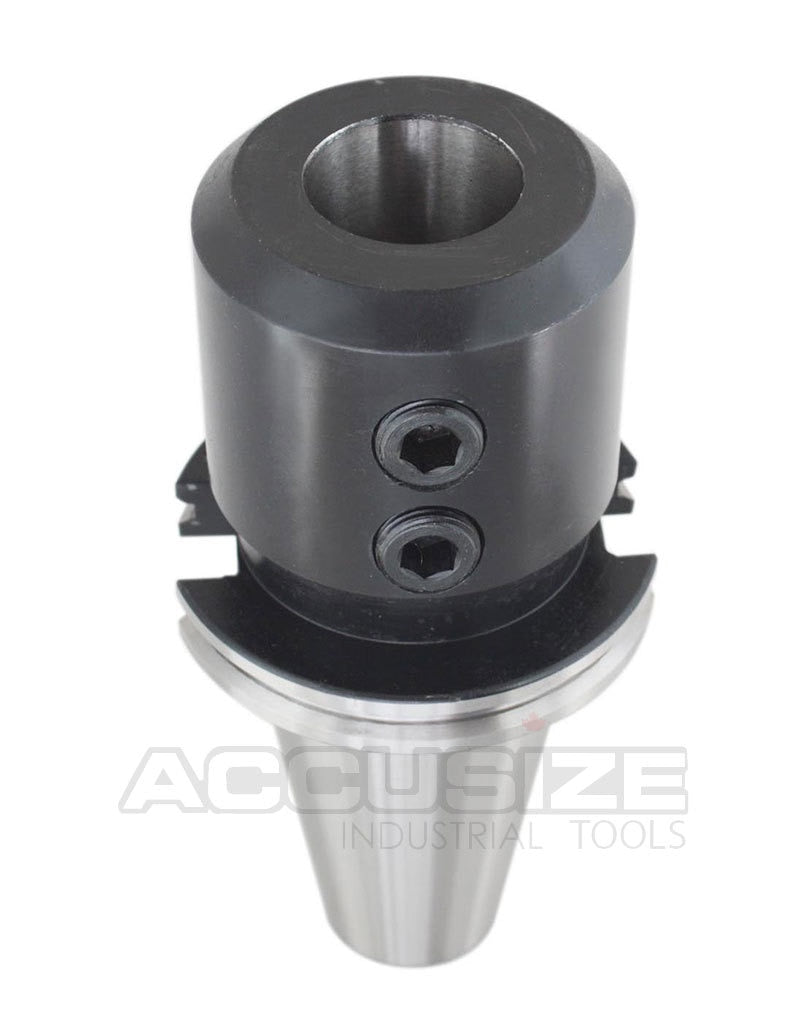

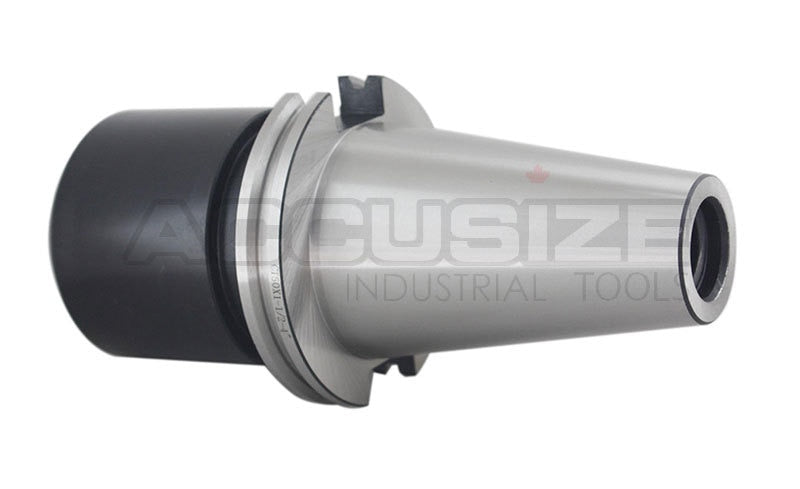

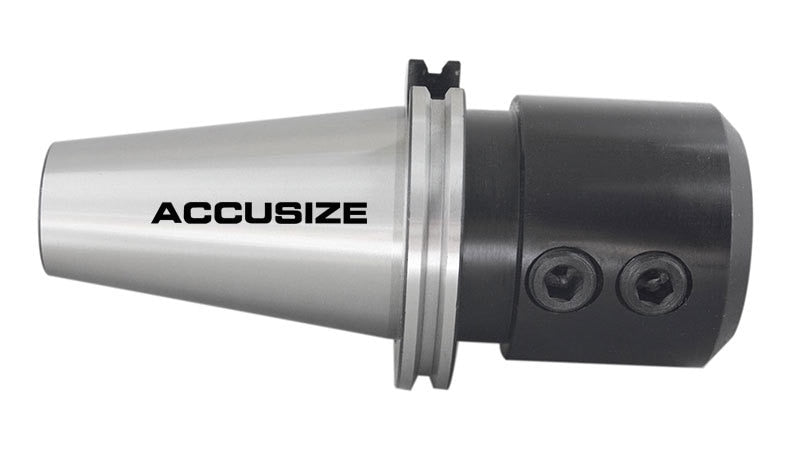

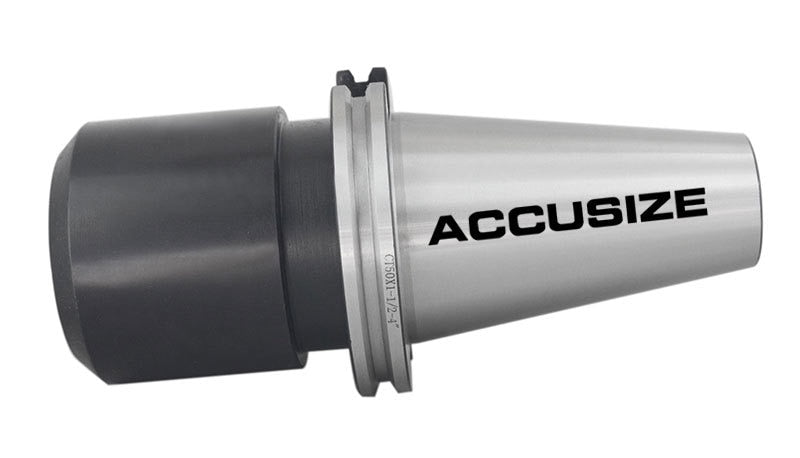

CAT50 C.N.C. End Mill Holders
From
$123.00 CAD
Unit price
/
Unavailable
CAT50 C.N.C. End Mill Holders
- Caterpillar v-flange end mill Holders
- Produced According to AT3 Specifications.
- Made of alloy forged steel for long durable service life.
- Hardened to RC 52-56 and ground to ensure maximum accuracy
- End mill socket T.I.R.<0.0002".
- Through spindle coolant capability.
- Retention knobs are sold separately.
- Draw bar Thread: CAT-50 1"-8.
| Item # | D | L | L1 | A | B | C |
|---|---|---|---|---|---|---|
| 6780-7040 | 3/8" | 2-1/2" | 6-1/2" | 25/32" | - | 1-1/4" |
| 6780-7043 | 1/2" | 2-5/8" | 6-5/8" | 7/8" | - | 1-1/4" |
| 6780-7046 | 5/8" | 3-3/4" | 7-3/4" | 15/16" | - | 1-3/4" |
| 6780-7049 | 3/4" | 3-3/4" | 7-3/4" | 1" | - | 1-3/4" |
| 6780-7052 | 7/8" | 3-3/4" | 7-3/4" | 1-1/16" | 7/8" | 2-3/64" |
| 6780-7054 | 1" | 4" | 8" | 1-1/8" | 1" | 2-31/64" |
| 6780-7057 | 1-1/4" | 4" | 8" | 1-1/8" | 1" | 2-3/4" |
| 6780-7060 | 1-1/2" | 4" | 8" | 1-1/8" | 1" | 3-9/64" |
| 6780-7063 | 2" | 5-5/8" | 9-5/8" | 1-3/16" | 1-7/16" | 3-15/16" |
