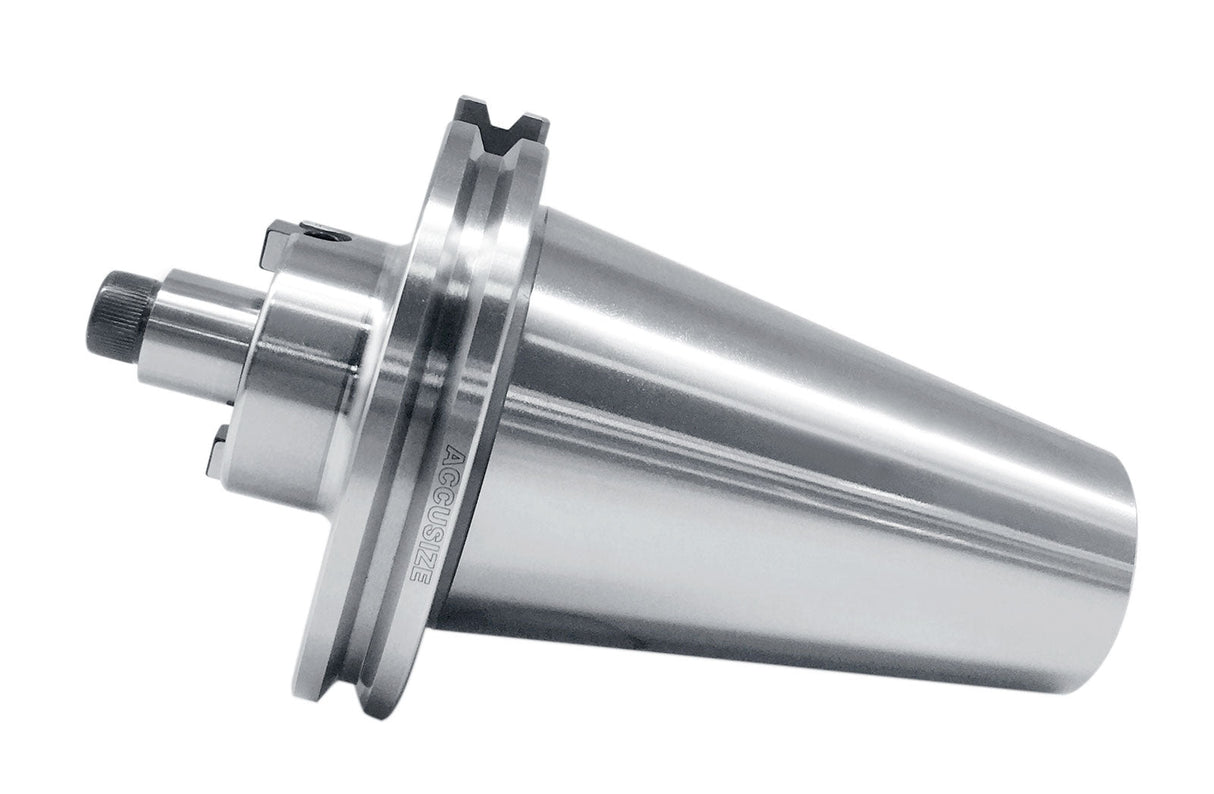

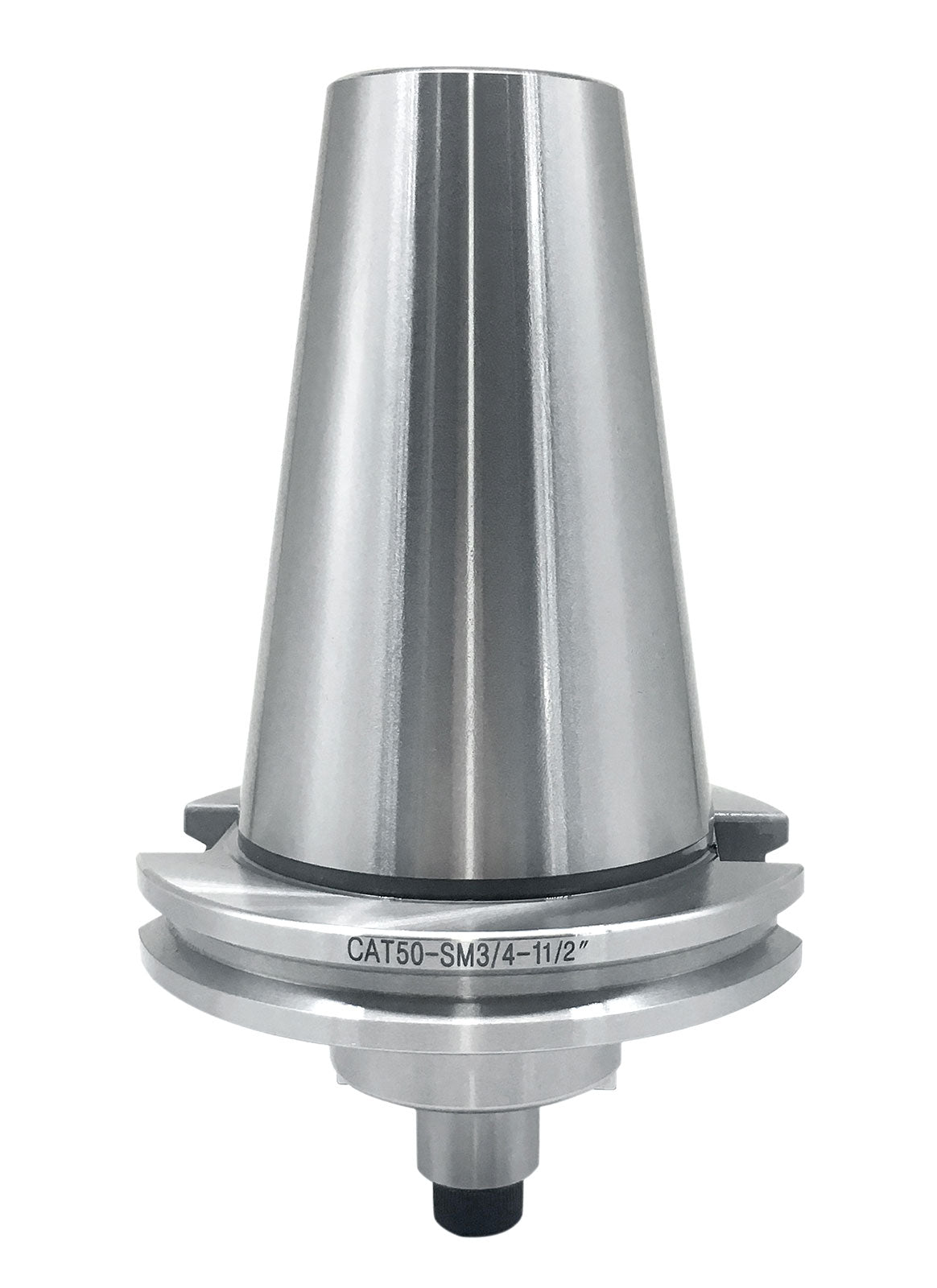

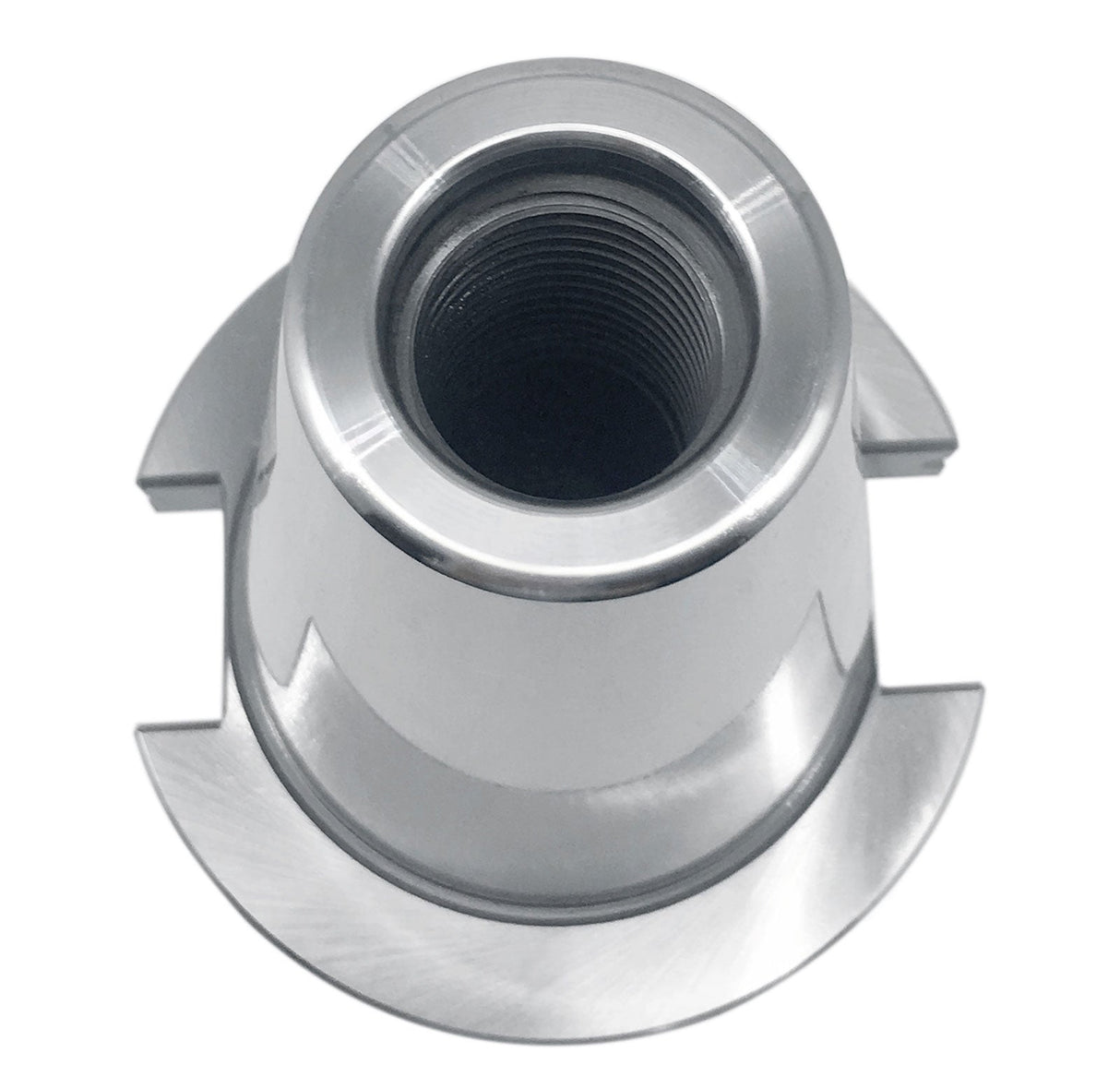

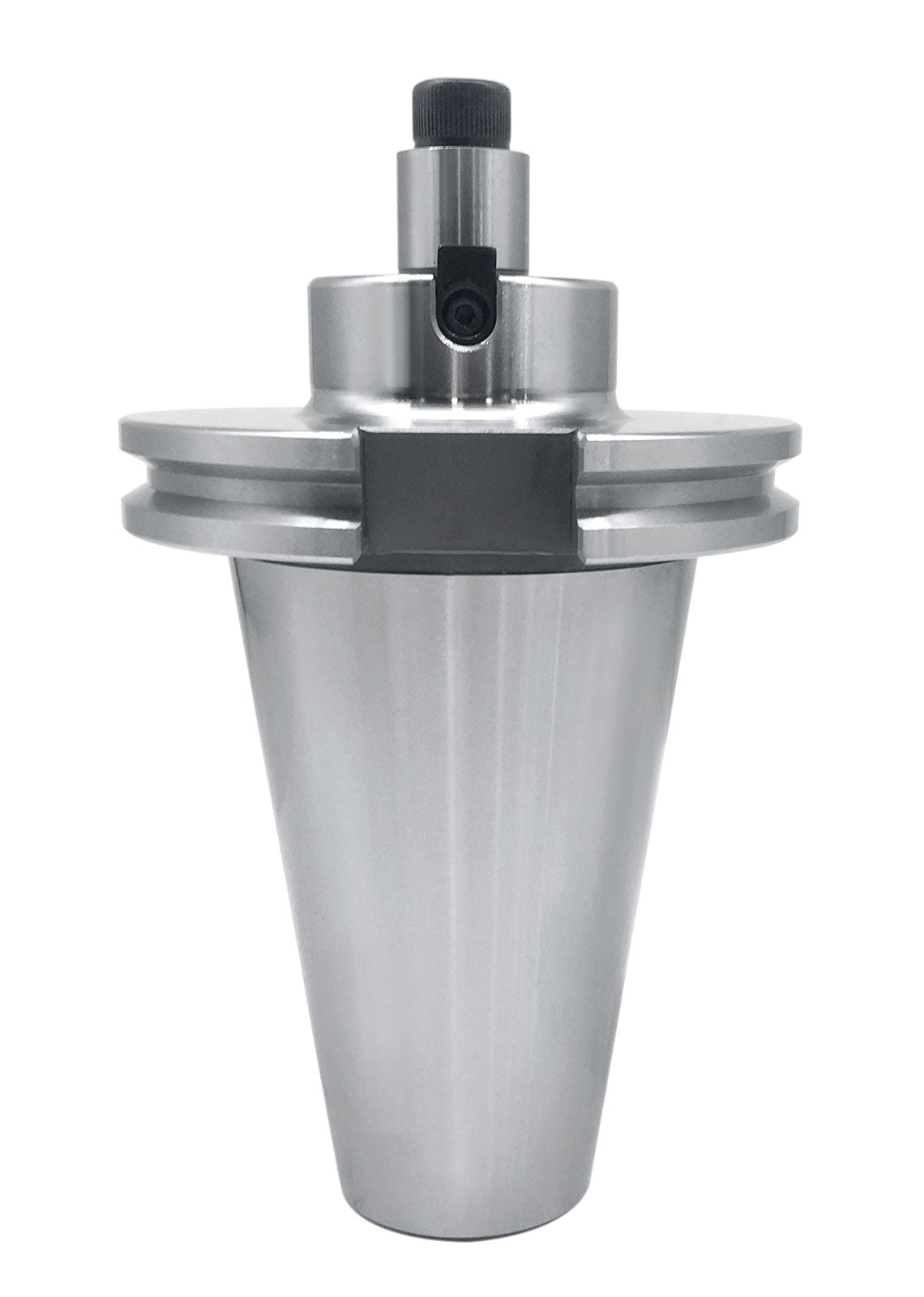

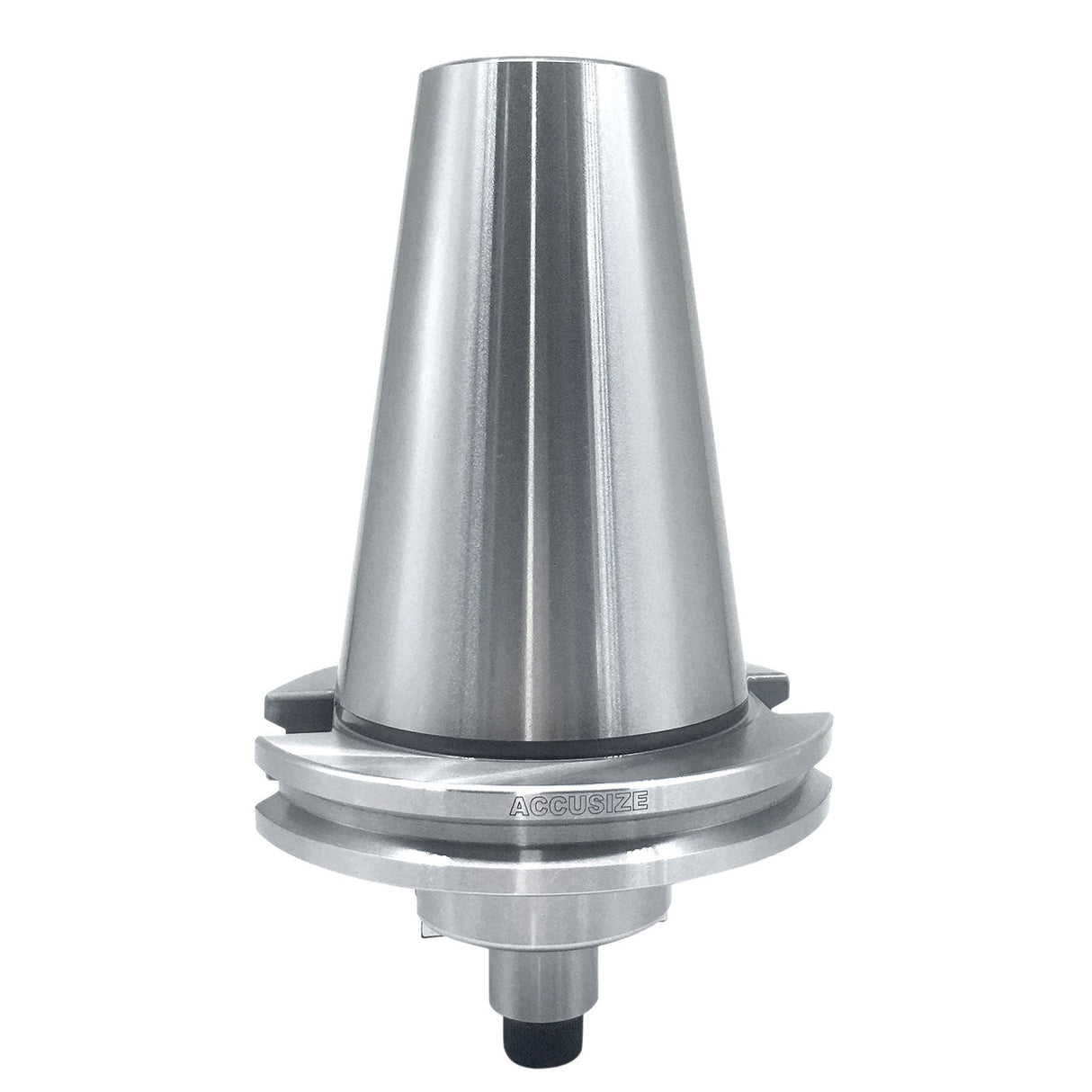

CAT50 Caterpillar V-Flange Shell End Mill Holders
- Interchangeable with brown & sharp, Burgmaster, Carboloy, Cincinnati Milacron, De Vlieg, Erickson, Excello, Moog, Pratt & Whitney, Universal, Valenite, White Sund Strand and other machining centers.
Item # | D | L1 | L | A | B | d | M |
---|---|---|---|---|---|---|---|
6780-7110 | 1/2" | 1-3/8" | 6-1/16" | 9/16" | 1-3/8" | 0.735"" | 1/4"-28UNF |
6780-7116 | 3/4" | 1-3/8" | 6-3/16" | 11/16" | 1-49/64" | 0.563" | 3/8"-24UNF |
6780-7122 | 1" | 2" | 6-11/16" | 11/16" | 2-11/64" | 0.750" | 1/2"-20UNF |

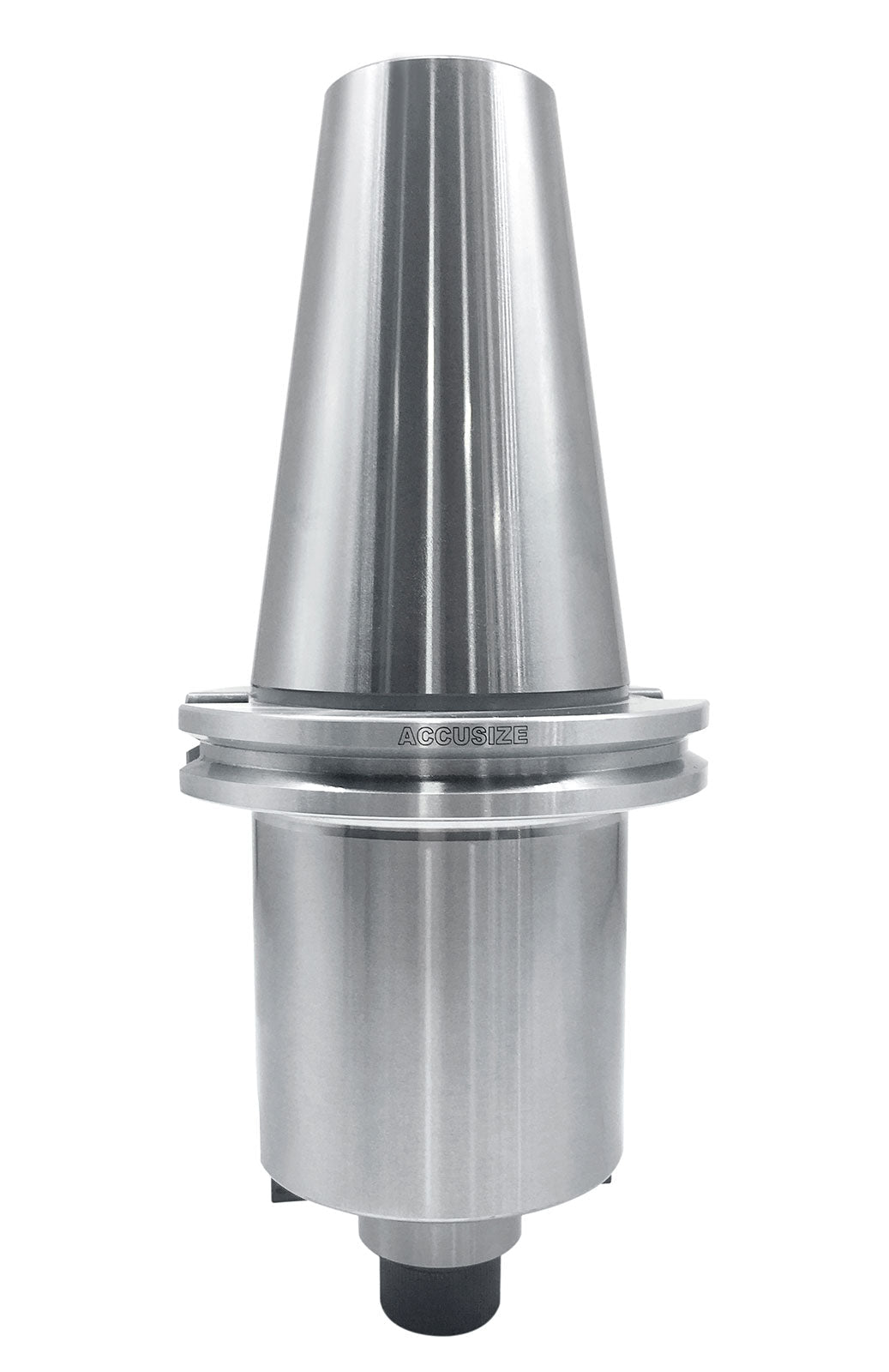

6780-7130 | 1-1/4" | 3-1/2" | 8-3/16" | 11/16" | 2-33/64" | 0.940" | 5/8"-18UNF |
6780-7136 | 1-1/2" | 4" | 8-15/16" | 15/16" | 3-5/64" | 1.874" | 3/4"-16UNF |
6780-7142 | 2" | 4" | 8-15/16" | 15/16" | 3-55/64" | 2.484" | 1"-14UNF |
