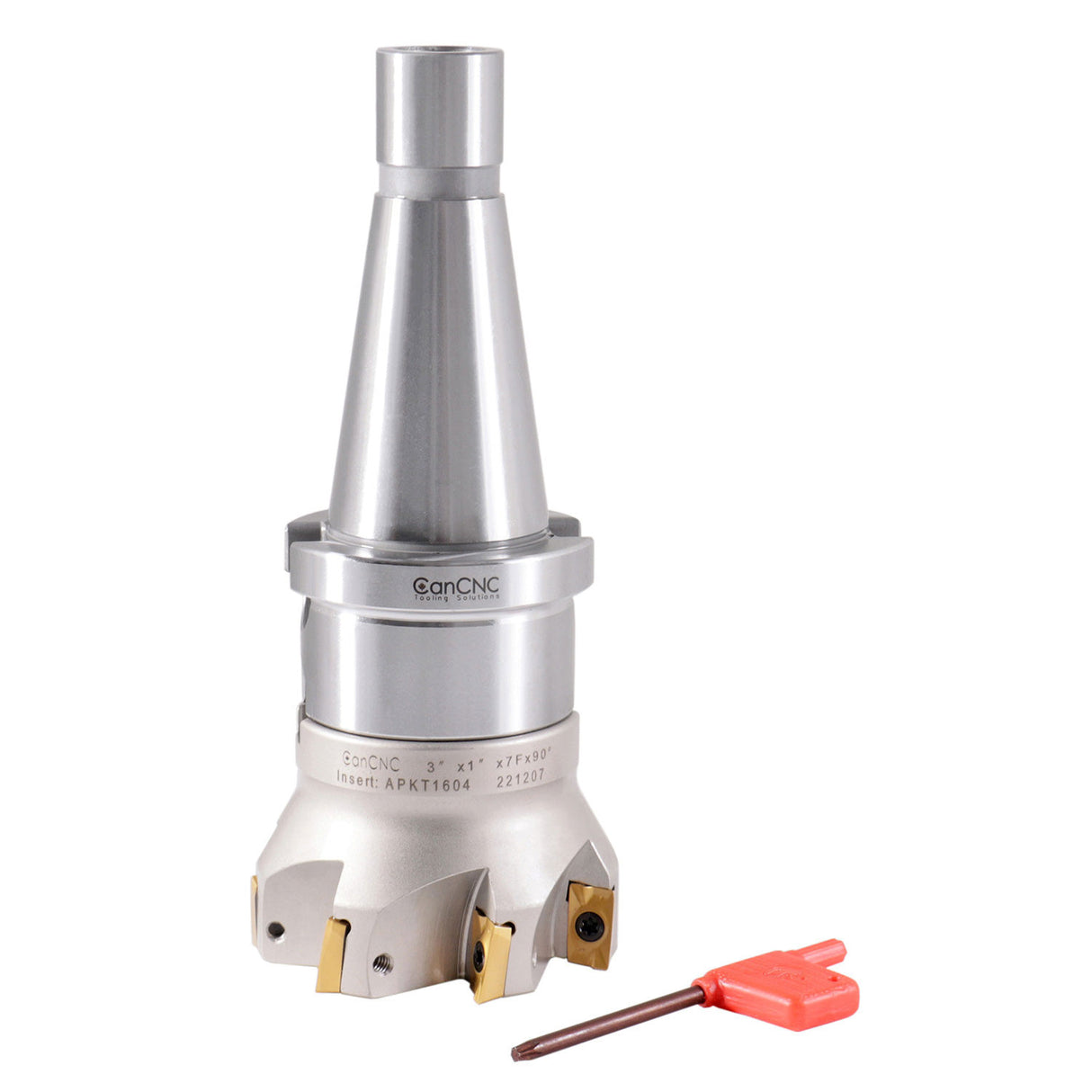

3" Dia. 7 FLute, 90° Square Shoulder Indexable Face Mill with 7pc APKT1604 Inserts Installed with ISO40 Face Mill Holder, #IS40-4518

3 inch Cutting Diameter, 7 Flute, 90° Square Shoulder Indexable Face Mill with 7pc APKT1604 Inserts Installed with ISO40 Face Mill Holder, #IS40-4518

3" x 1" arbor hole, 7 flute with 7 APKT1604 inserts 90° Square Shoulder Indexable Face Mill with APKT Insert

• 90° cutting angle
• Screw down inserts
• Radial rake angle: -10°
• Axial rake angle: +7°
• All types of square shoulder face milling, side milling and full slot milling (shaft end mills) of steels, alloyed steels, stainless and heat resistant steels, case irons and aluminum alloys.
• Fitted with 10° positive rectangular insert allow high depth of cut and feed per tooth
• Uses APKT / APHW / APKR_APHT / APMT insert (sold separately)
• Cutting Diameter: 3"
• Arbor Hole d: 1"
• Overall Length: 2.00"
• ap: 0.551:
• No. of Inserts: 7
• Screw: M4 x 8.4
• Inserts: APKT1604

ISO40 1'' Shell End Mill Holder

• Drawbar Thread: 5/8"-11
