SKU: CNMA432CA4505

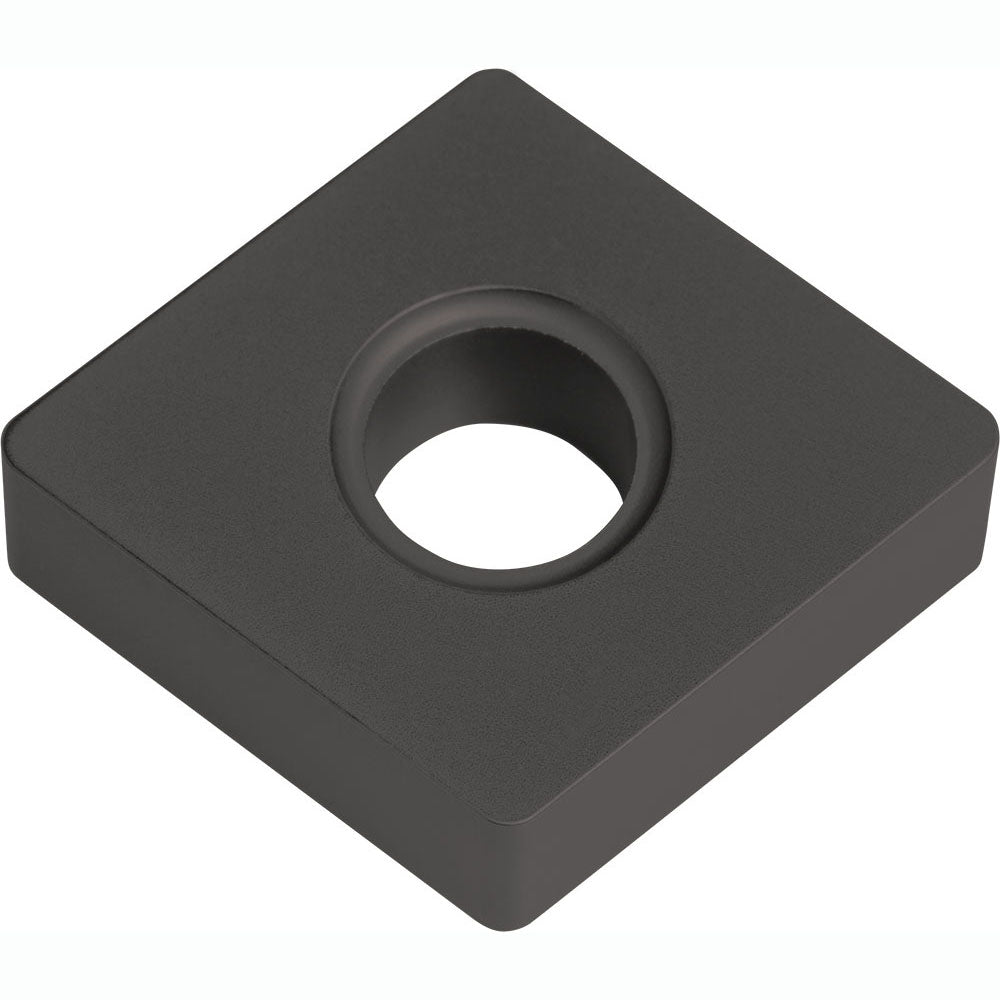

Kyocera Turning Insert: CNMA432 CA4505

$3.25 CAD $8.91

This Kyocera CNMA432 CA4505 Turning Insert is perfect for external turning, facing, boring, and internal facing. With 4 cutting edges and improved bonded force, it provides a stable, long tool life. Ideal for high-speed cutting of gray and nodular cast iron, even in light interrupted cutting.

ANSI Insert Code CNMA432
ISO Insert Code CNMA120408
Relief Angle 0
Insert Style CNMA
Corner Radius (mm) 0.79
Corner Radius (Inch) 1/32
Corner Radius (Decimal Inch) 0.0313
Included Angle 80
Manufacturer Grade CA4505
Coating/Finish TiCN; Al2O3
Wiper Edge No
Insert Hand Neutral
Insert Thickness (Inch) 3/16
Insert Thickness 4.76
Insert Thickness (Decimal Inch) 0.1875
Series ISOI
Inscribed Circle (Decimal Inch) 0.5000
Inscribed Circle (Inch) 1/2
Inscribed Circle (mm) 12.70
Insert Material Carbide
Insert Shape C - Diamond (Rhombic) 80-Deg
Chip Breaker Operation Flat Top
Side Clearance Negative
Number Of Cutting Edges 4
Insert Shape Code C
Hole Diameter (Decimal Inch) 0.2032
Hole Diameter (Mm) ( - 0 Decimals) 5.16
Maximum Depth of Cut (Decimal Inch) 0.1667
Insert Holding Method Pin; Clamp
Width (Inch) 1/2
Clearance Code N
Tolerance Code M
Coating Process CVD
Length Range (Decimal Inch) 0.5000 - 0.6000
Rake Negative
Insert Length (Decimal Inch) 0.5000
Insert Length (Inch) 1-1/64
Primary Workpiece Material Cast Iron
Primary Workpiece Material Code K
Iso Code CNMA120408
Standards ISO; ANSI
Manufacturers Catalog Number TJD00561
Material Grade K10; K01
Coating Classification CVD
Chip Breaker Flat Top
Industry Standard Number CNMA432CA4505
Width (Decimal Inch - 4 Decimals) 0.5000
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Chamfering; Facing; Internal Facing; Boring
ANSI Size Code 432
ISO Size Code 120408
UNSPSC Code 23242105
Insert Size Code 432
