SKU: WNMG332HQCA5515

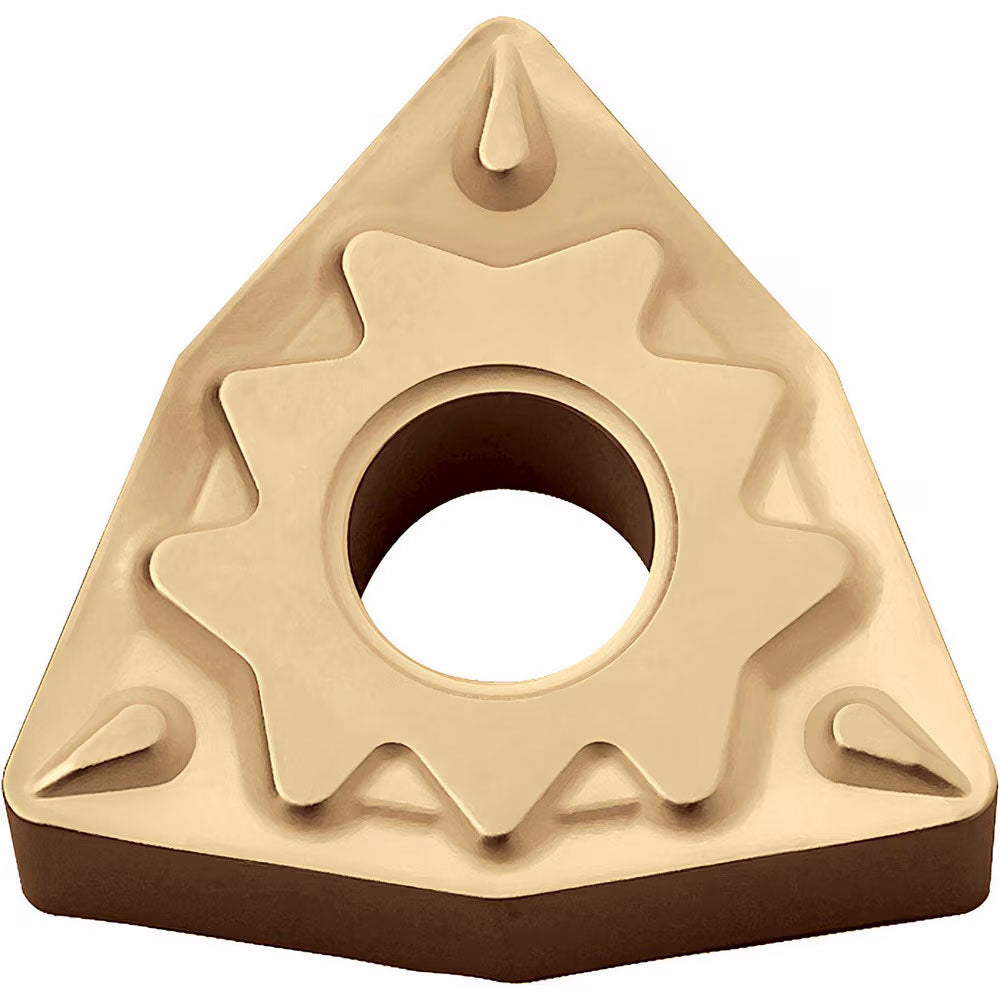

Kyocera Turning Insert: WNMG060408HQ CA5515,

$3.95 CAD $8.08

Kyocera Turning Insert: WNMG060408HQ CA5515 is a high-quality, carbide insert coated with TiCN, Al2O3 & TiN for improved performance. With a neutral design and a 0.0313" corner radius, this insert is perfect for precision machining. Its 80-degree W - Trigon shape is part of the ISOI series, ensuring versatility and reliability.

Specifications:

ANSI Insert Code WNMG332
ISO Insert Code WNMG060408
Relief Angle 0
Insert Style WNMG
Corner Radius (Inch) 1/32
Corner Radius (Decimal Inch) 0.0313
Included Angle 80
Manufacturer Grade CA5515
Coating/Finish TiCN; TiN; Al2O3
Wiper Edge No
Insert Hand Neutral
Insert Thickness (Inch) 3/16
Insert Thickness (Decimal Inch) 0.1875
Series ISOI
Inscribed Circle (Decimal Inch) 0.3750
Inscribed Circle (Inch) 3/8
Insert Material Carbide
Insert Shape W - Trigon 80-Deg
Chip Breaker Operation Medium Machining; Finishing
Grade Characteristics Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance Negative
Number Of Cutting Edges 6
Insert Shape Code W
Hole Diameter (Decimal Inch) 0.1500
Maximum Depth of Cut (Decimal Inch) 0.1707
Insert Holding Method Pin; Clamp
Clearance Code N
Tolerance Code M
Coating Process CVD
Length Range (Decimal Inch) 0.5000 - 0.6000
Rake Negative
Insert Length (Decimal Inch) 0.5120
Primary Workpiece Material Steel
Primary Workpiece Material Code P
Iso Code WNMG060408HQ
Manufacturers Catalog Number TJQ08281
Material Grade P01; P10; P20
Coating Classification CVD
Chip Breaker HQ
Rake Angle -15
Cutting Edge Style Honed
Industry Standard Number WNMG332HQCA5515
Width (Decimal Inch - 4 Decimals) 0.5120
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Chamfering; Facing; Internal Facing; Boring
ANSI Size Code 332
ISO Size Code 060408
UNSPSC Code 23242105
Insert Size Code 332
