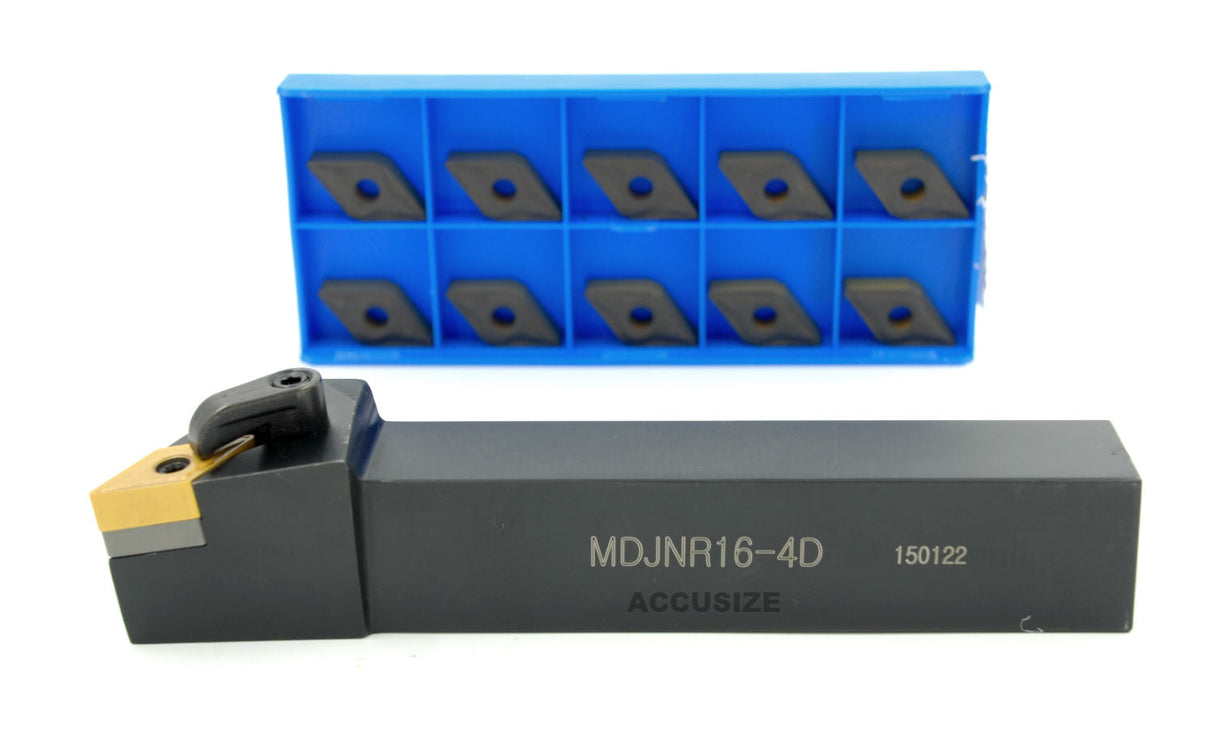

MDJN R/L Toolholders with DNMG-432 Carbide Inserts
$152.00 CAD
Unit price
/
Unavailable

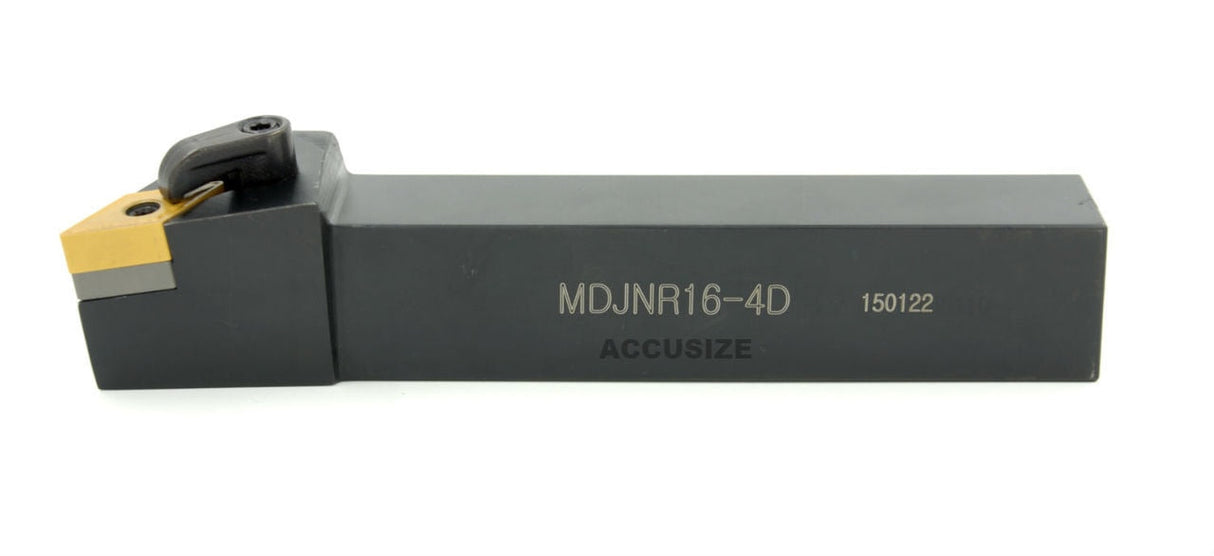

MDJN R/L Toolholders with DNMG432 Carbide Inserts
- 3° side cutting edge angle
- For turning, facing and copying
- Accept negative 55° diamond DNMG DNMA inserts

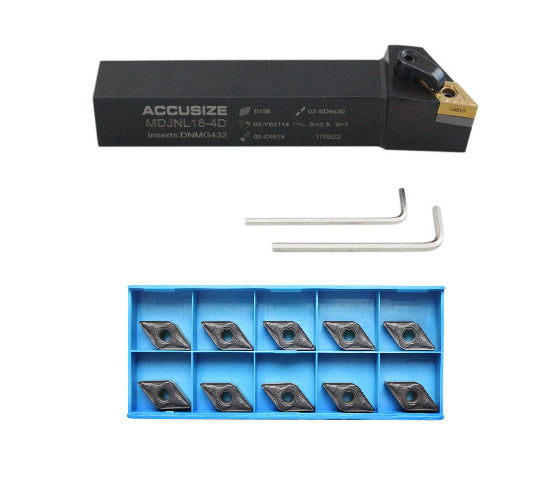

- With 10 pcs of DNMG432 Carbide Inserts
| Item# | Right/Left Hand | Model | Shank Square (A & B) | F | L | Inserts | Finger Clamp | Clamp Screw | Locking Pins | Shims | Inserts | |
| I.C. | T | |||||||||||
| 2302-5020INS | Right | MDJN L-16-4D | 1" | 1.25" | 6" | 1/2" | 3/16" | CL-30 | XNS0829 | NL-0617 | D1504B | With 10 DNMG CVD Coated |
| 2302-6020INS | Left | MDJN L-16-4D | 1" | 1.25" | 6" | 1/2" | 3/16" | CL-30 | XNS0829 | NL-0617 | D1504B | With 10 DNMG CVD Coated |
Carbide Inserts
DNMG432 Carbide Inserts CVD Coated Black/Yellow 10 ps/box, #2206-1028
- CVD Coated
- Insert Grade: BPS101
- Chip Breaker: MD
- Material: Carbide
- DNMG
- Coating: CVD Al2O3 TICN
- Machining Parts Material: Steel
- Machining Process: finish
Product features
- BPS101 Black/Yellow
- Coating Grade: CVD coated carbide grade, wear-resistance materials coated on the gradient sintered substrate which has both good hardness, toughness.
- Can bear high temperatures.
- For steel and steel castings finishing to roughing processing.
- Continue cutting to light-interrupted cutting. Machining of gray and ductile iron at low to medium cutting speed.
- For hard materials, continuous cutting and light-interrupted cutting from finishing to roughing.
- Wet and dry processing.
- The combination of fibrous TICN and fine-grained Al2O3 increases abrasion resistance and anti-chipping.
- Preferred choice chip breaker on General Purpose Finishing
Features of chip breaker
- For medium-duty turning
- With broad capability for steel, stainless steel, gray and nodular cast-iron
- Operations: turning, facing and profiling
- Advantages: all-round, reliable with problem-free machining
- Limitations: depth of cut and feed, risk of overloading the cutting edge
- Components typically: axles, shafts, hubs, gears, etc.
| Item # | ANSI # | I.S.O. # | I.C | Thickness | Hole | Radius |
| 2206-1028 | DNMG432-MD | DNMG150608-MD | 1/2'' | 1/4'' | 13/64'' | 1/32'' |
