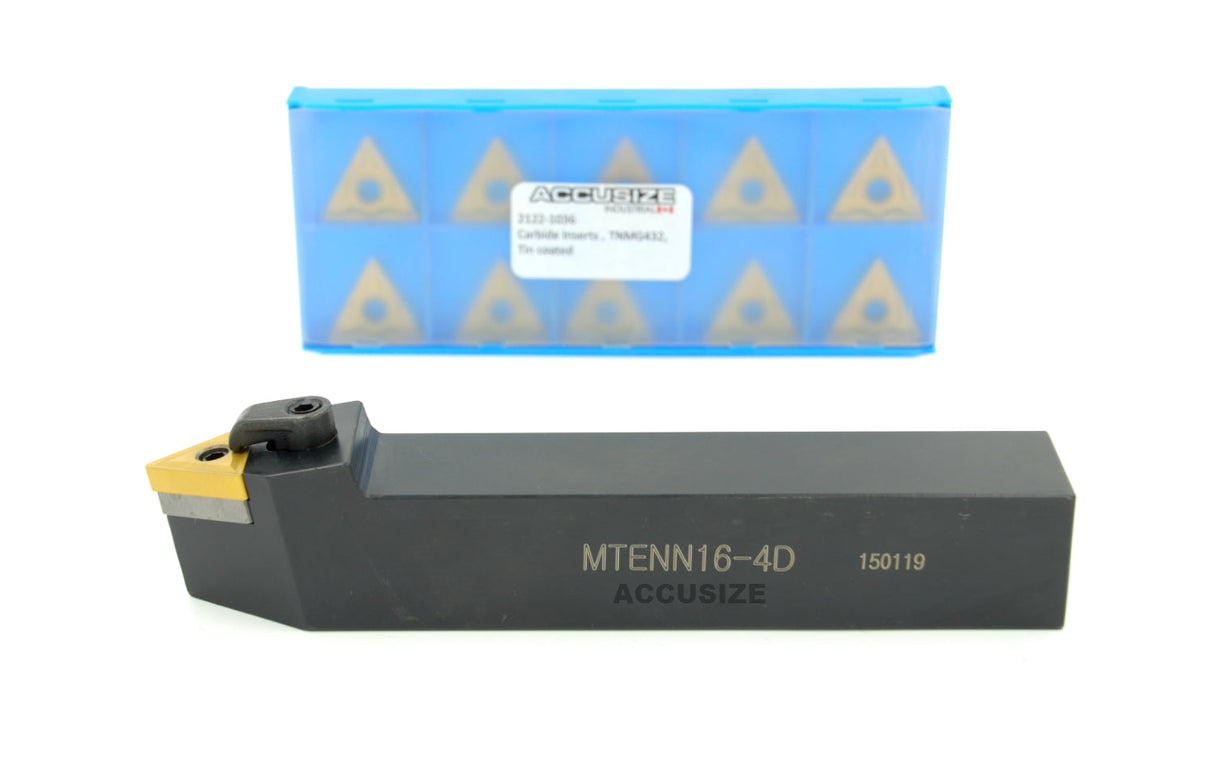

MTENN Toolholders with TNMG Carbide Inserts
From
$114.00 CAD
Unit price
/
Unavailable

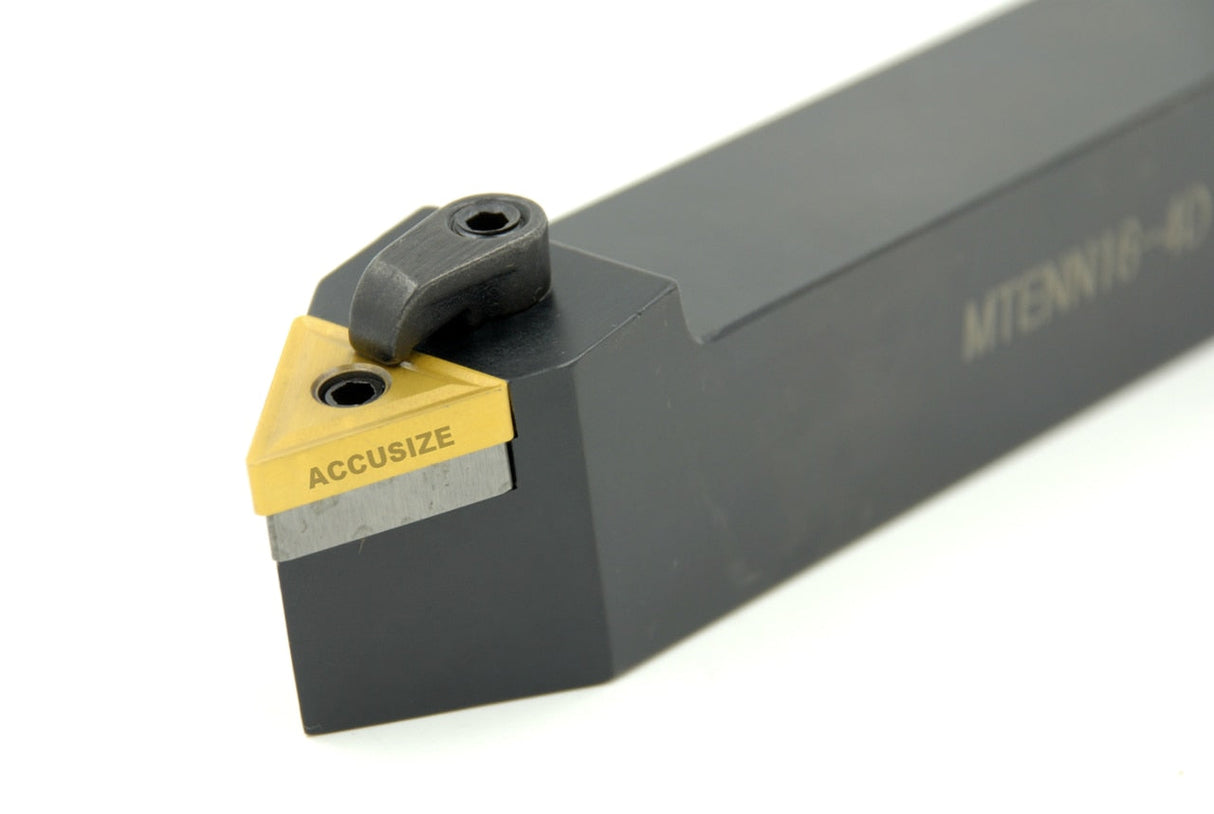

MTENN Toolholders with TNMG Carbide Inserts
- For facing
- Negative rake
- 30° end cutting edge angle
- TNMG Carbide inserts

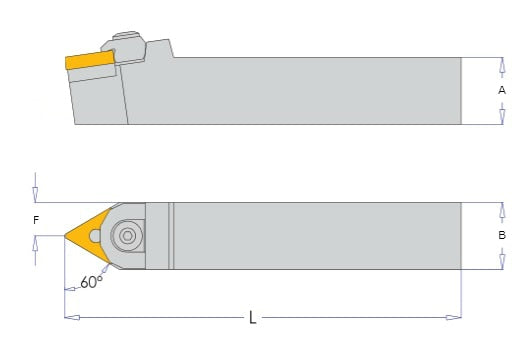

| Item# | Model | Shank Square | F | L | Inserts | Finger Clamp | Clamp Screw | Locking Pins | Shims | |||
| I.C. | Coated | Size | Thickness | |||||||||

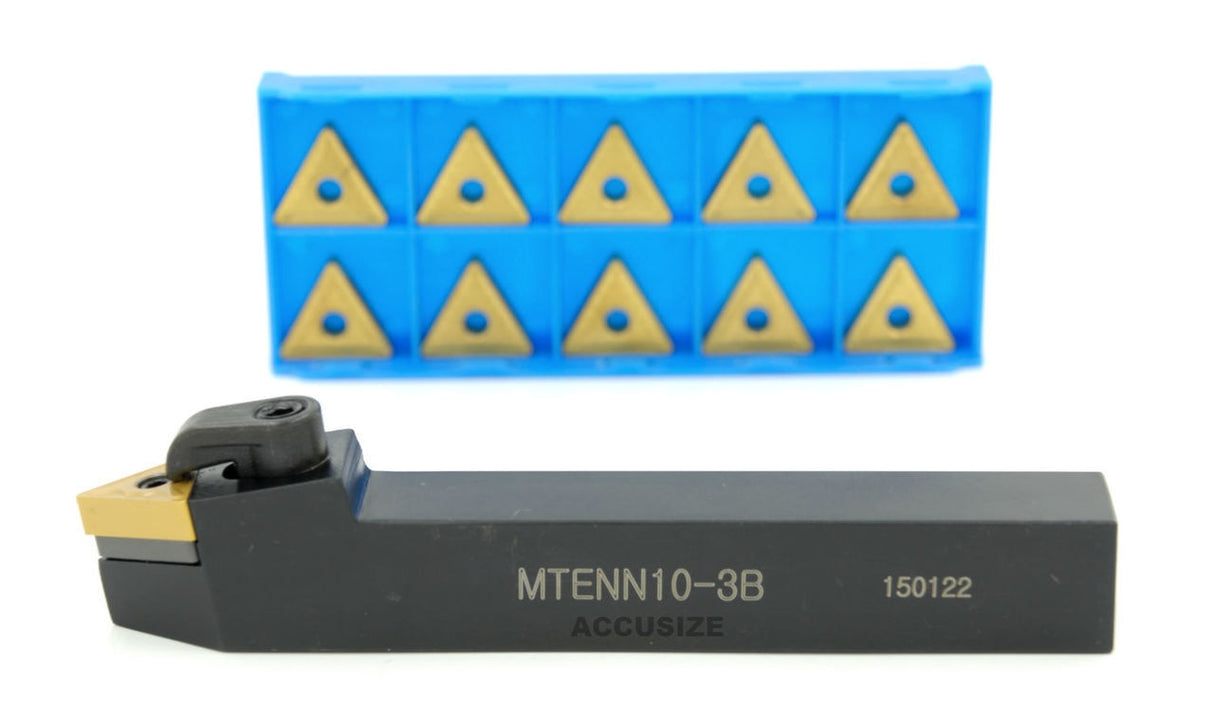

| 2313-5014INS | MTENN-10-3B | 5/8" | 5/16" | 4-1/2" | 3/8" | TiN | TNMG332 | 3/16" | CL-6 | XNS-0520 | NL-0414 | T1603B |

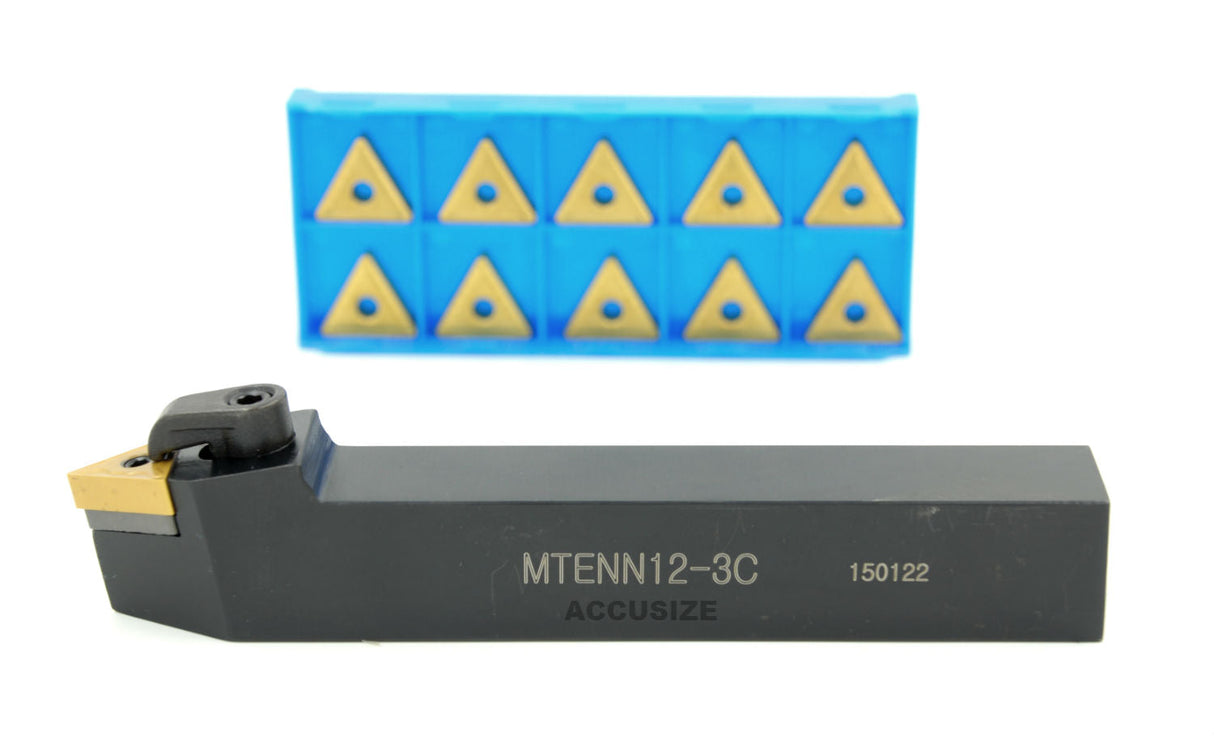

| 2313-5016INS | MTENN-12-3C | 3/4" | 3/8" | 4-1/2" | 3/8" | TiN | TNMG332 | 3/16" | CL-6 | XNS-0829 | NL-0414 | T1603B |

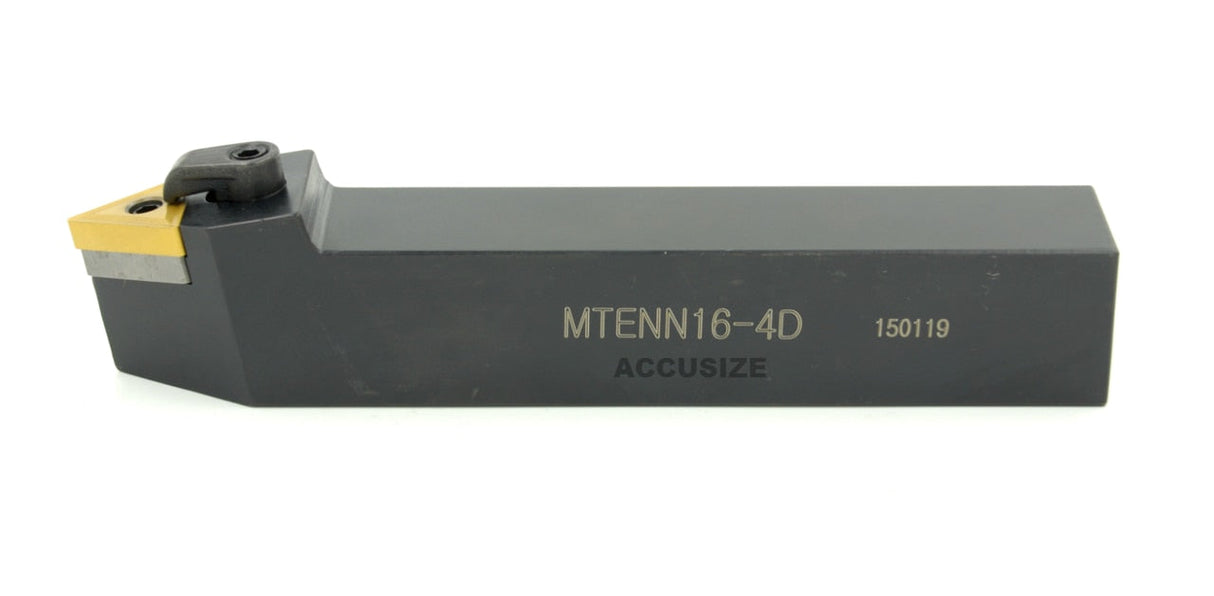

| 2313-5020INS1 | MTENN-16-4D | 1" | 1/2" | 6" | 1/2" | TiN | TNMG432 | 3/16" | CL-12 | XNS-0829 | NL-0617 | T2203B |
| 2313-5020INS2 | MTENN-16-4D | 1" | 1/2" | 6" | 1/2" | CVD | TNMG432 | 3/16" | CL-12 | XNS-0829 | NL-0617 | T2203B |
Inserts
TNMG, Carbide Inserts, Tin Coated, 10 Pcs/Set
- ANSI #: TNMG332
- ISO #: TNMG160408
- Insert Style: TNMG
- Insert Size: 332
- IC: 3/8"
- Thickness: 3/16"
- Thru Hole: 0.15"
- Radius: 1/32
| Item | Description |
| 2122-1034 | C5 Grade Coated, TNMG332 |
TNMG Carbide Inserts CVD Coated Black/Yellow 10 ps/box
- CVD Coated
- Insert Grade: BPS101
- Chip Breaker: MD
- Material: Carbide
- Coating: CVD Al2O3 TICN
- Machining Parts Material: Steel
- Machining Process: finish
Product features
- BPS101 Black/Yellow
- Coating Grade: CVD coated carbide grade, wear-resistance materials coated on the gradient sintered substrate which has both good hardness, toughness
- Can bear high temperatures
- For steel and steel castings finishing to roughing processing
- Continue cutting to light interrupted cutting. Machining of gray and ductile iron at low to medium cutting speed
- For hard materials continuous cutting and light interrupted cutting from finishing to roughing
- Wet and dry processing
- Combination of fibrous TICN and fine grained Al2O3 increases abrasion resistance and anti-chipping
- Preferred choice chip breaker on General Purpose Finishing
Features of chipbreaker
- For medium-duty turning
- With broad capability for steel, stainless steel, grey and nodular cast-iron
- Operations: turning, facing and profiling
- Advantages: all-round, reliable with problem-free machining
- Limitations: depth of cut and feed, risk of overloading the cutting edge
- Components typically: axles, shafts, hubs, gears, etc.
| Item # | ANSI # | I.S.O. # | I.C | Thickness | Hole | Radius |
| 2222-1034 | TNMG332-MD | TNMG160408-MD | 3/8'' | 3/16'' | 5/32'' | 49/64'' |
| 2222-1036 | TNMG432-MD | TNMG220408-MD | 1/2'' | 3/16'' | 13/64'' | 1/32'' |
