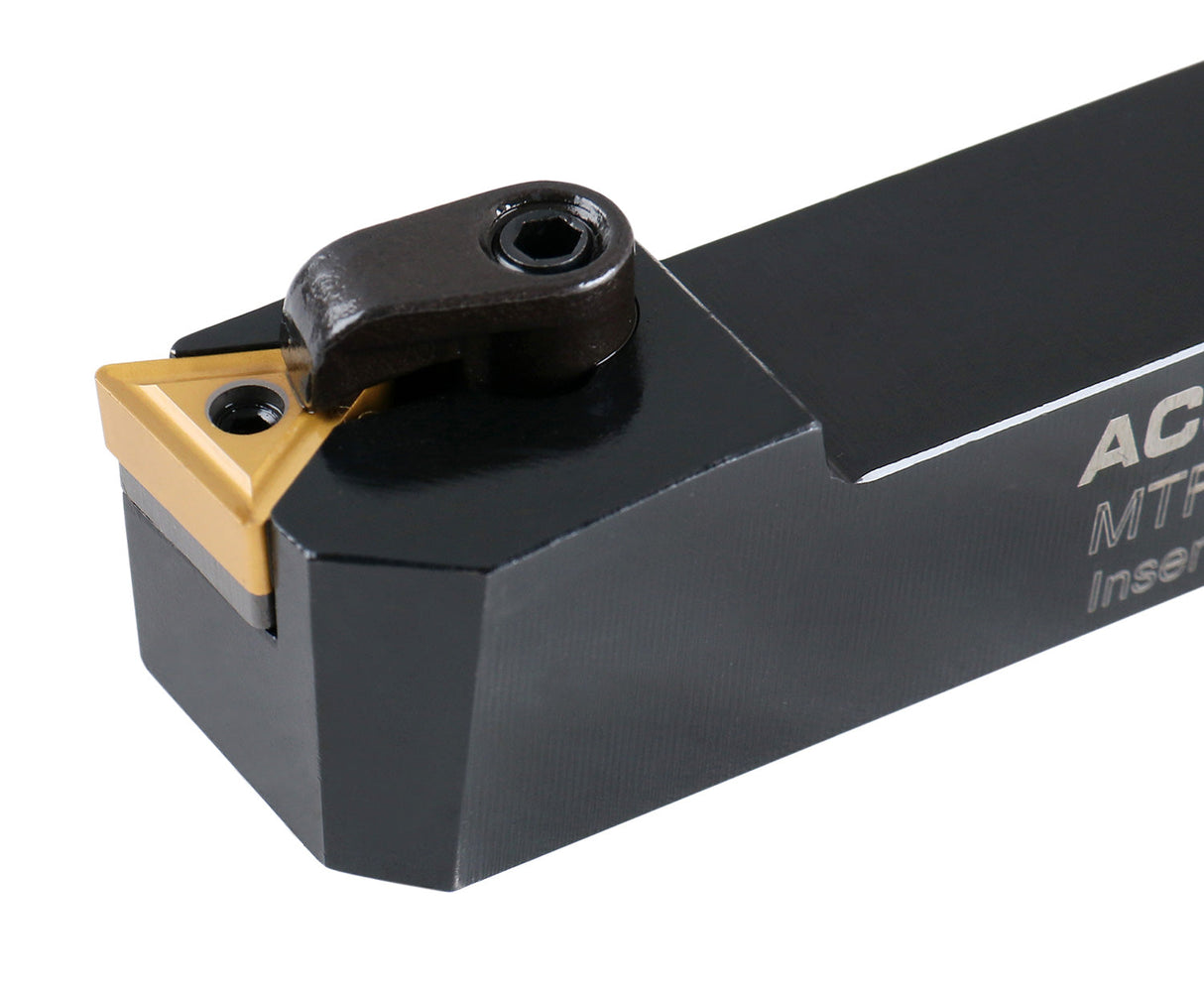

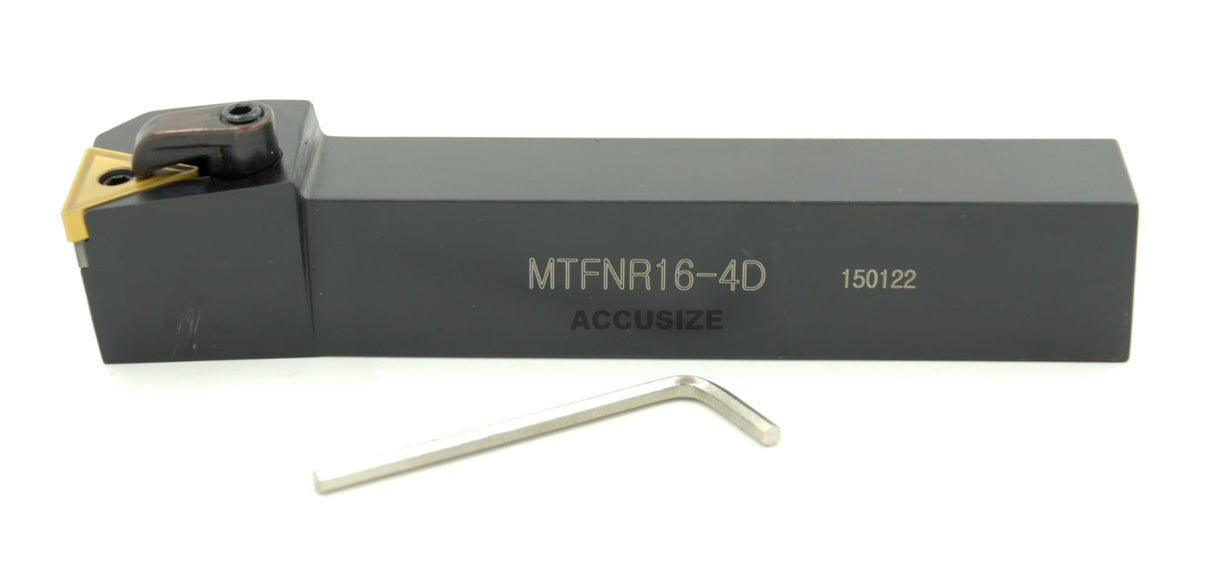

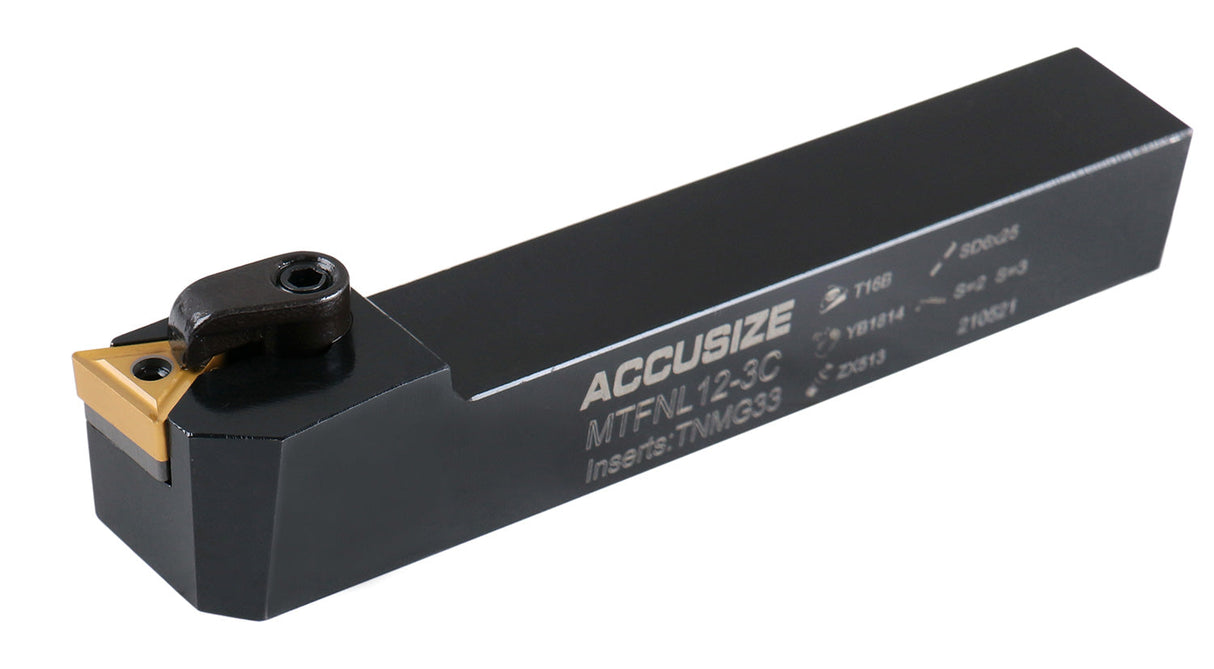

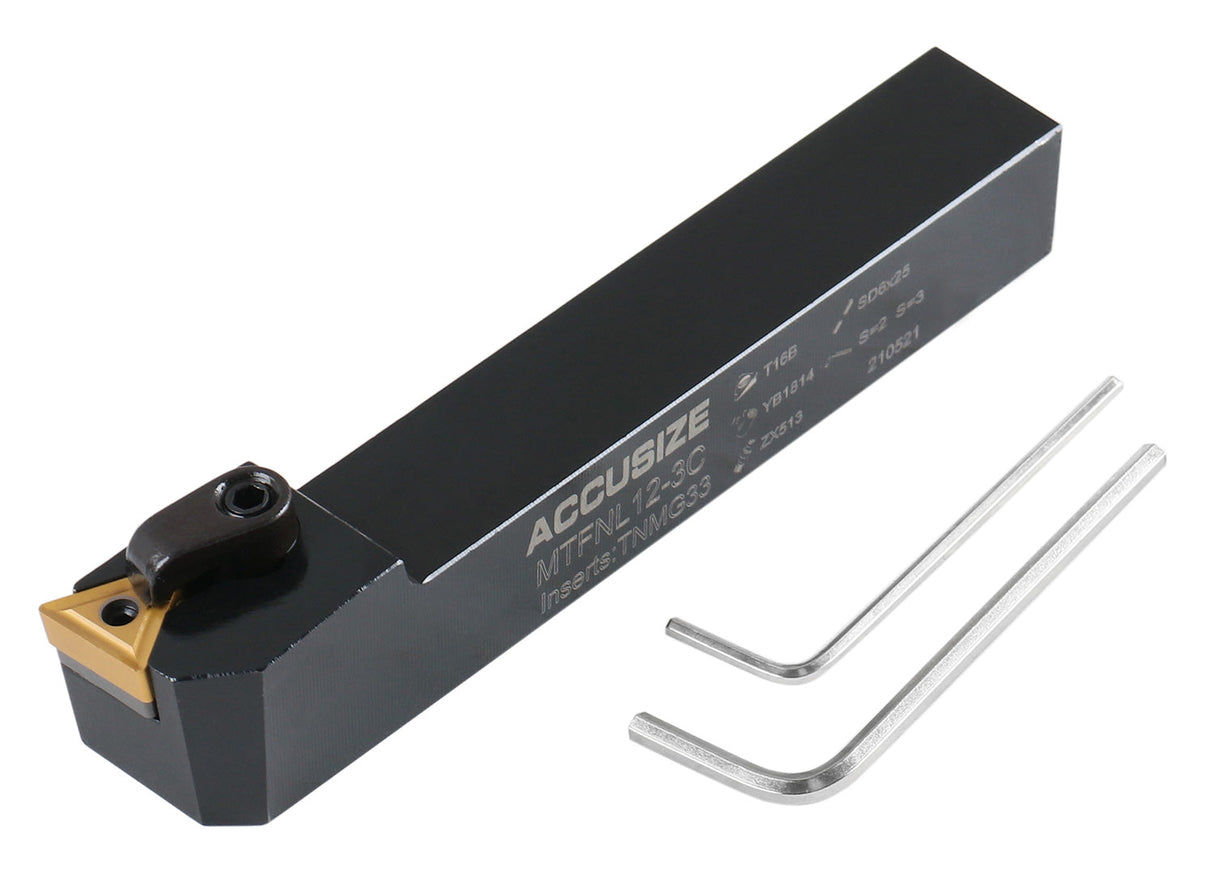

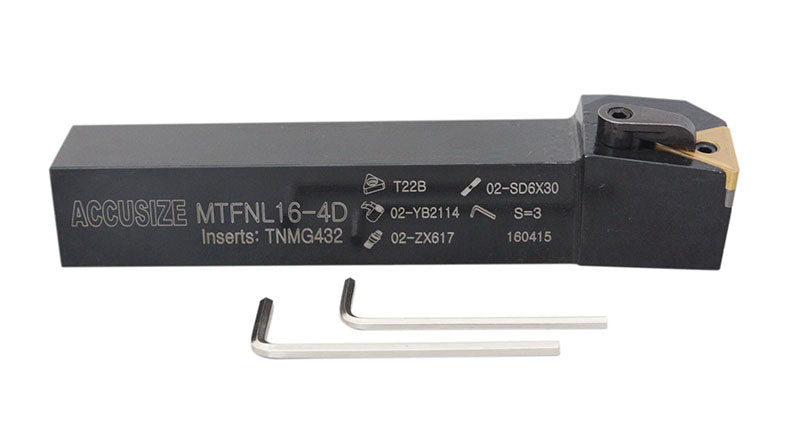

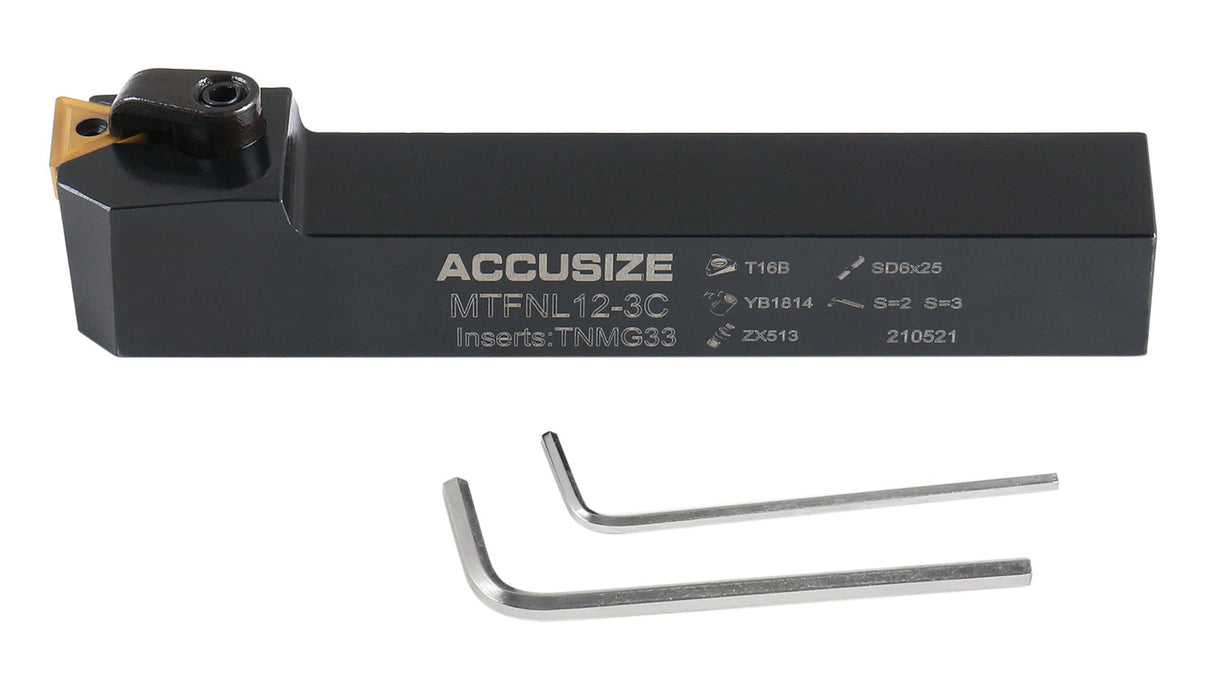

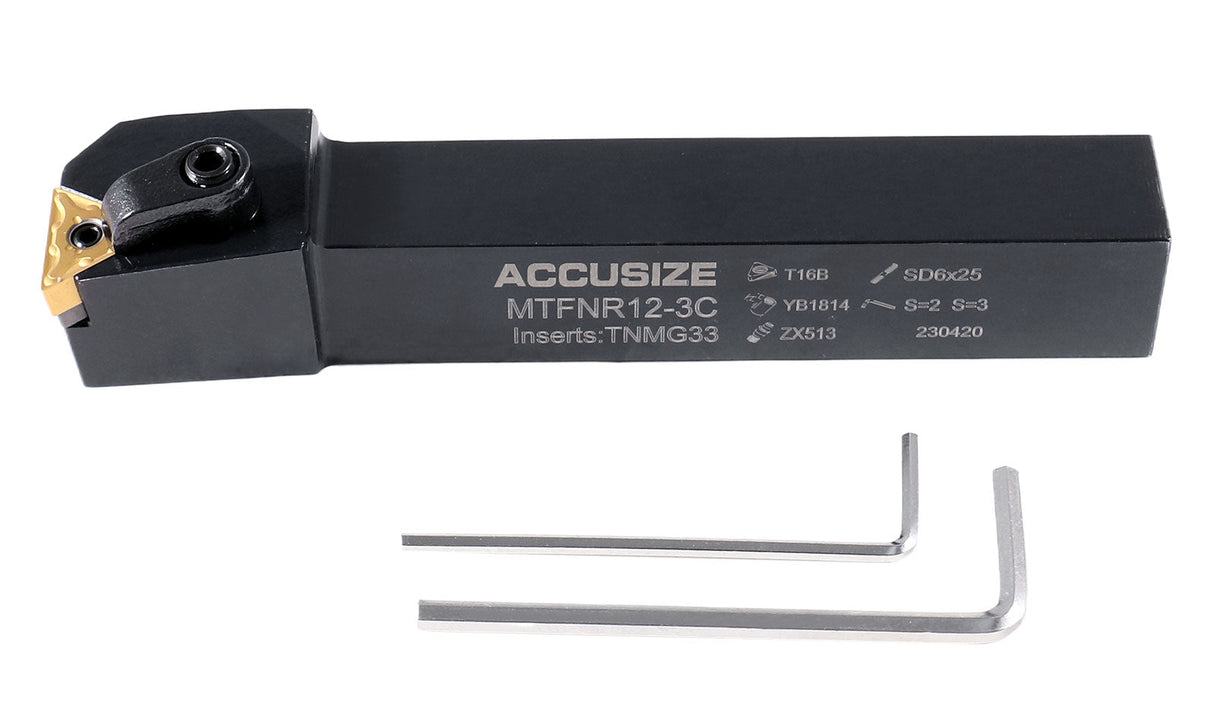

MTFN R/L Toolholders
From
$48.00 CAD
Unit price
/
Unavailable
MTFN R/L Toolholders
- For turning and facing
- Negative rake
- 0° end cutting edge angle
- TNMG inserts
| Item# | Right/Left Hand | Model | Shank Square (A & B) | F | L | Inserts | Finger Clamp | Clamp Screw | Locking Pins | Shims | |
| I.C. | Thickness | ||||||||||
| 2310-5014 | Right | MTFN R-12-3C | 3/4" | 3/4" | 4-1/2" | 3/8" | 3/16" | CL-6 | XNS-0520 | NL-0414 | T1603B |
| 2310-5018 | Right | MTFN R-16-4D | 1" | 1 1/4" | 6" | 1/2" | 3/16" | CL-12 | XNS-0829 | NL-0617 | T2203B |
| 2310-6014 | Left | MTFN L-12-3C | 3/4" | 3/4" | 4-1/2" | 3/8" | 3/16" | CL-6 | XNS-0520 | NL-0414 | T1603B |
| 2310-6018 | Left | MTFN L-16-4D | 1" | 1 1/4" | 6" | 1/2" | 3/16" | CL-12 | XNS-0829 | NL-0617 | T2203B |
 |
Inserts
