MWLN R/L Toolholders
From
$48.00 CAD
Unit price
/
Unavailable

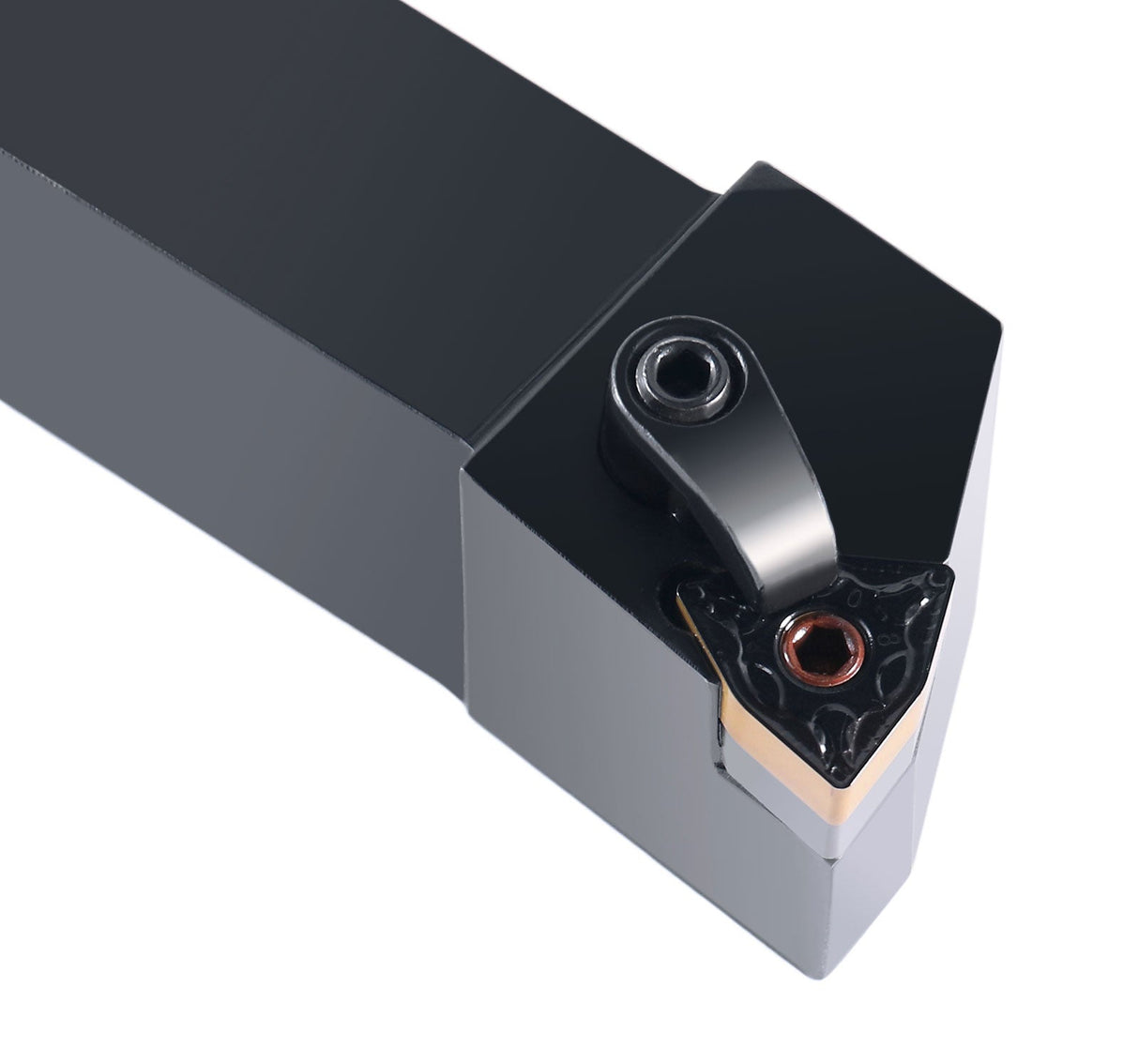

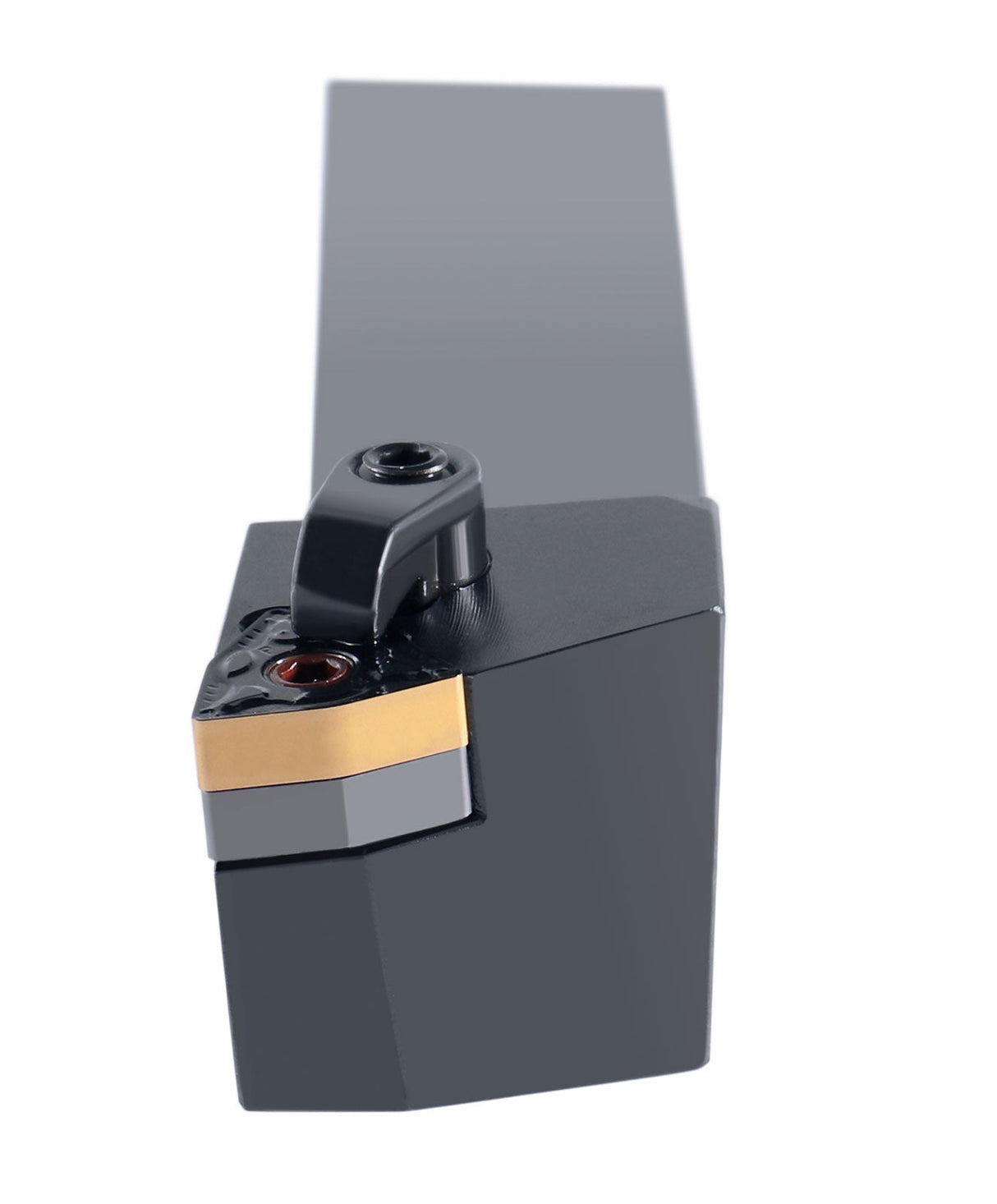

MWLN R/L Toolholders with Carbide Inserts
- Negative 5° end or side cutting edge angle
- For turning, facing and copying
- Accept negative 80° trigon WNMG inserts
| Item# | Right/Left Hand | Model | Shank Square (A & B) | F | L | Inserts | Finger Clamp | Clamp Screw | Locking Pins | Shims | |
| I.C. | Thickness | ||||||||||

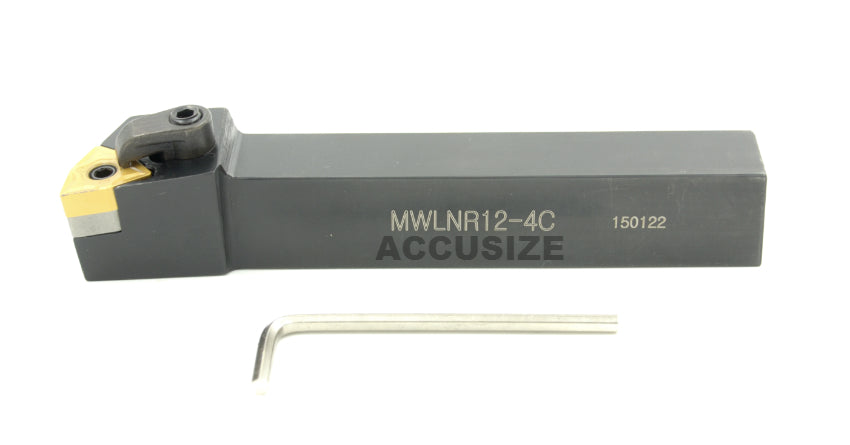

| 2316-0008 | Right | MWLN R-12-4C | 3/4" | 1" | 4-1/2" | 1/2" | 3/16" | CI-6 | XNS0520 | NL0617 | W0803B |
| 2316-1008 | Right | MWLN L-12-4C | 3/4" | 1" | 4-1/2" | 1/2" | 3/16" | CI-6 | XNS0520 | NL0617 | W0803B |
| 2316-0012 | Left | MWLN R-16-4D | 1" | 1.25" | 6" | 1/2" | 3/16" | CL-12 | XNS0829 | NL0617 | W0803B |

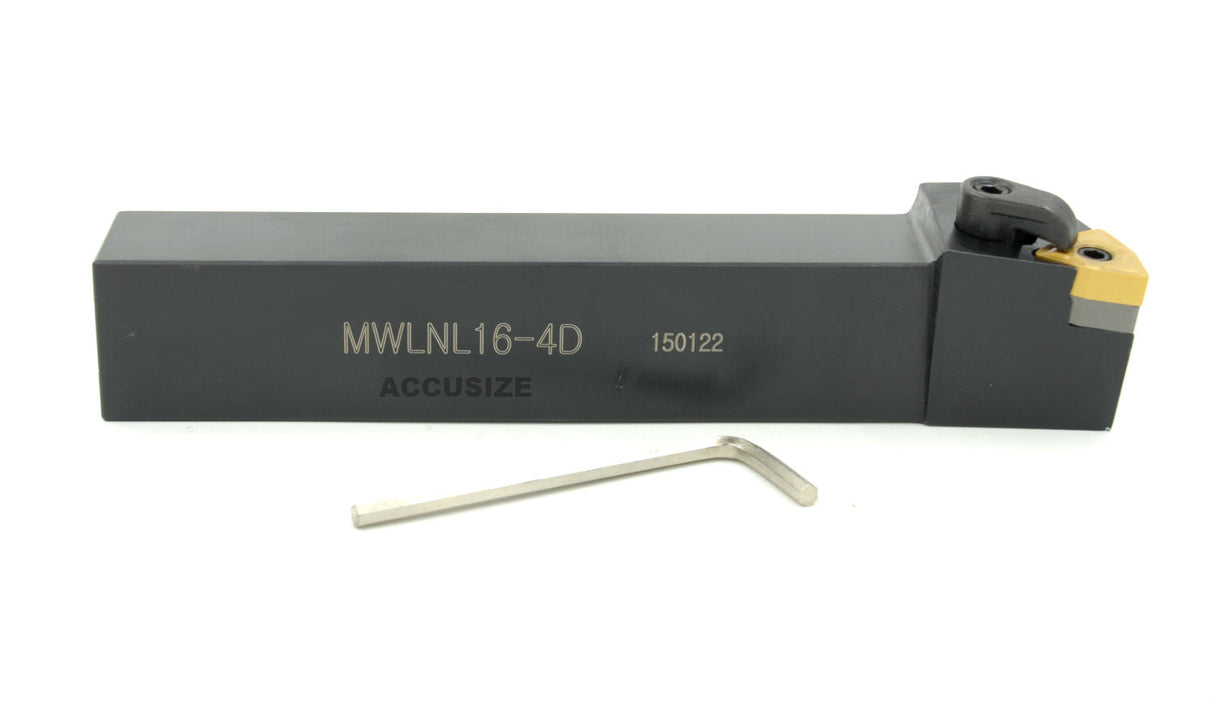

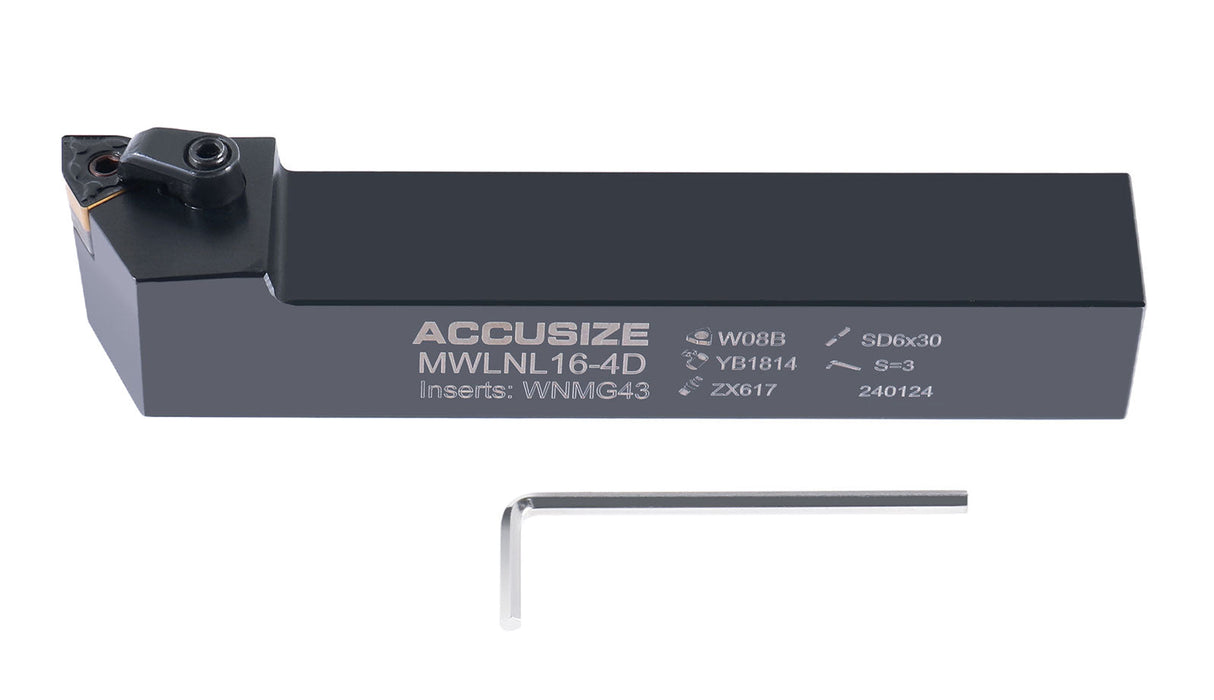

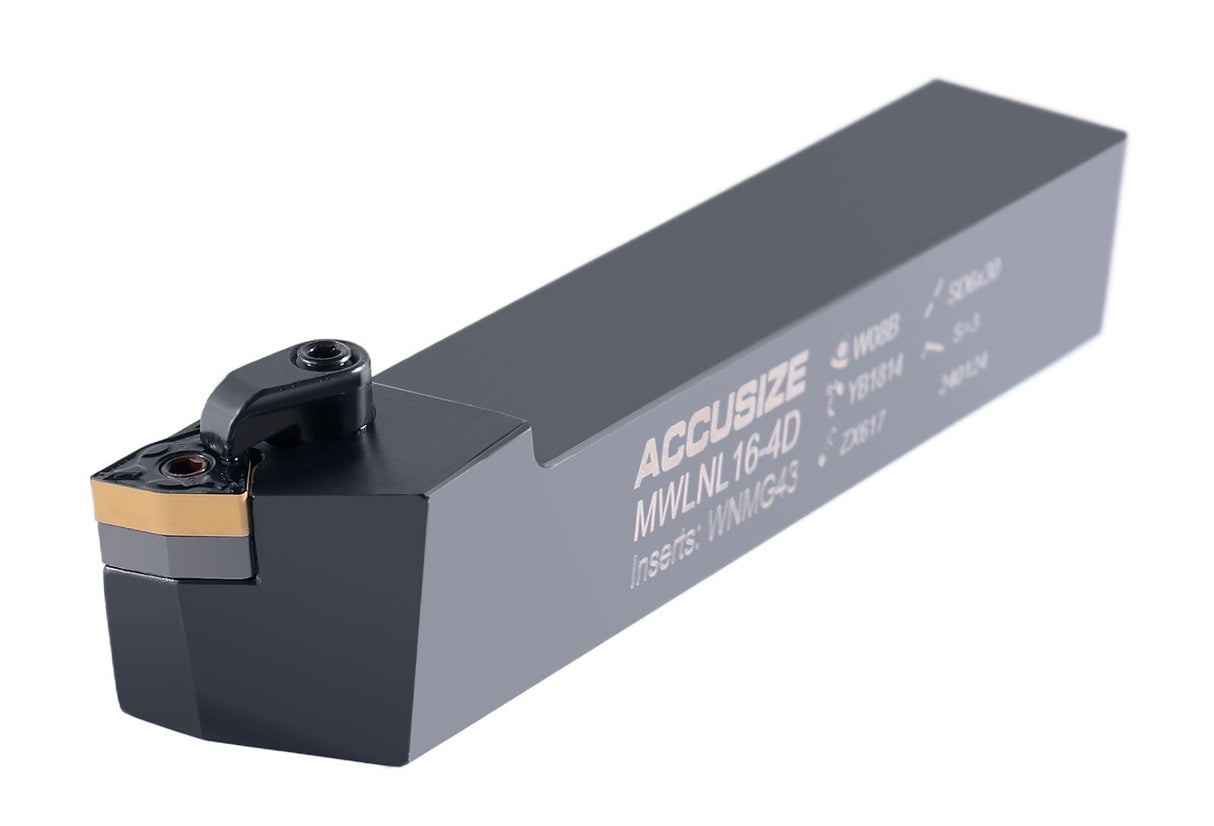

| 2316-1012 | Left | MWLN L-16-4D | 1" | 1.25" | 6" | 1/2" | 3/16" | CL-12 | XNS0829 | NL0617 | W0803B |
 |
Carbide Inserts
