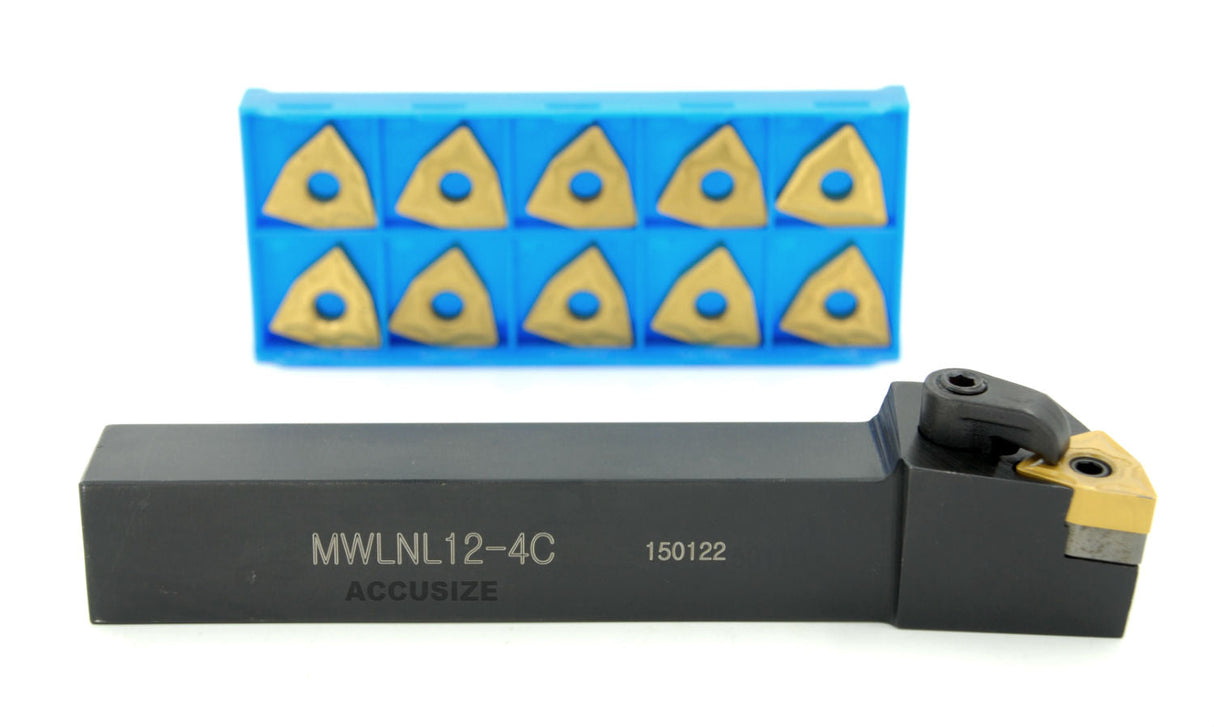

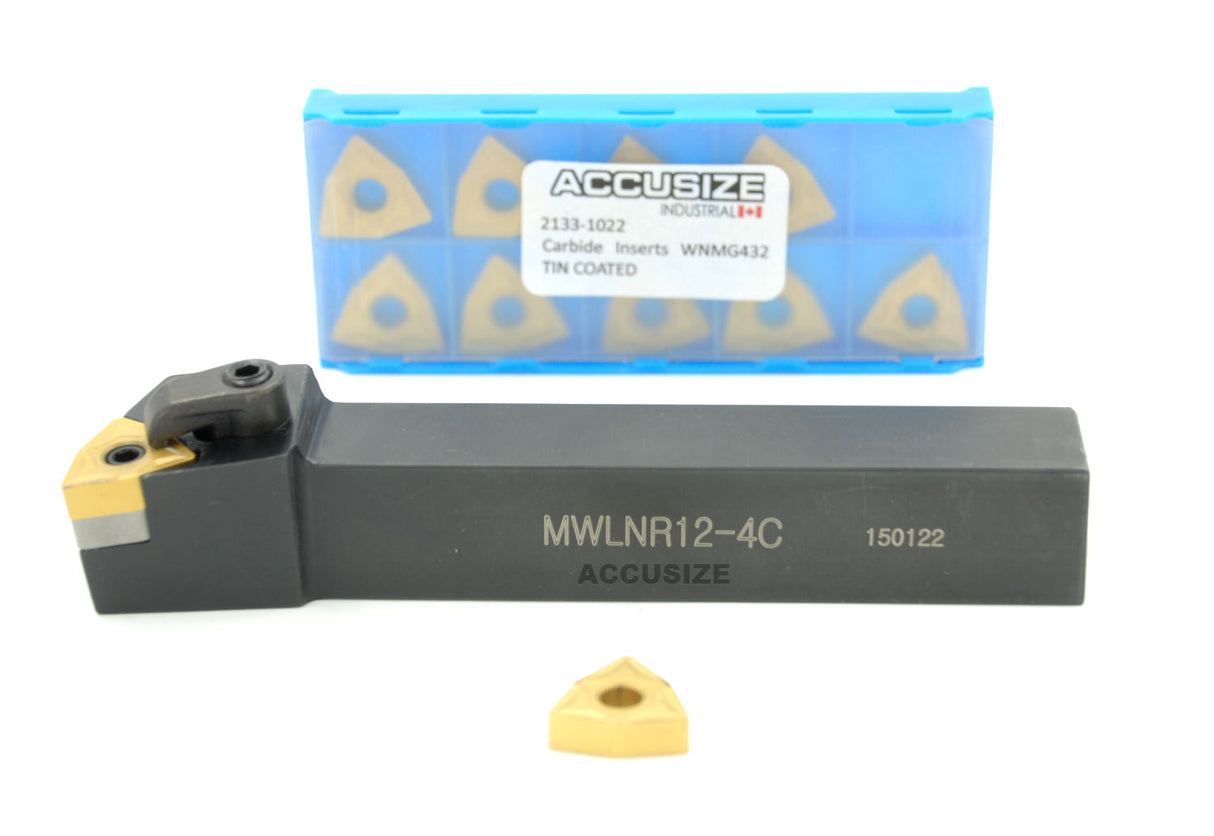

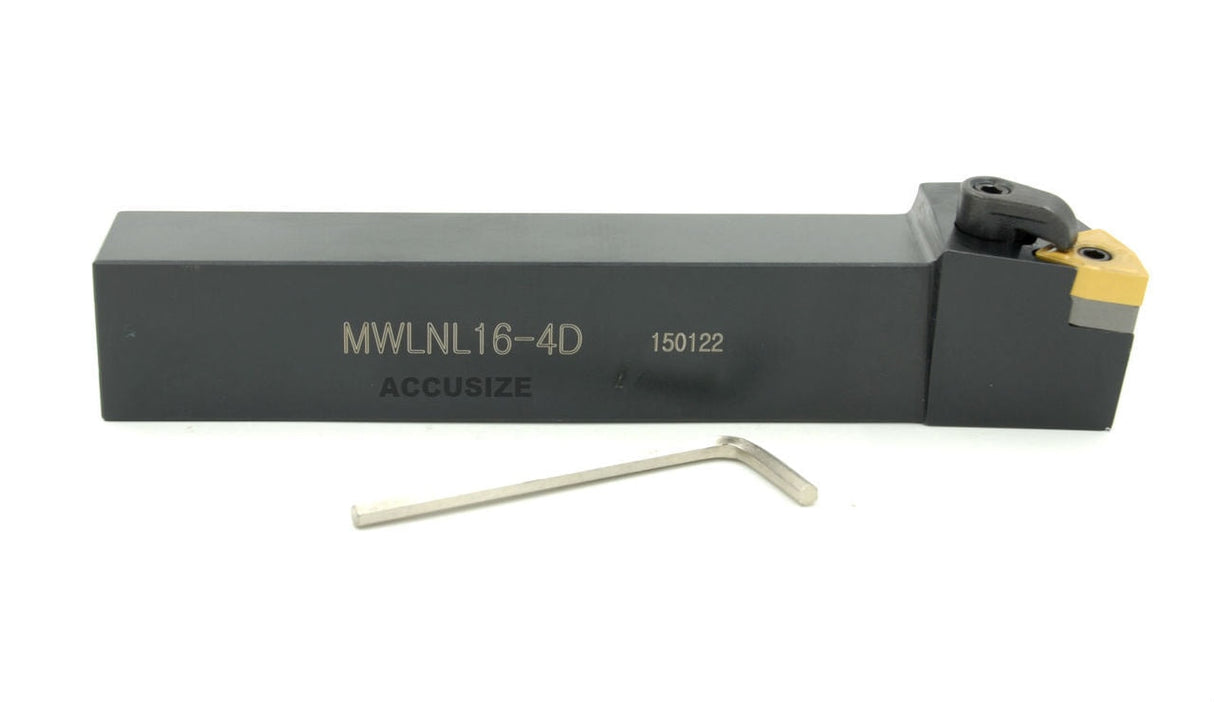

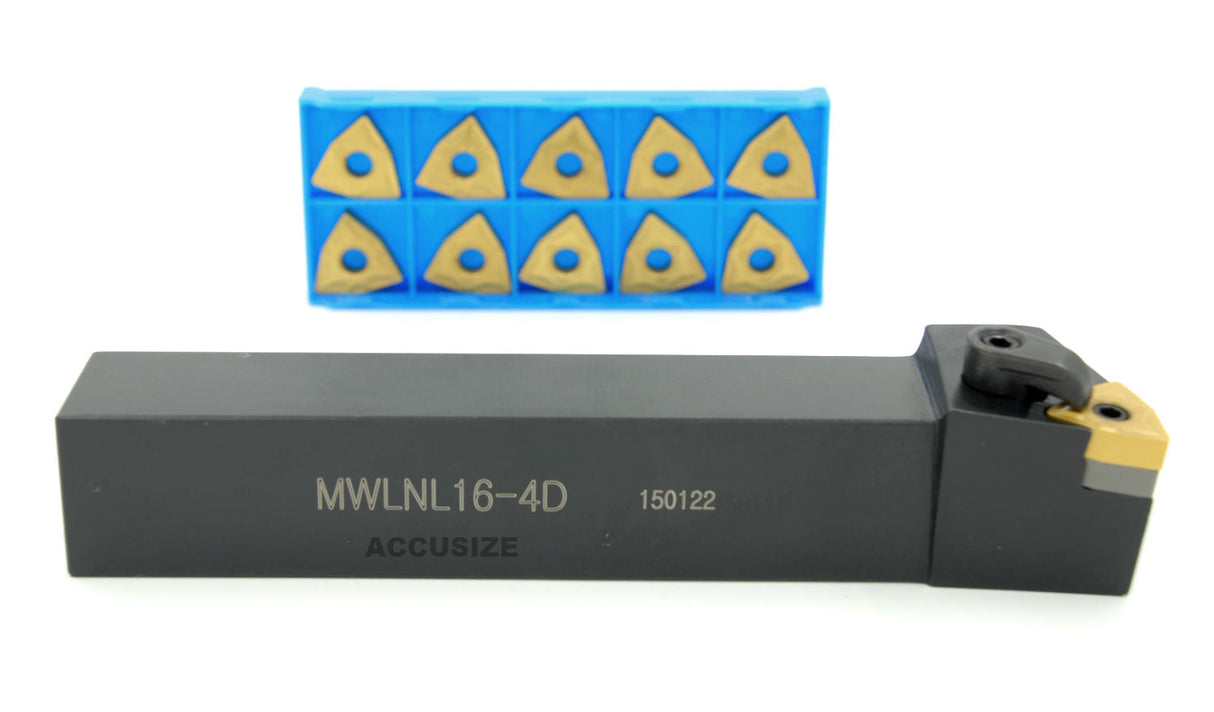

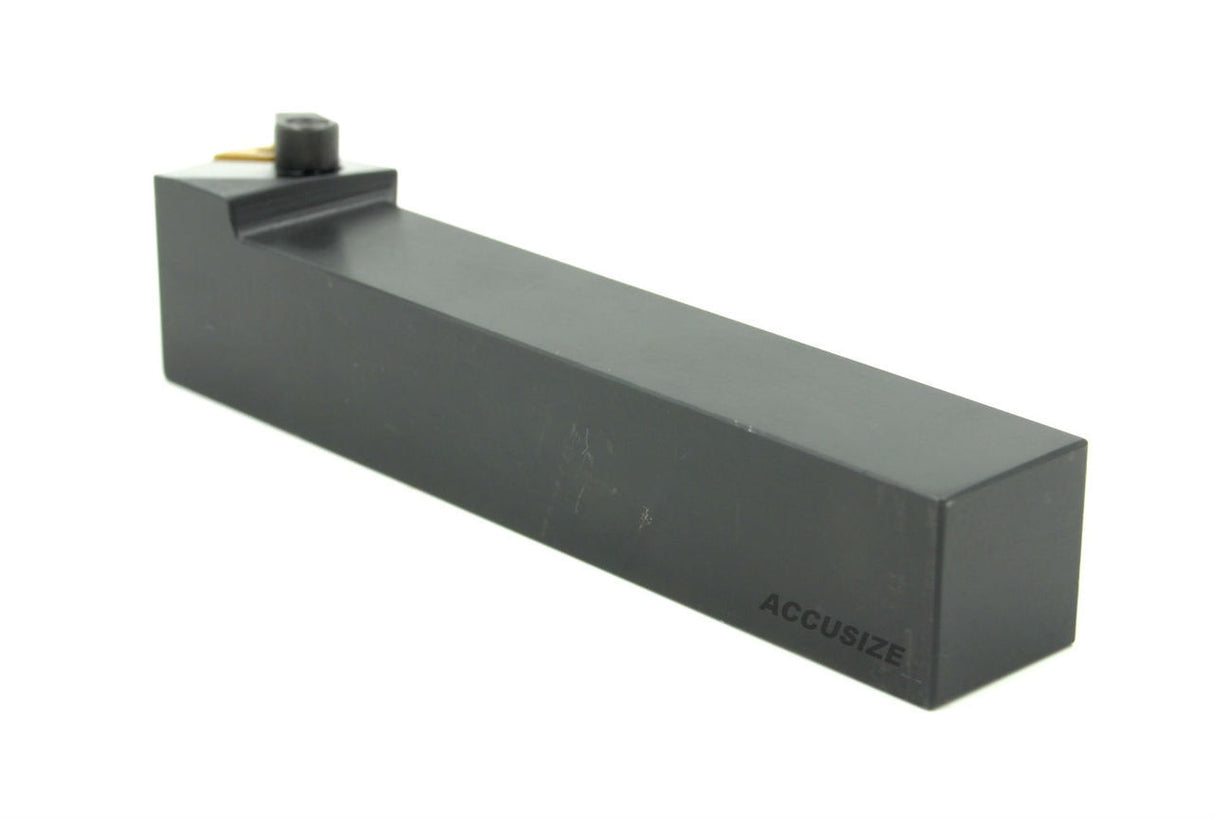

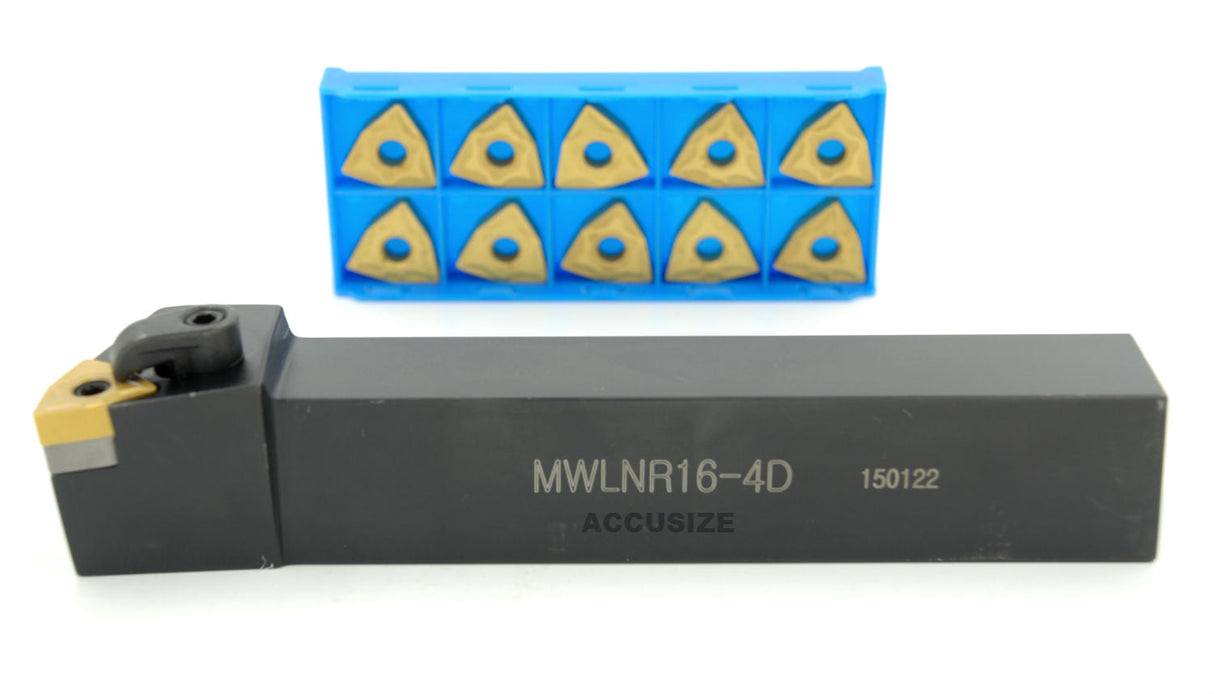

MWLN R/L Toolholders with Carbide Inserts
From
$120.00 CAD
Unit price
/
Unavailable
MWLN R/L Toolholders with Carbide Inserts
- Negative 5° end or side cutting edge angle
- For turning, facing and copying
- Accept negative 80° trigon WNMG inserts
- Each holder comes with 10 pieces of TiN coated or CVD coated carbide inserts

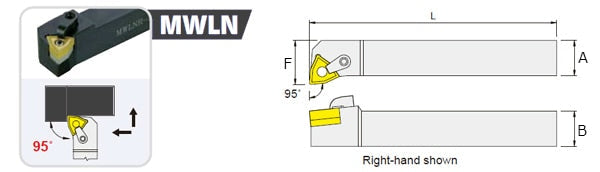

| Item# | Right/Left Hand | Model | Shank Square (A & B) | F | L | Inserts | Finger Clamp | Clamp Screw | Locking Pins | Shims | Inserts | |
| I.C. | Thickness | |||||||||||
| 2316-0008INS1 | Right | MWLN R-12-4C | 3/4" | 1" | 4-1/2" | 1/2" | 3/16" | CI-6 | XNS0520 | NL0617 | W0803B | TIN Coated |
| 2316-0008INS2 | Right | MWLN R-12-4C | 3/4" | 1" | 4-1/2" | 1/2" | 3/16" | CI-6 | XNS0520 | NL0617 | W0803B | CVD Coated |
| 2316-0012INS | Right | MWLN R-16-4D | 1" | 1.25" | 6" | 1/2" | 3/16" | CL-12 | XNS0829 | NL0617 | W0803B | TIN Coated |
| 2316-1008INS | Left | MWLN L-12-4C | 3/4" | 1" | 4-1/2" | 1/2" | 3/16" | CI-6 | XNS0520 | NL0617 | W0803B | TIN Coated |
| 2316-1012INS | Left | MWLN L-16-4D | 1" | 1.25" | 6" | 1/2" | 3/16" | CL-12 | XNS0829 | NL0617 | W0803B | TIN Coated |
 |
Carbide Inserts

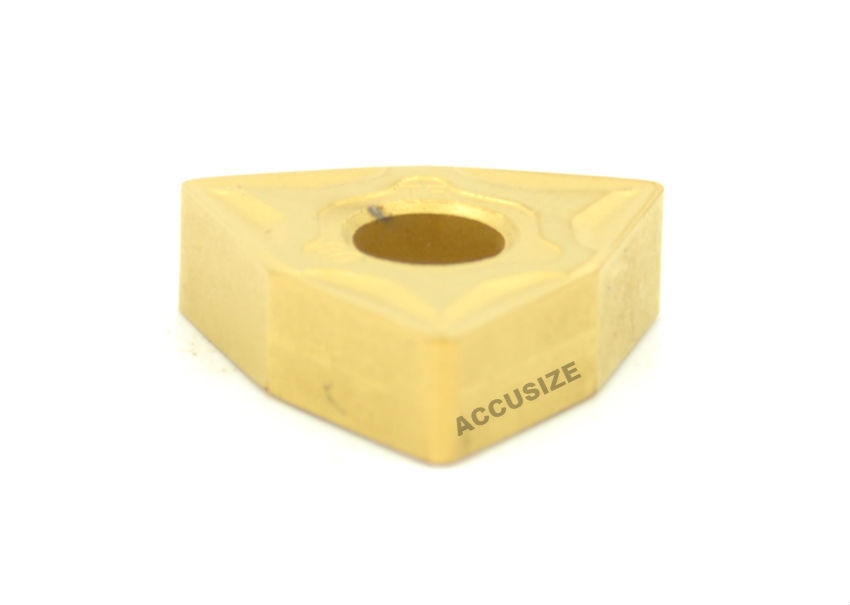

WNMG432, Carbide Inserts, Tin Coated, 10 Pcs/Set
- Carbide Inserts
- C5 Grade Coated
- ANSI #: WNMG432
- ISO #: WNMG080408
- Insert Style: WNMG
- Insert Size: 432
- I.C.: 1/2"
- Thickness: 3/16"
| Item | Description |
| 2133-1022 | C5 Grade Coated, WNMG080408 |
Carbide inserts, CVD Coating, WNMG, Black/Yellow, 10 ps/box
- For Turning & Boring
- Material: Carbide
- Coating: CVD Al2O3 TICN
- Insert Grade: BPS101
- Chip Breaker: MD
- Machining Parts Material: Steel
- Machining Process: finish
Product features
- BPS101 Black/Yellow Coating Grade
- CVD coated carbide grade, wear-resistance materials coated on the gradient sintered substrate which has both good hardness, toughness
- Can bear high temperatures. For steel and steel castings finishing to roughing processing
- Continue cutting to light interrupted cutting
- Machining of gray and ductile iron at low to medium cutting speed
- For hard materials continuous cutting and light interrupted cutting from finishing to roughing
- Wet and dry processing
- Combination of fibrous TICN and fine grained Al2O3 increases abrasion resistance and anti-chipping
- Preferred choice chip breaker on General Purpose Finishing
Features of chipbreaker
- For medium-duty turning
- With broad capability for steel, stainless steel, grey and nodular cast-iron
- Operations: turning, facing and profiling
- Advantages: all-round, reliable with problem-free machining
- Limitations: depth of cut and feed, risk of overloading the cutting edge
- Components typically: axles, shafts, hubs, gears, etc.
| Item # | ANSI # | I.S.O. # | I.C. | Thickness | Hole | Radius |
| 2233-1022 | WNMG432-MD | WNMG080408-MD | 1/2" | 3/16" | 13/64" | 1/32" |
