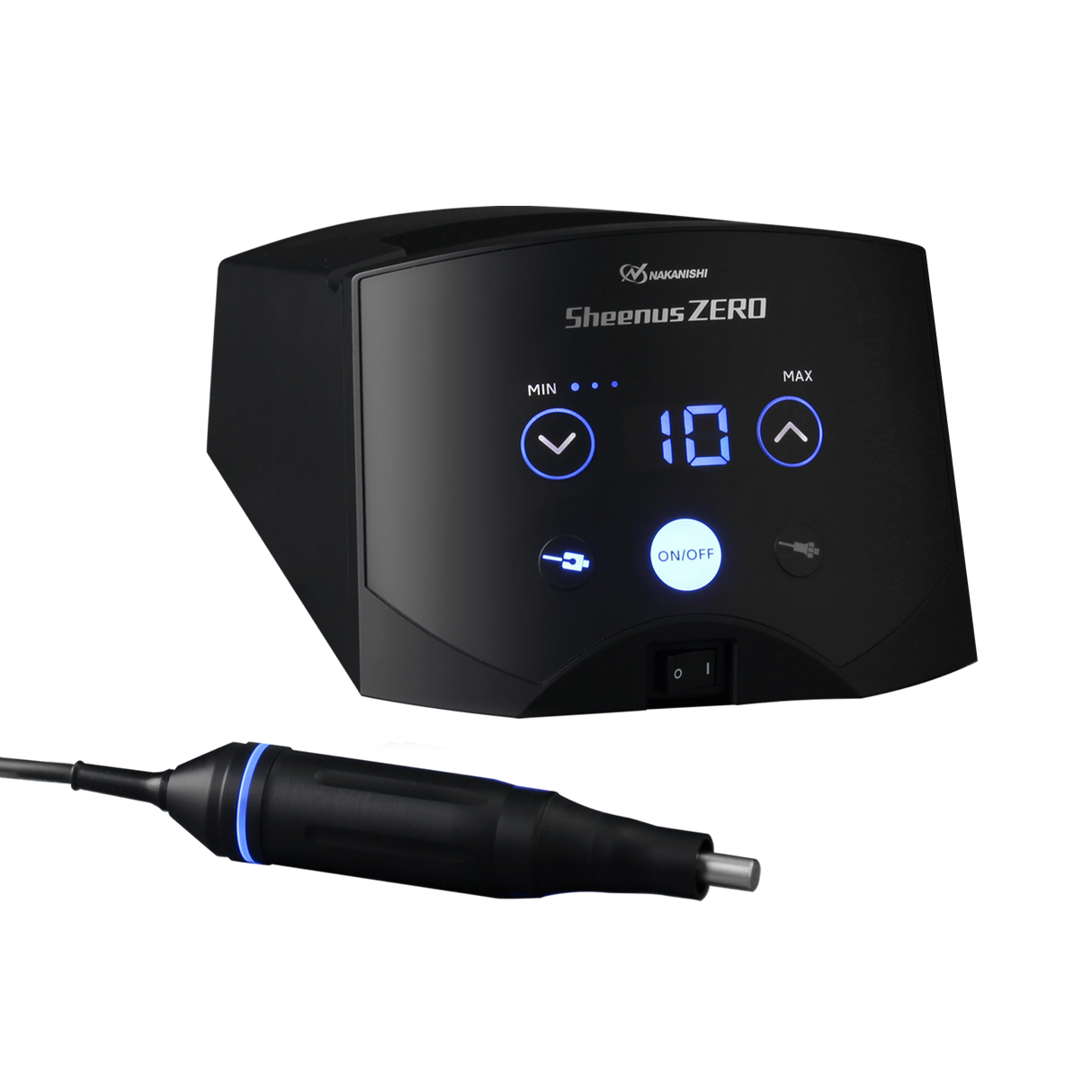

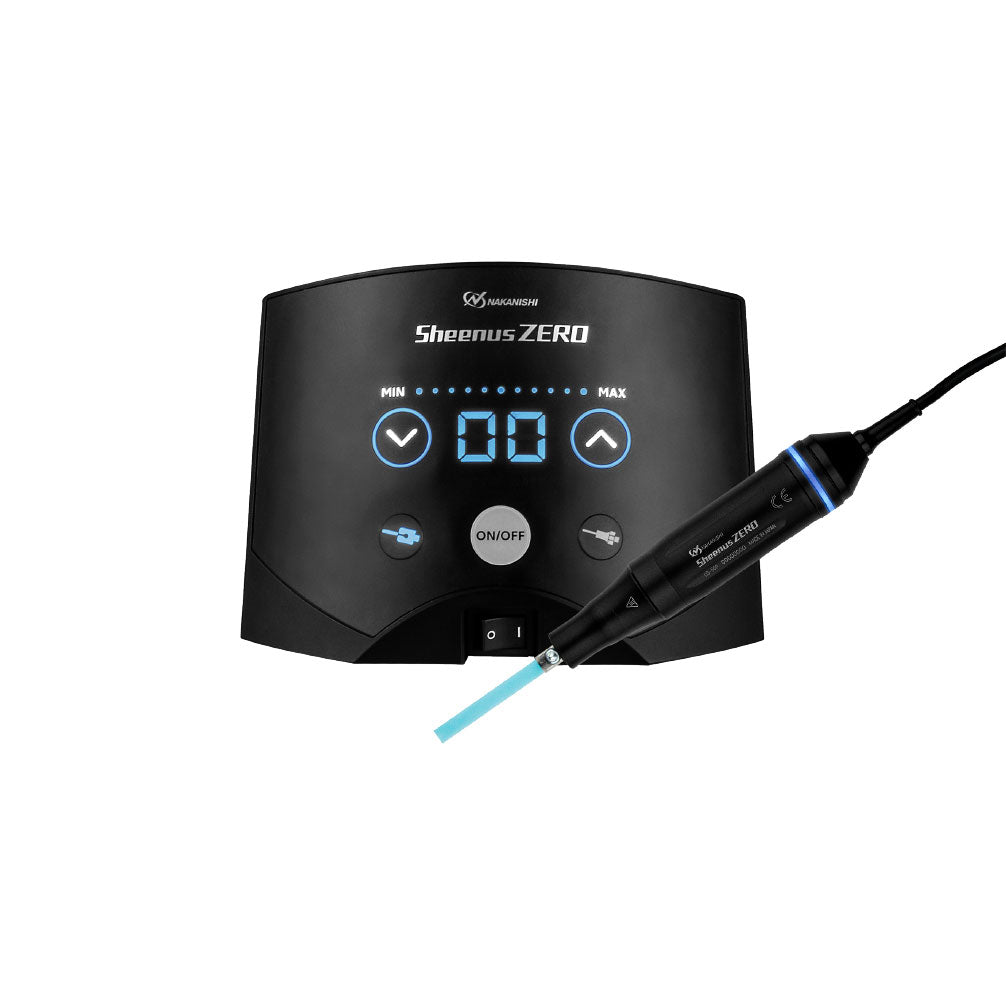

Sheenus ZERO
$4,995.00 CAD
Unit price
/
Unavailable
The Sheenus ZERO can be used for grinding, polishing and mirror finishing on a wide range of materials from aluminum dies to cemented carbide dies. It is also perfect for plastic molds, press, casting, forging, trimming and header dies.
This tool quickly removes hard layers of EDM deposits and polishes difficult areas such as complex corners and ribs.
Capabilities include bur removal, grinding and polishing of precision molds, dies electronic and ceramic components.
Features:
| UNIT MODEL | NE330 120V |
|---|---|
| Power Source | AC120V/240V, 50-60Hz |
| Power consumption | 100VA |
| Dimensions | W6.34″ x D10.08″ x H3.31″ |
| Oscillation Frequency | 19 KHz - 29 KHZ |
| Power Conditioning | Continuous variable type |
| Frequency Control | Auto-tracking type |
| Output Power | UNCLAMP mode Max. 45W, CLAMP mode Max. 20W |
| Weight | 3 lb. 5 oz. |
| HANDPIECE MODEL | US-50P |
|---|---|
| Oscillator | PZT piezoelectric type |
| Attachment fixing | M6 screw |
| Cable Length | 6 ft |
| Dimensions | ø0.63″ (Max ø1.10″) x L5.28″ |
| Weight | 5.29 oz. (excluding cable) |
