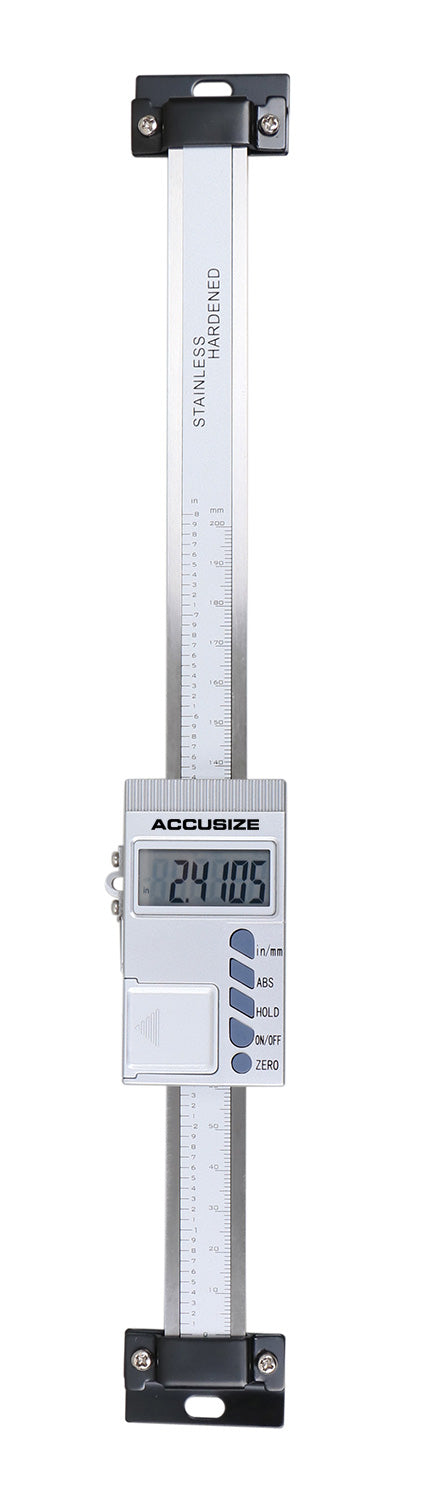

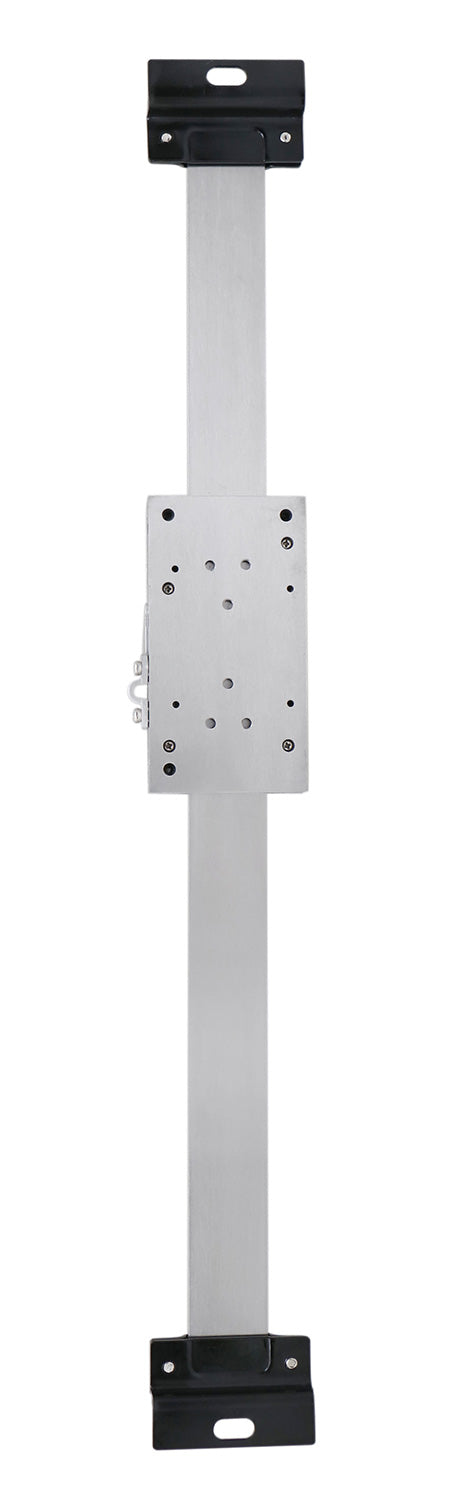

Electronic Digital DRO Scale Unit, Vertical
From
$65.00 CAD
Unit price
/
Unavailable
Electronic Digital DRO Scale Unit, Vertical
- Measuring range:0-1000 mm(0-40")
- Resolution 0.01 mm.
- Accuracy:±(0.02+0.0005xL) mm, (L=length in mm).
- Repeatability:±0.01 mm/0.0005".

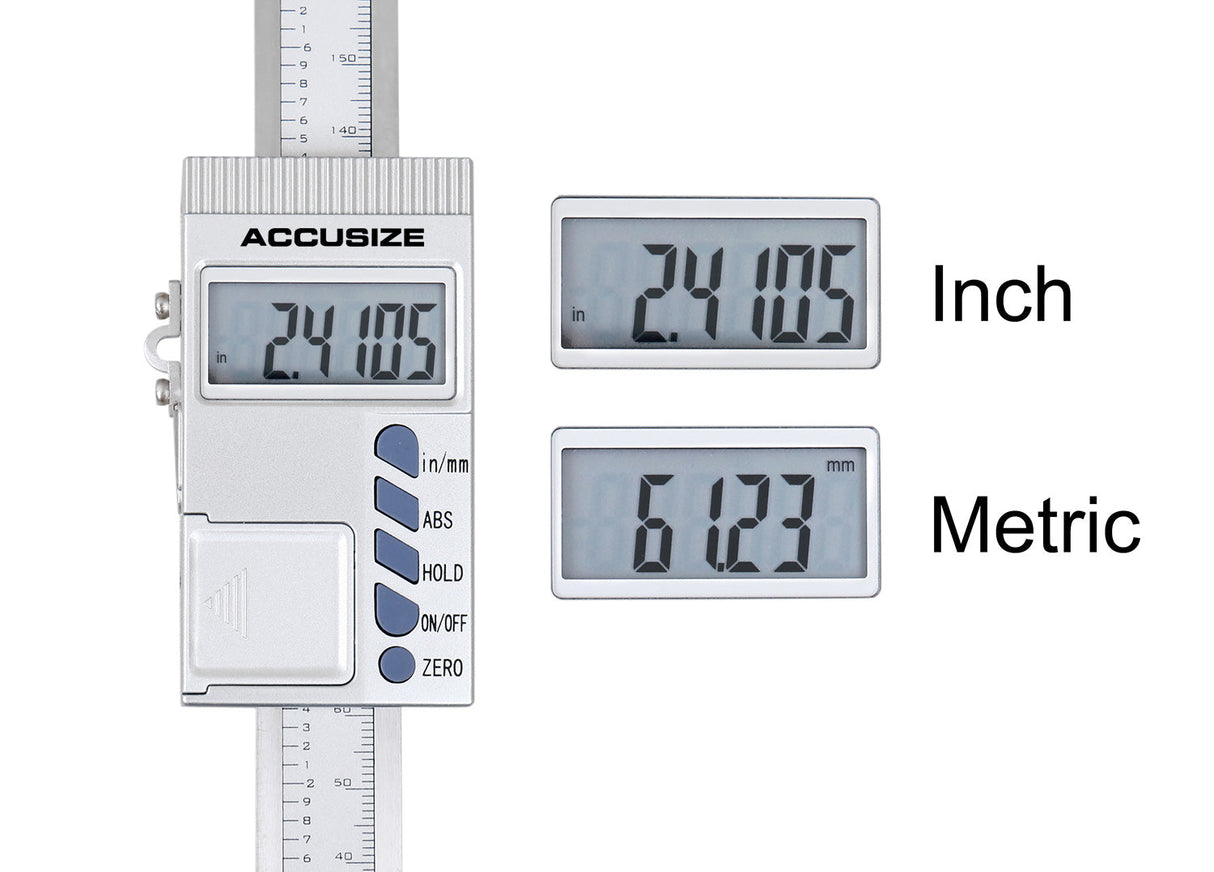

- mm/inch conversion.
- Max.measuring speed:1m/s
- ABS/INC switchable.
- Reset/preset
- On/off switch.

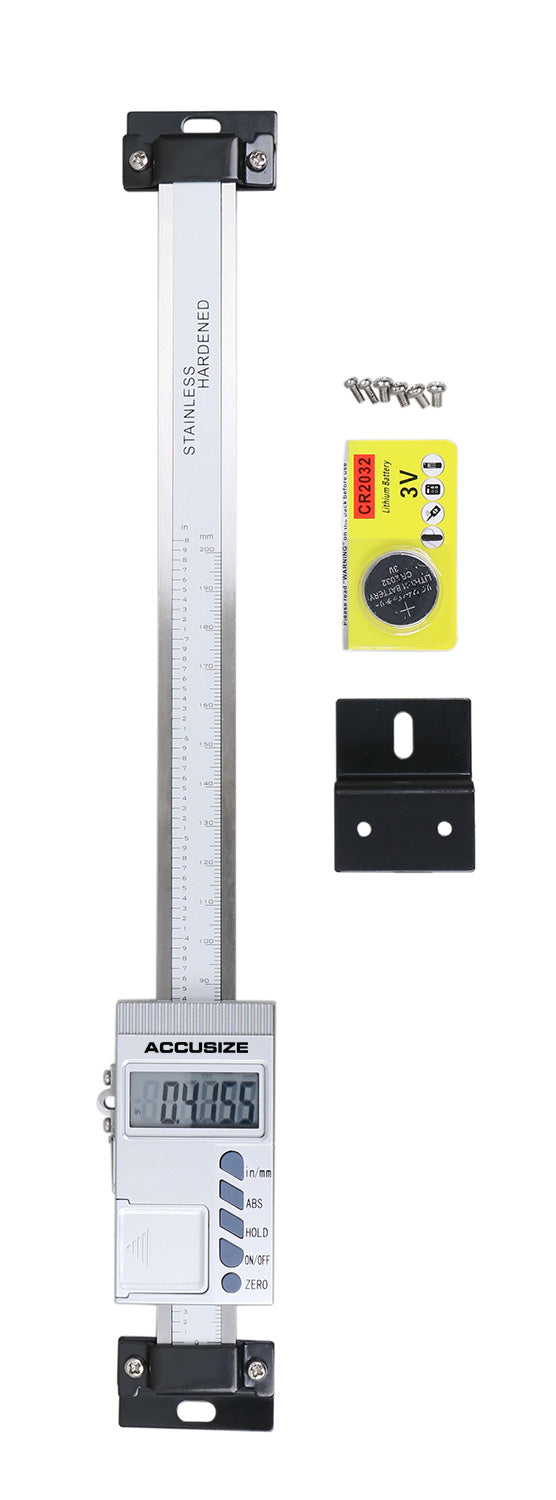

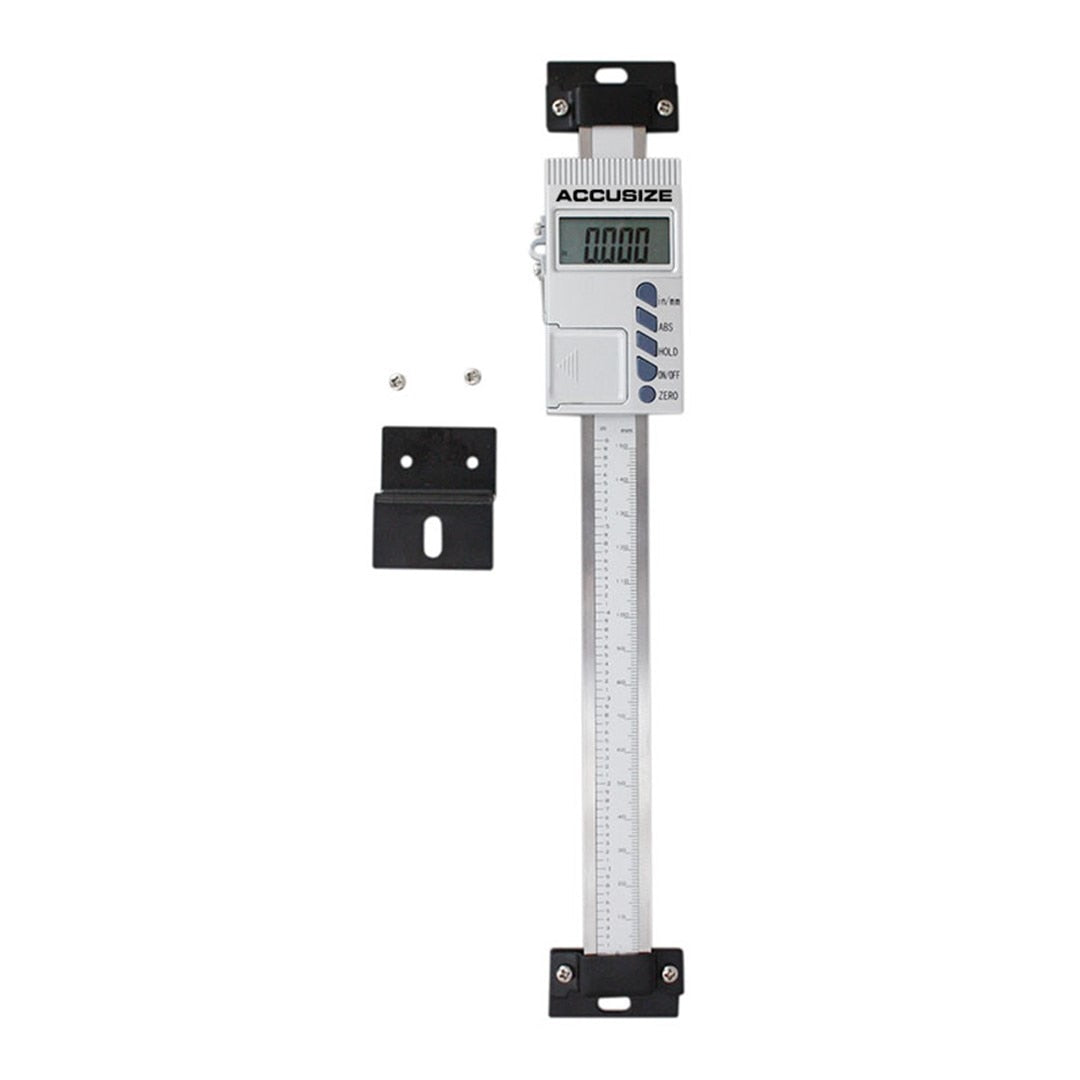

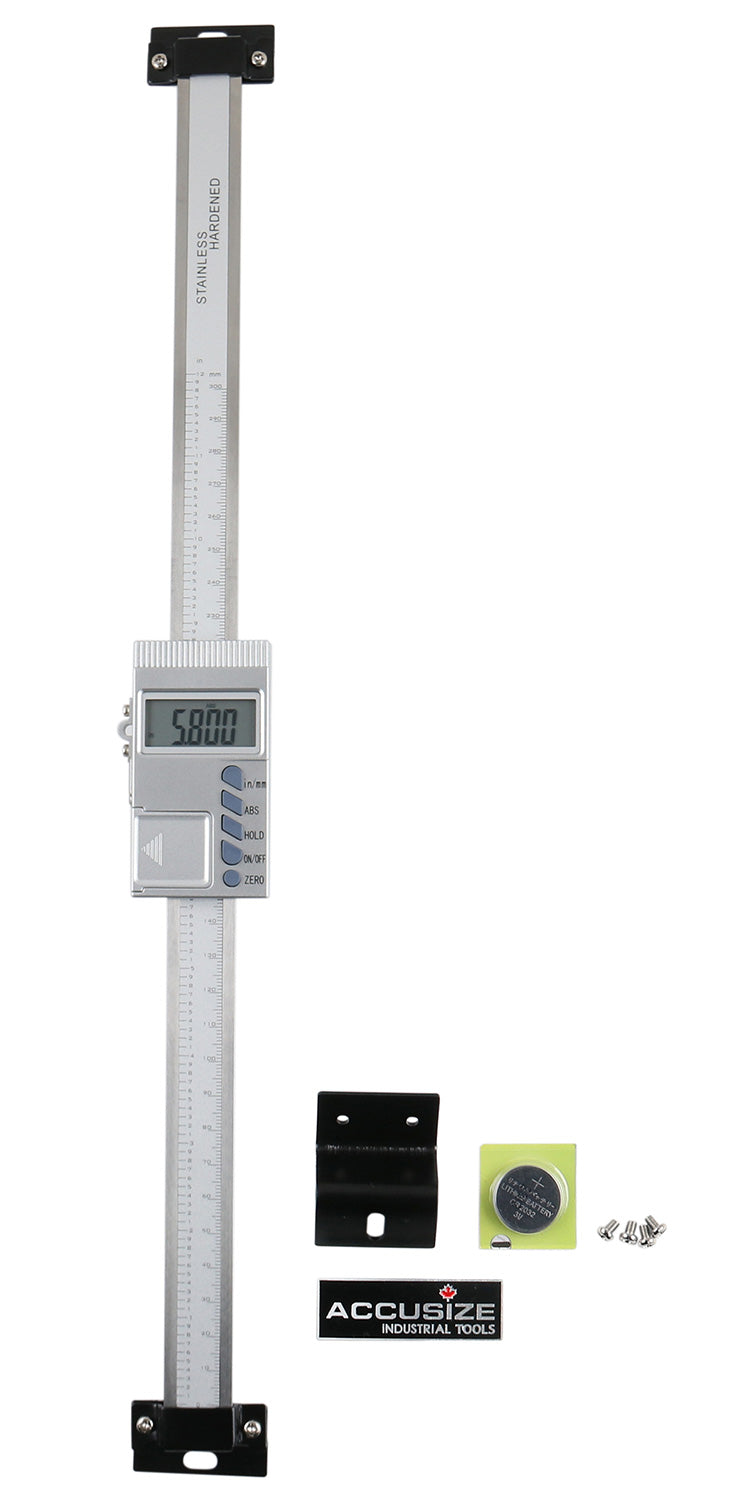

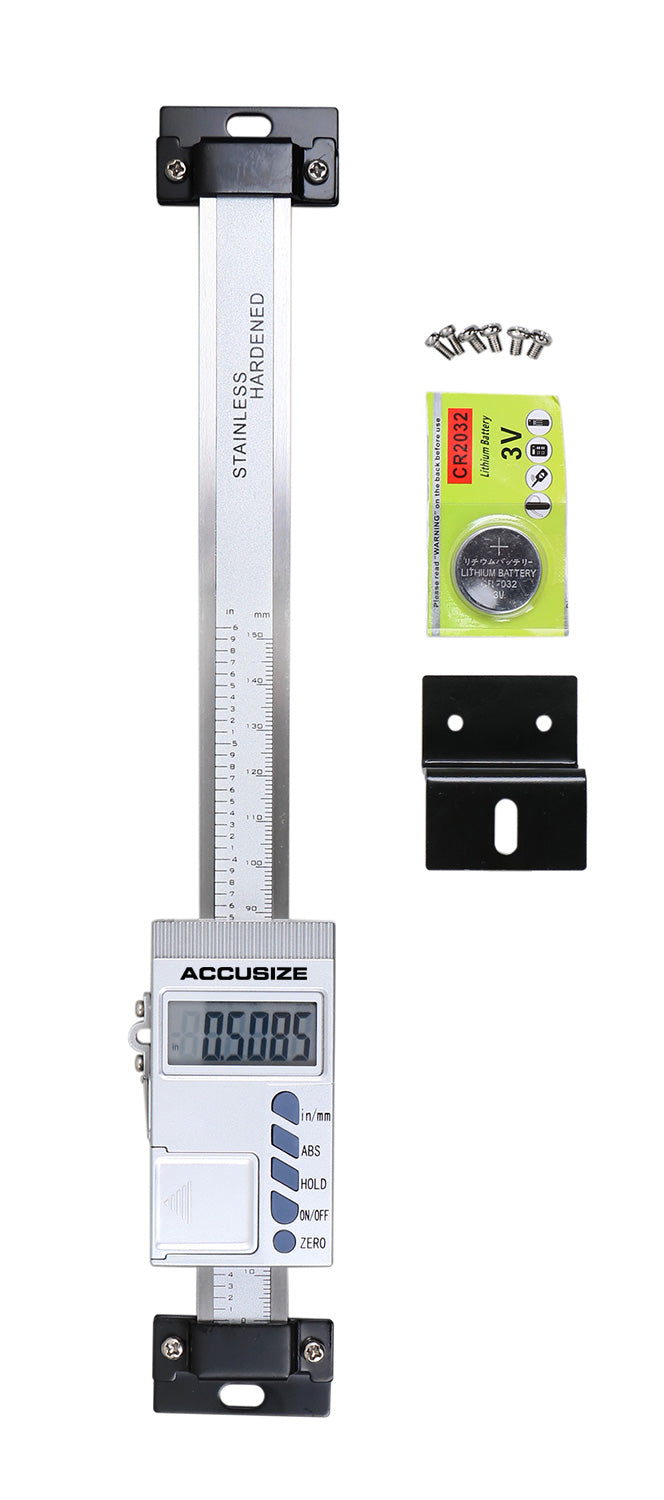

- Delivery complete with mounting material.
- Power supply:1 battery
- Can be used with 3-Axis DRO Display#1104-0220(1104-0110V) or one Axis DRO position#1104-7950(#1104-8111)or individually.
| Item | Description | Range | Resolution |
| ABVE-0005 | Vertical | 0-5"/0-125 mm | 0.0005"/0.01mm |
| ABVE-0006 | Vertical | 0-6"/0-150 mm | 0.0005"/0.01mm |
| ABVE-0008 | Vertical | 0-8"/0-200 mm | 0.0005"/0.01mm |
| ABVE-0012 | Vertical | 0-12"/0-300 mm | 0.0005"/0.01mm |
| ABVE-0018 | Vertical | 0-18"/0-450 mm | 0.0005"/0.01mm |
