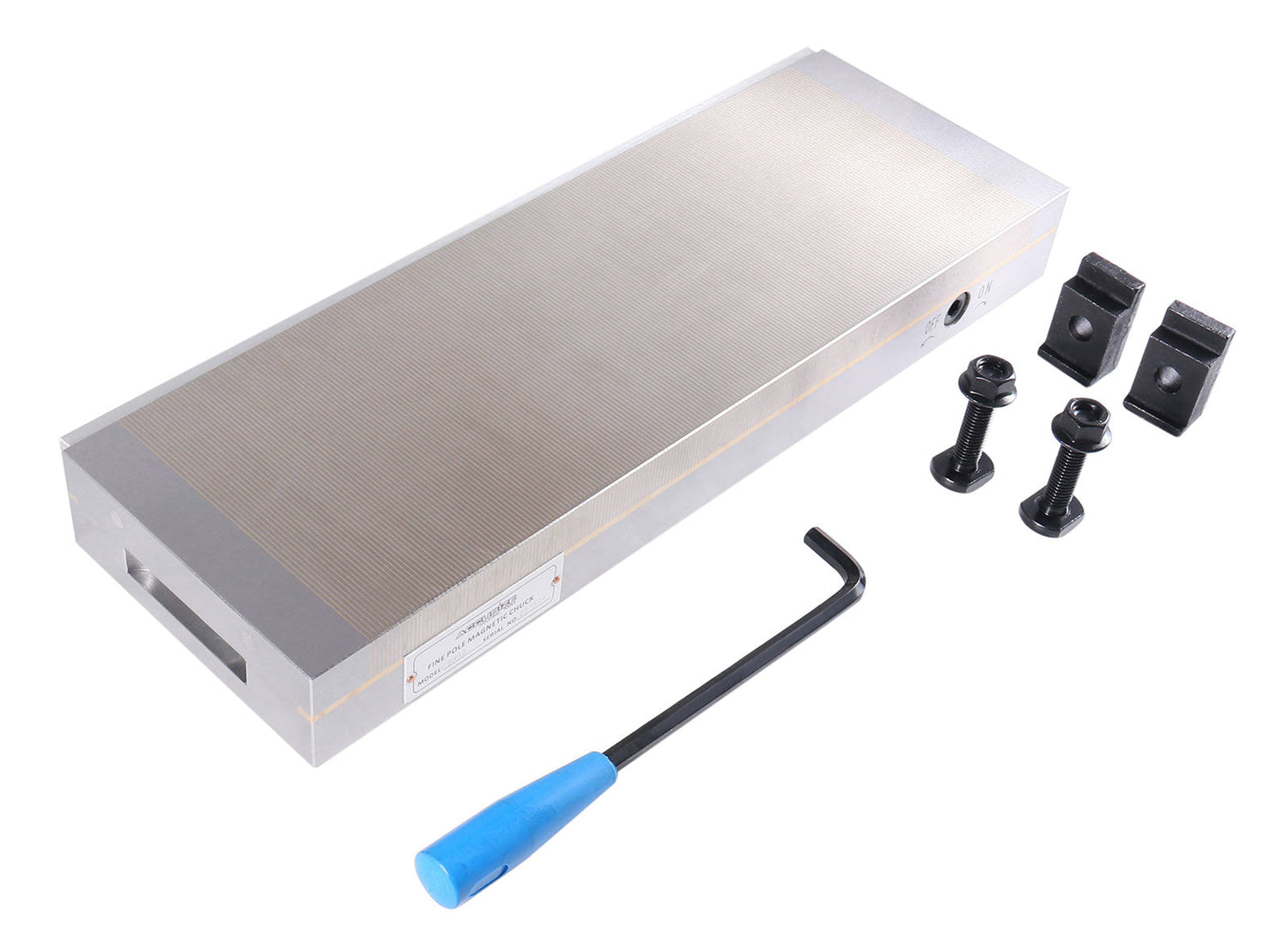

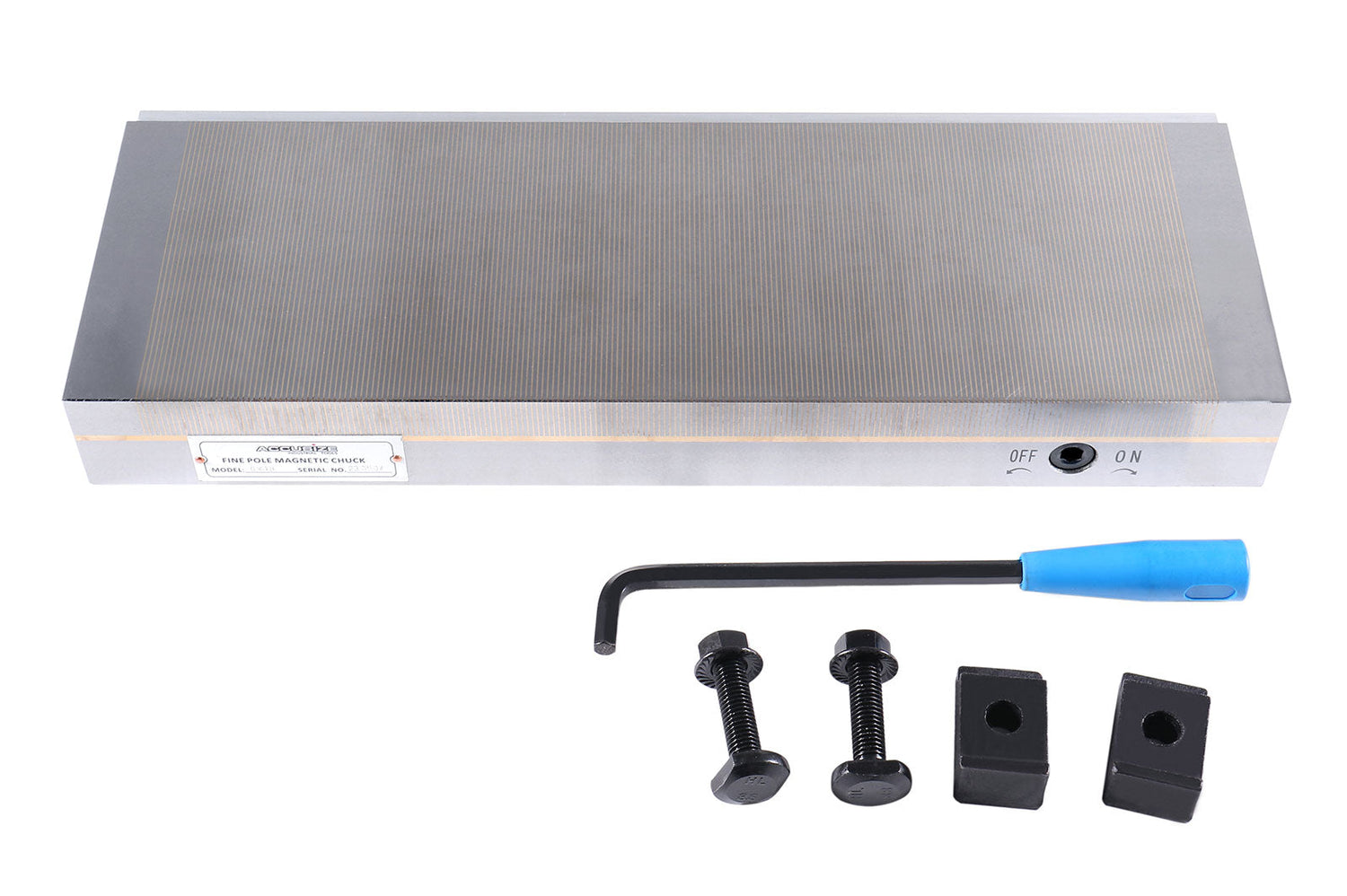

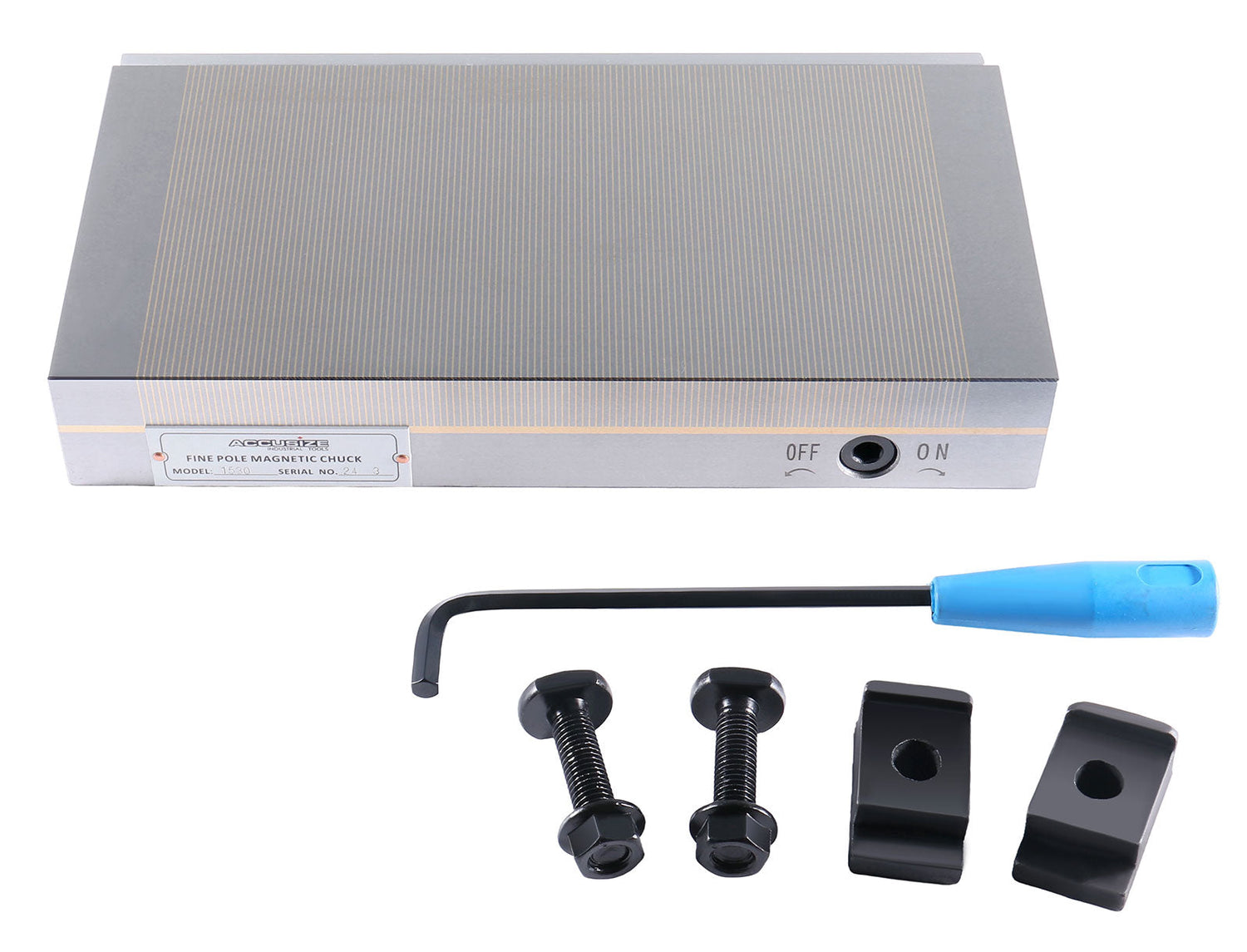

Fine Pole Magnetic Chucks for Grinding Machines
Regular price
From
$594.00 CAD
Unit price
/
Unavailable
Fine Pole Magnetic Chucks
- Use Rare Earth Ceramic Magnets inside for superior holding power
- Fine ploes: 1/8" Poles, 1/16" Separators
- Sealed aginst dirt and liquids
- 1-5/8" very low profile to allow Max. work height clearance
- Flat and parallel within 0.0002"
- Precision ground rails are included
- The Pulling Power (strength) of #2720-0000 is 8 kgs/cm^2
| Item | Size | Thickness |
| 2720-5000 | 6" x 12" | 51mm (2") |
| 2720-0000 | 6" x 18" | 56mm(2.2") |
