H.S.S. Aligning Reamer, Spiral Flute, 3/8" Straight Shank with...
Regular price
From
$31.00 CAD
Unit price
/
Unavailable

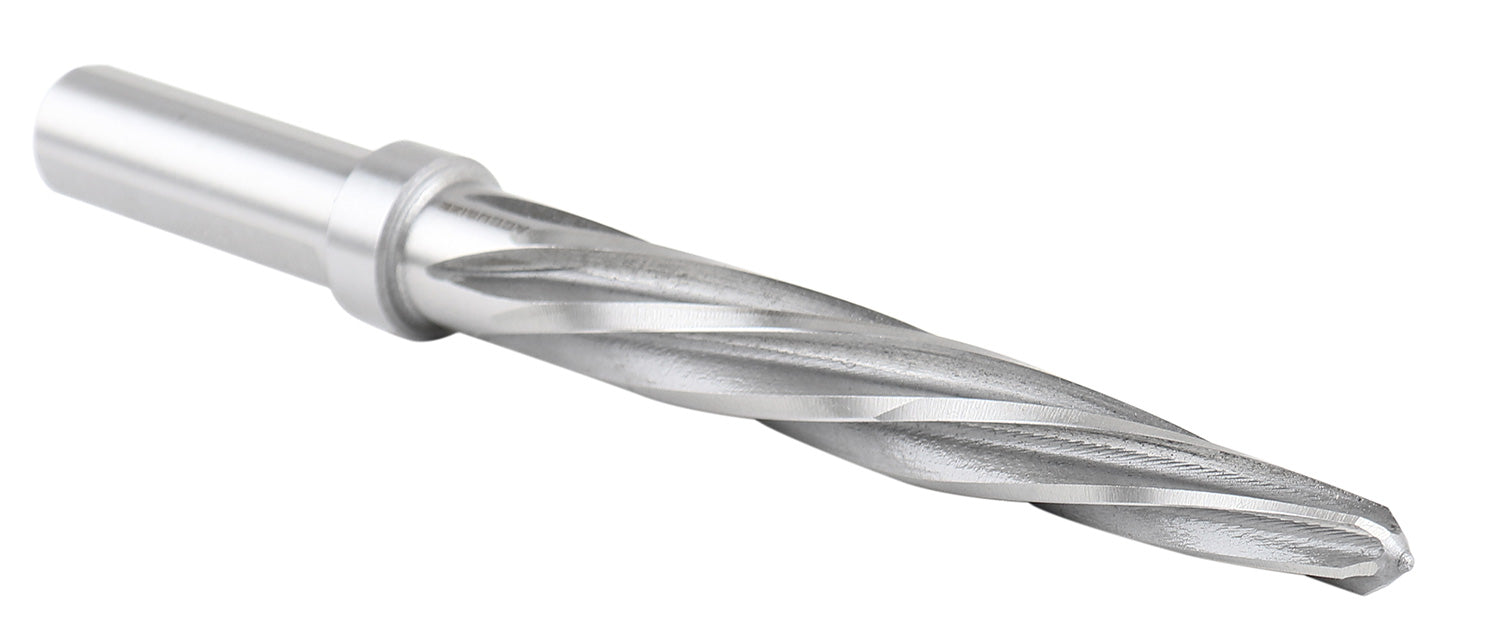

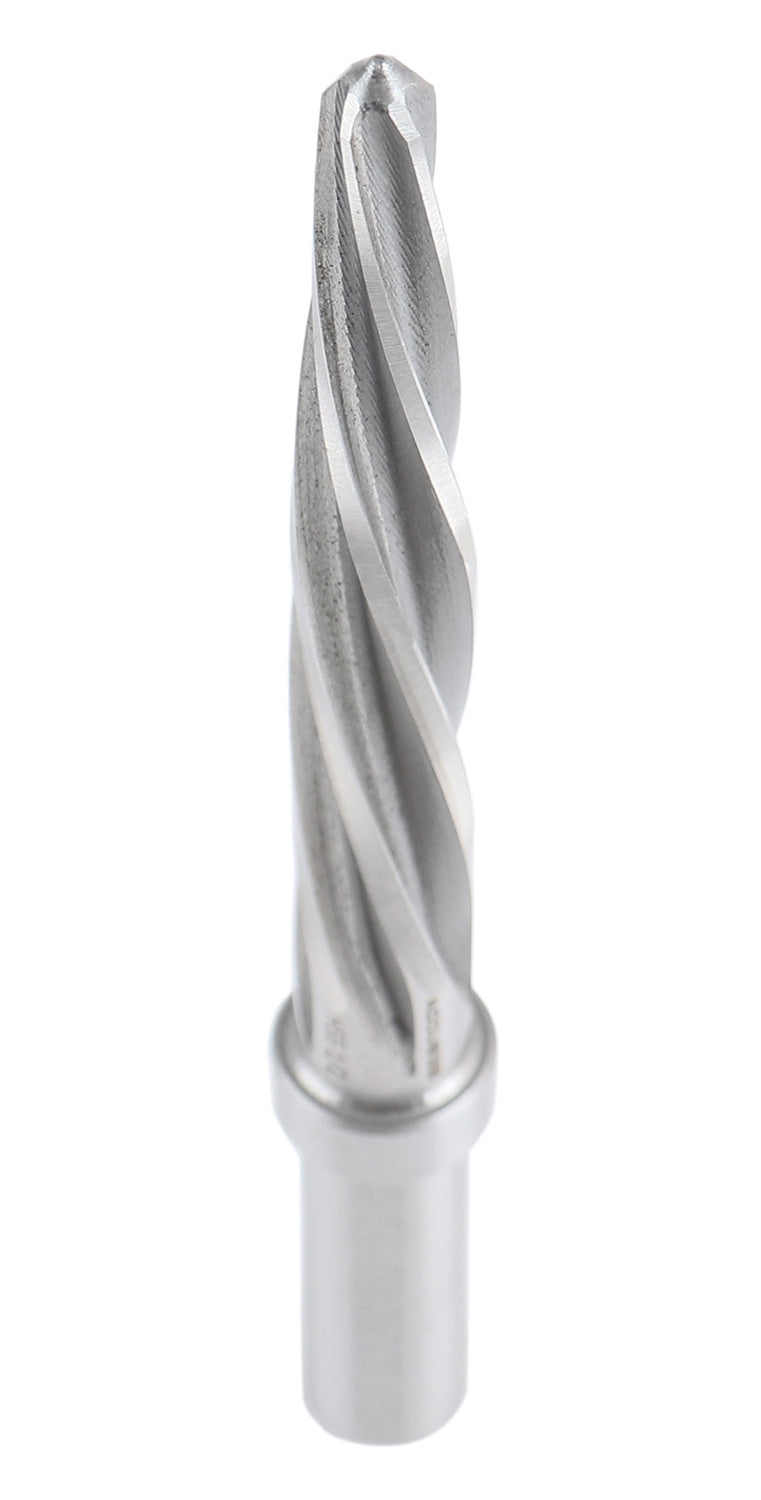

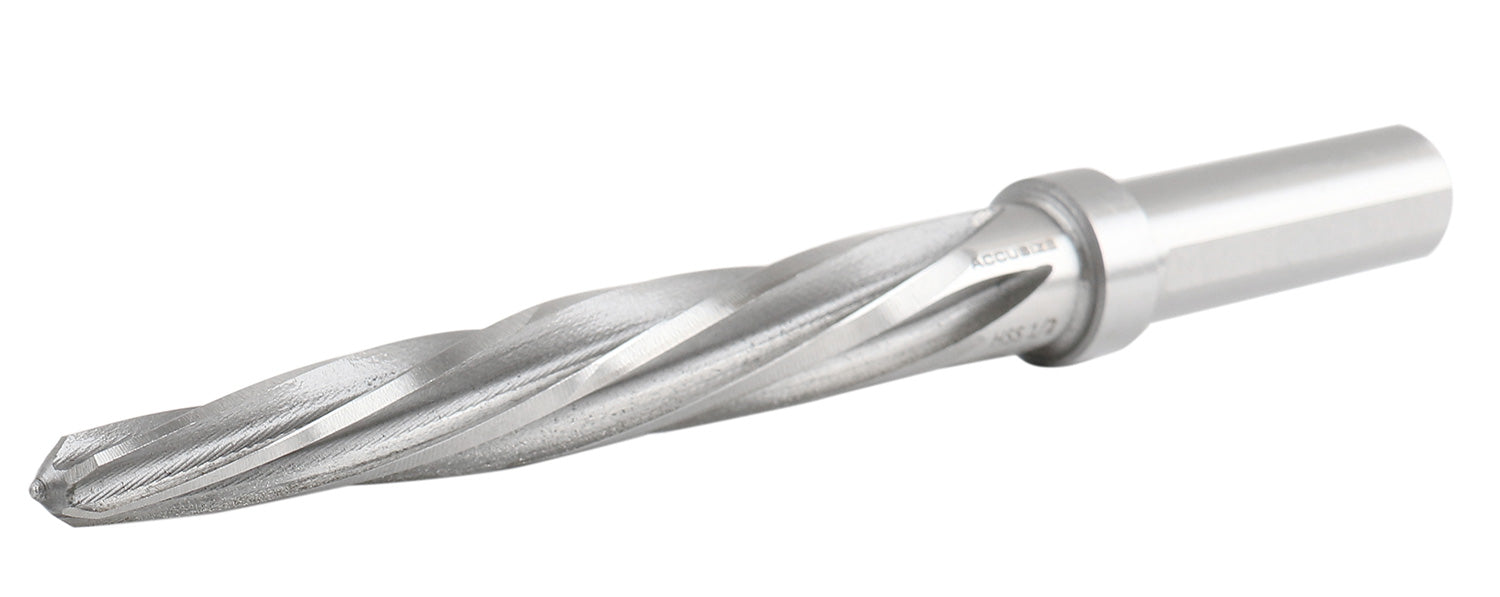

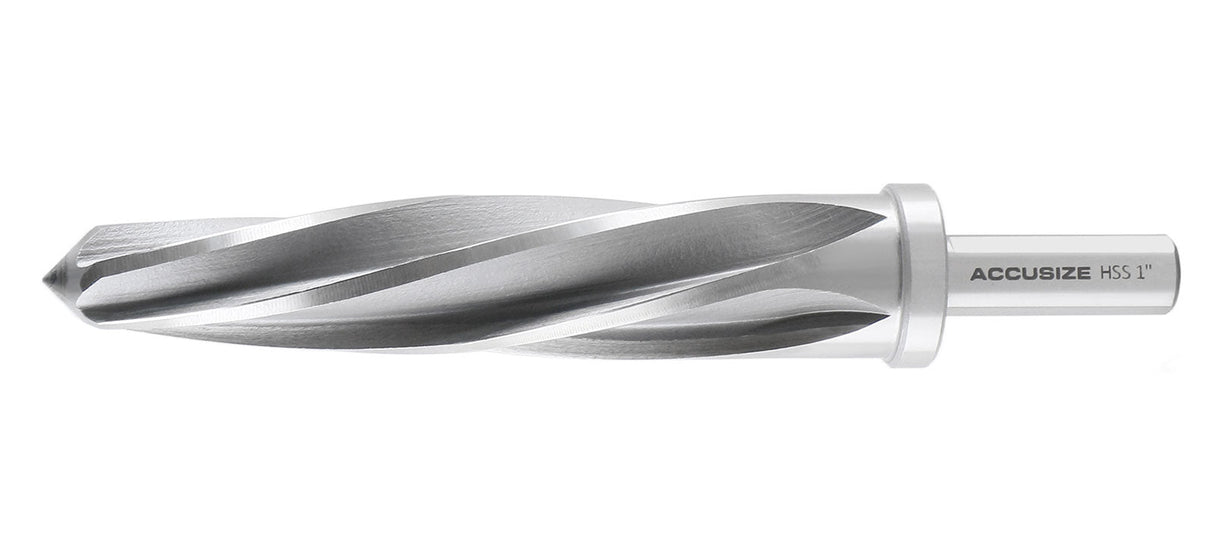

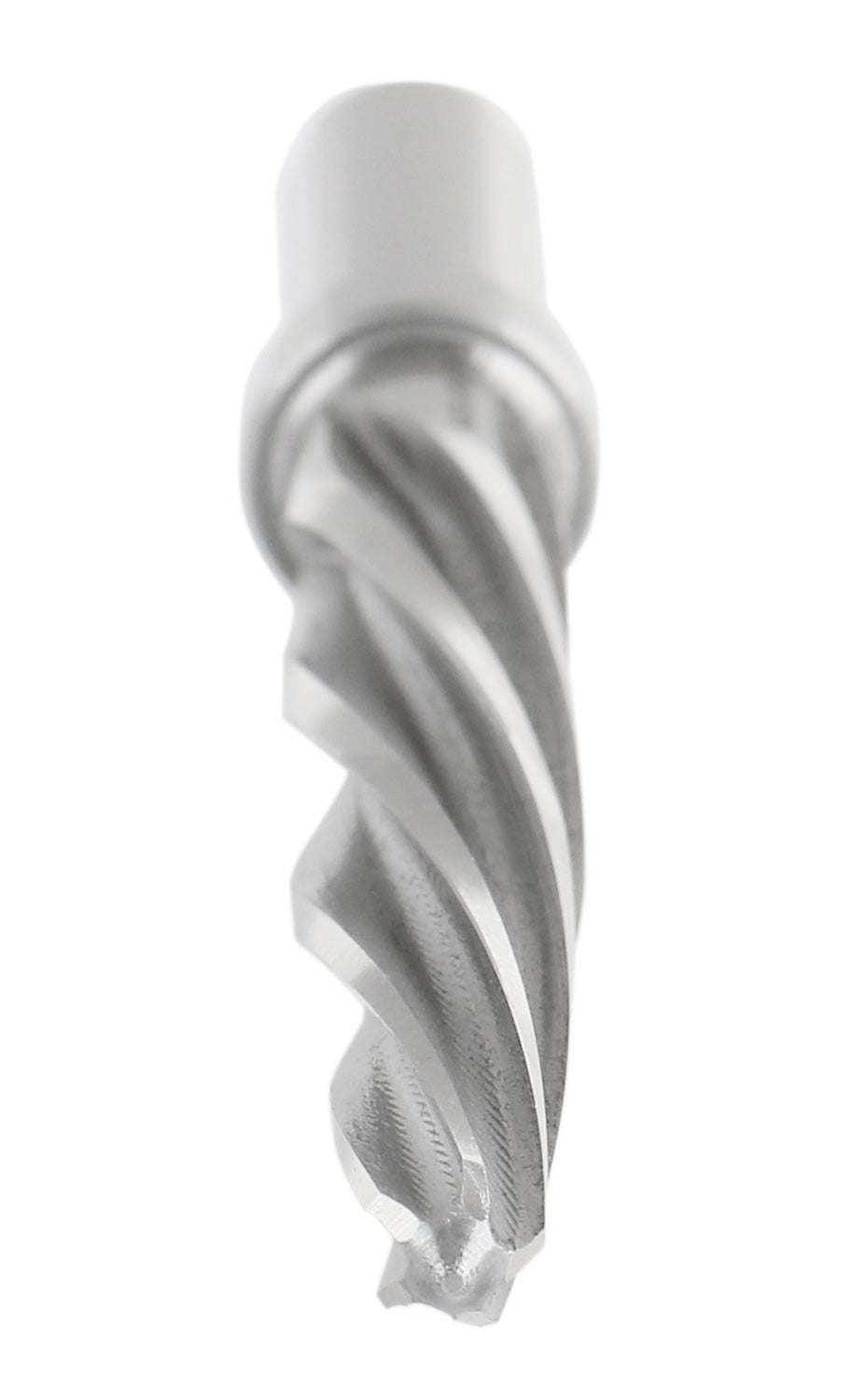

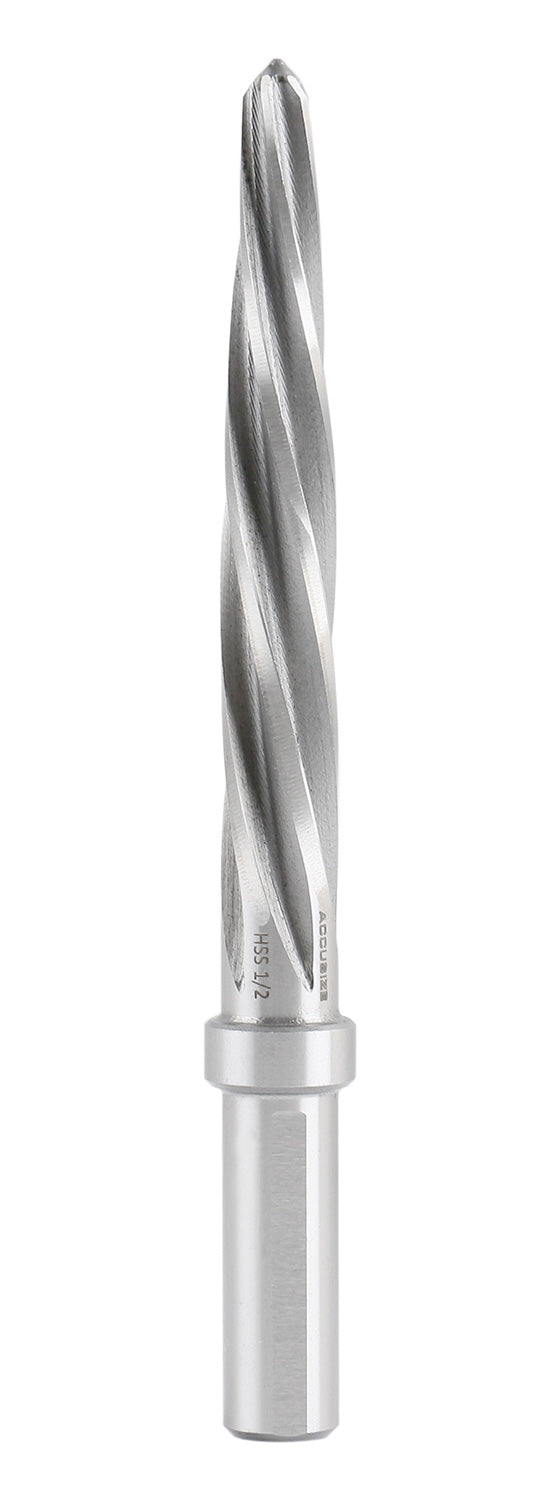

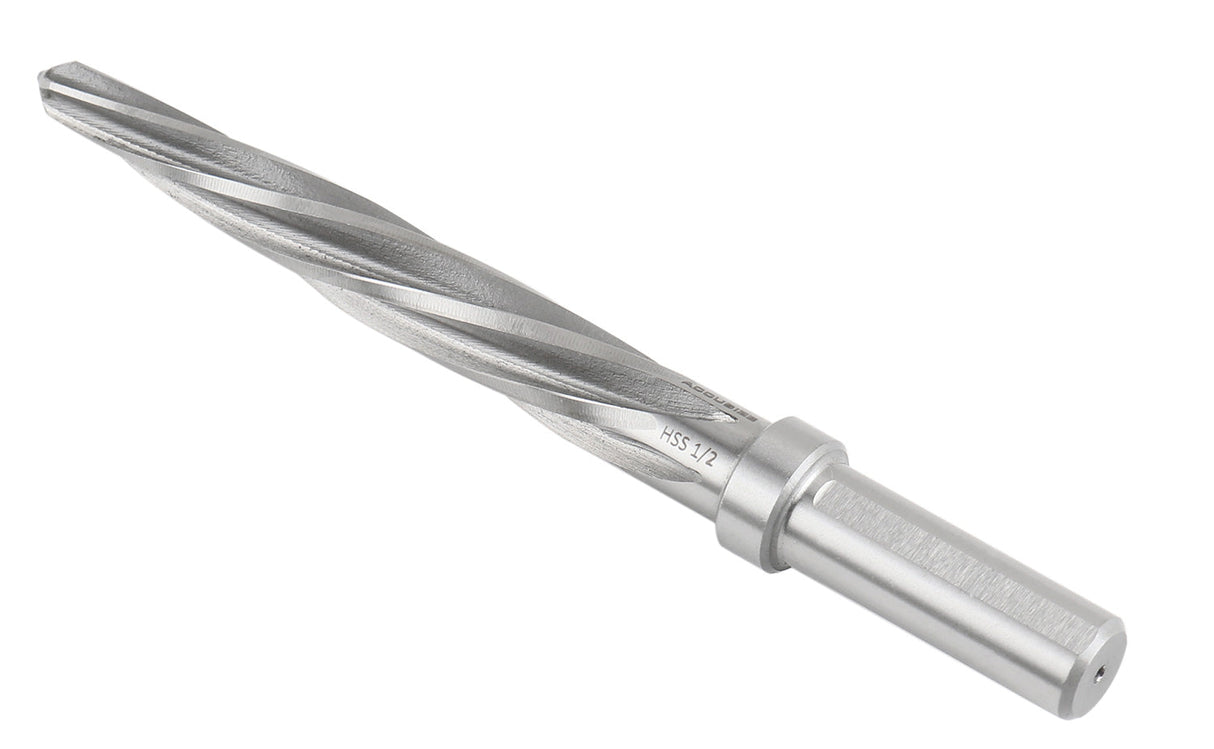

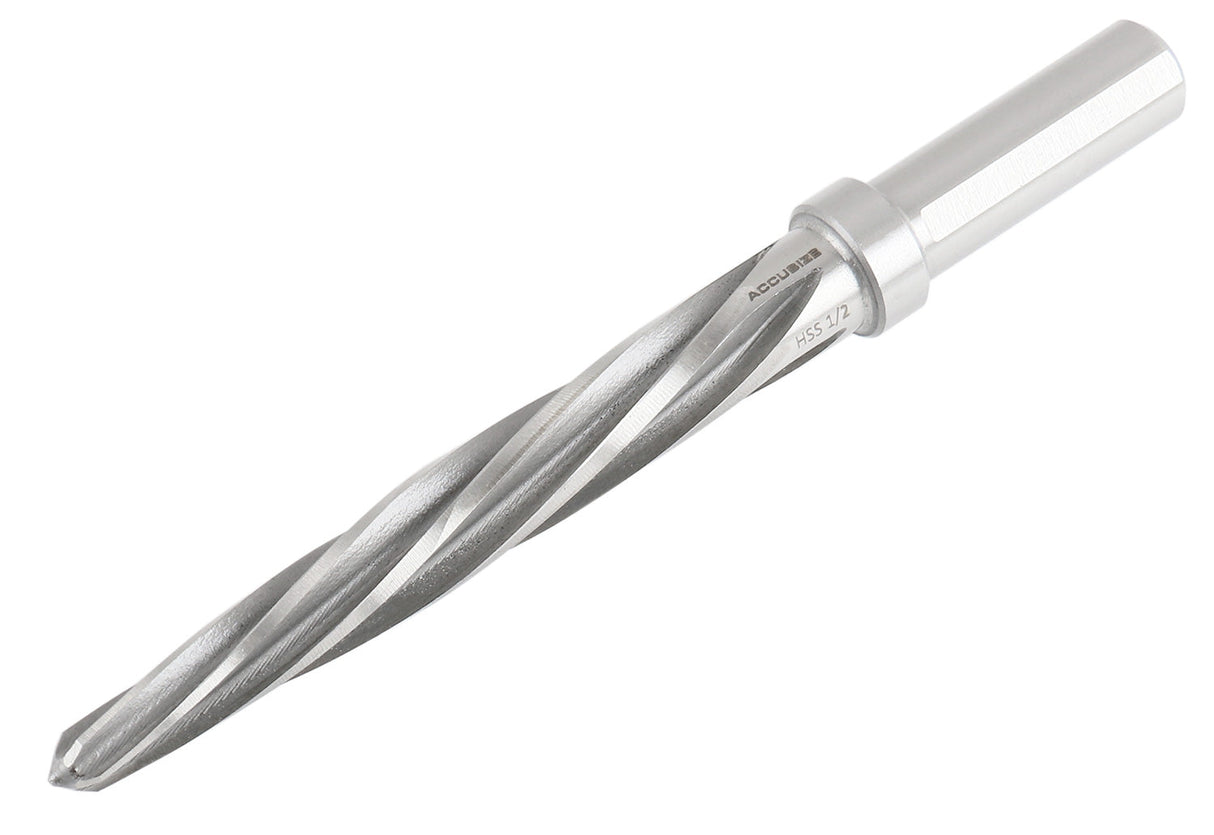

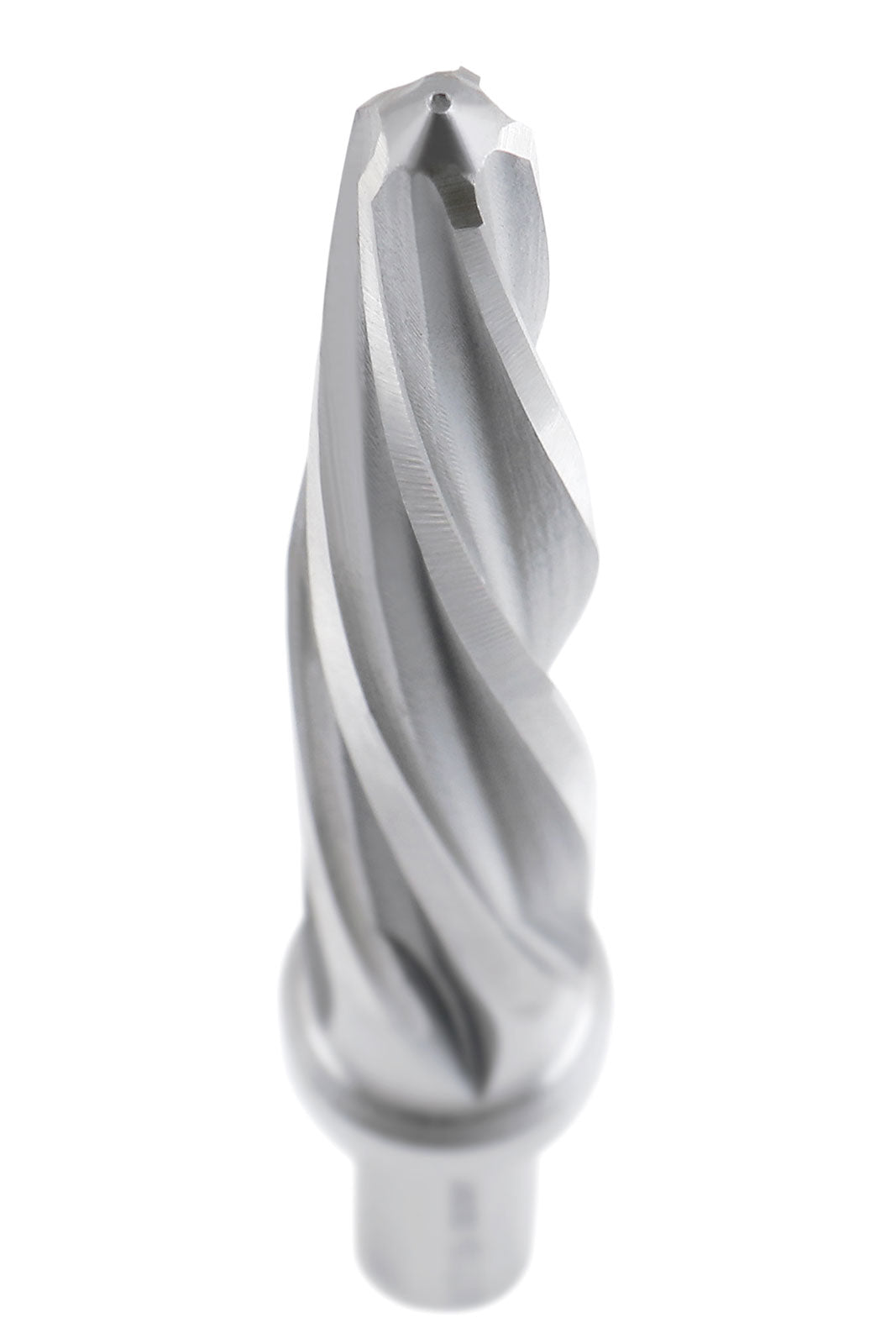

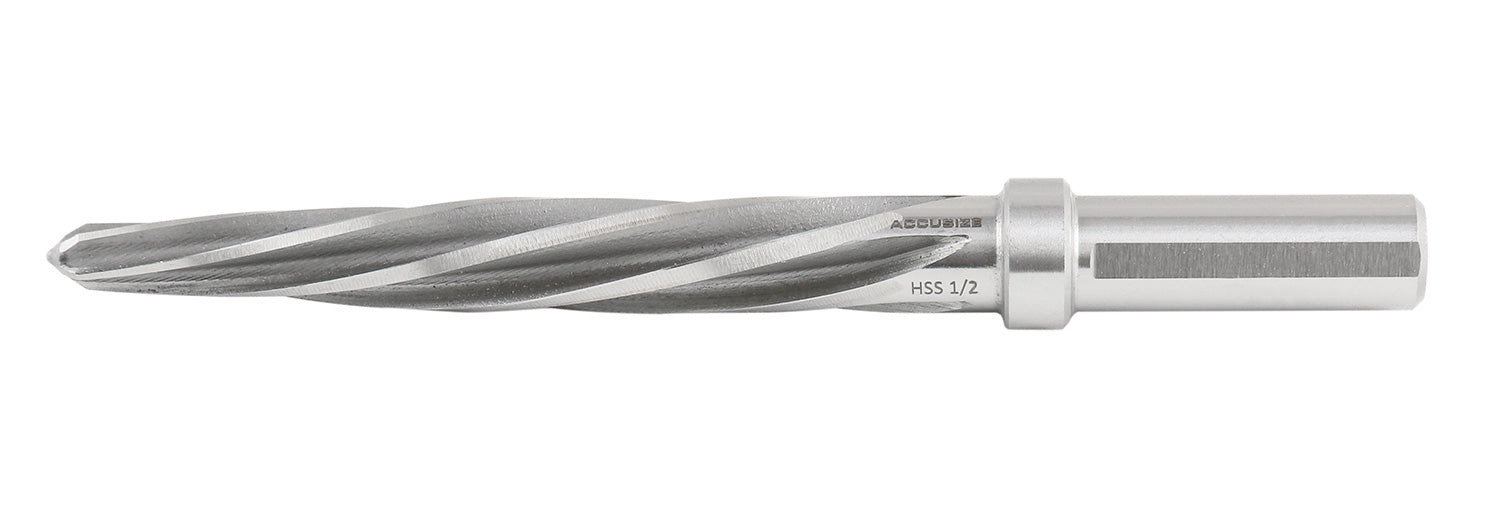

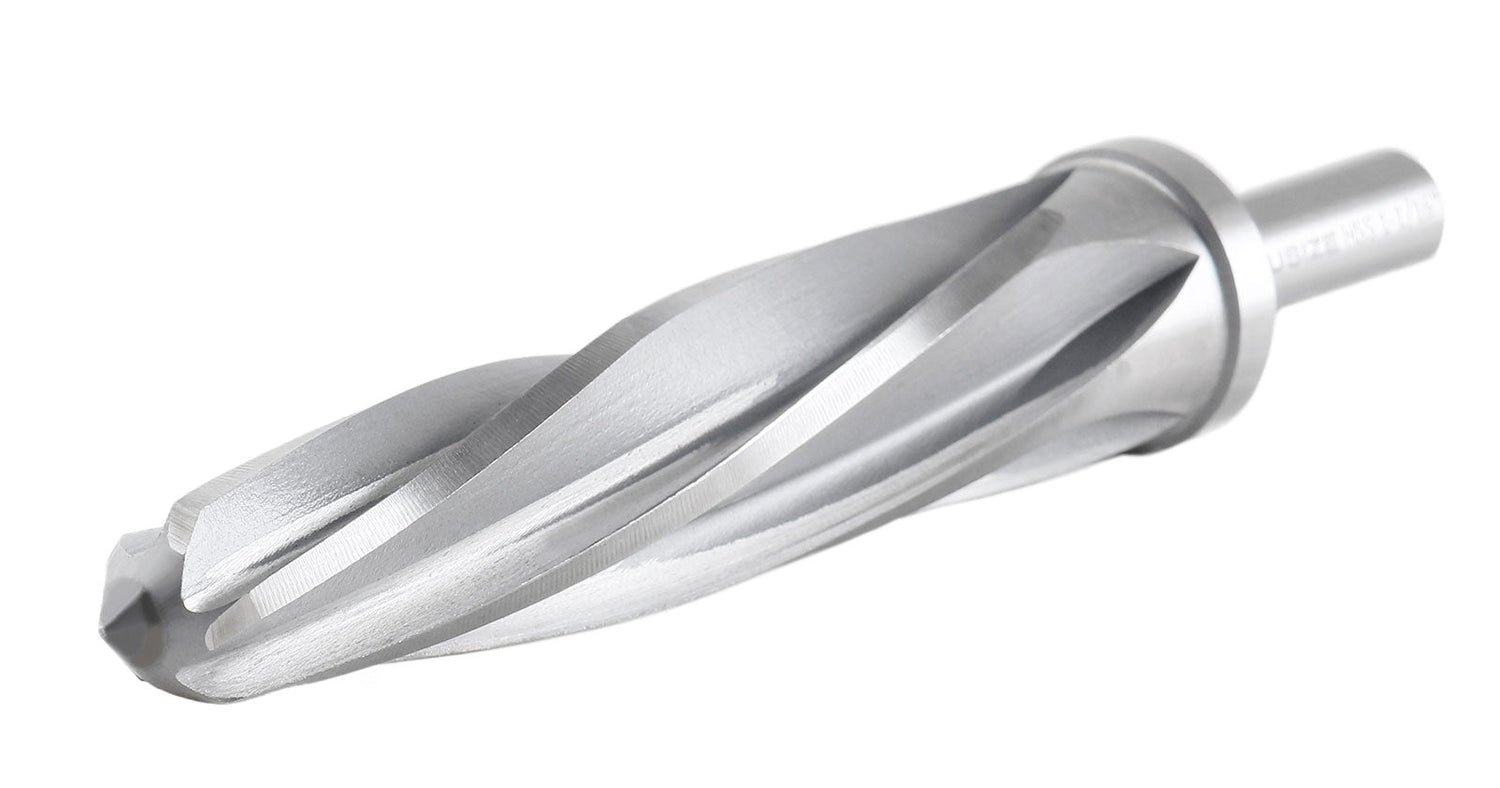

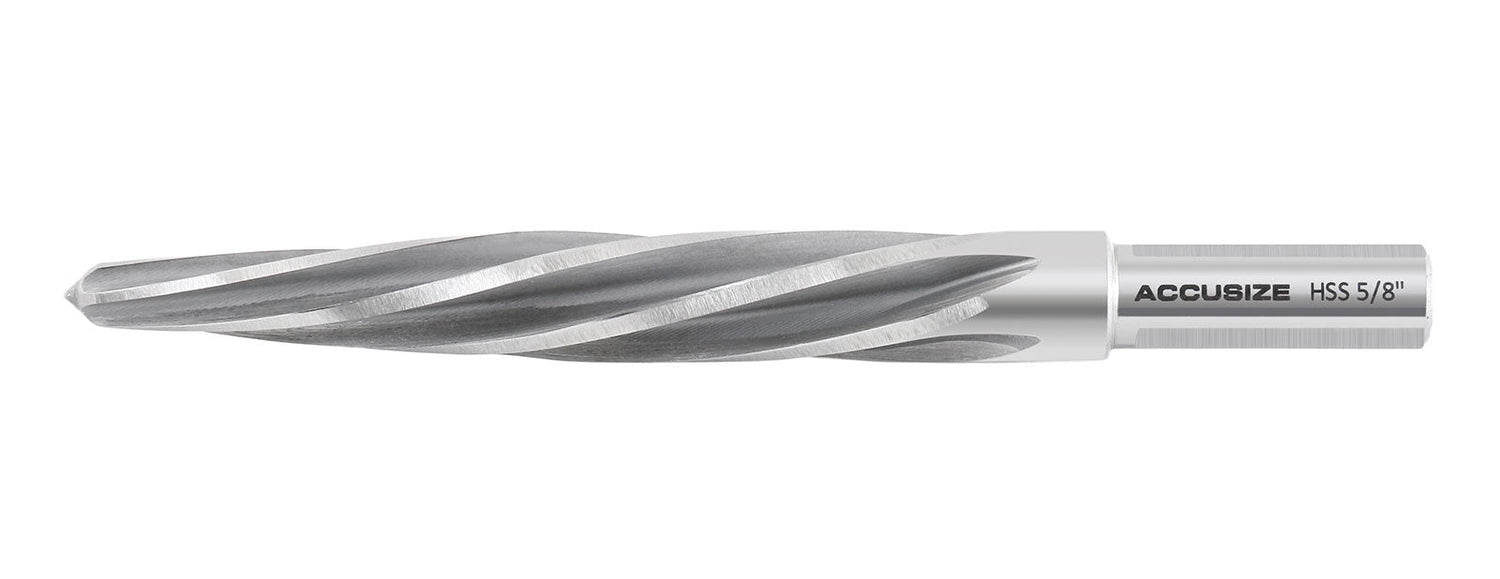

H.S.S. Aligning Reamer, Spiral Flute, 3/8" Straight Shank with 3-Equal Flat:
- 5 Flute
- Left-Hand Spiral with Right-Hand Cut
- HSS reamer to align existing hole prior to rivet or bolt installation.

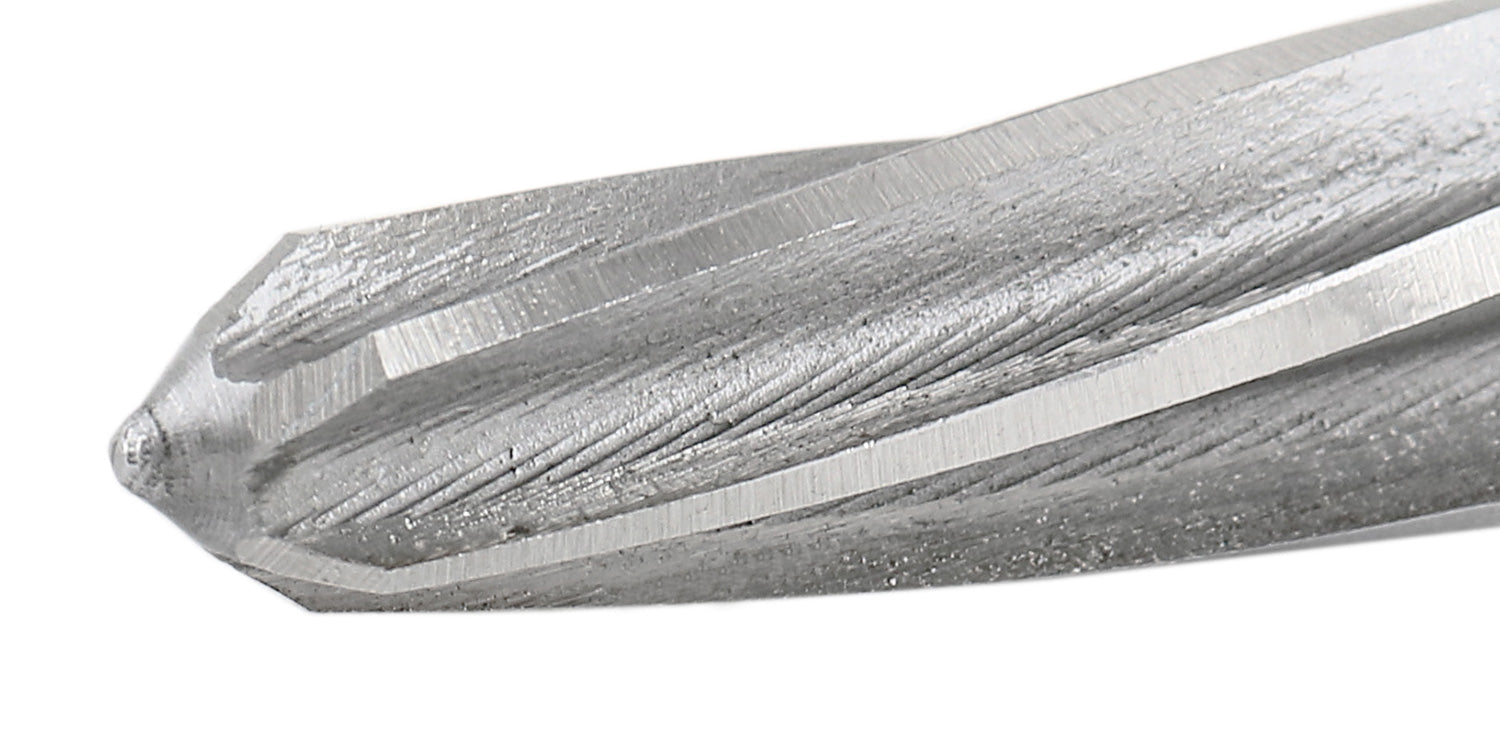

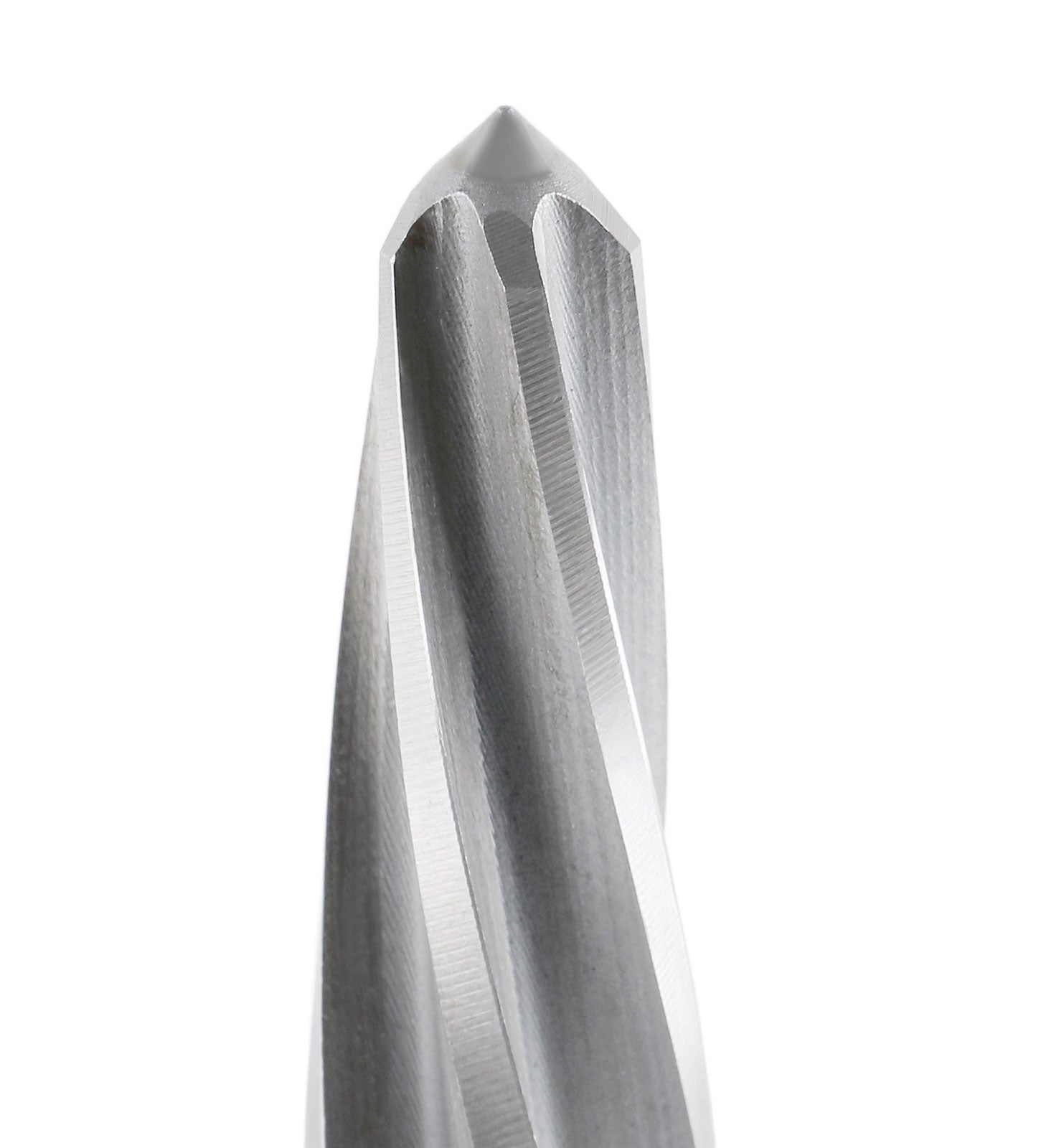

- The point is tapered to allow entry into overlapping holes.
| ITEM# | Reamer Dia: | Shank Dia | Shank Length | Flute Length | Overall Length | Degree of Taper |

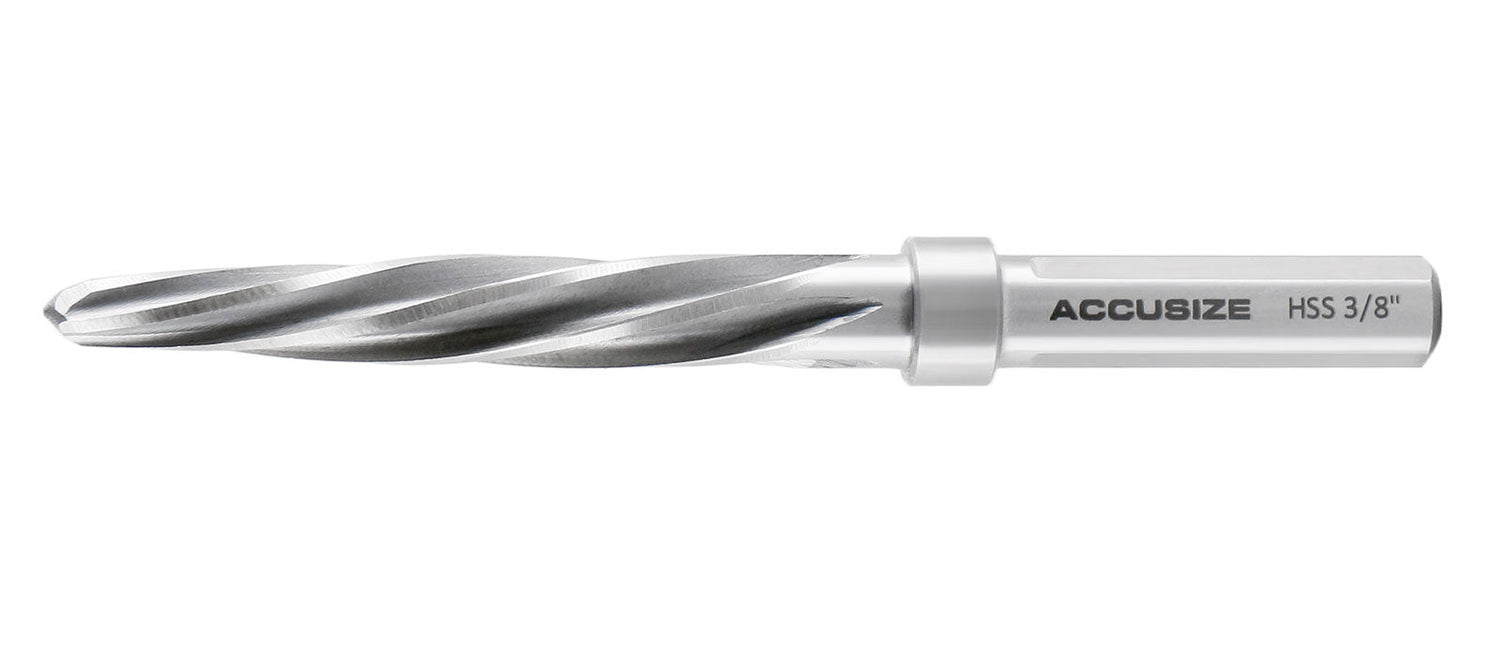

| 0522-0038 | 3/8" | 3/8" | 1-1/2" | 2-3/4" | 4-5/8" | 6 degree |

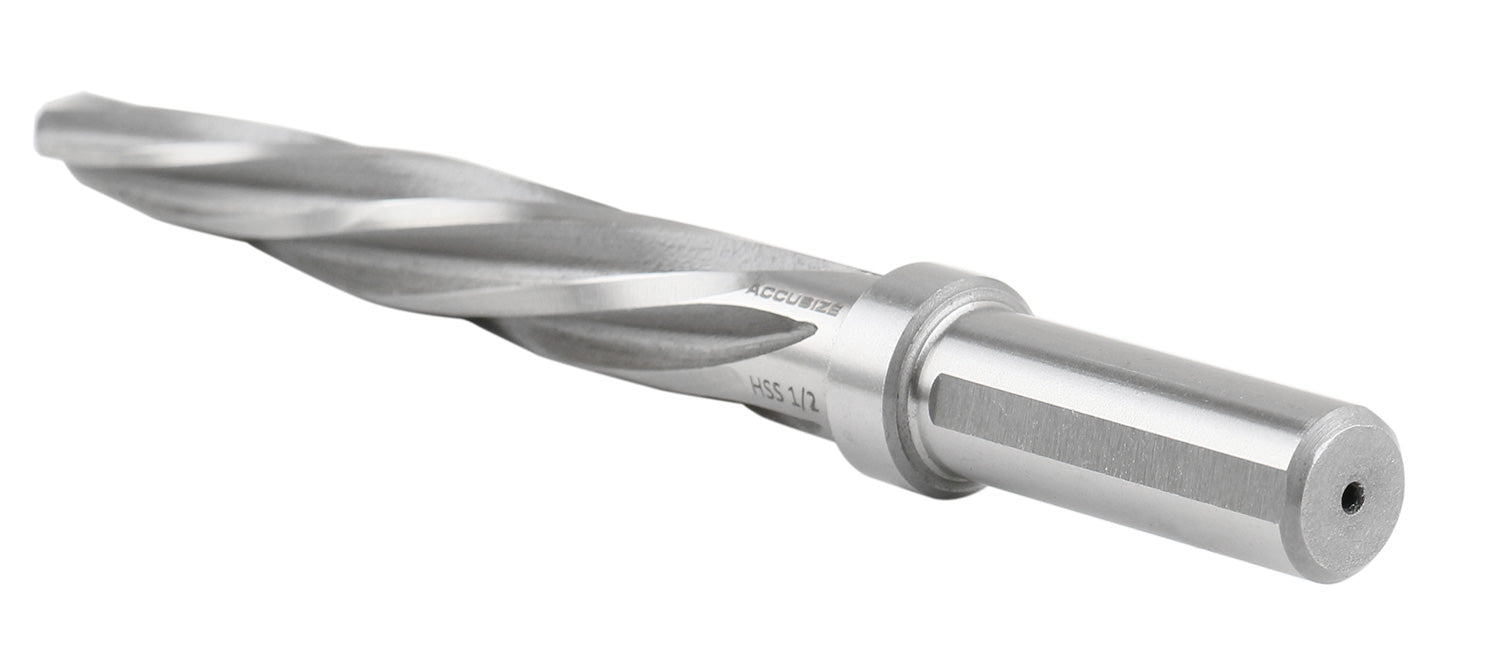

| 0522-0012 | 1/2'' | 1/2'' | 1-1/2'' | 4'' | 5-7/8'' | 6 degree |
| 0522-0058 | 5/8'' | 1/2'' | 1-1/2'' | 4-1/2'' | 6-3/8'' | 8 degree |
| 0522-1116 | 11/16" | 1/2'' | 1-1/2'' | 4-1/2" | 6-3/8'' | 8 degree |

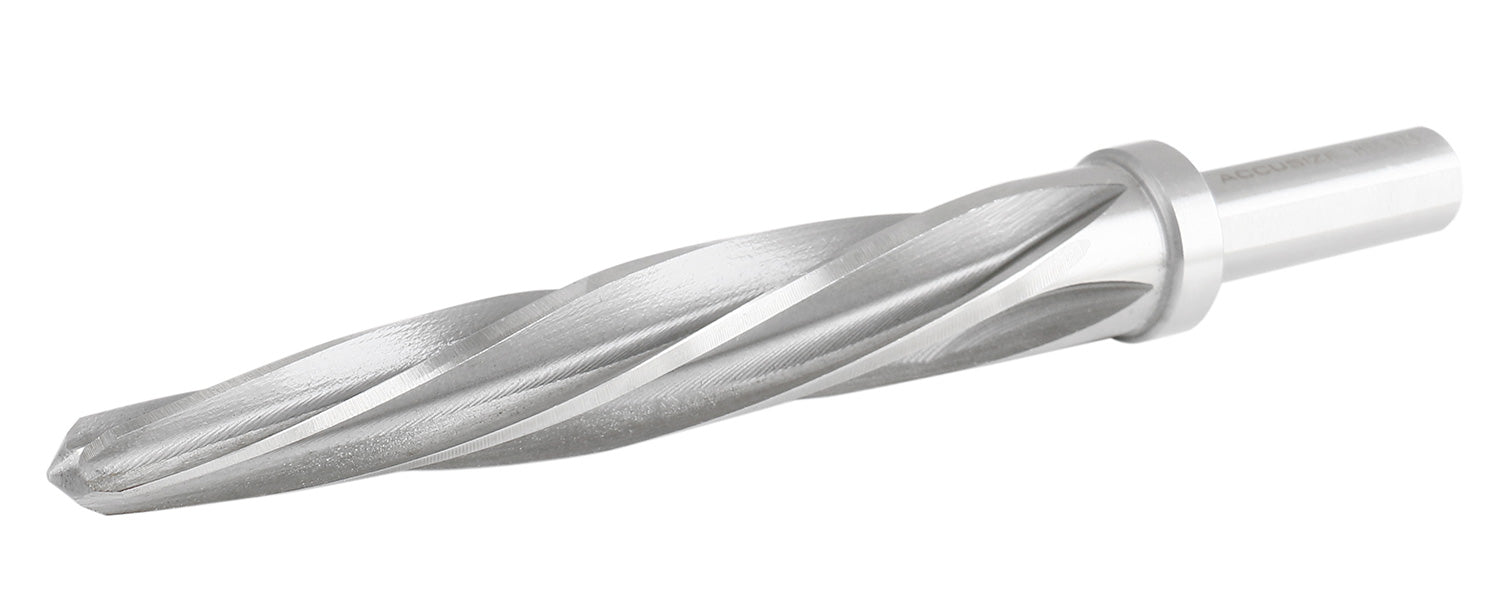

| 0522-0034 | 3/4'' | 1/2'' | 1-1/2'' | 5'' | 6-7/8'' | 8 degree |

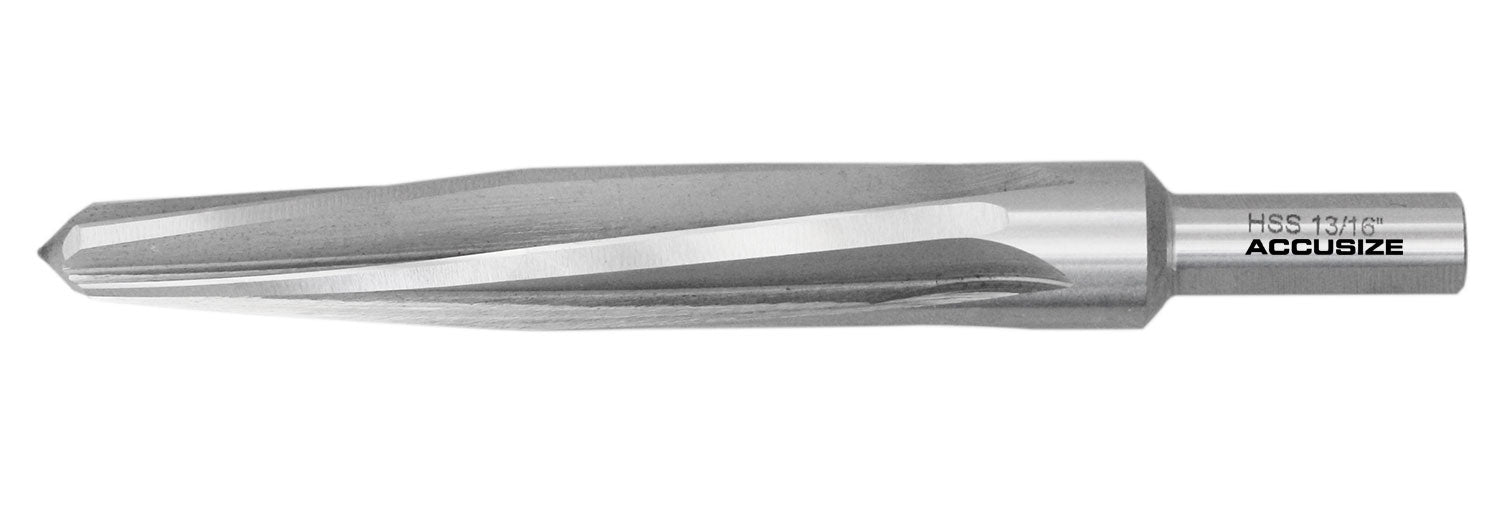

| 0522-1316 | 13/16" | 1/2'' | 1-1/2'' | 5'' | 6-7/8'' | 8 degree |
| 0522-0078 | 7/8" | 1/2" | 1-1/2" | 5" | 6-7/8'' | 8 degree |

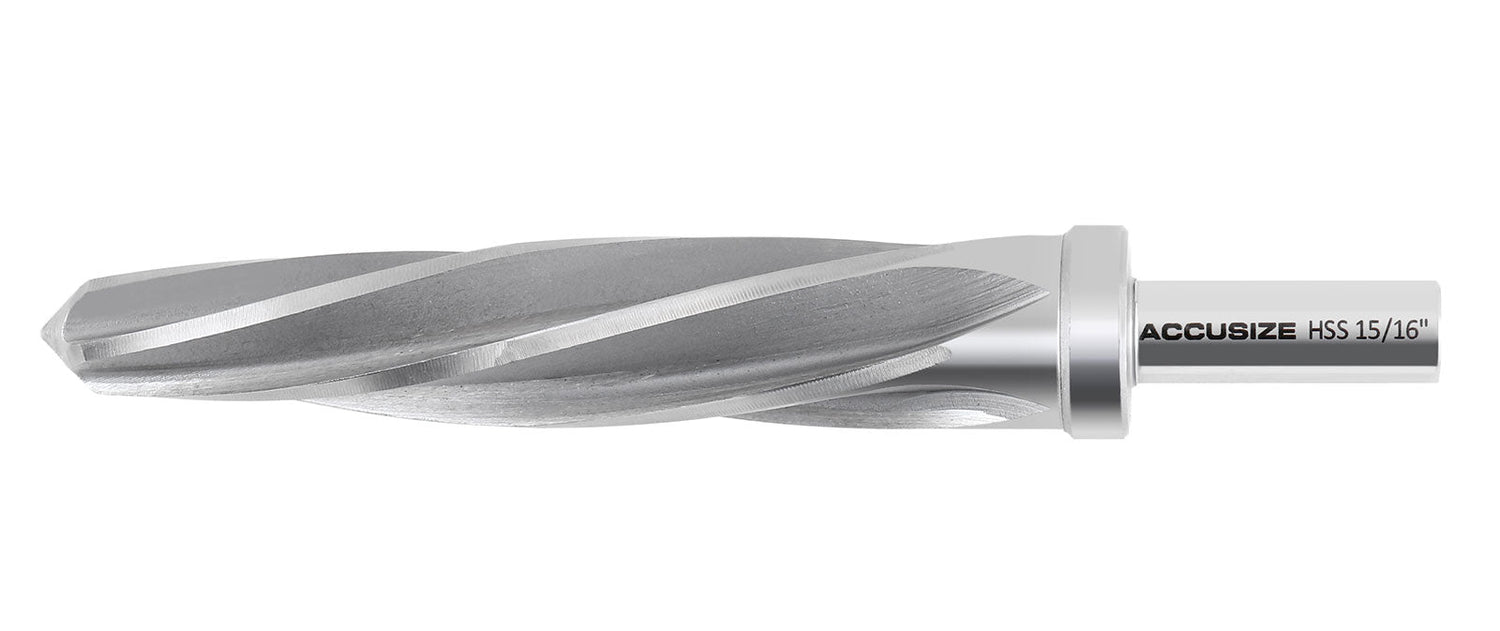

| 0522-1516 | 15/16" | 1/2'' | 1-1/2'' | 5'' | 6-7/8'' | 8 degree |
| 0522-0001 | 1" | 1/2'' | 1-1/2'' | 5'' | 6-7/8'' | 8 degree |
| 0522-1716 | 1-1/16" | 1/2" | 1-1/2" | 5" | 6-7/8" | 8 degree |
