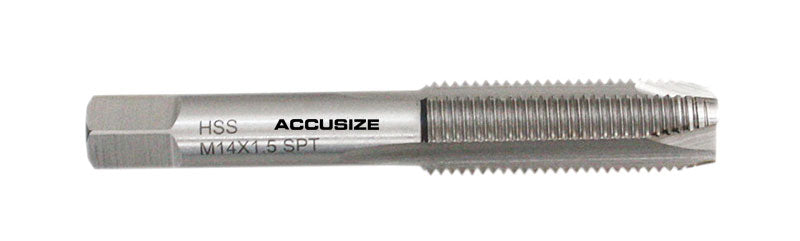

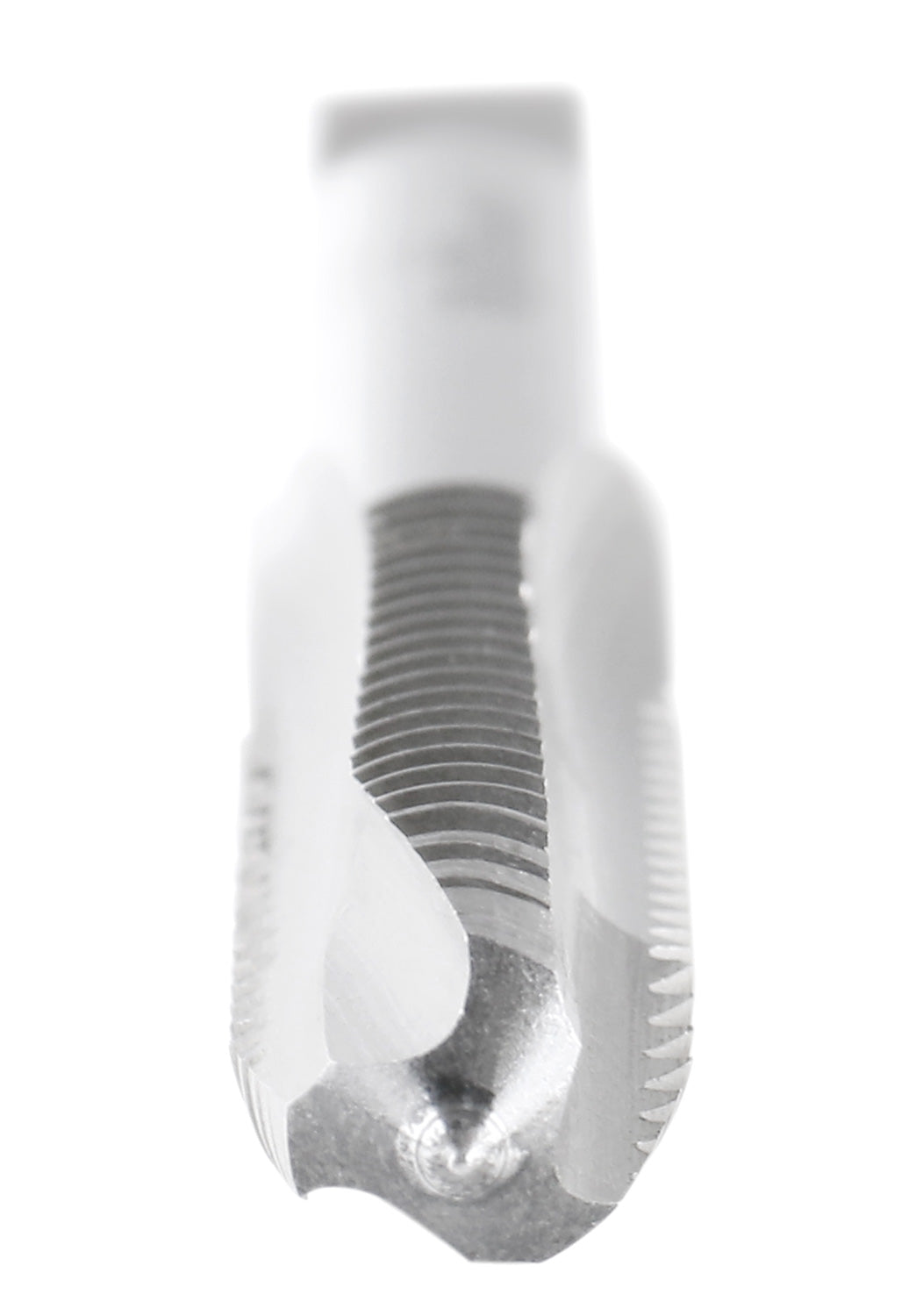

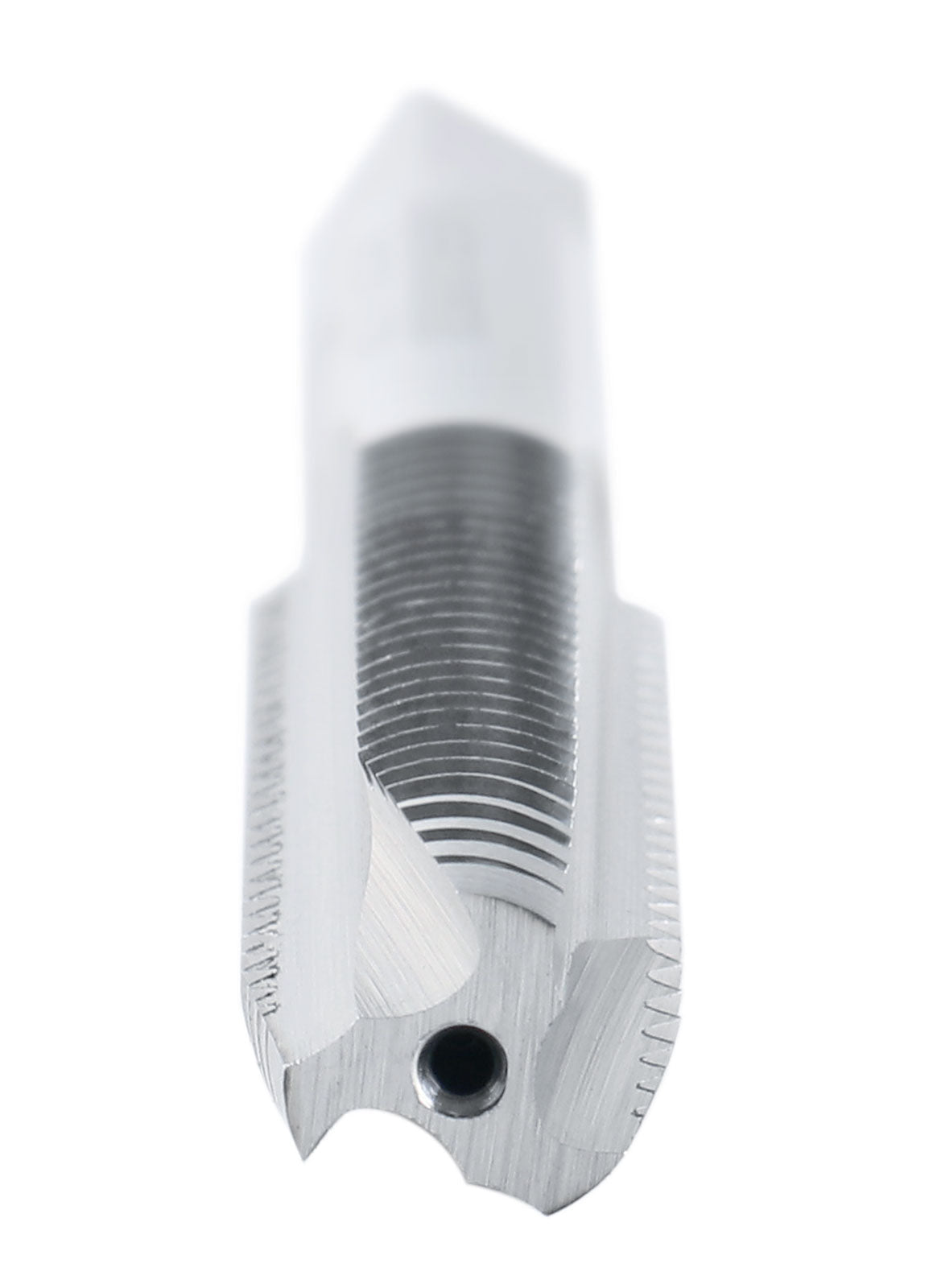

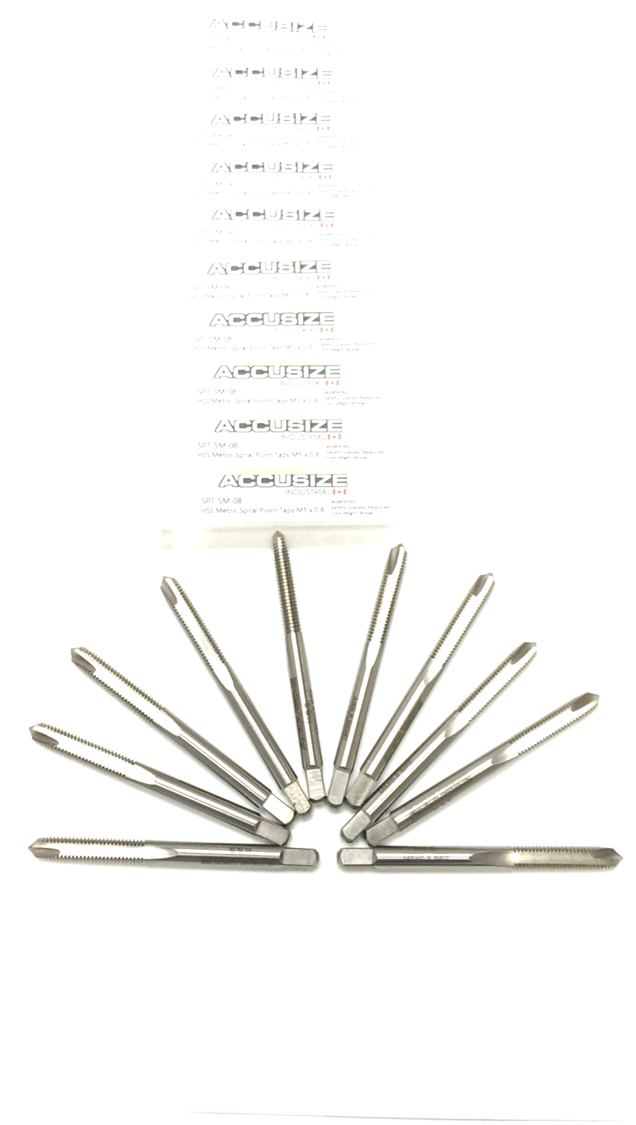

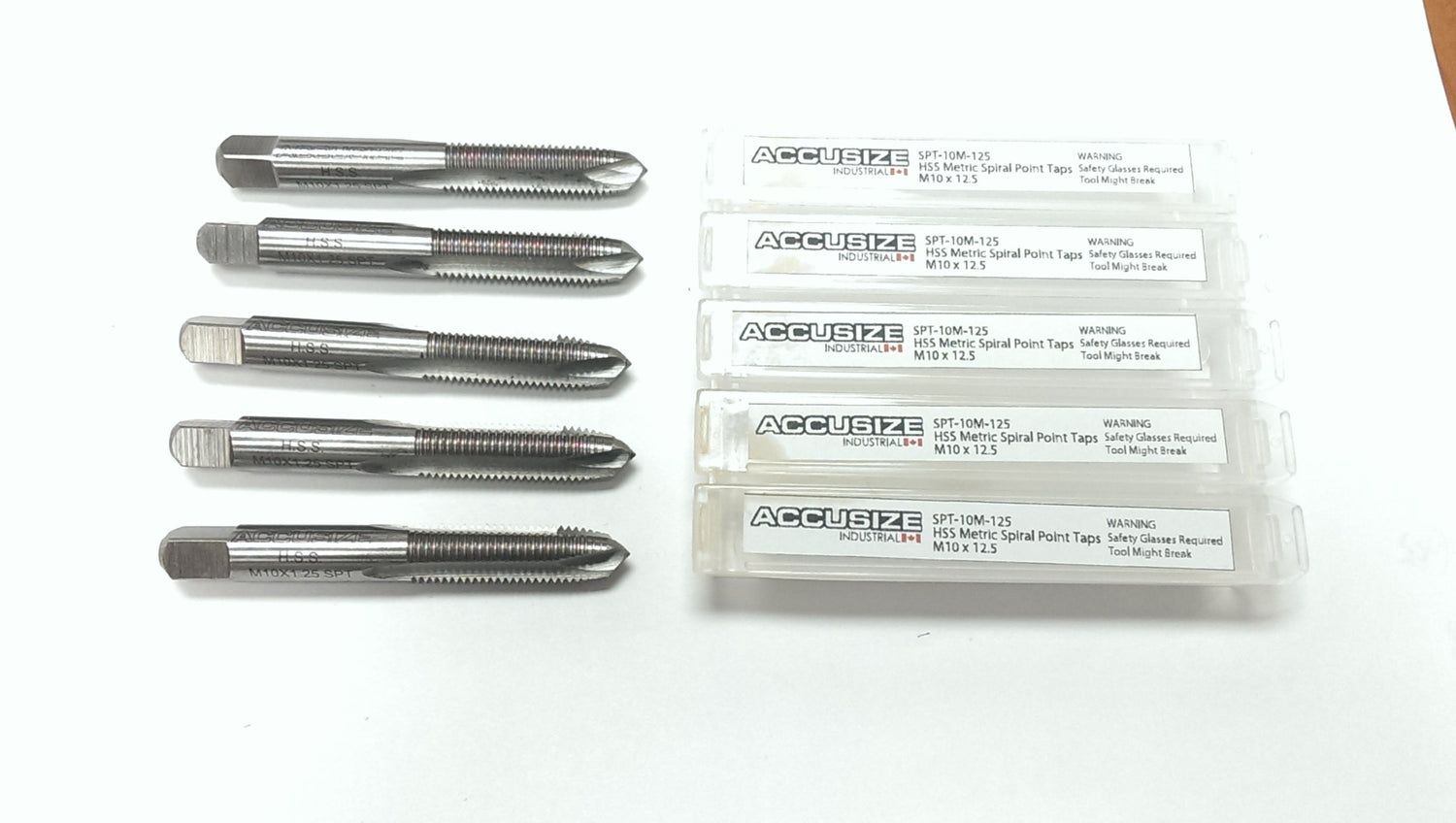

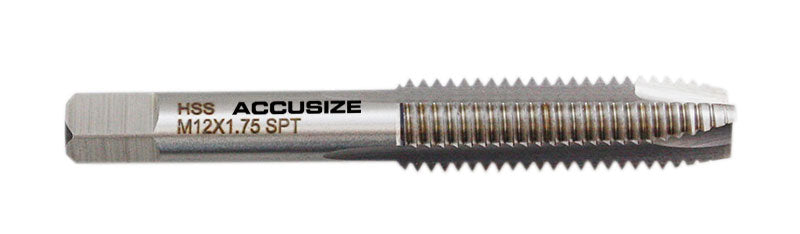

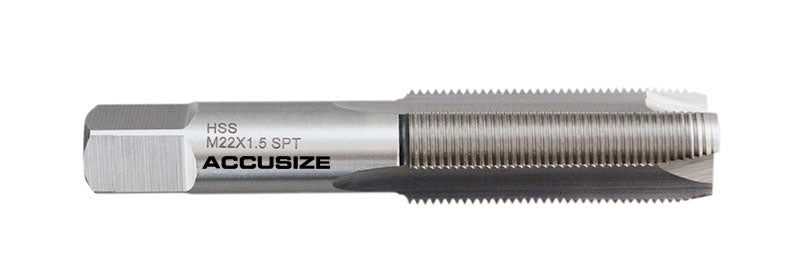

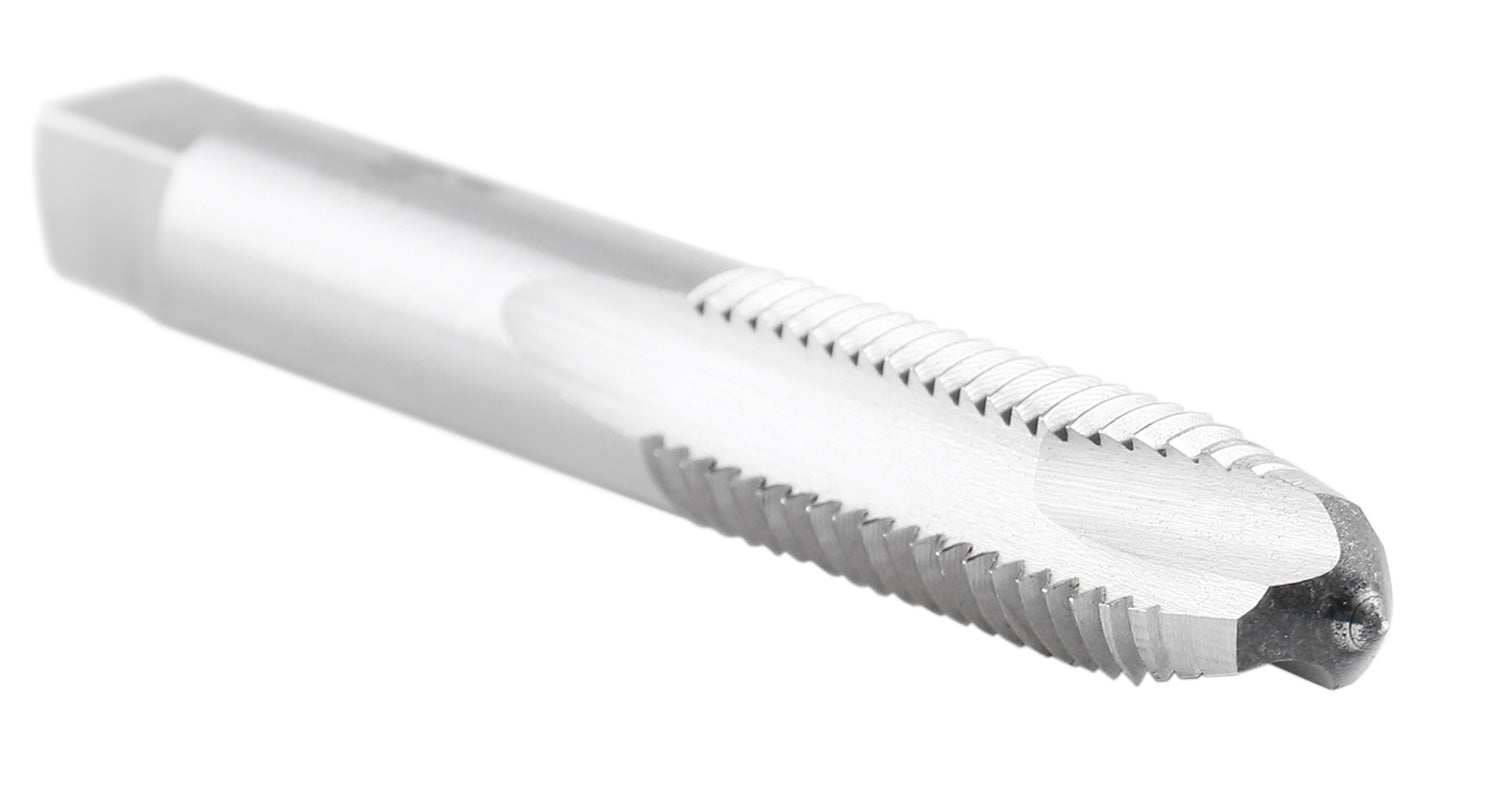

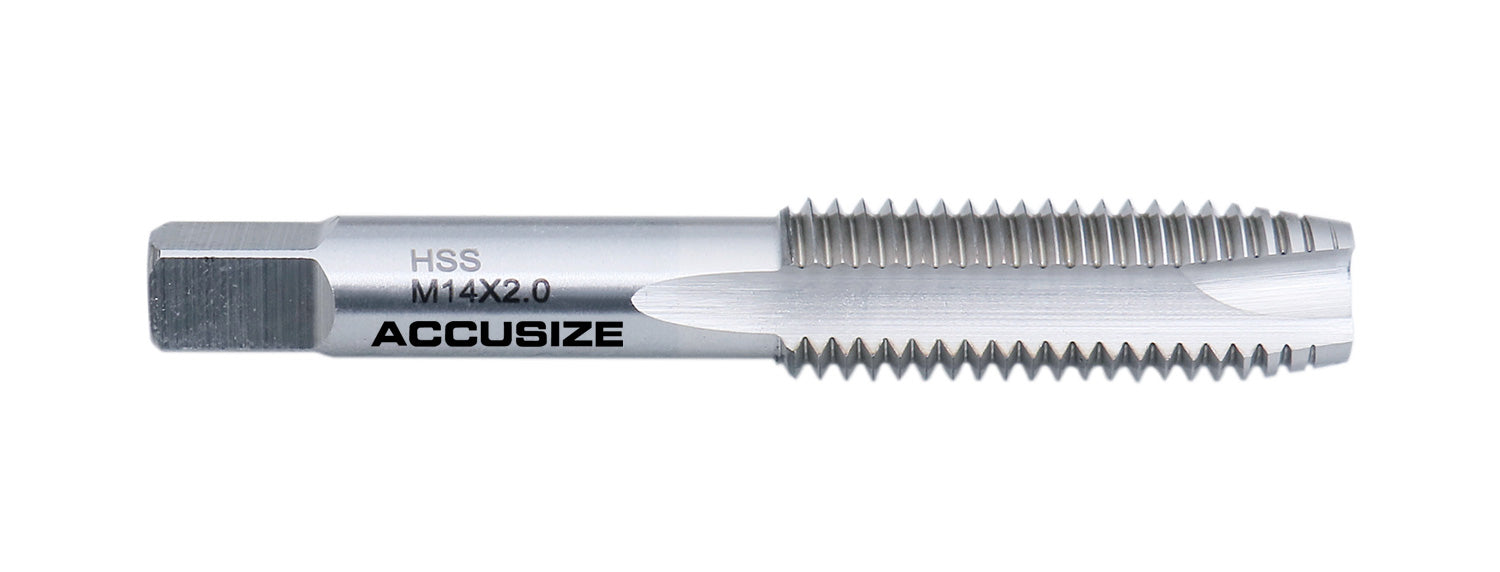

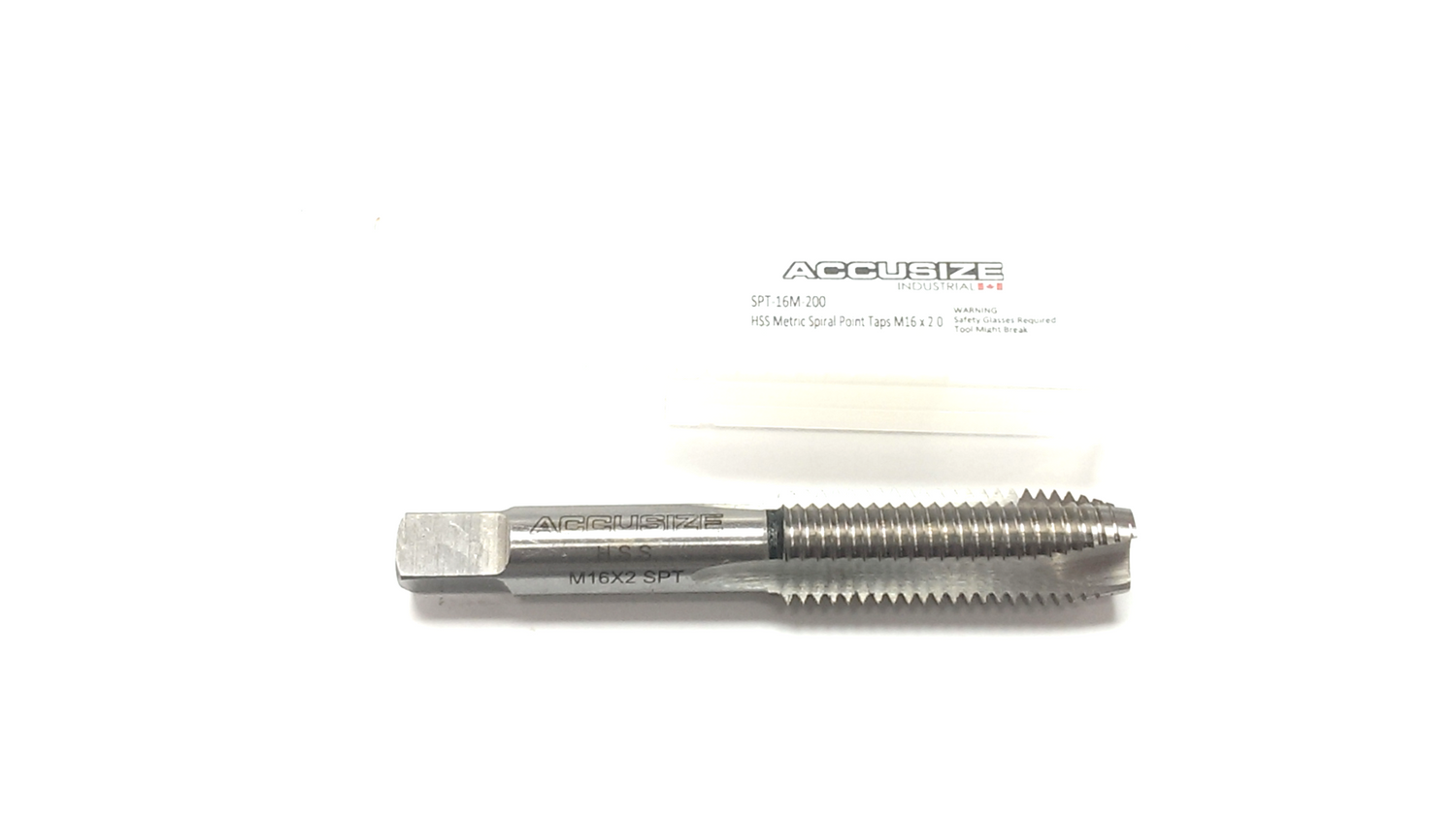

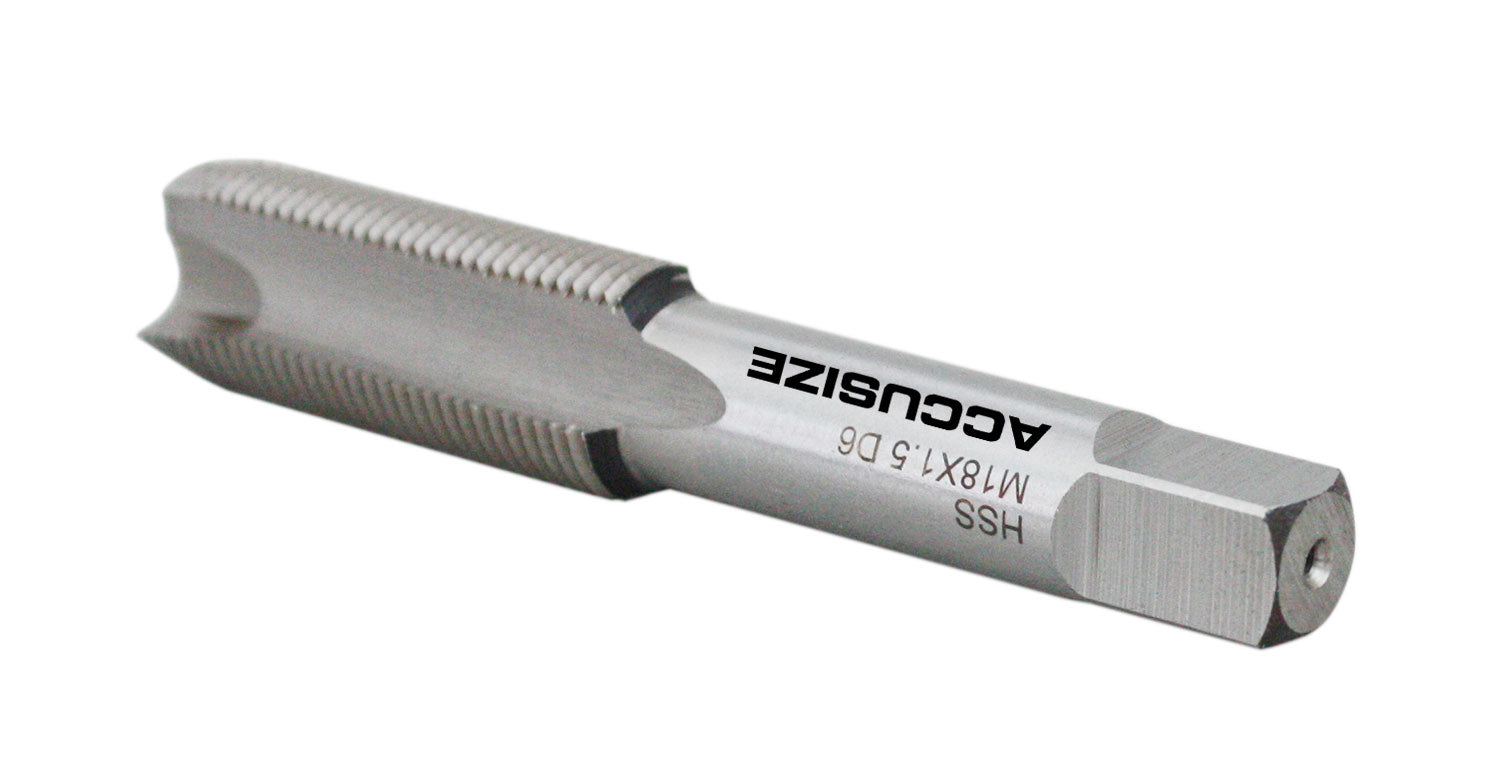

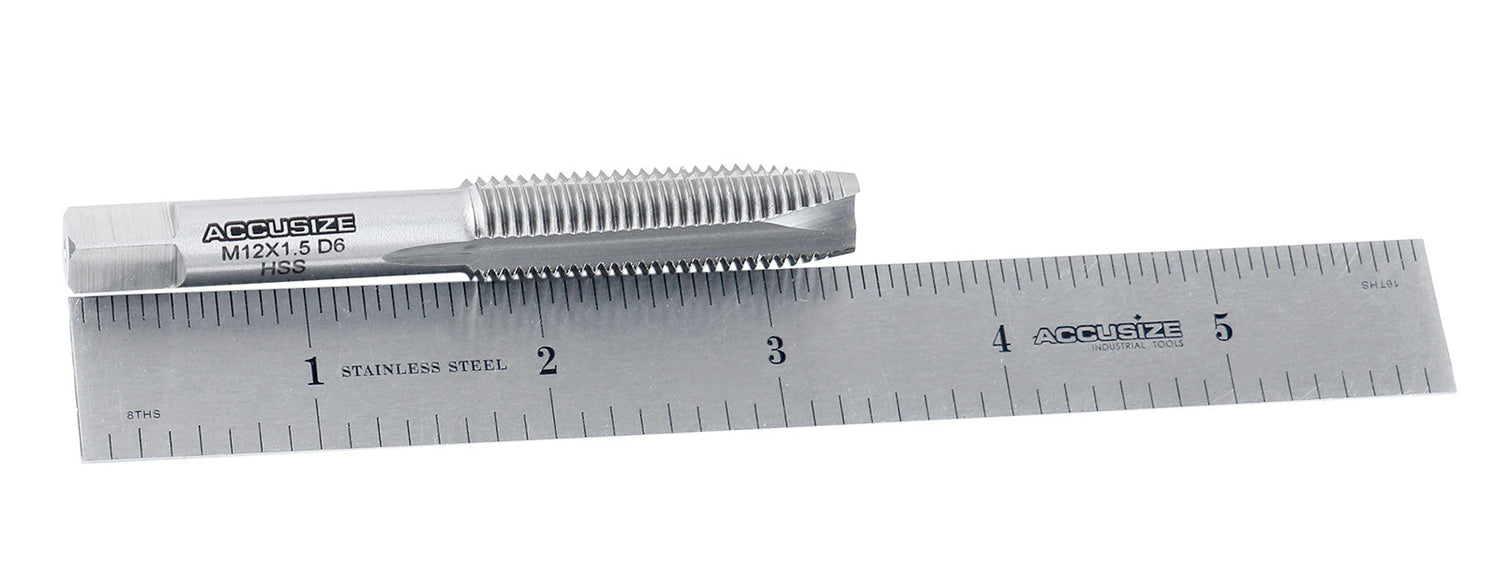

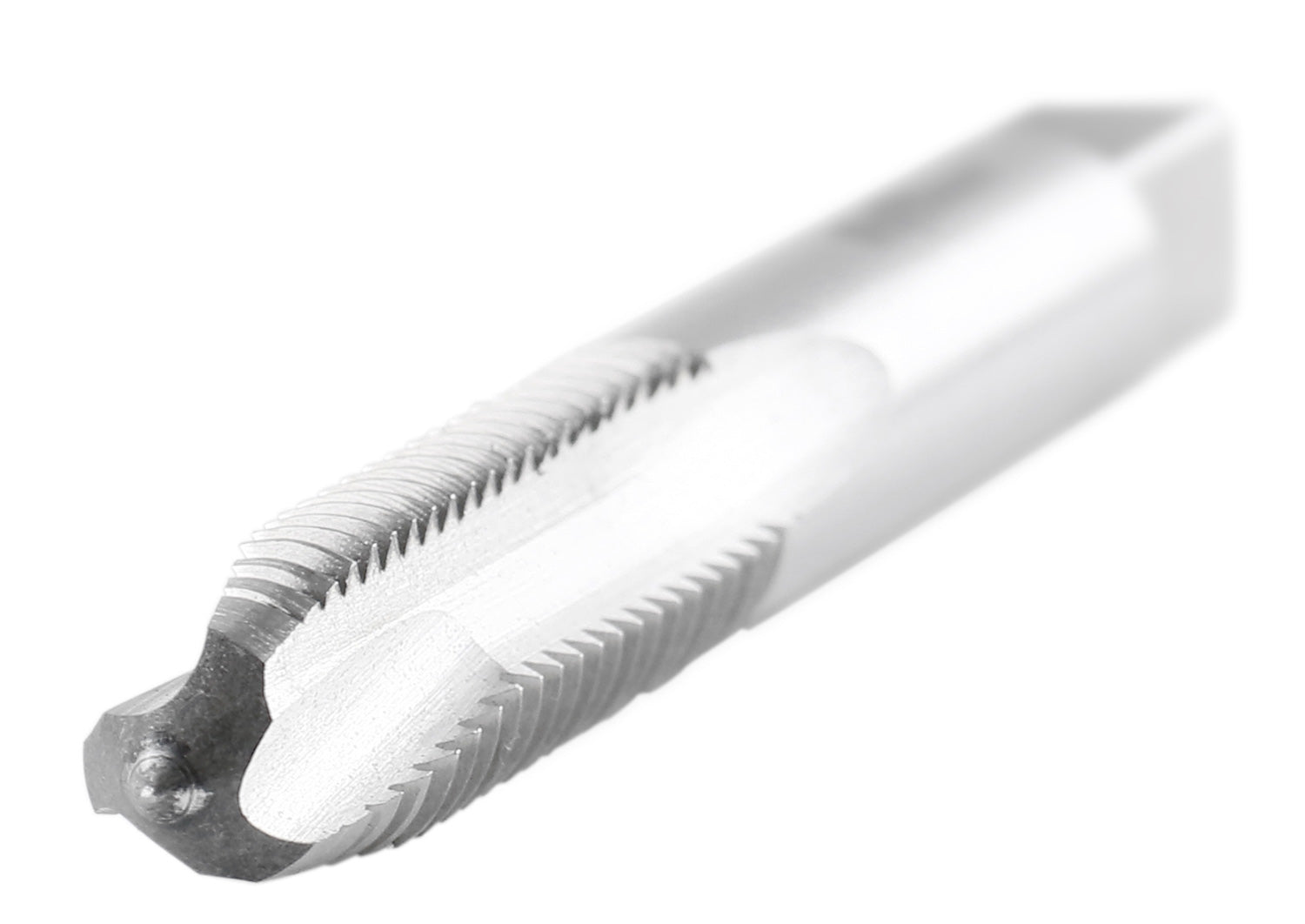

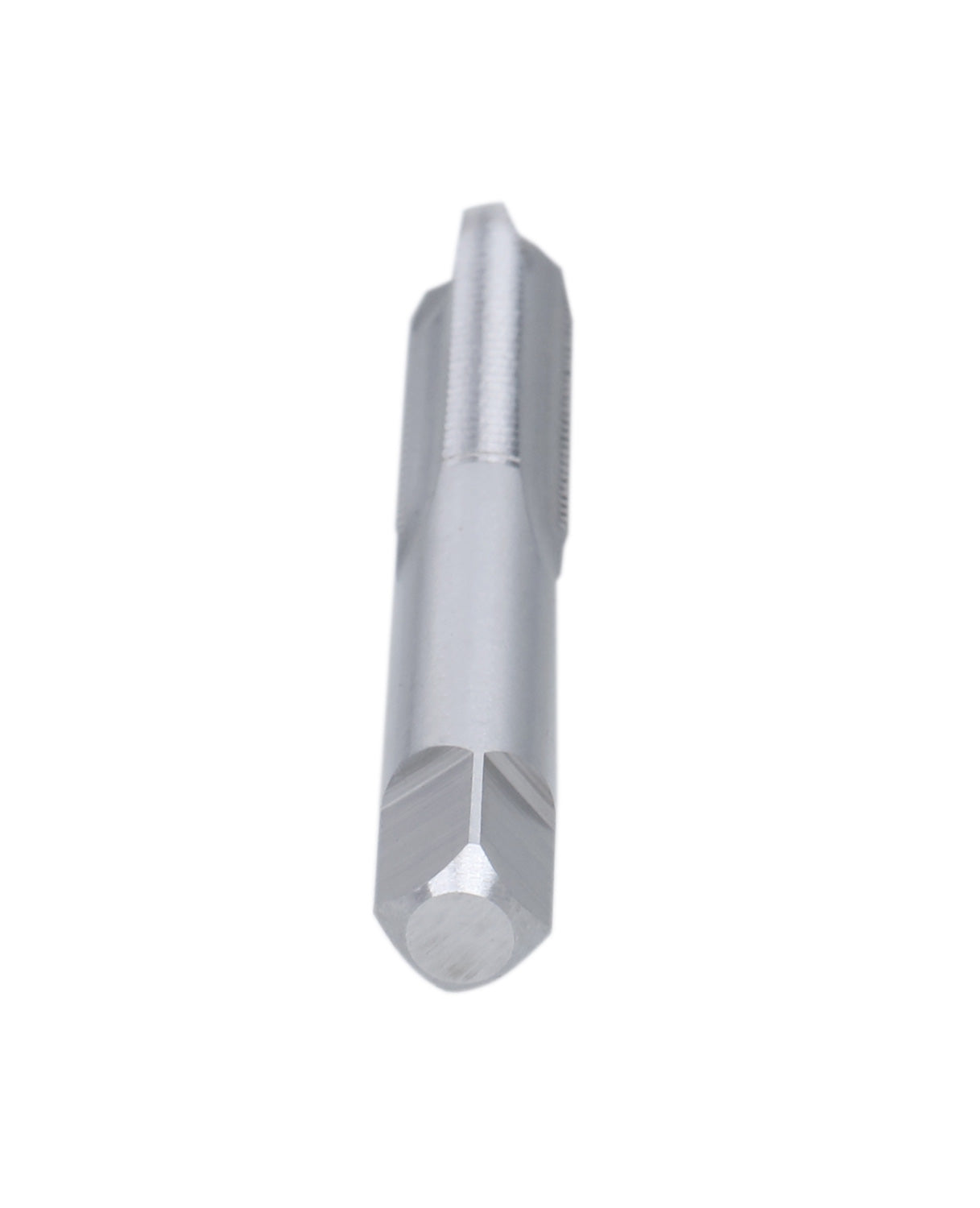

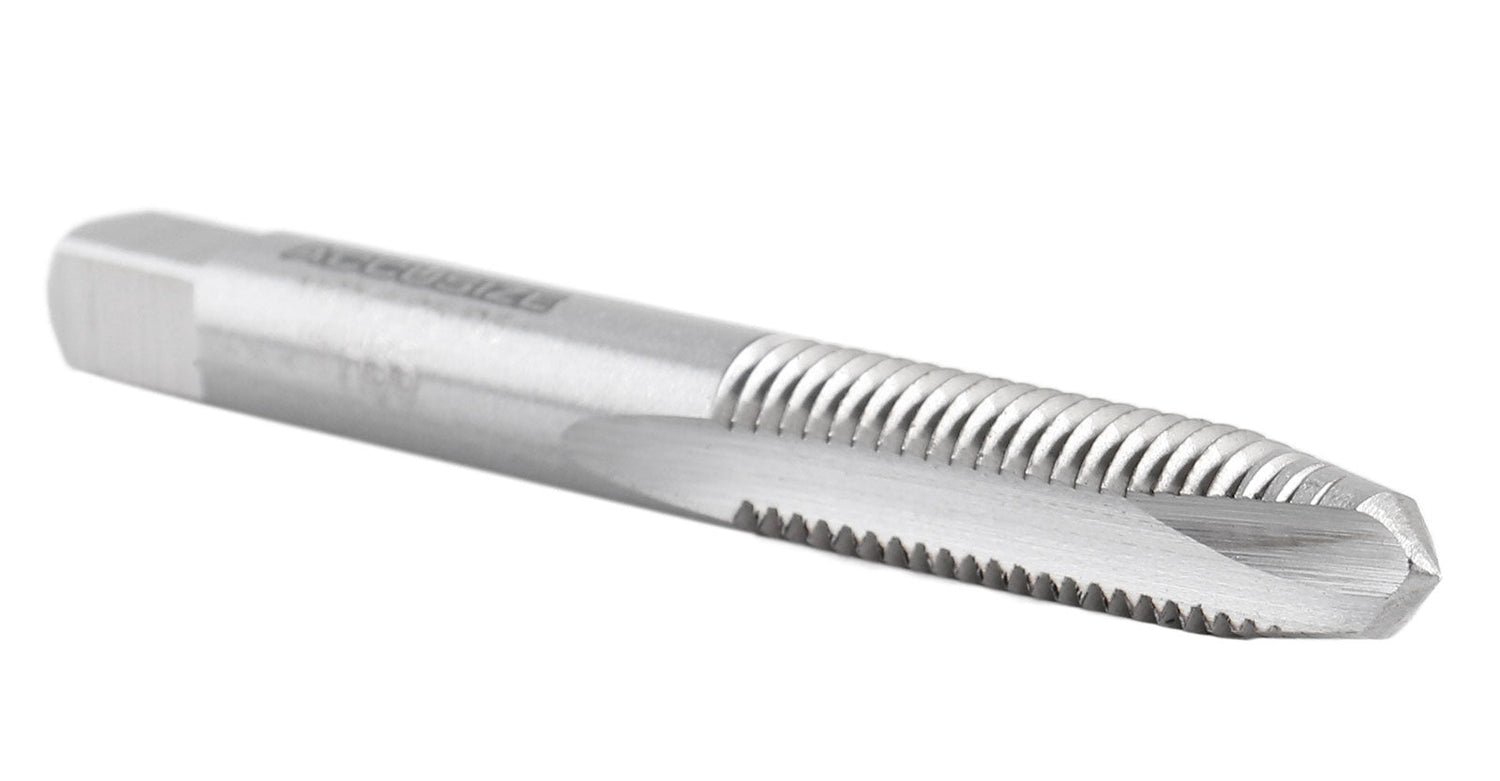

HSS Metric Spiral Flute Point Point Taps
Regular price
From
$4.80 CAD
Unit price
/
Unavailable

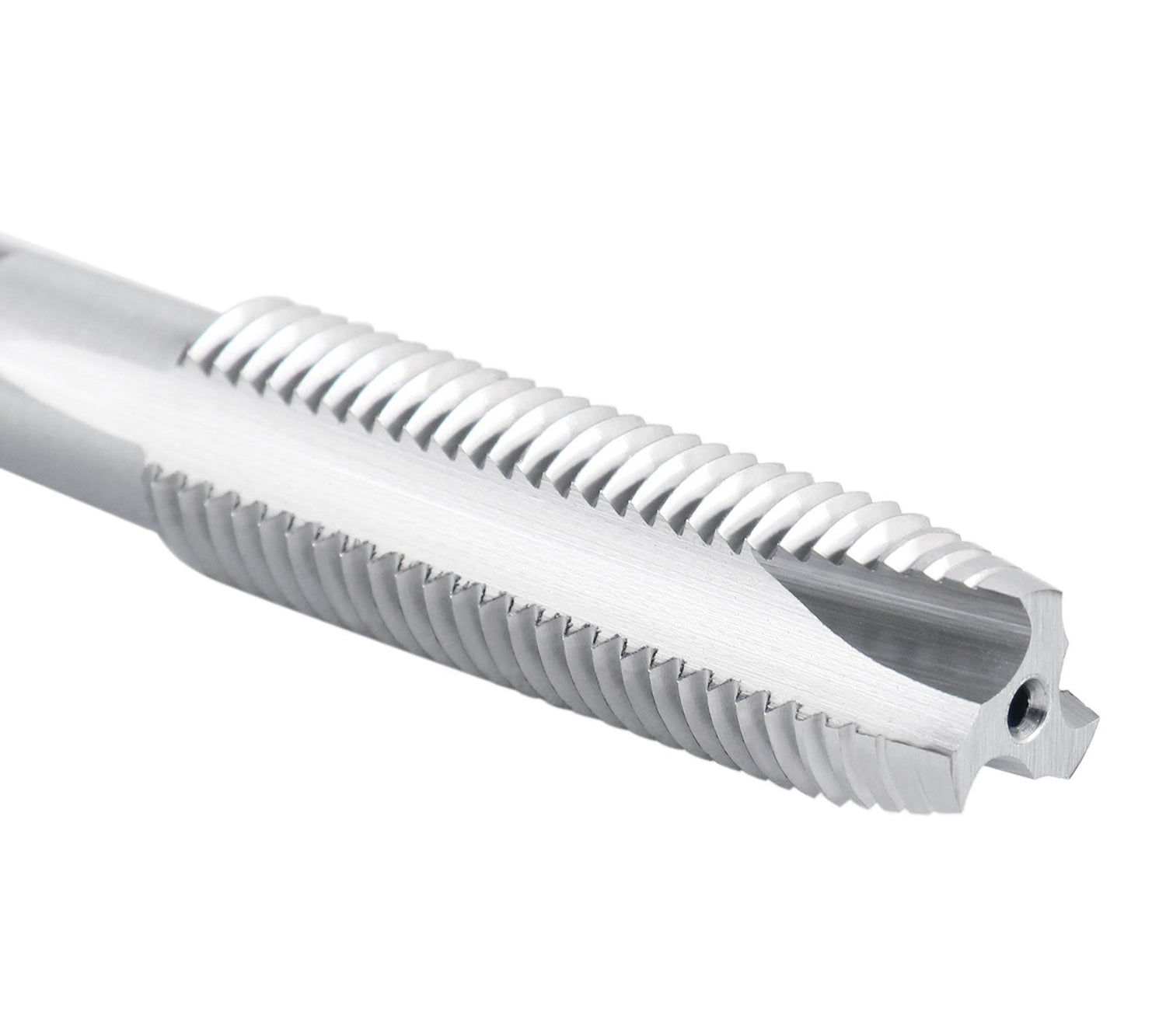

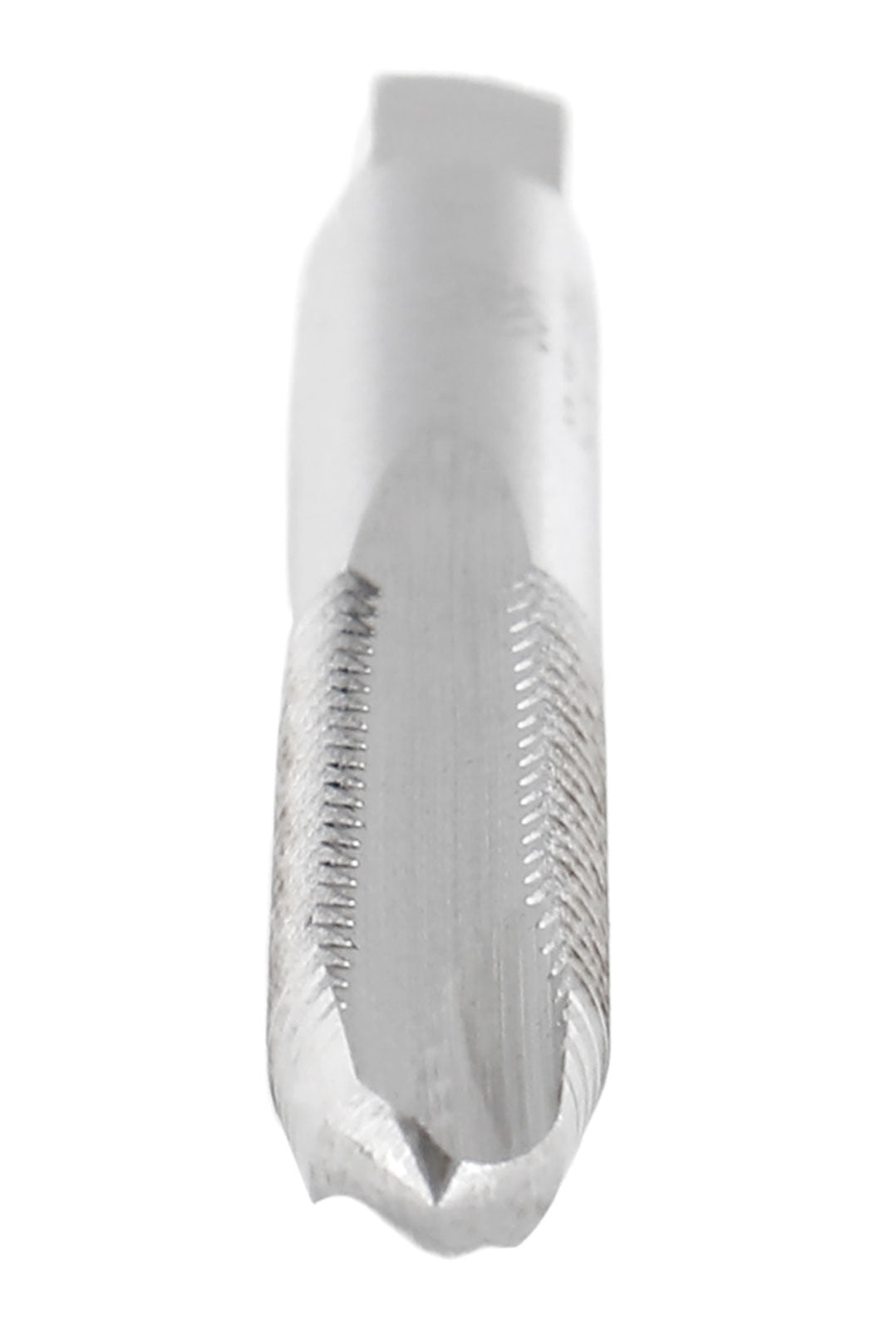

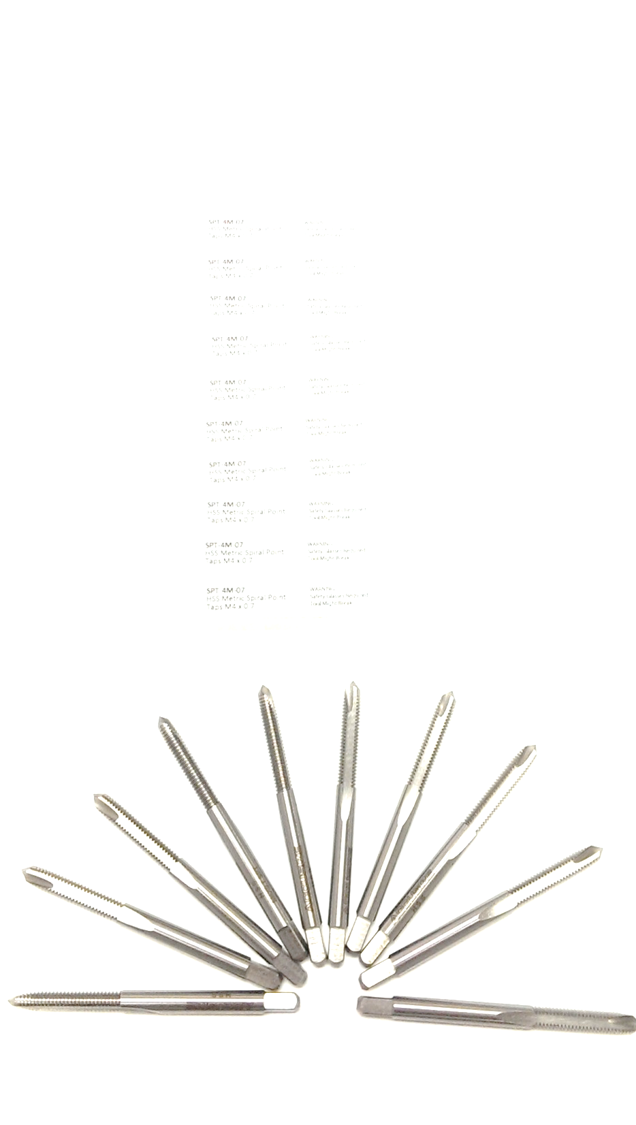

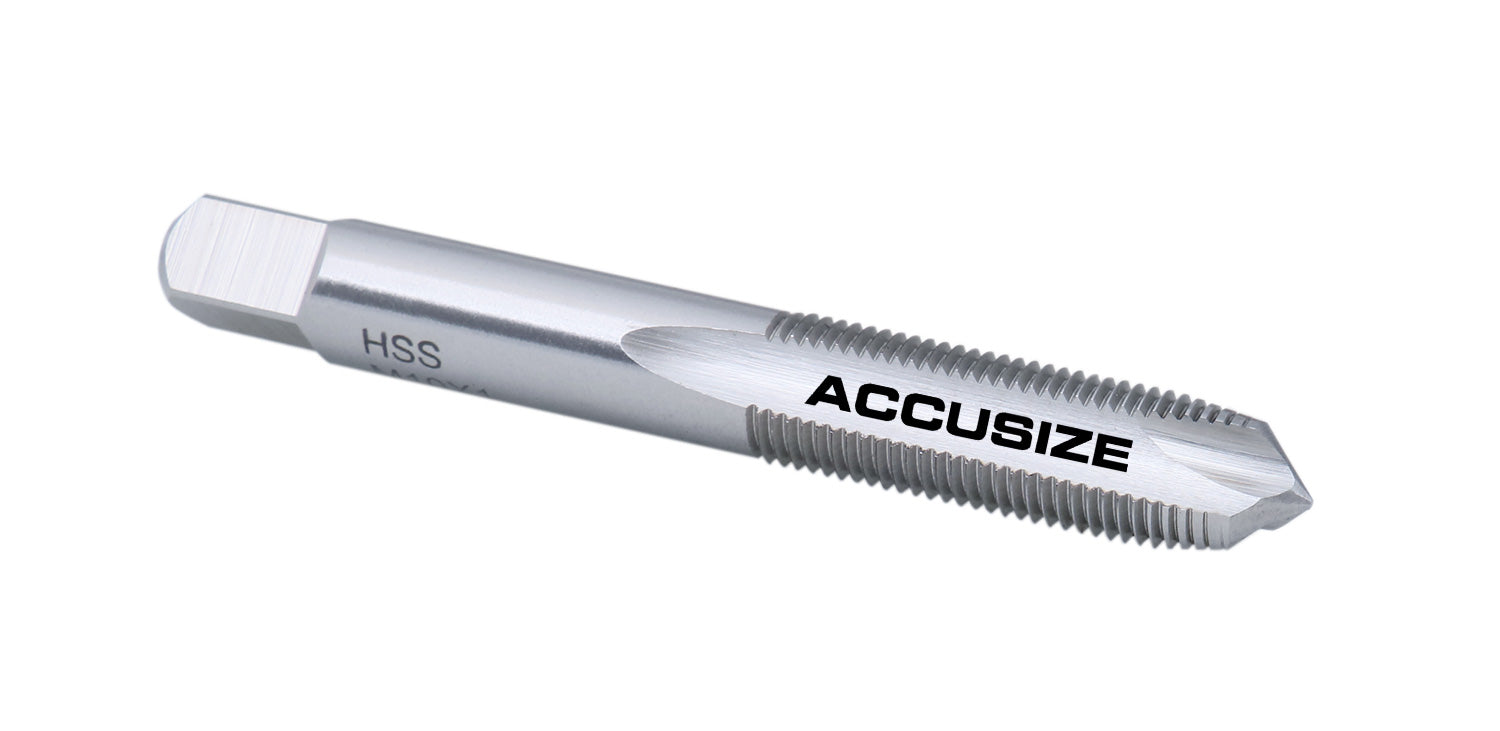

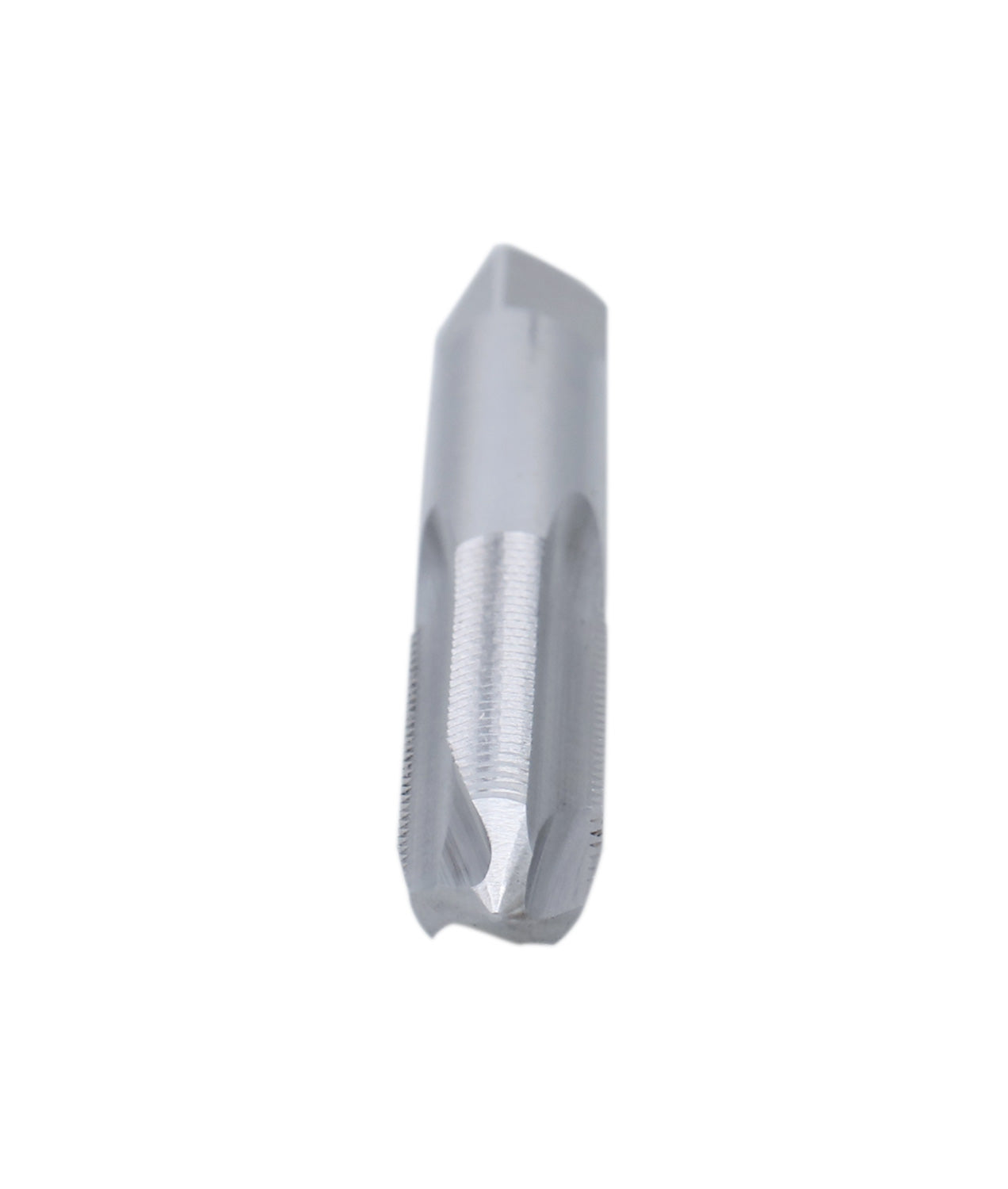

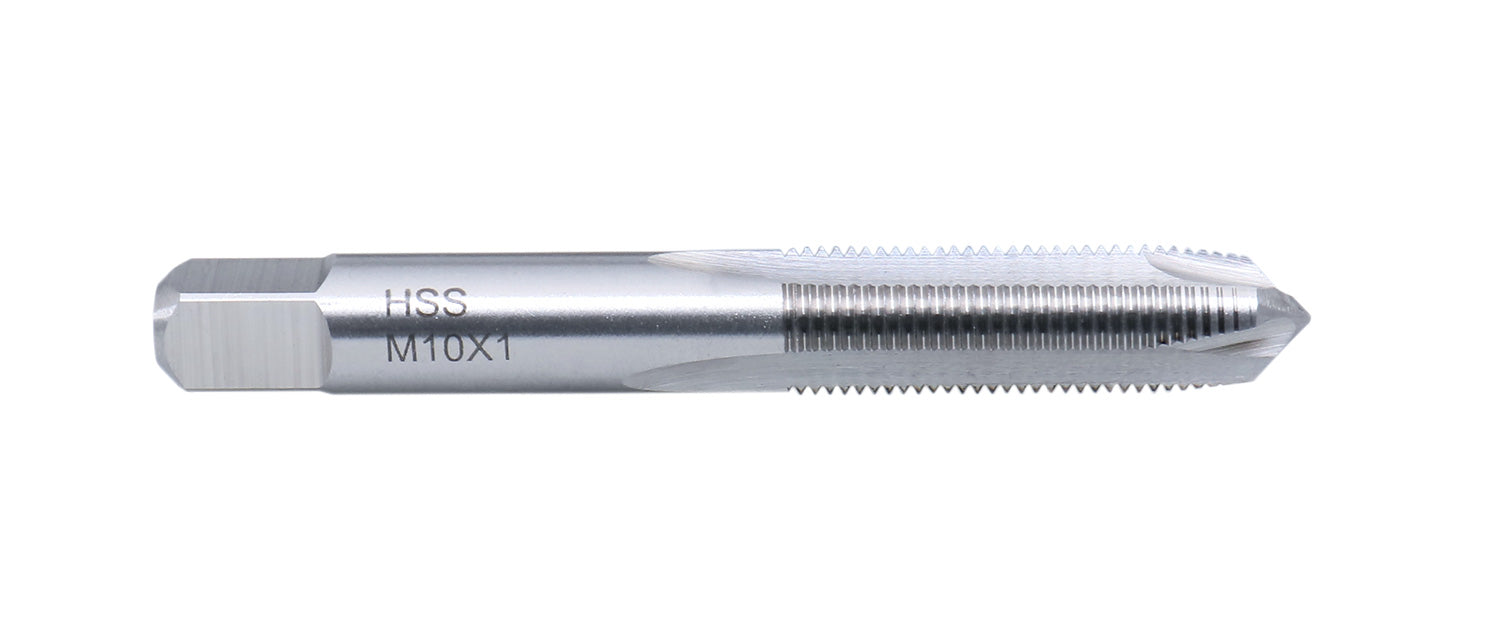

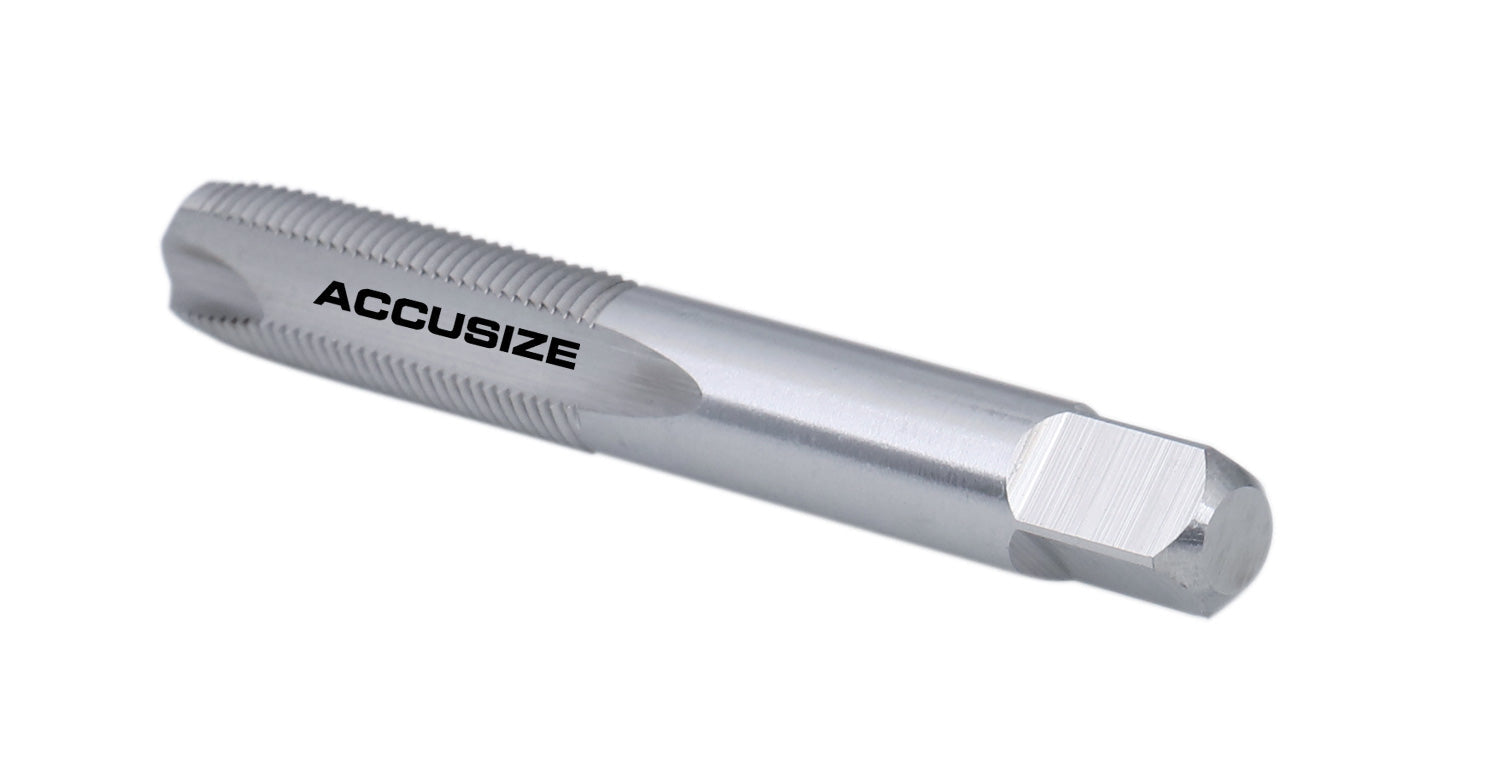

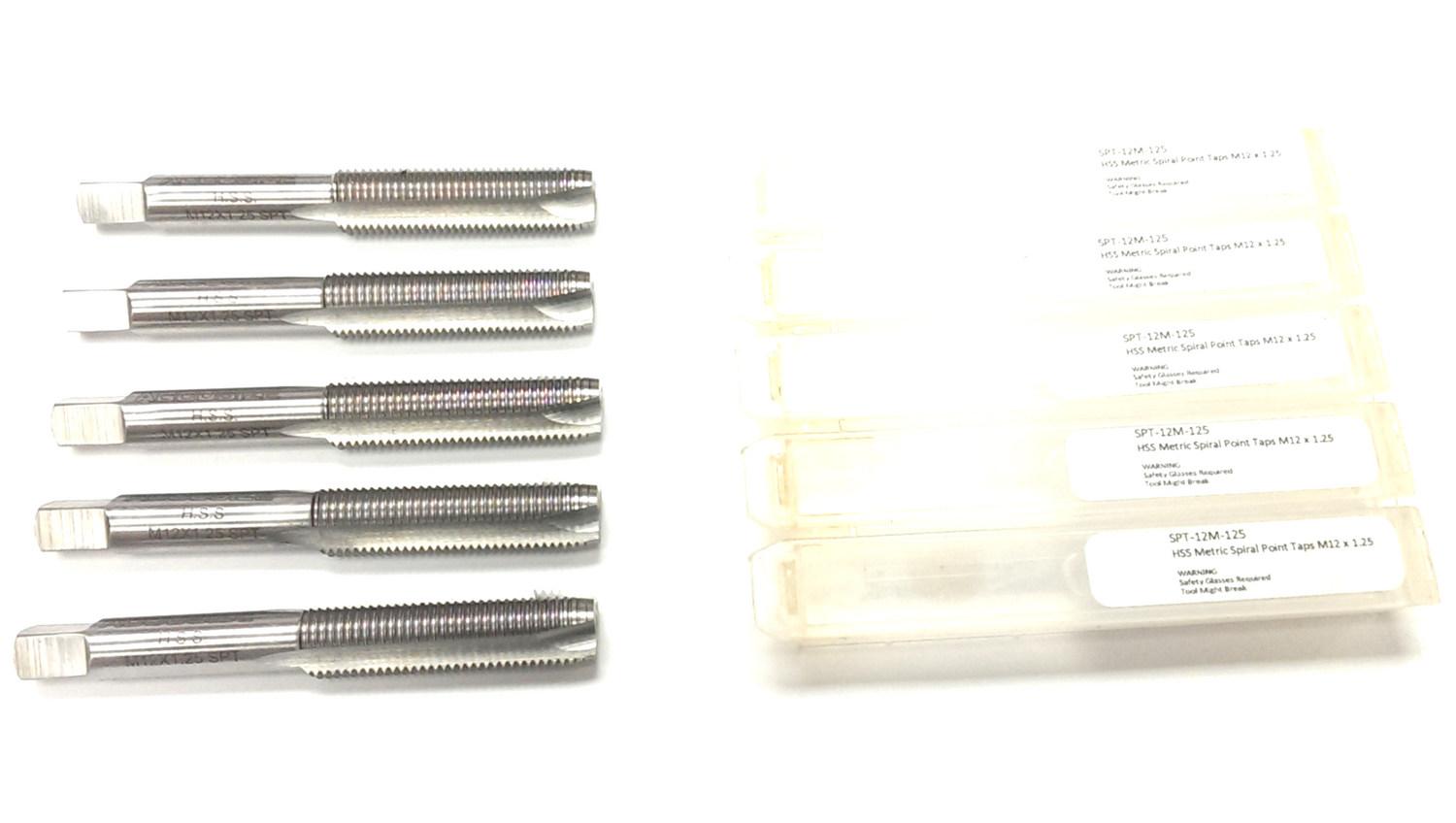

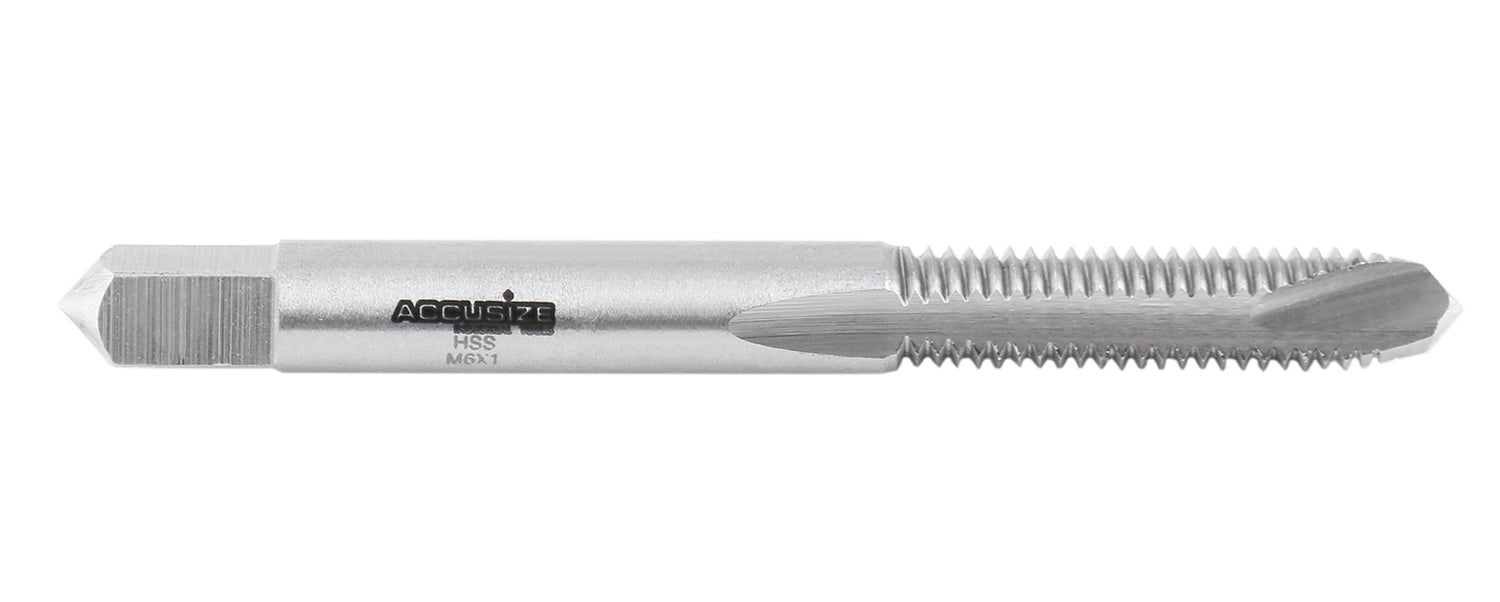

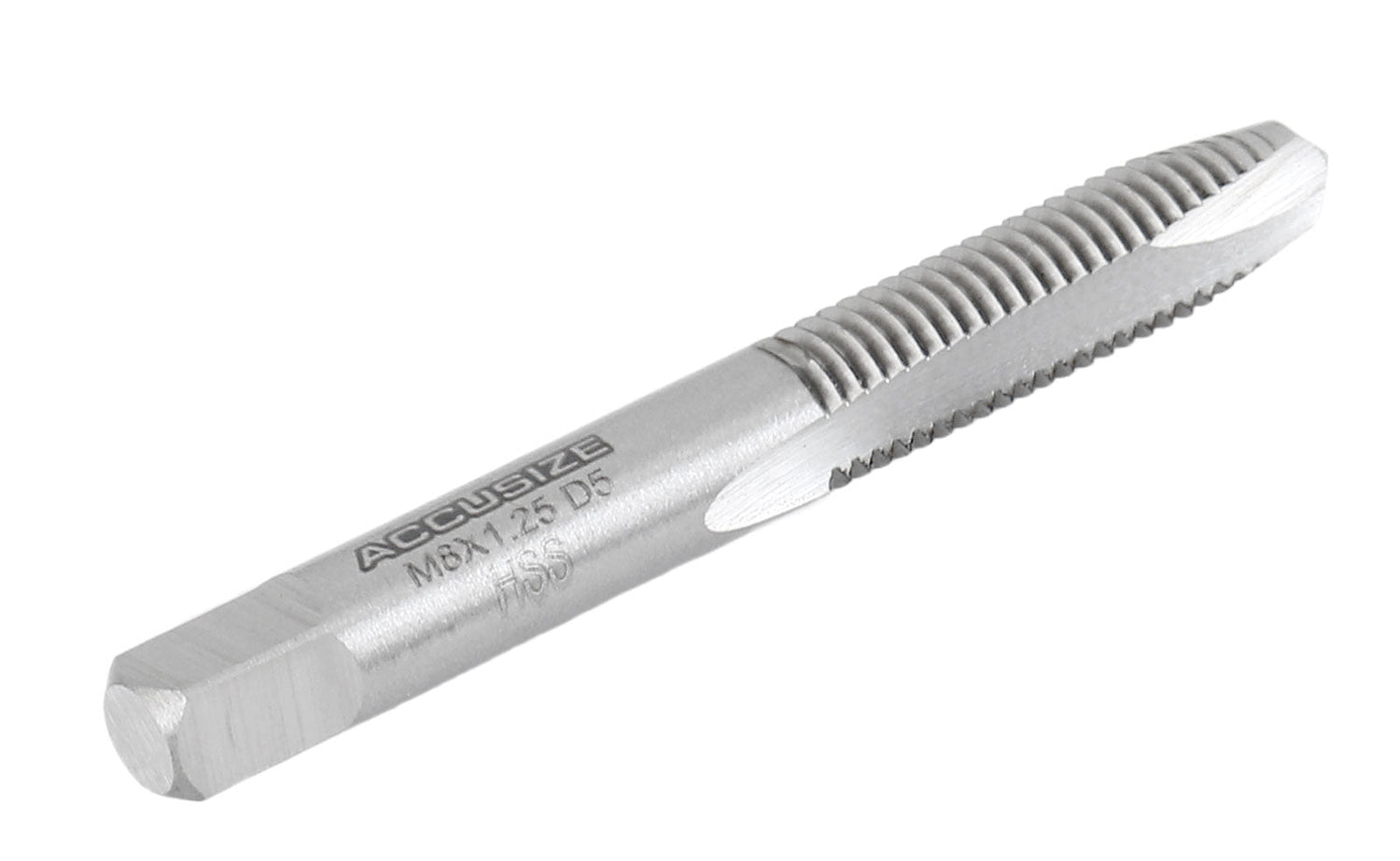

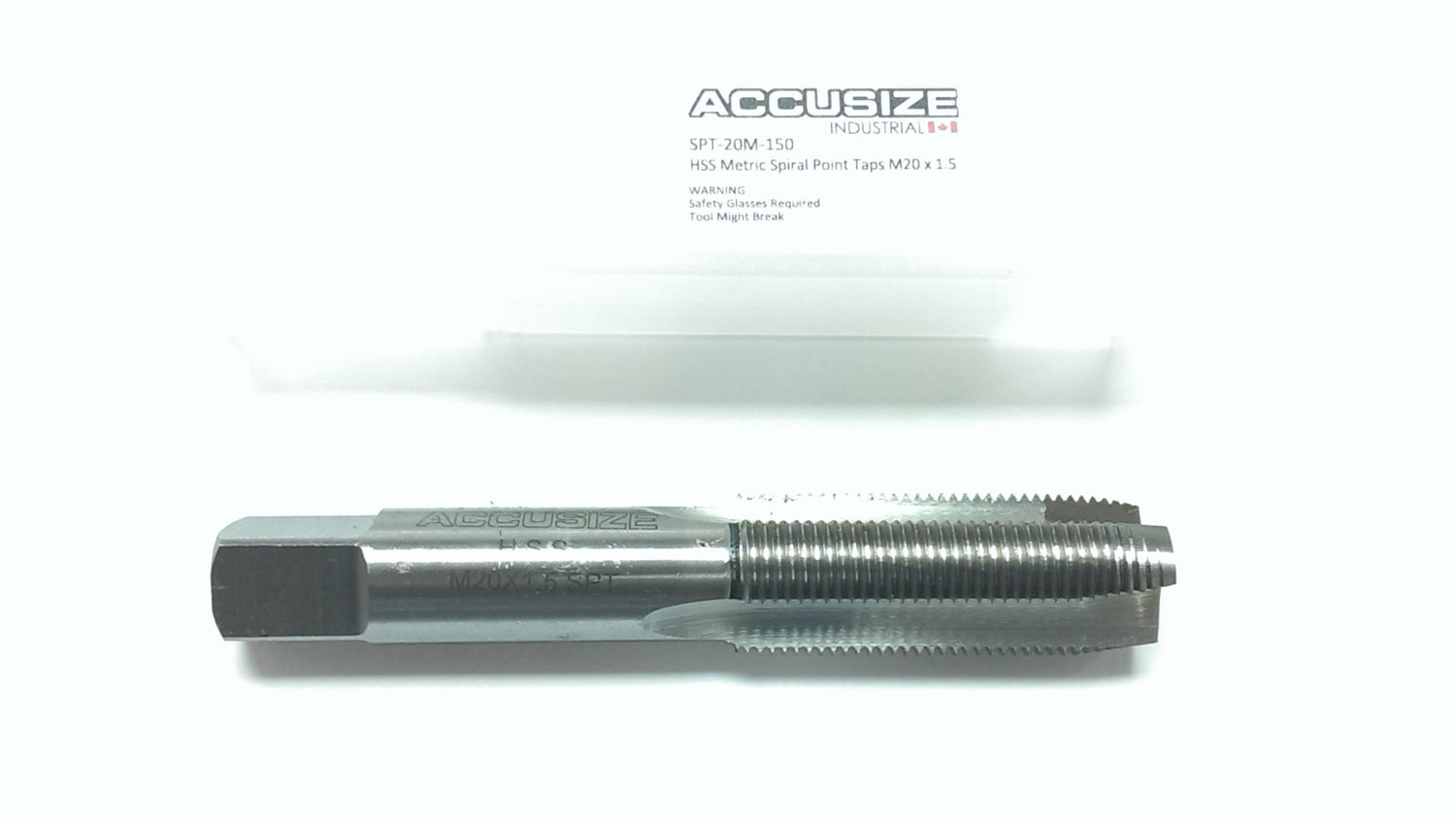

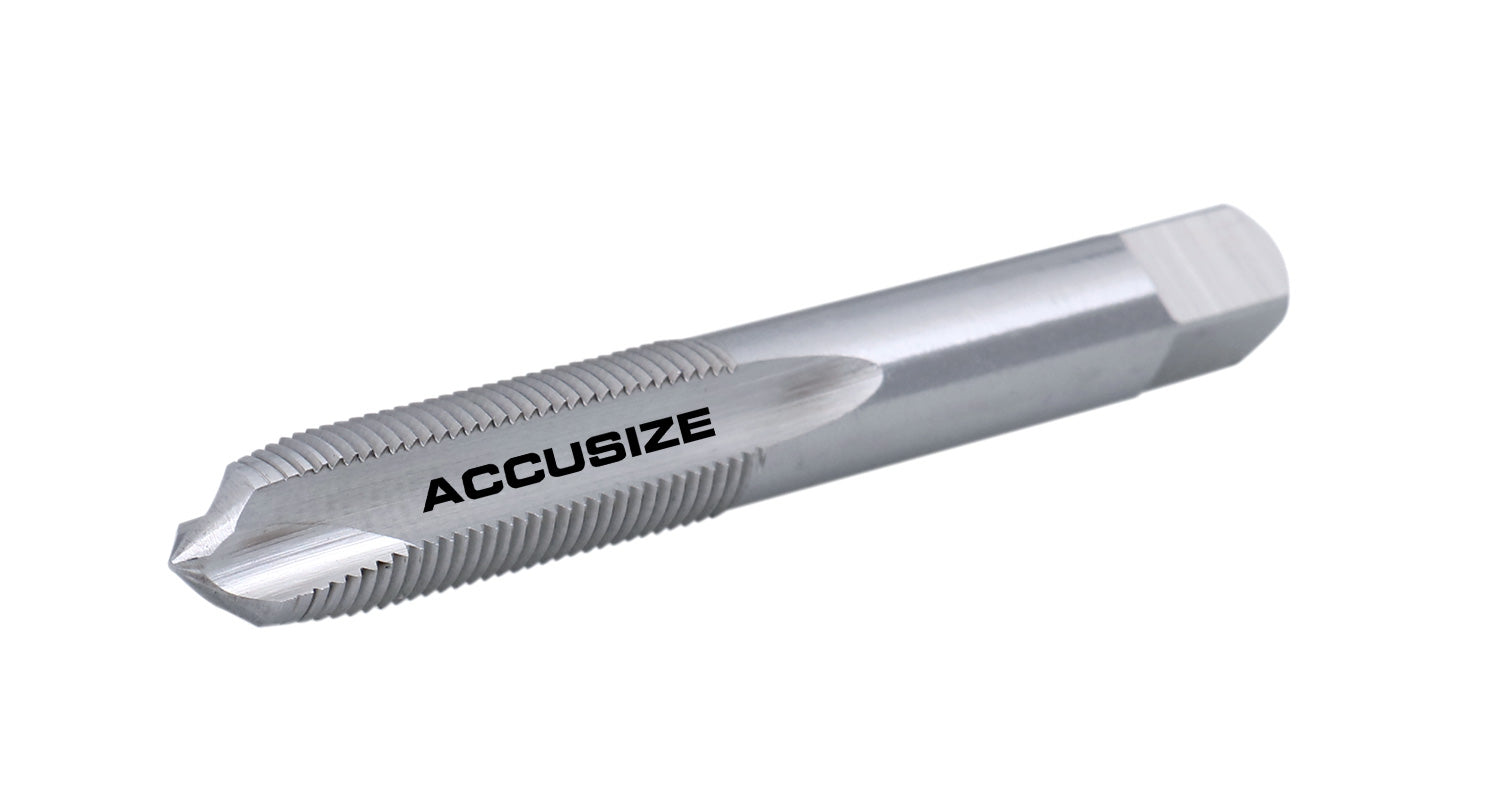

H.S.S. Metric Spiral Flute Point Point Taps, from M14 x 1.25 to M24 x 3.0
- Made from high speed steel with ground threads.
- Right hand cut, square drive shank.
- Bright finish.

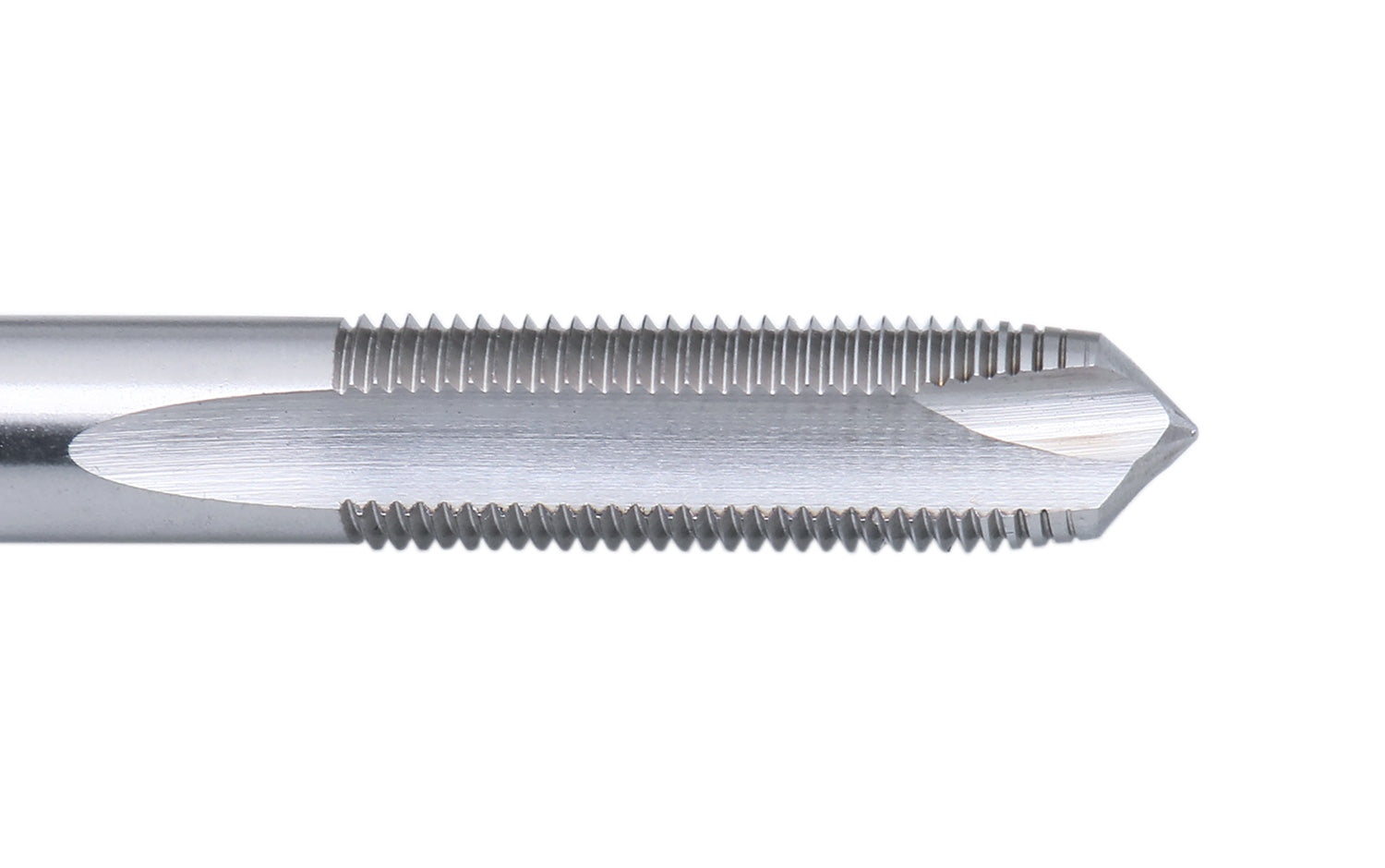

- Spiral Point, American Standard.
- Fully Ground
| Item | Size | Fl | H Limit |
|---|---|---|---|

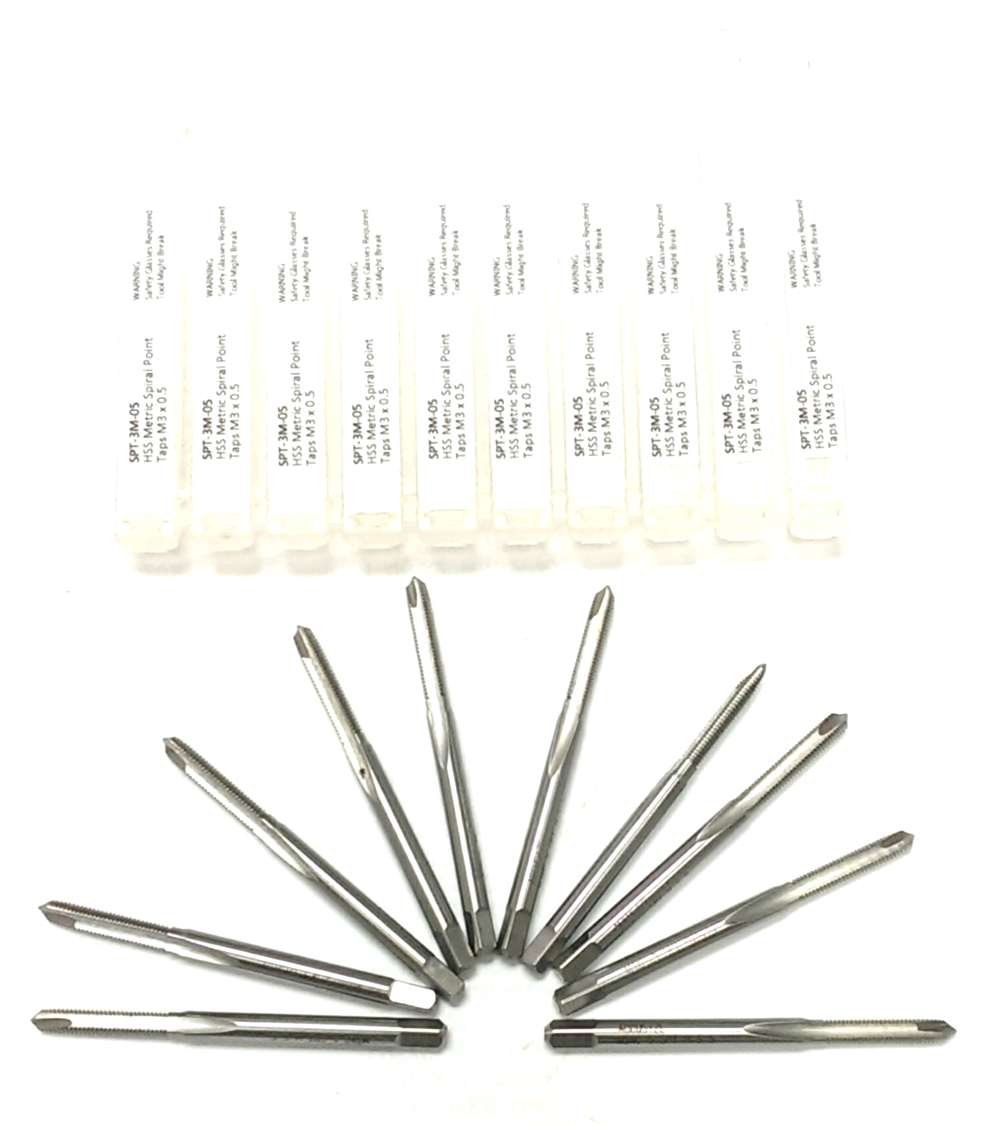

| SPT-3M-05 | M3X0.5 | 2 | D3 |
| SPT-4M-07 | M4X0.7 | 2 | D4 |
| SPT-5M-08 | M5X0.8 | 2 | D4 |
| SPT-6M-10 | M6X1.0 | 2 | D5 |

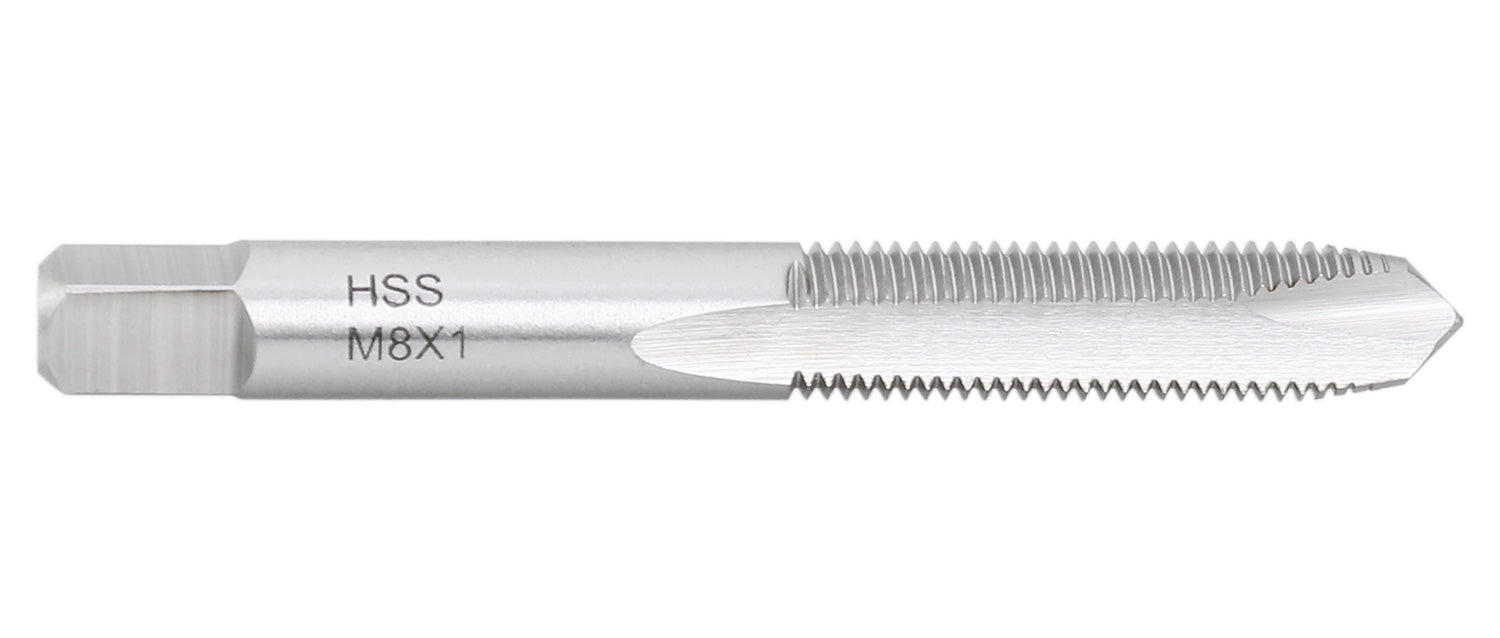

| SPT-8M-10 | M8X1.0 | 2 | D5 |

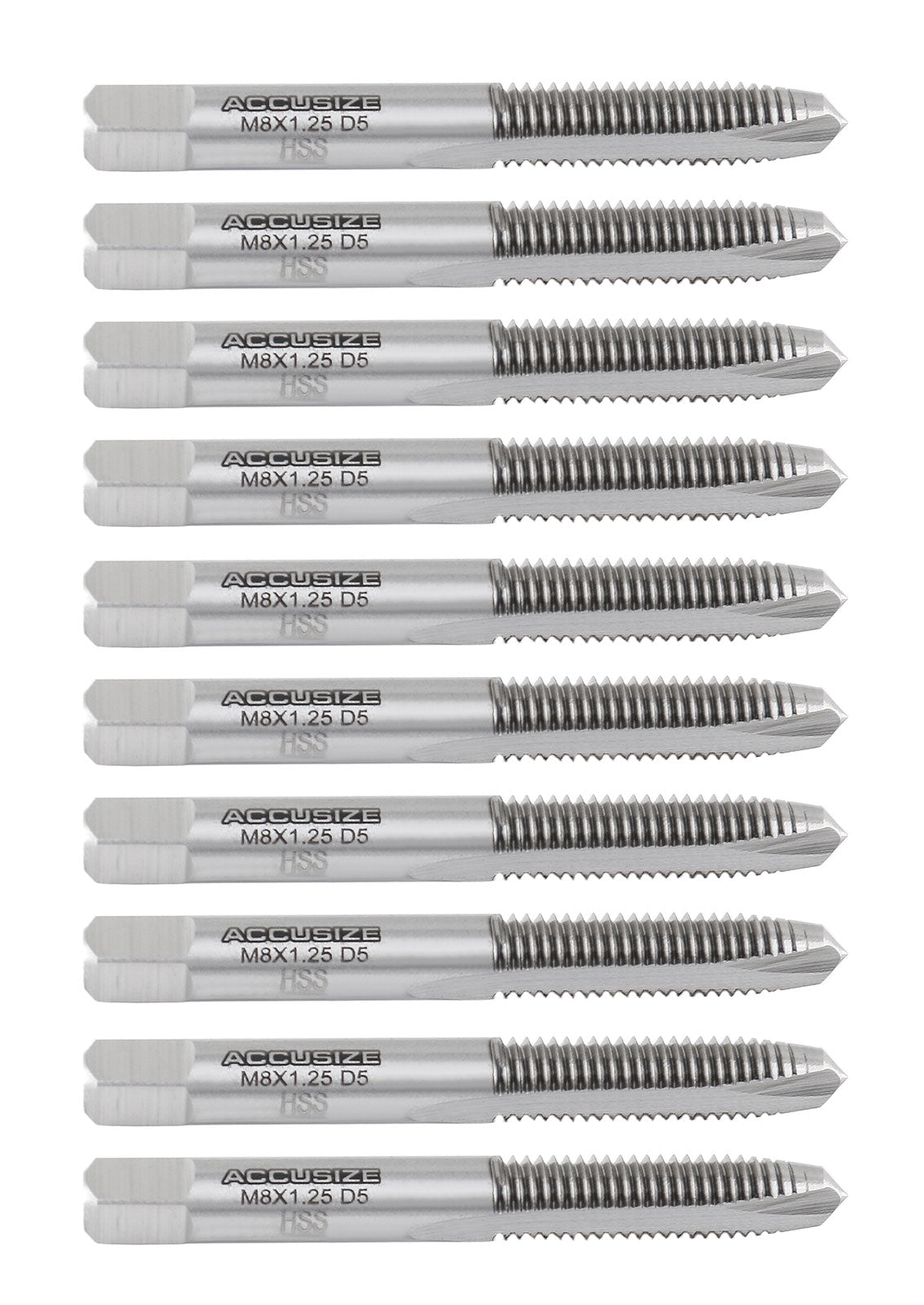

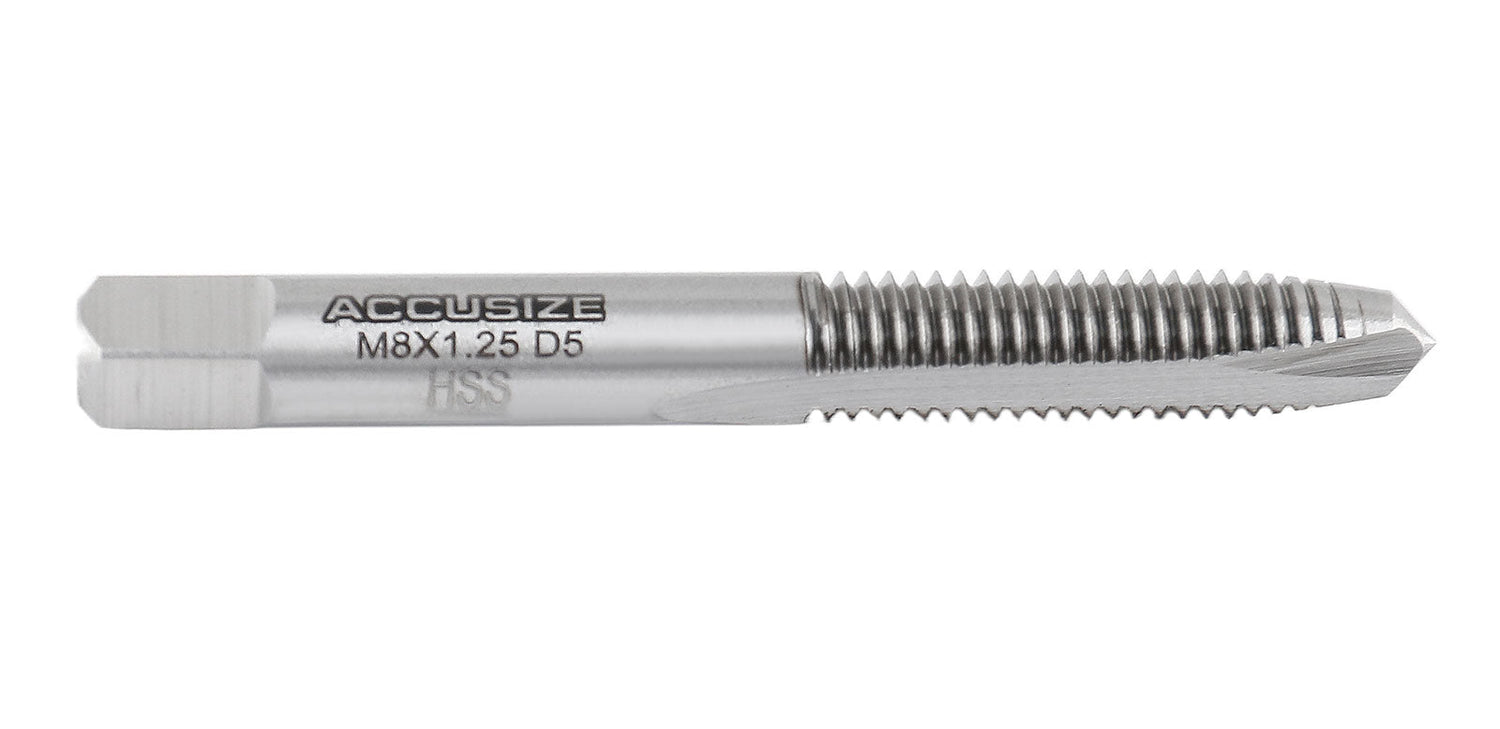

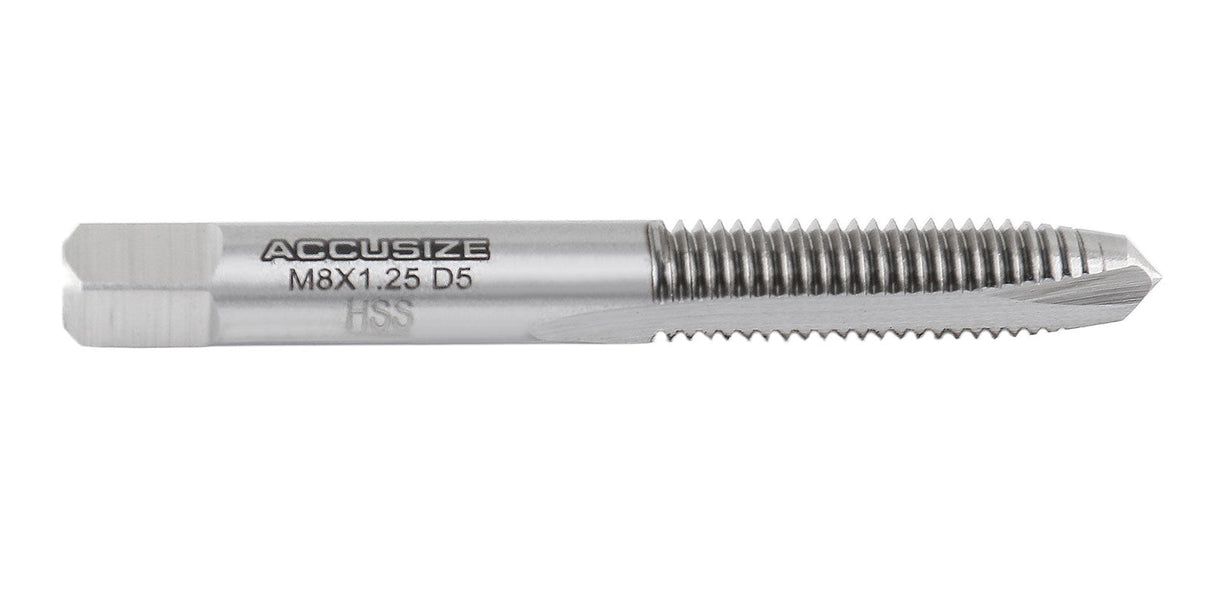

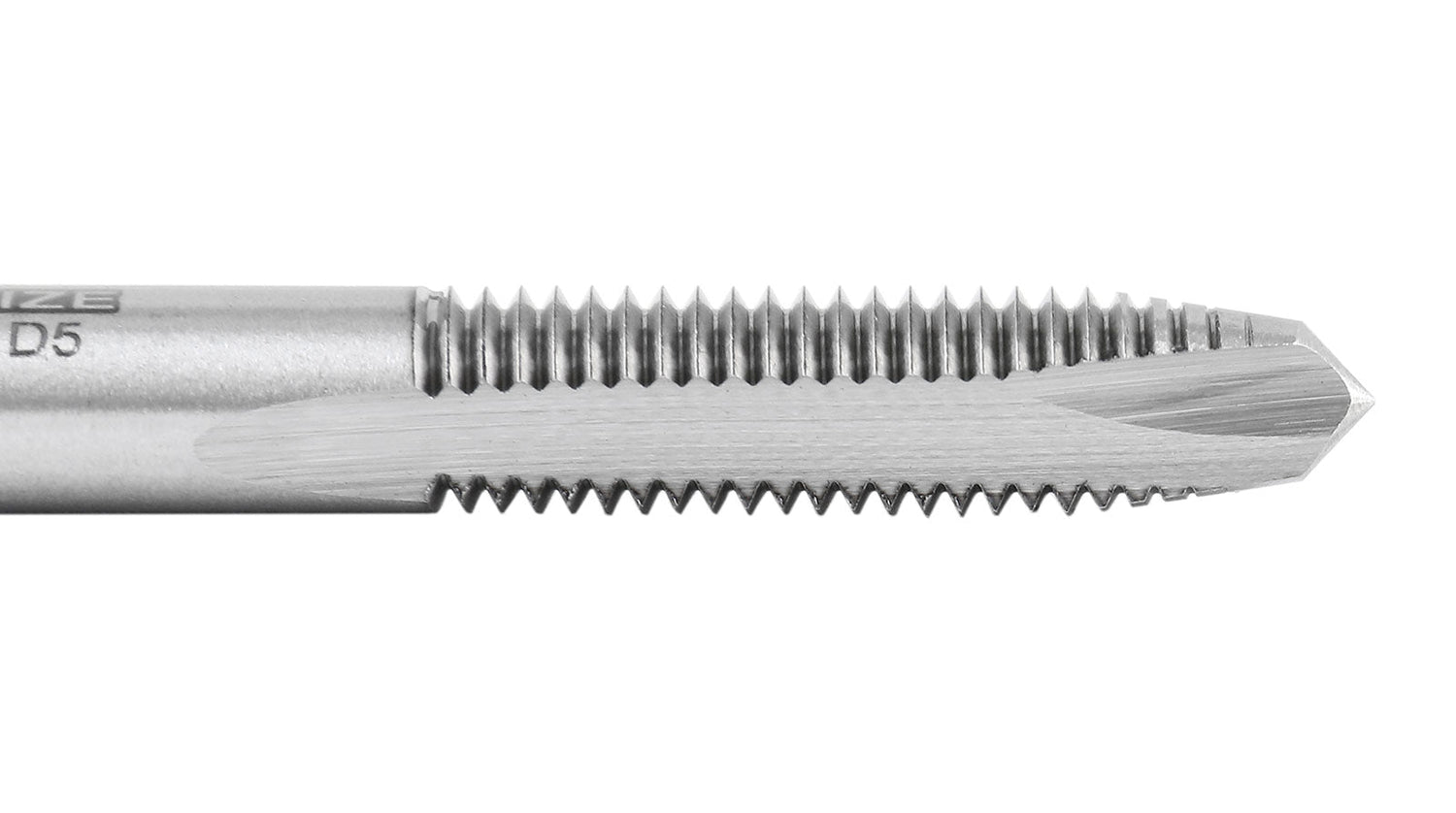

| SPT-8M-125 | M8X1.25 | 2 | D5 |

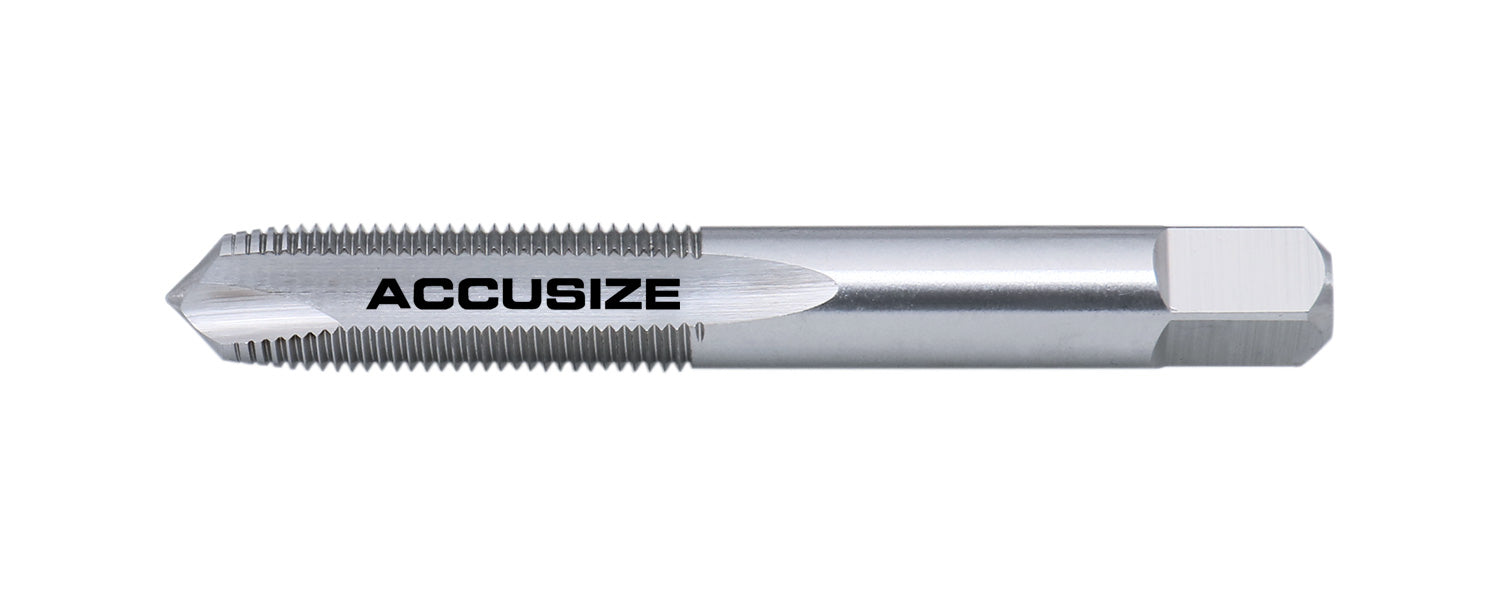

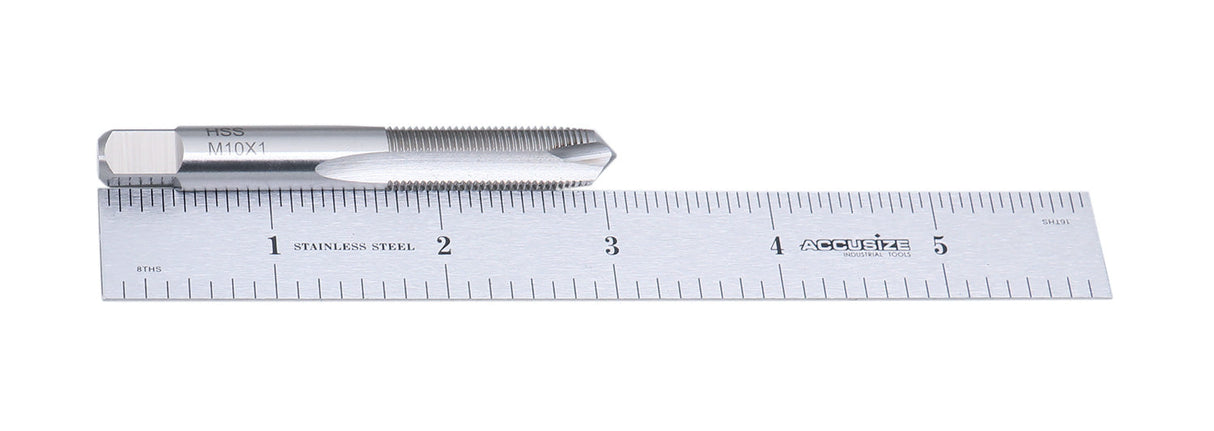

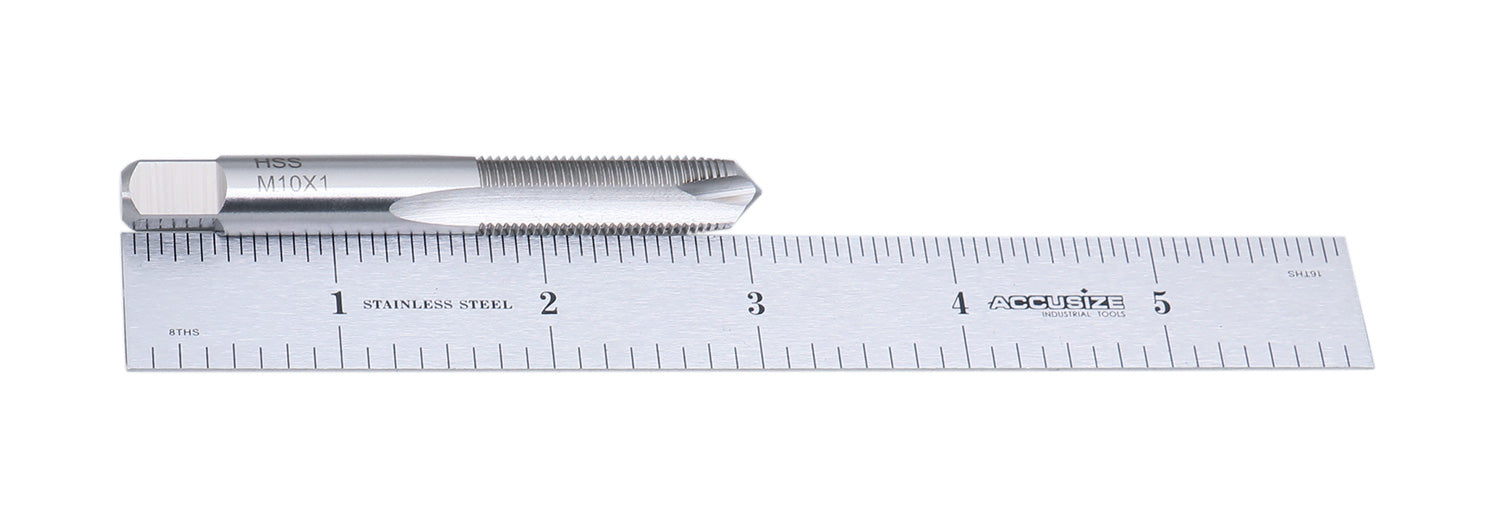

| SPT-10M-10 | M10X1.0 | 2 |
D5 |
| SPT-12M-125 | M12X1.25 | 3 | D5 |

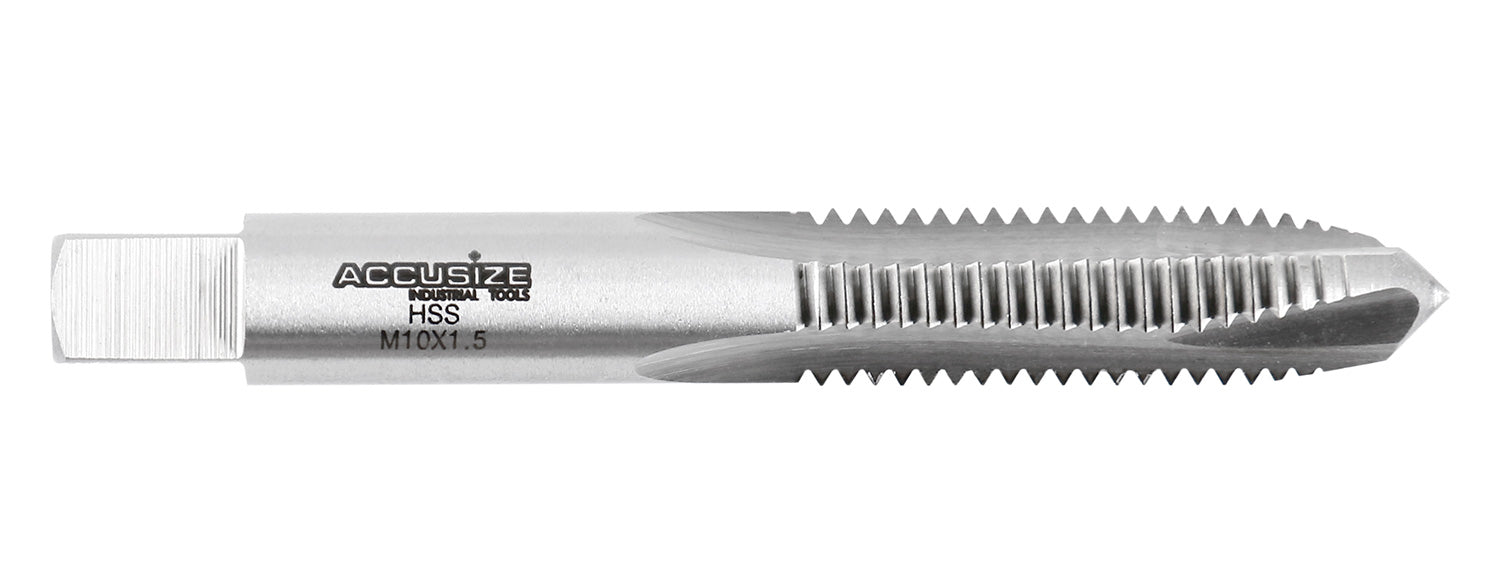

| SPT-10M-150 | M10X1.5 | 3 | D6 |
| SPT-12M-125 | M12X1.25 | 3 | D5 |

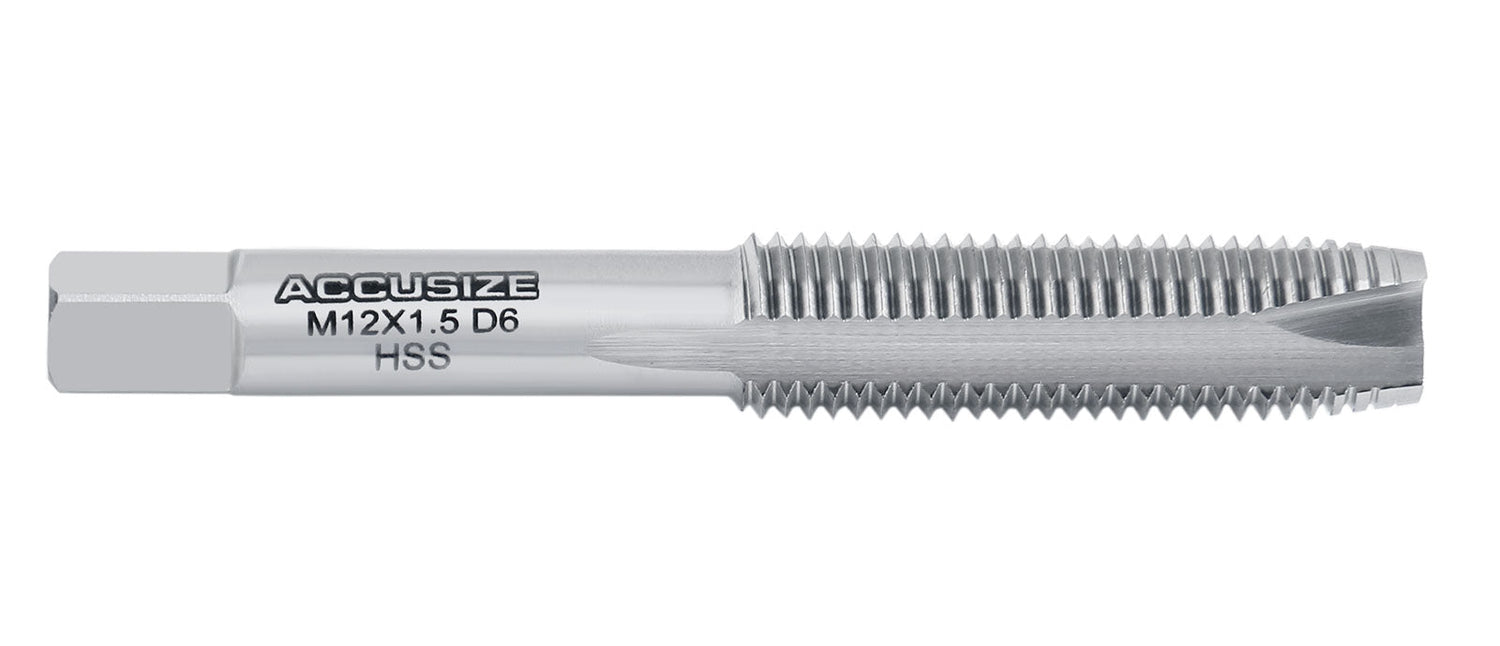

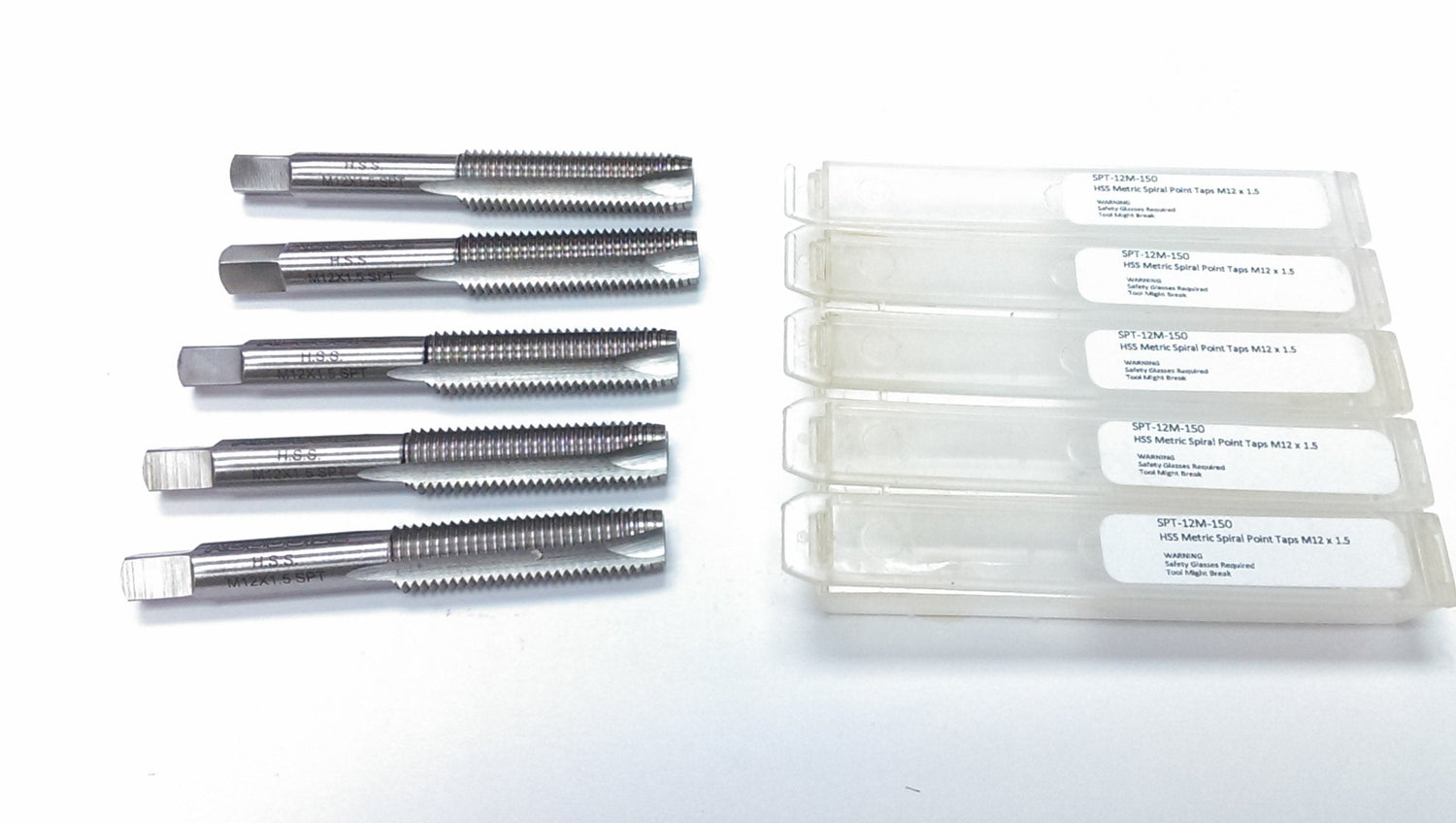

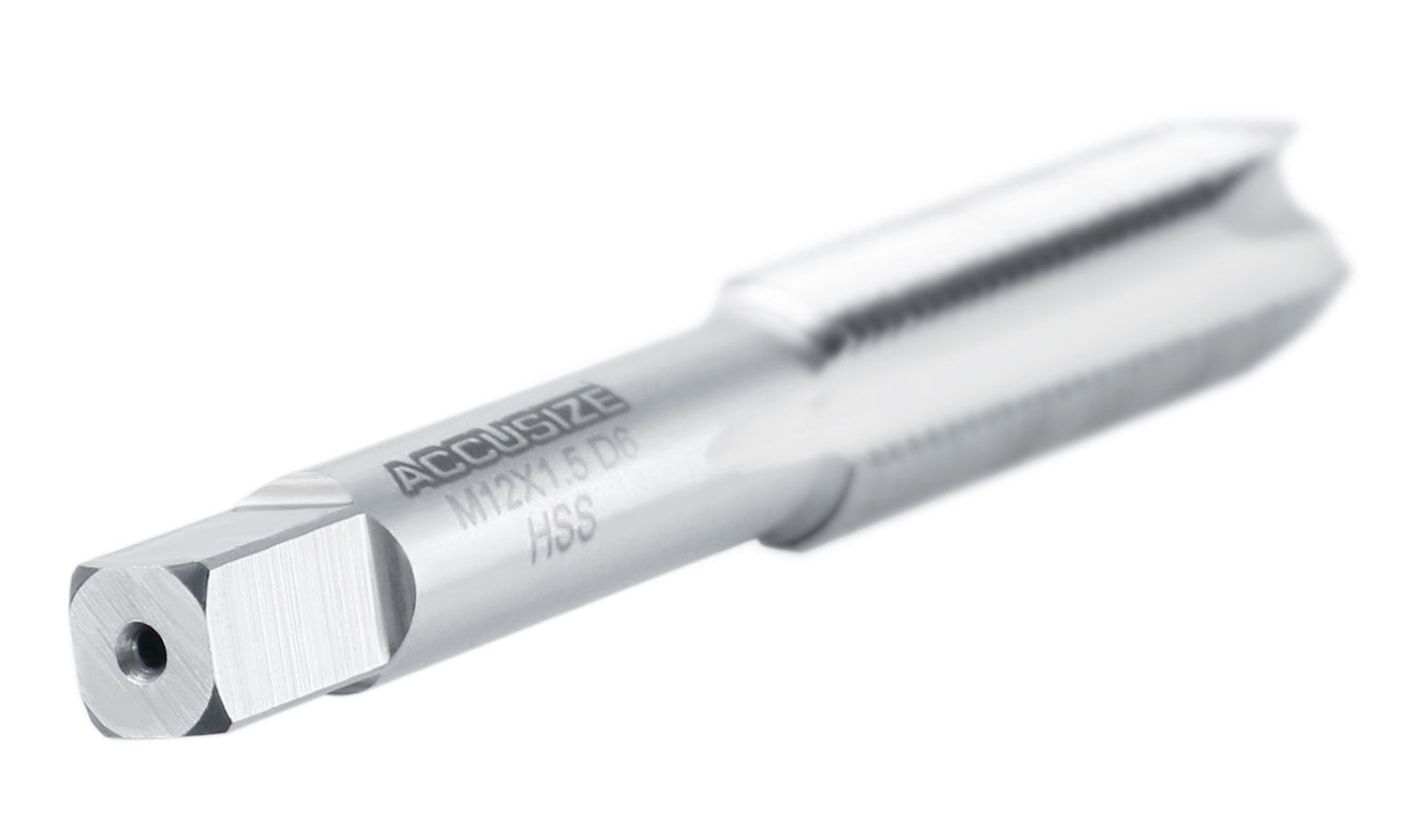

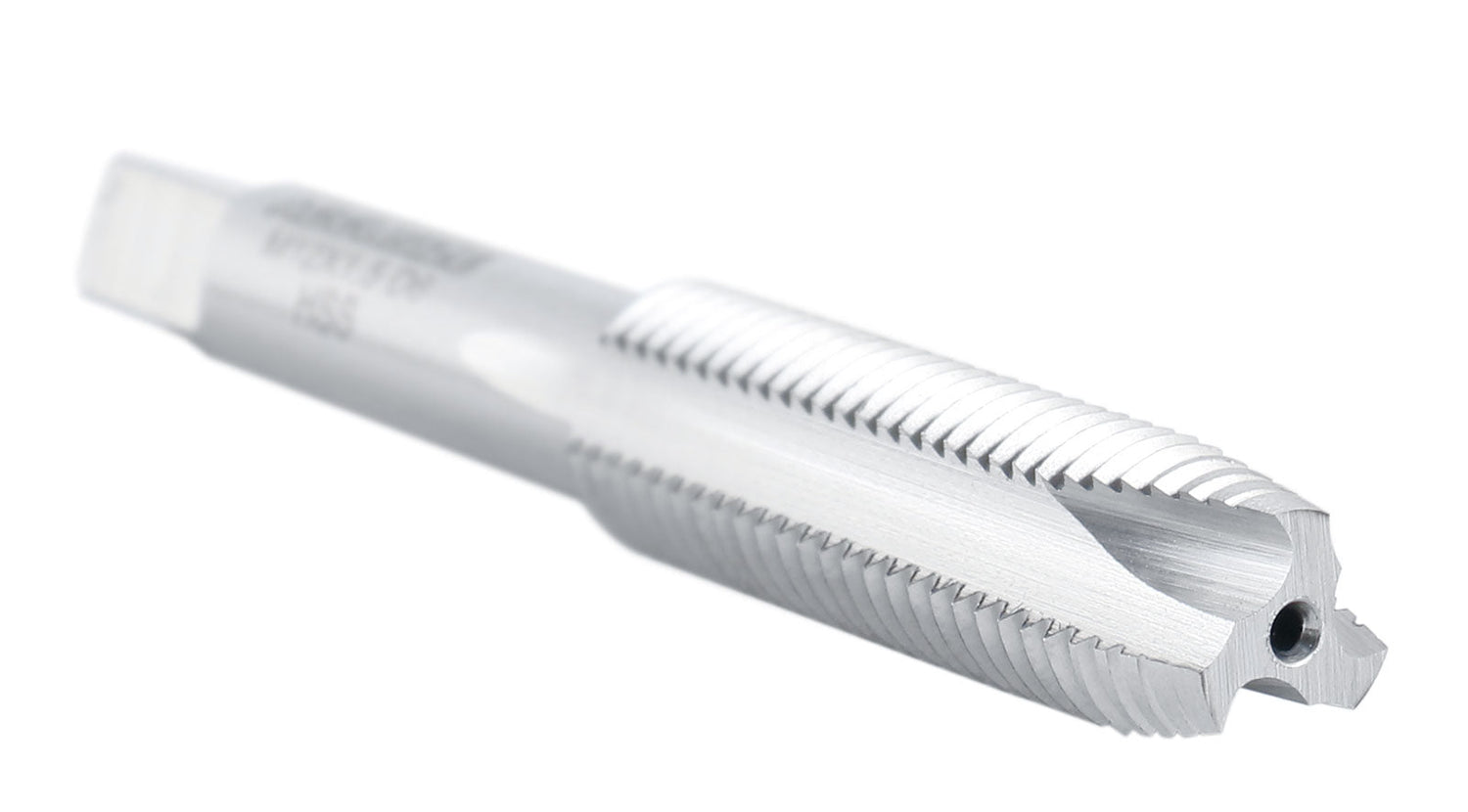

| SPT-12M-150 | M12X1.5 | 3 | D6 |
| SPT-12M-175 | M12X1.75 | 3 | D6 |

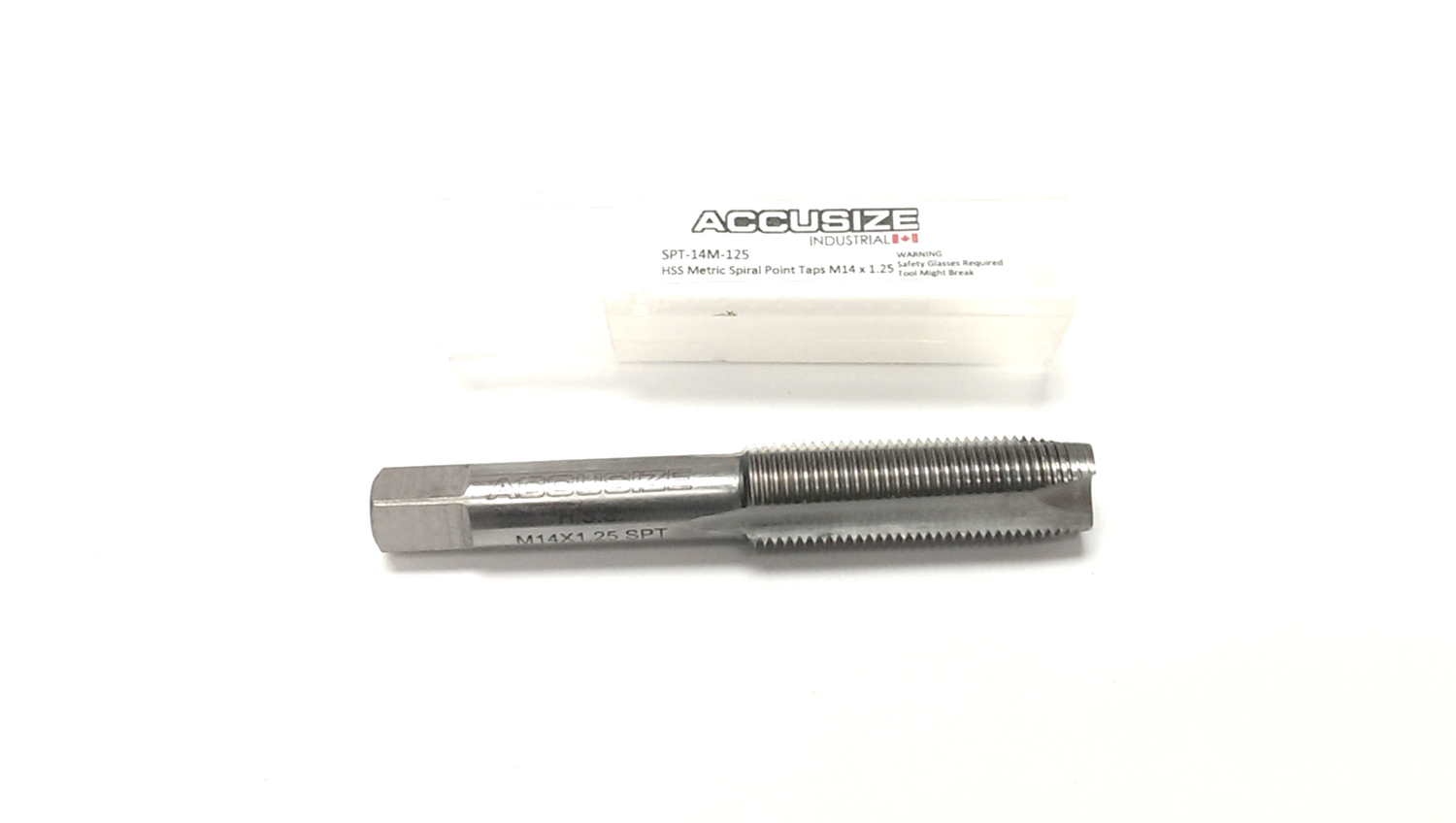

| SPT-14M-125 | M14X1.25 | 3 | D5 |
| SPT-14M-150 | M14X1.5 | 3 | D6 |
| SPT-14M-200 | M14X2.0 | 3 | D7 |

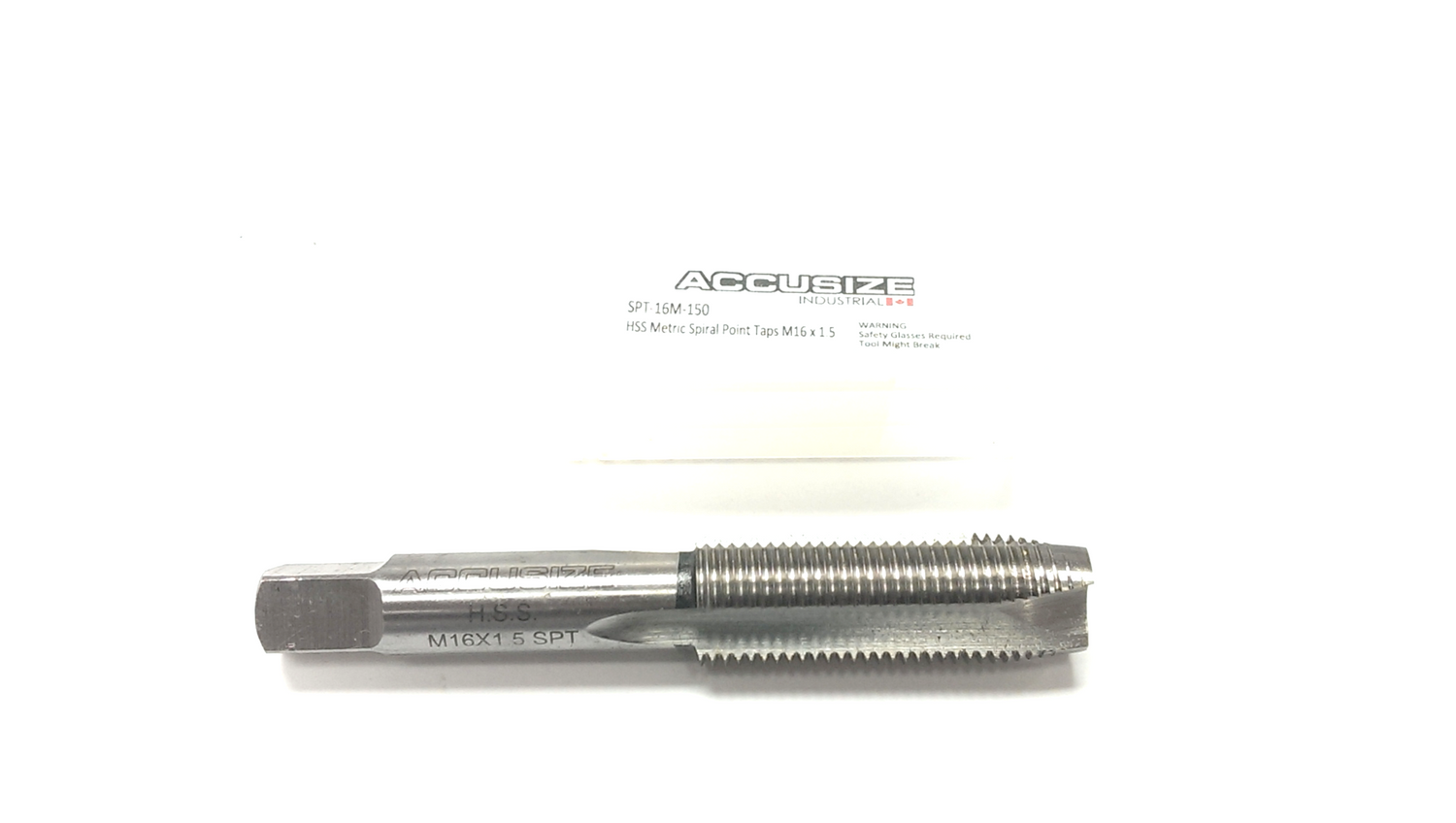

| SPT-16M-150 | M16X1.5 | 3 | D6 |
| SPT-16M-200 | M16X2.0 | 3 | D7 |
| SPT-18M-150 | M18X1.5 | 3 | D6 |

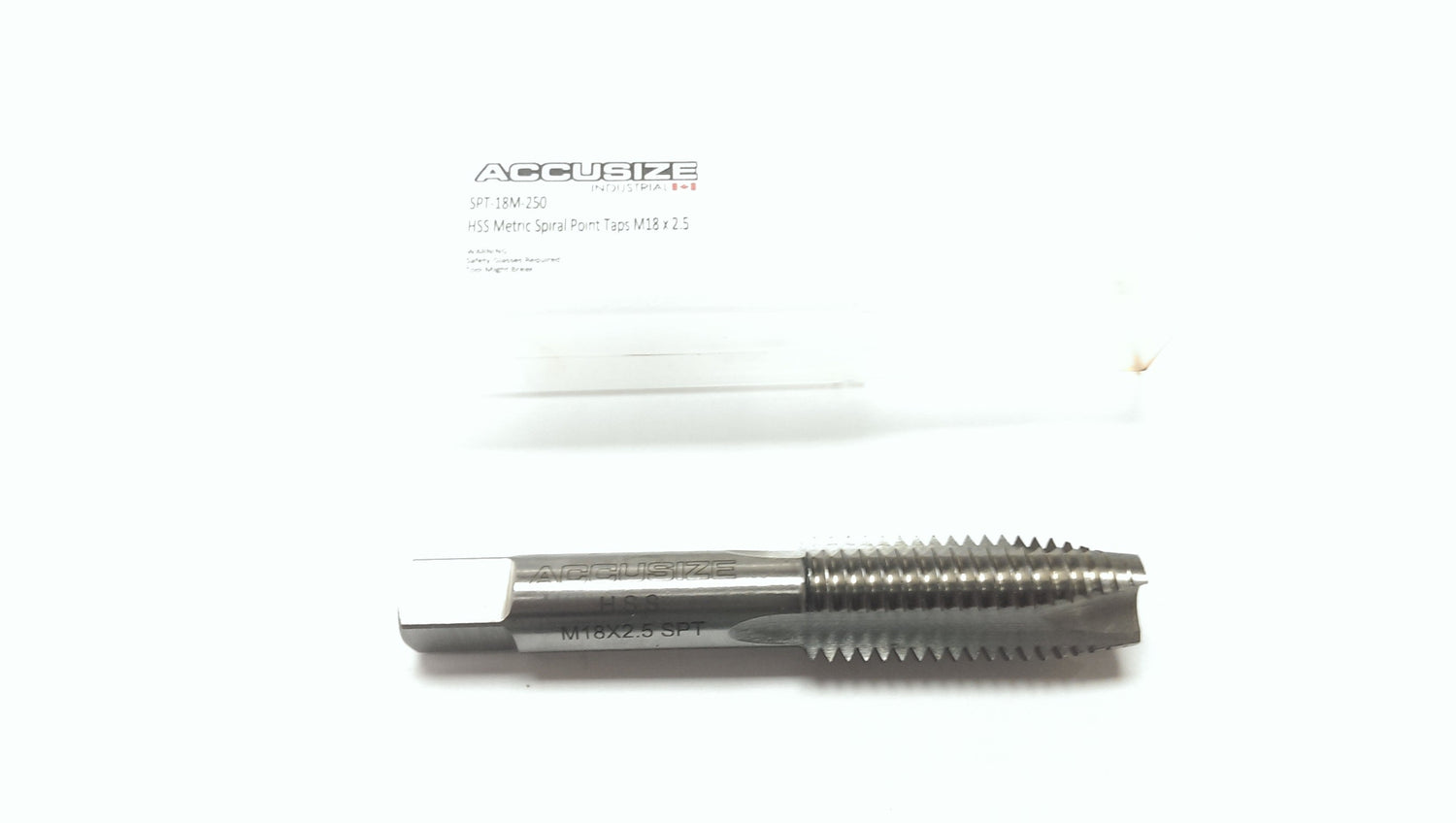

| SPT-18M-250 | M18X2.5 | 3 | D7 |
| SPT-20M-150 | M20X1.5 | 3 | D6 |

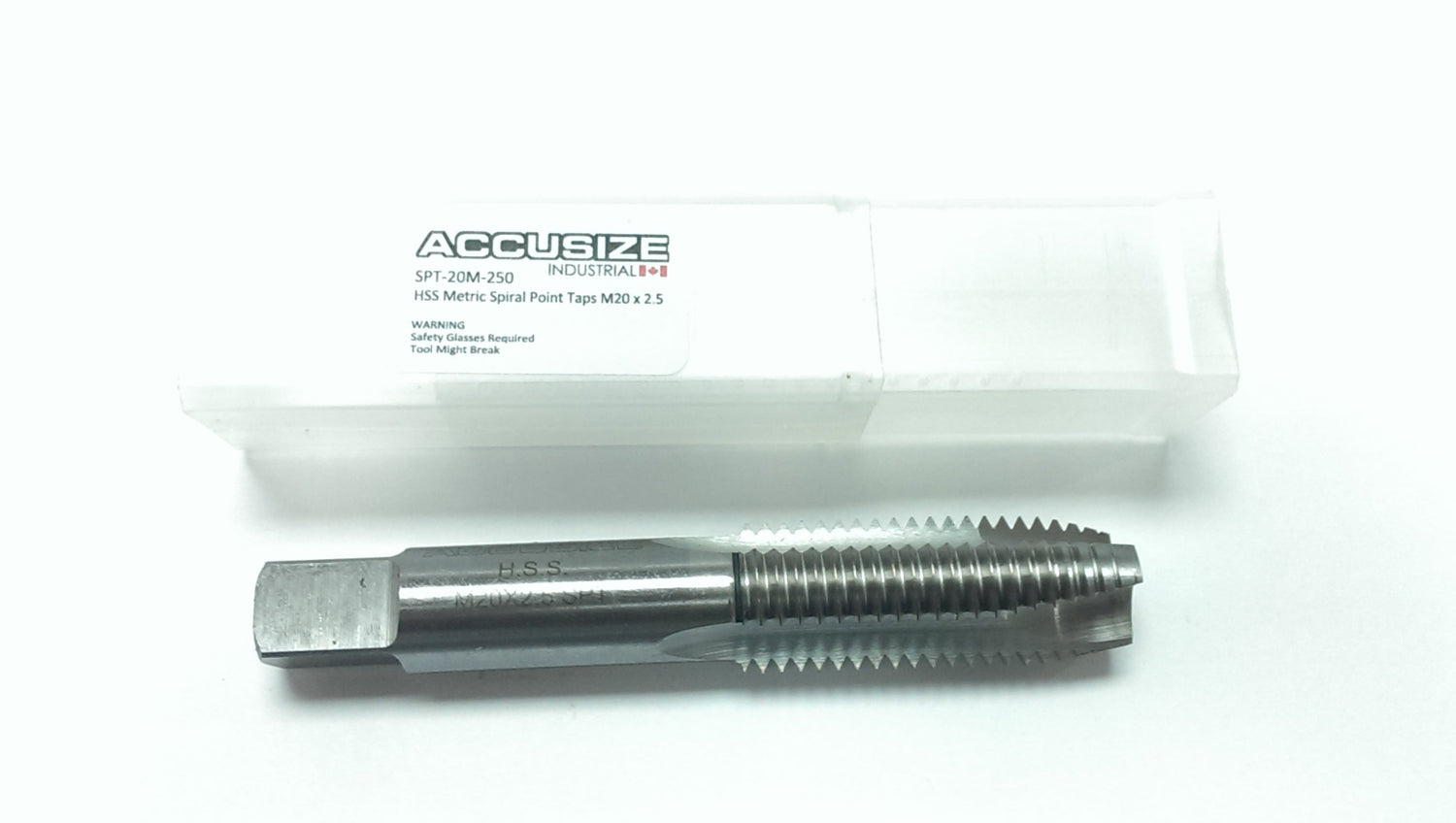

| SPT-20M-250 | M20X2.5 | 3 | D7 |
| SPT-22M-150 | M22X1.5 | 3 | D6 |

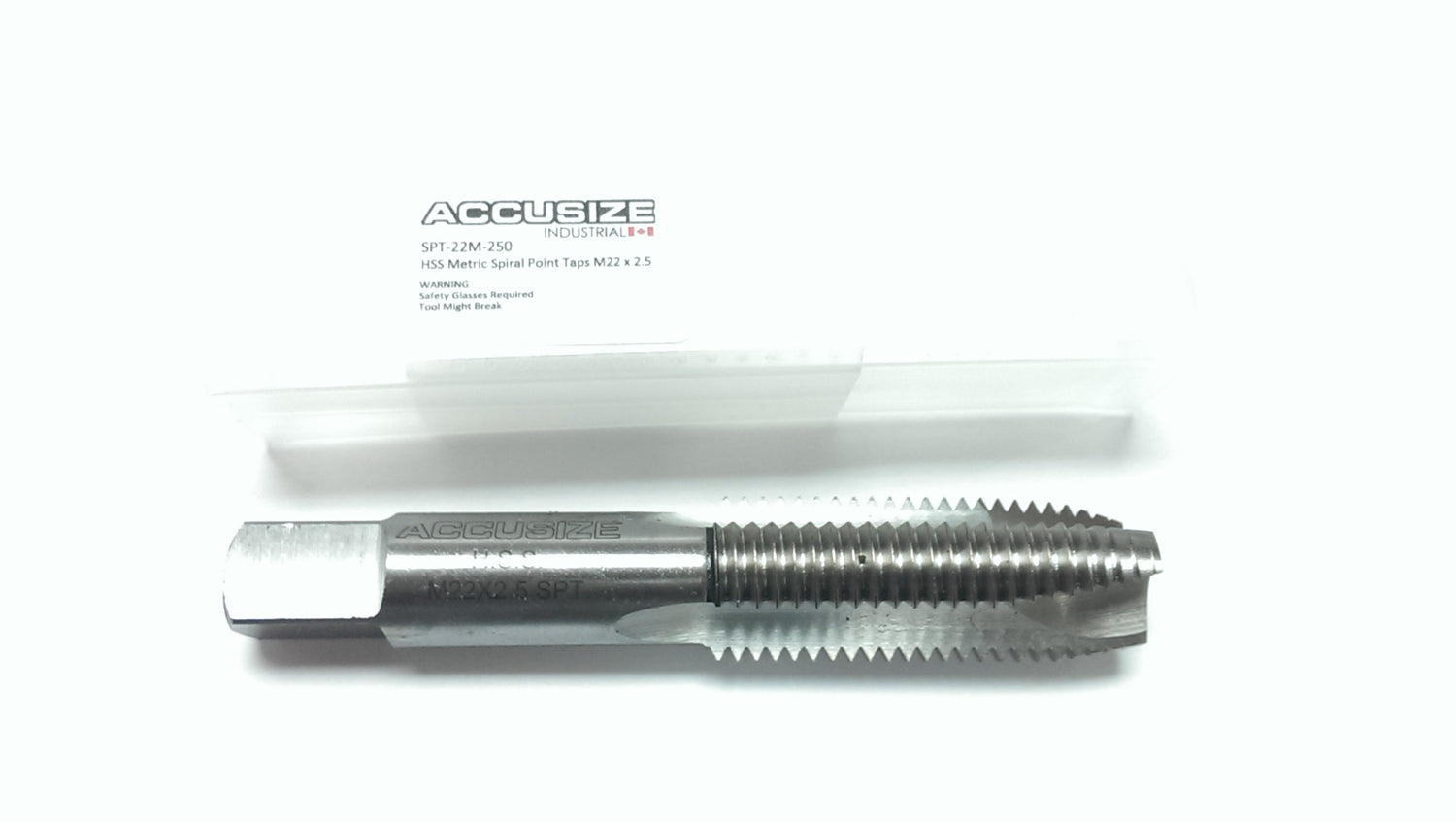

| SPT-22M-250 | M22X2.5 | 3 | D7 |

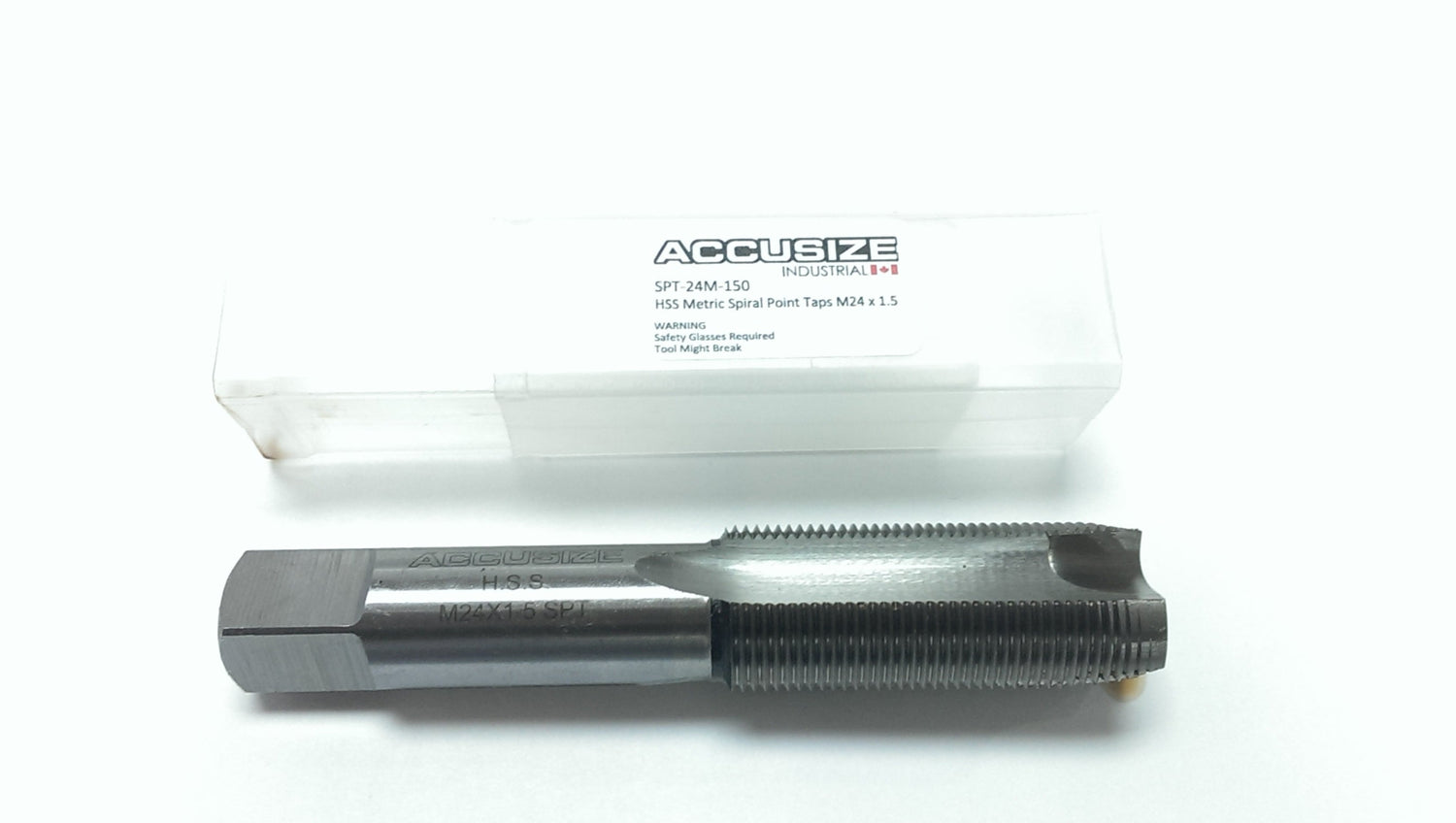

| SPT-24M-150 | M24X1.5 | 3 | D6 |

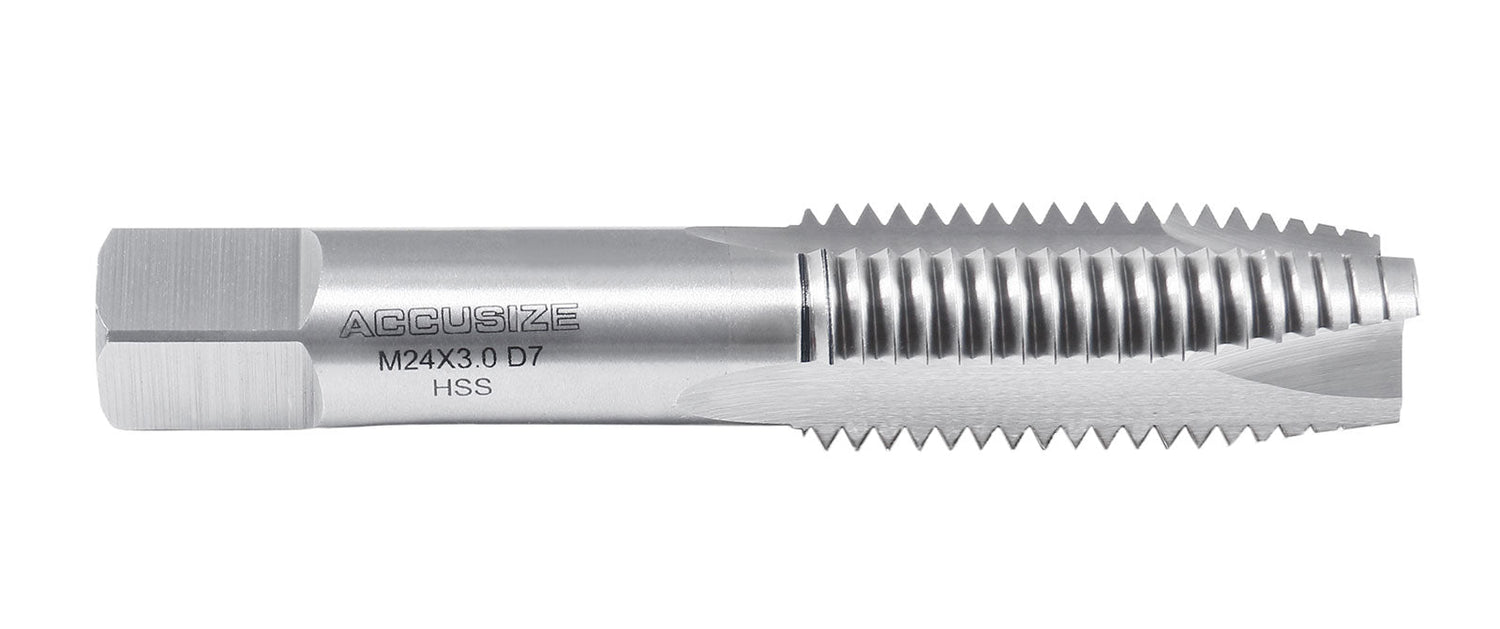

| SPT-24M-300 | M24X3.0 | 3 | D7 |
