SKU: 2022-0013x10

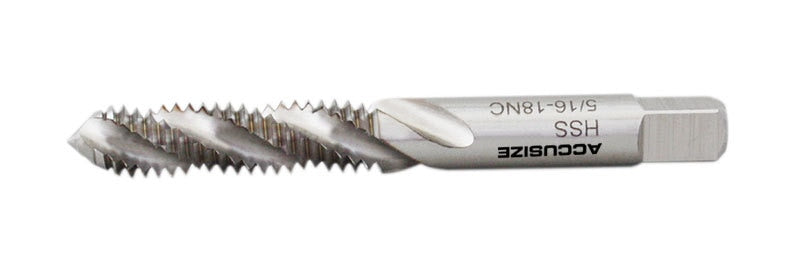

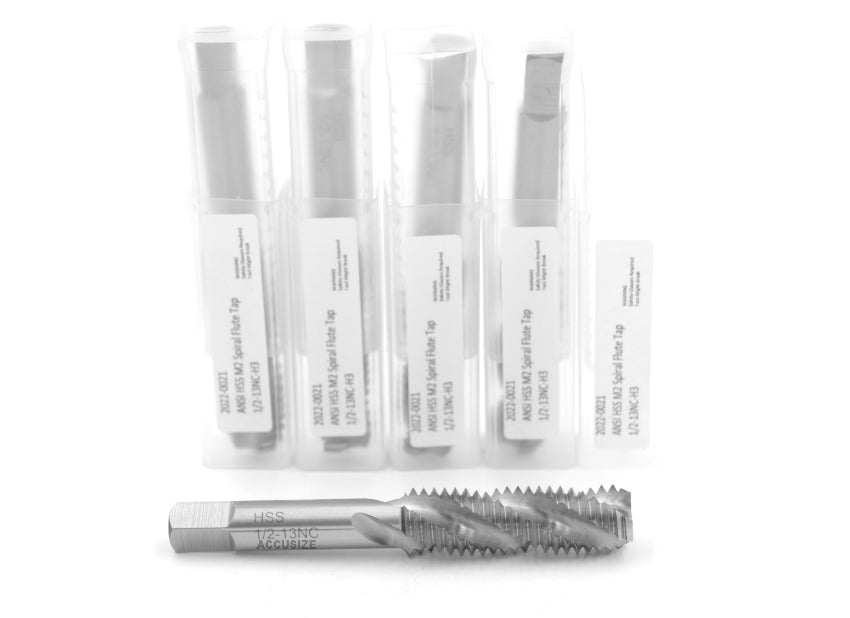

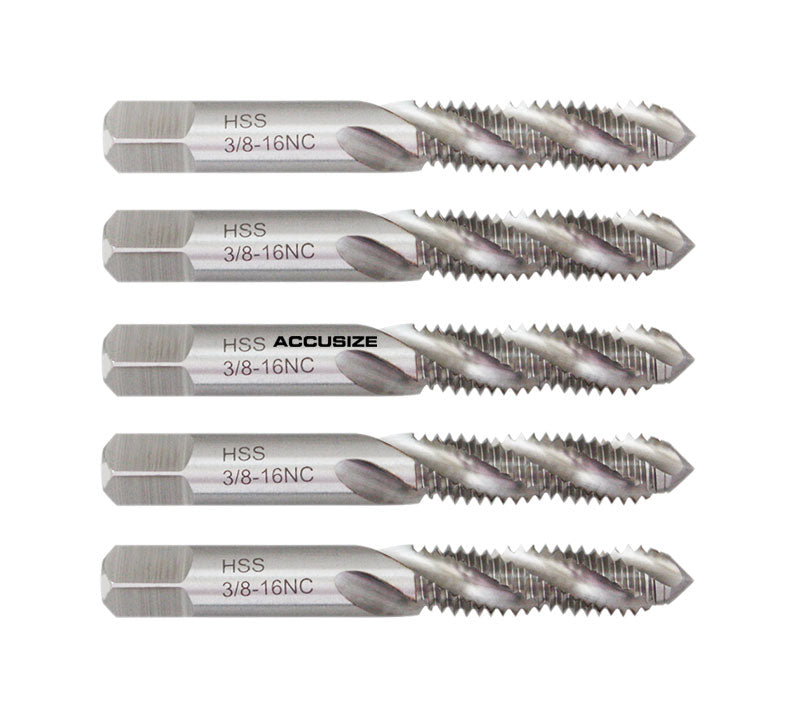

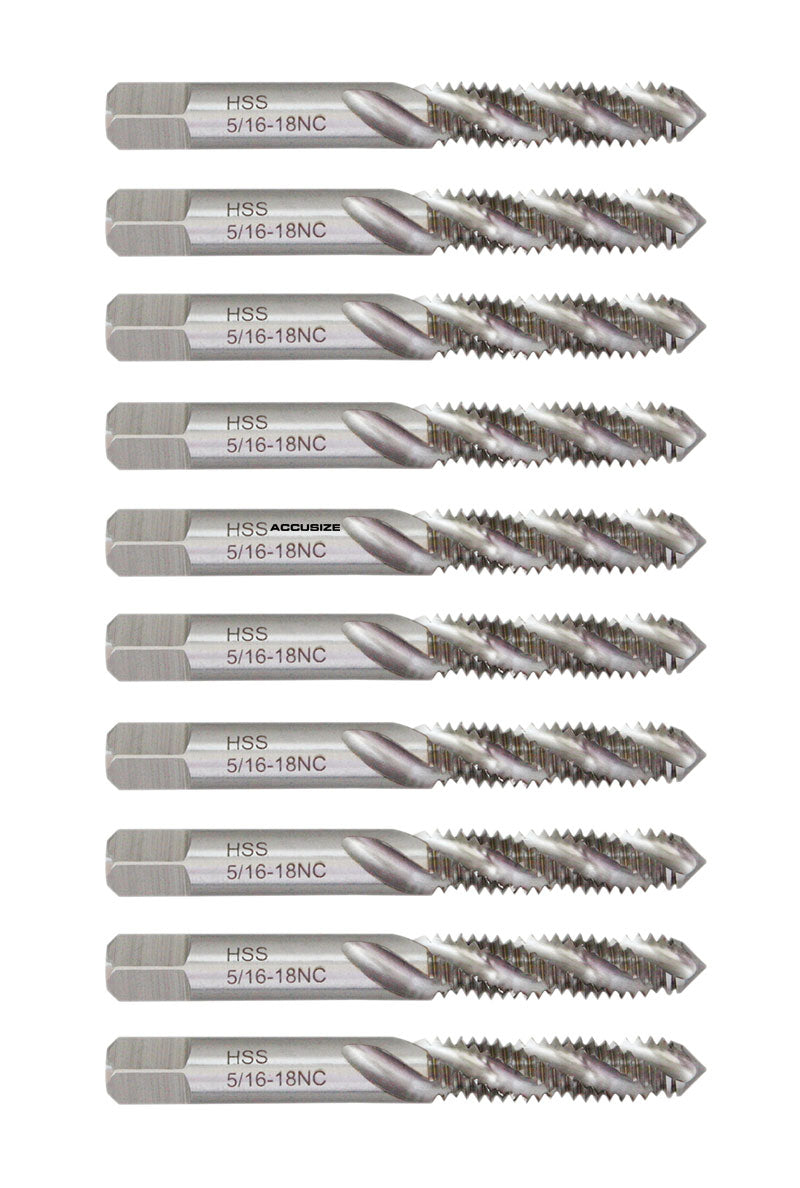

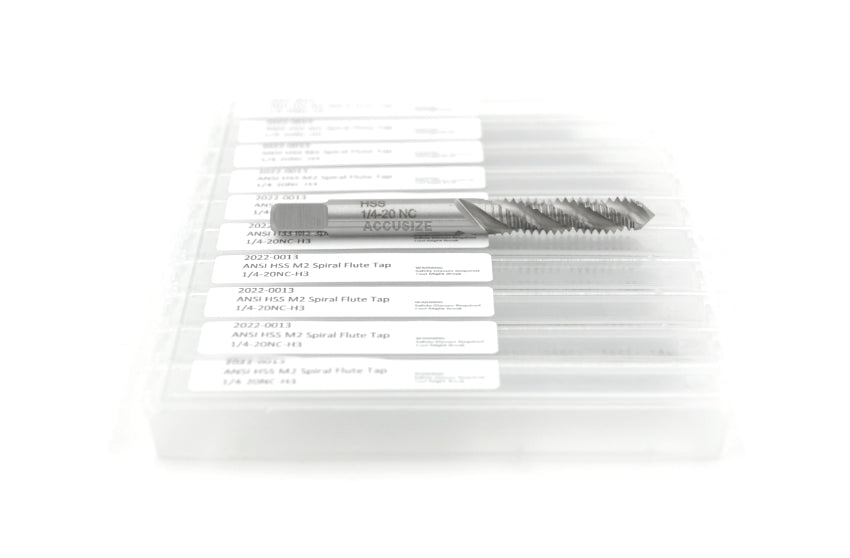

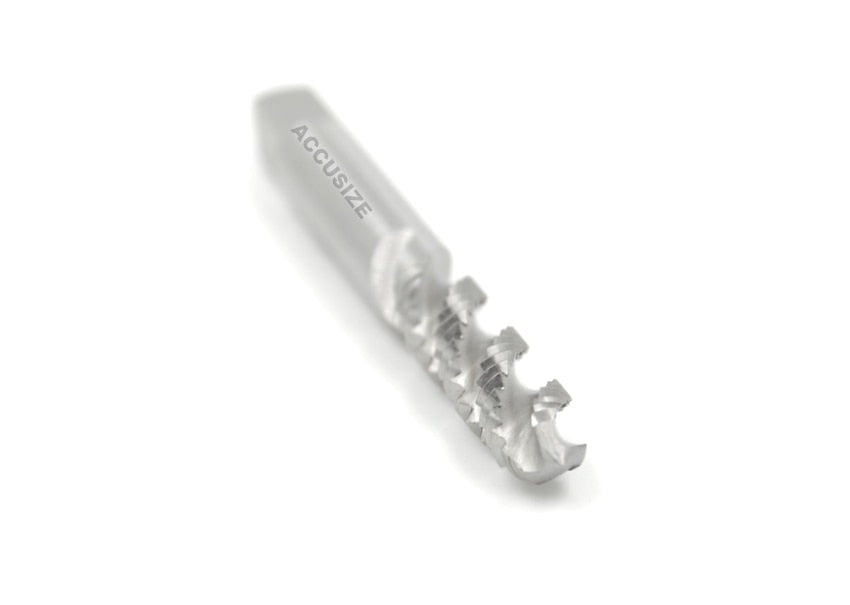

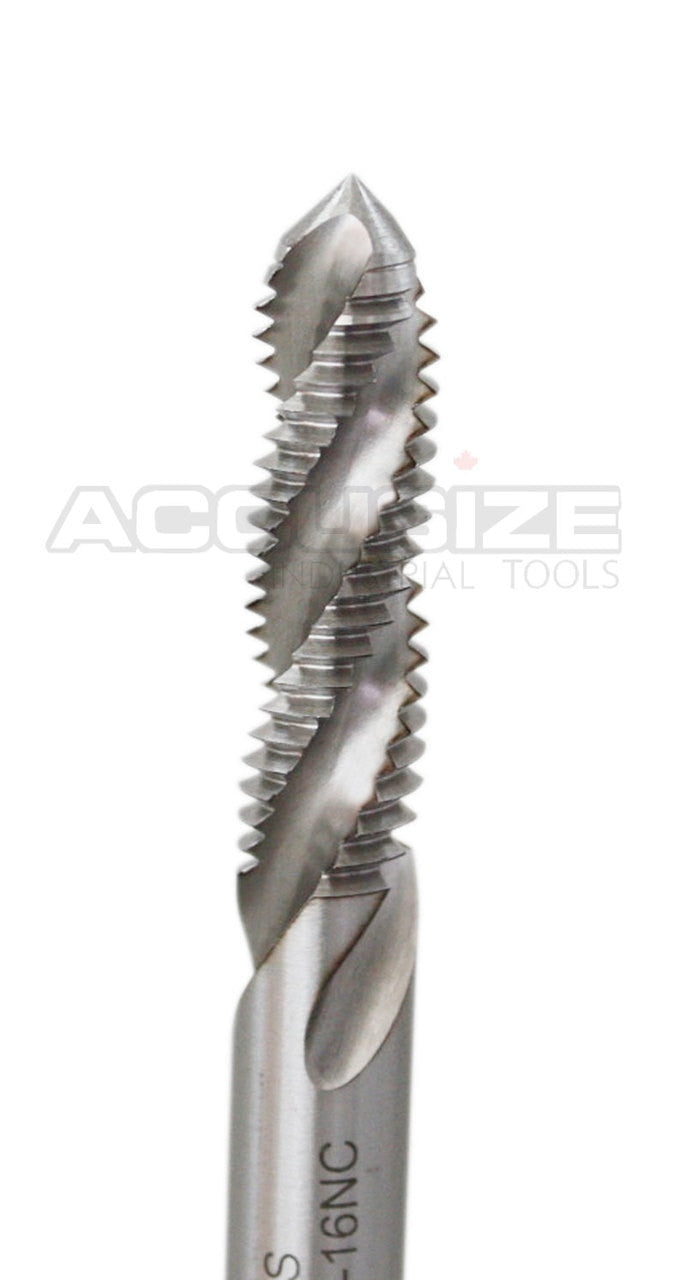

HSS Spiral Flute Taps, ANSI, Ground, 10 pcs/set or 5pcs/set

Name: HSS Spiral Flute Taps, ANSI, Ground, 10 pcs/set or 5pcs/set
Brand: Accusize Industrial
SKU: 2022-0013x10
Price: 43.0 CAD
Availability: InStock

$43.00 CAD

Size

1/4-20NC 10pc/set (2022-0013x10) 5/16-18NC 10pc/set (2022-0015x10) 3/8-16NC 5pc/set (2022-0017x5) 1/2-13NC 5pc/set (2022-0021x5)

Product variants

HSS Spiral Flute Taps, ANSI, Ground

Made from high speed steel with ground threads
52 Degree Helix Angle - Semi Bottoming with 2-2.5 Thread Chamfer
Right hand cut, square drive shank
Bright finish
Can be used for plug or bottoming applications and allows threading close to bottom in blind holes
Spiral flute draws chips out of a relatively deep holes
Slightly longer chamfer distributes cutting over greater number of teeth for increase production

Item	Size	H Limit	Overall Length	Thread Length	Qty
2022-0013	1/4-20NC	H3	2-1/2"	1"	10 pcs/set
2022-0015	5/16-18NC	H3	2-23/32"	1-1/8"	10 pcs/set
2022-0017	3/8-16NC	H3	2-15/16"	1-1/4"	5 pcs/set
2022-0021	1/2-13NC	H3	3-3/8"	1-21/32"	5 pcs/set

Item

Size

H Limit

Overall Length

Thread Length

Qty

2022-0013

1/4-20NC

2-1/2"

10 pcs/set

2022-0015

5/16-18NC

2-23/32"

1-1/8"

10 pcs/set

2022-0017

3/8-16NC

2-15/16"

1-1/4"

5 pcs/set

2022-0021

1/2-13NC

3-3/8"

1-21/32"

5 pcs/set
