Indexable Cut-off Tool Holders with Carbide Inserts for Steel and A...
From
$76.00 CAD
Unit price
/
Unavailable

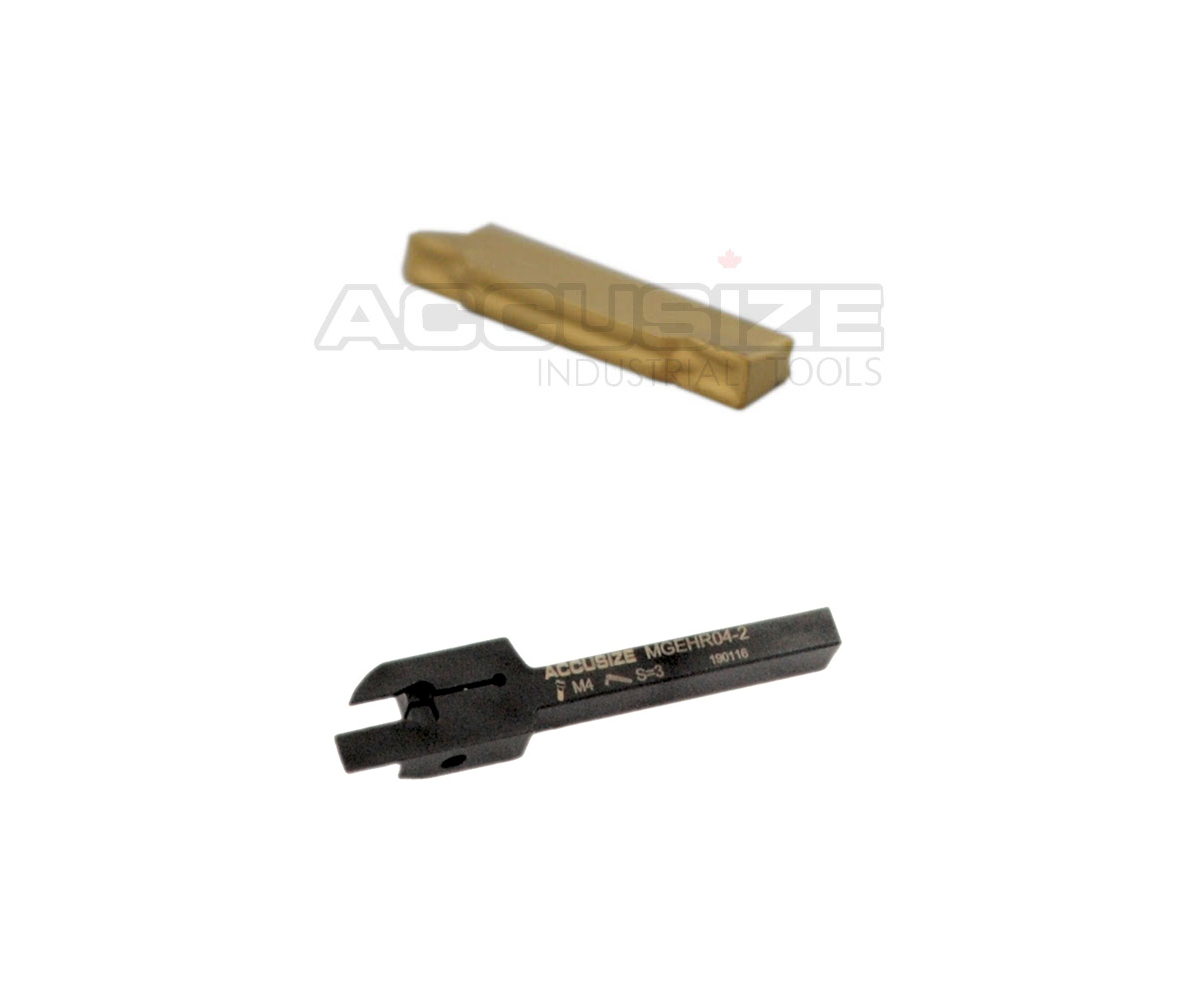

Cut-Off Holder, Parting Tool with 10 Carbide Inserts
Each set includes:
- 1 indexable cut-off holder
- 10 carbide inserts
| SKU | Holder Size | Tool Holder | Insert Code | Insert No | Machining Materials |

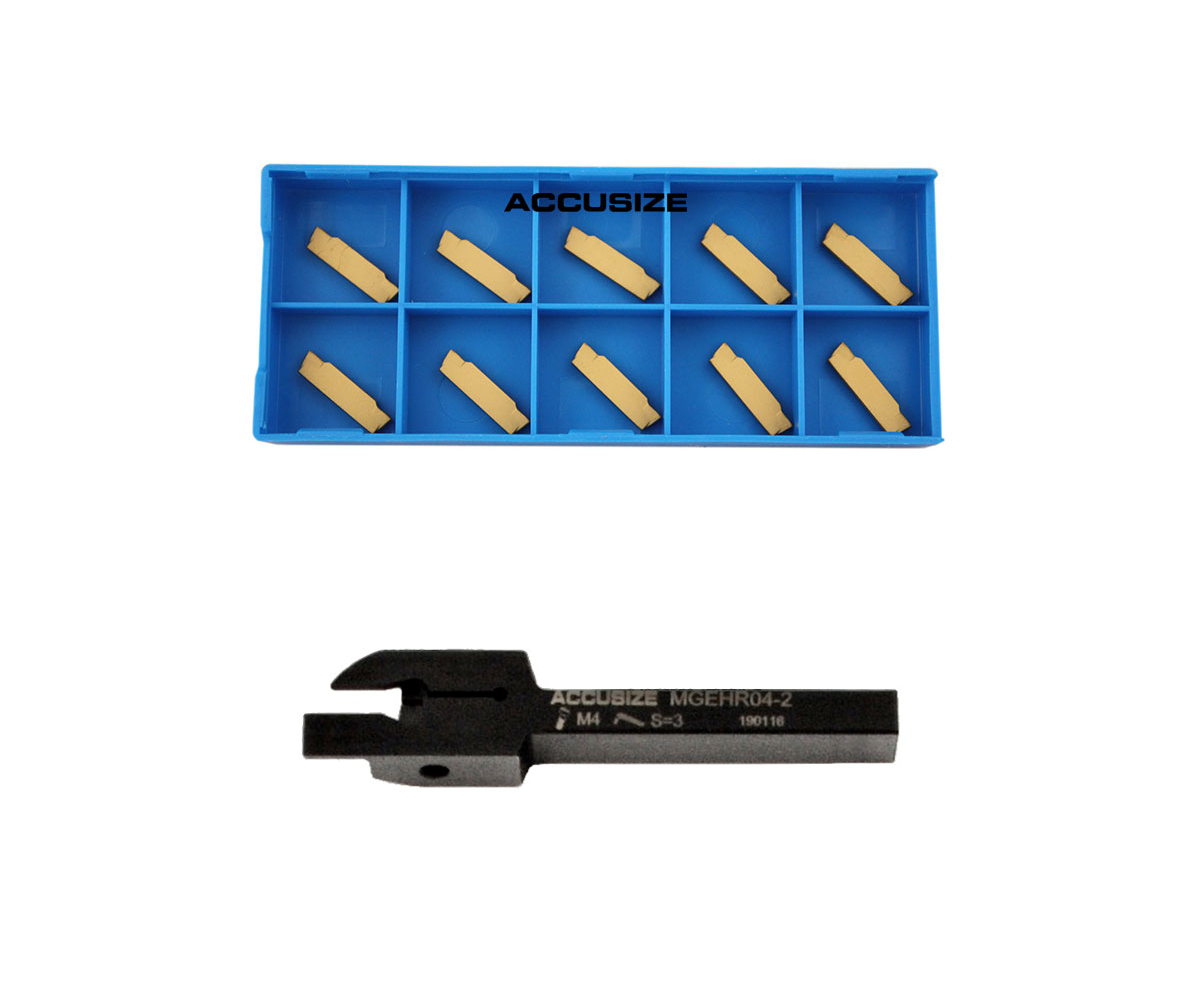

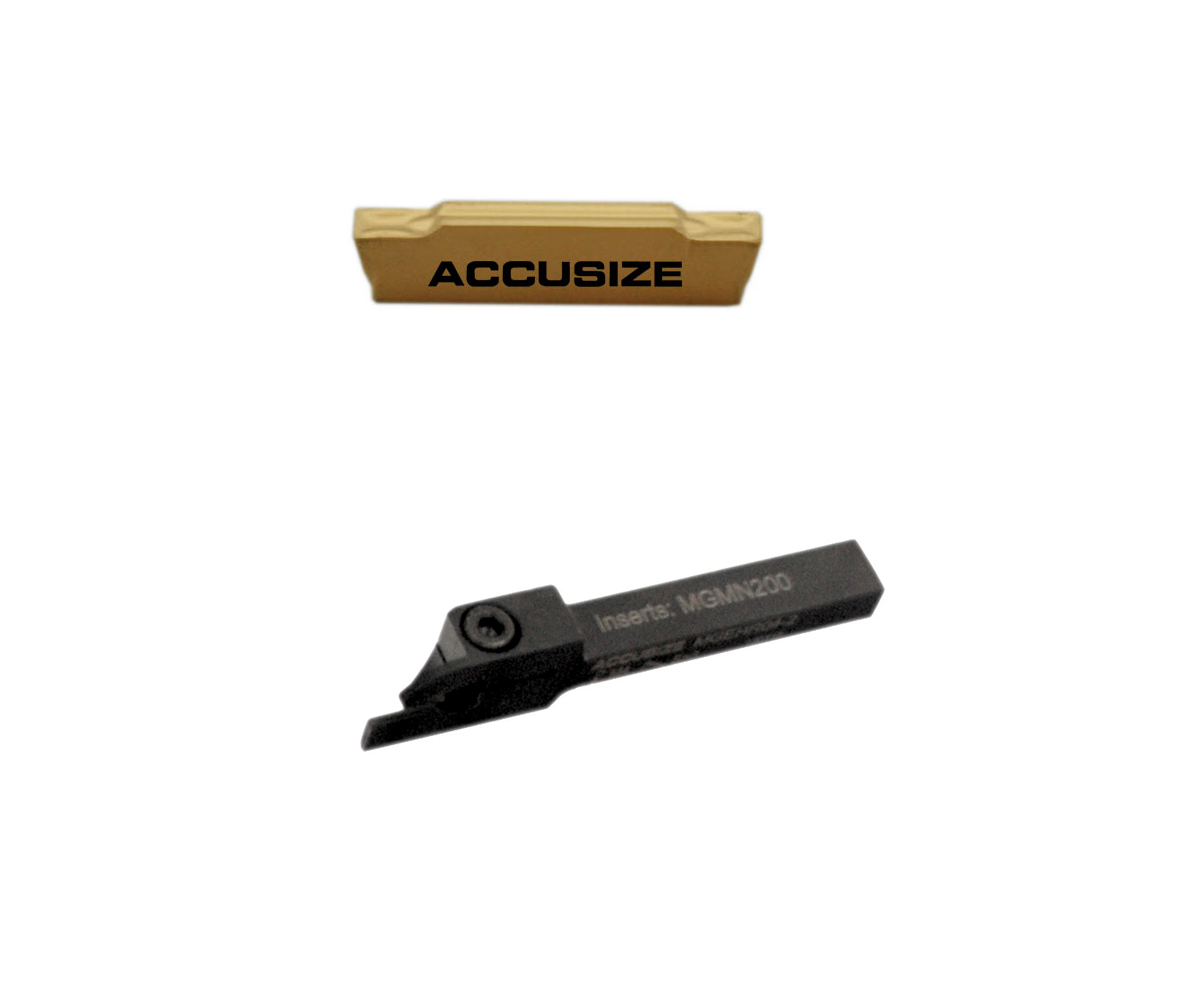

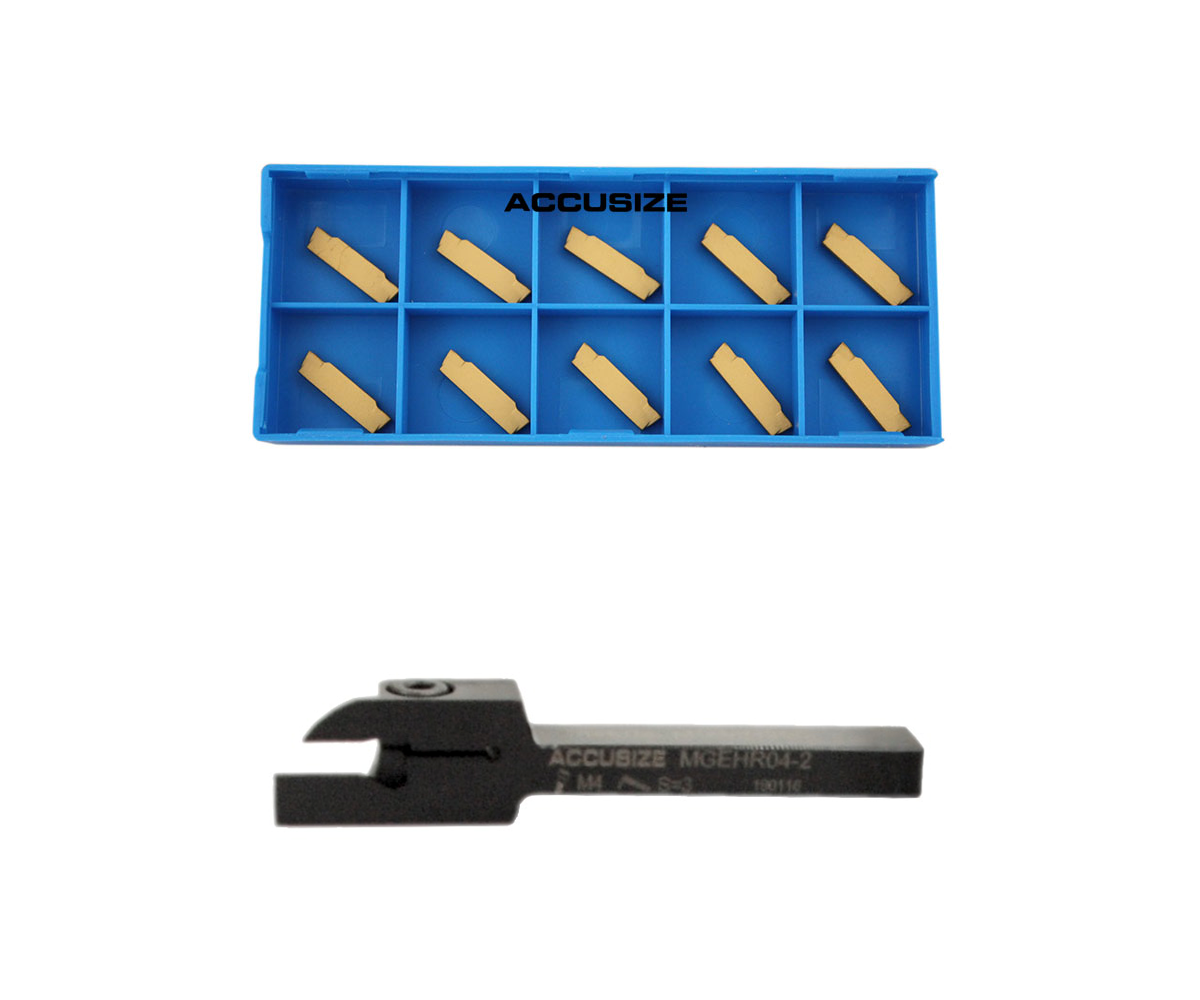

| 2387-0001INS | 1/4" x 3/8'' | MGEHR04-2 | MGMN200 | 2387-4022 | Steel |

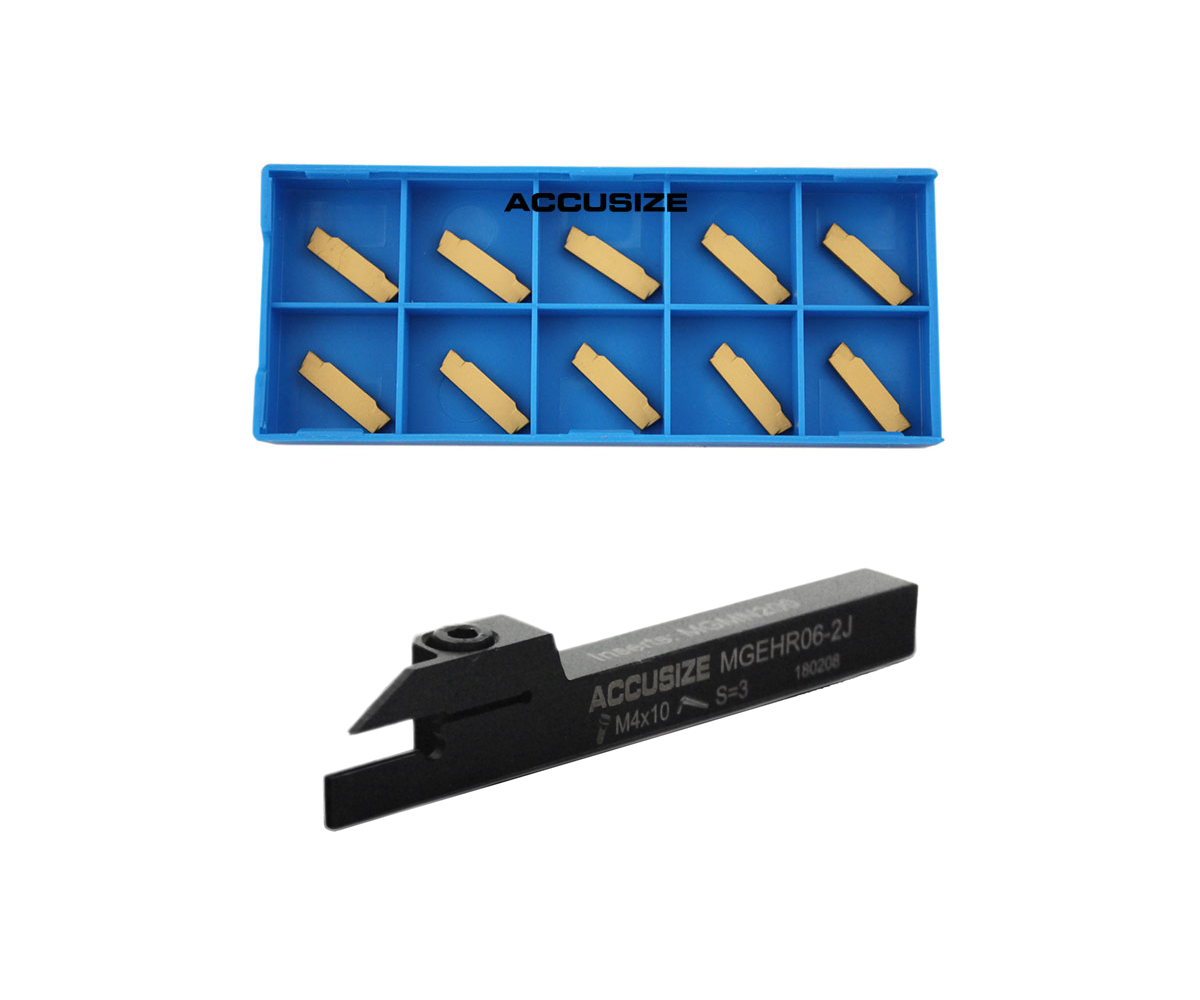

| 2387-0003INS | 3/8'' x 3/8" | MGEHR06-2J | MGMN200 | 2387-4022 | Steel |

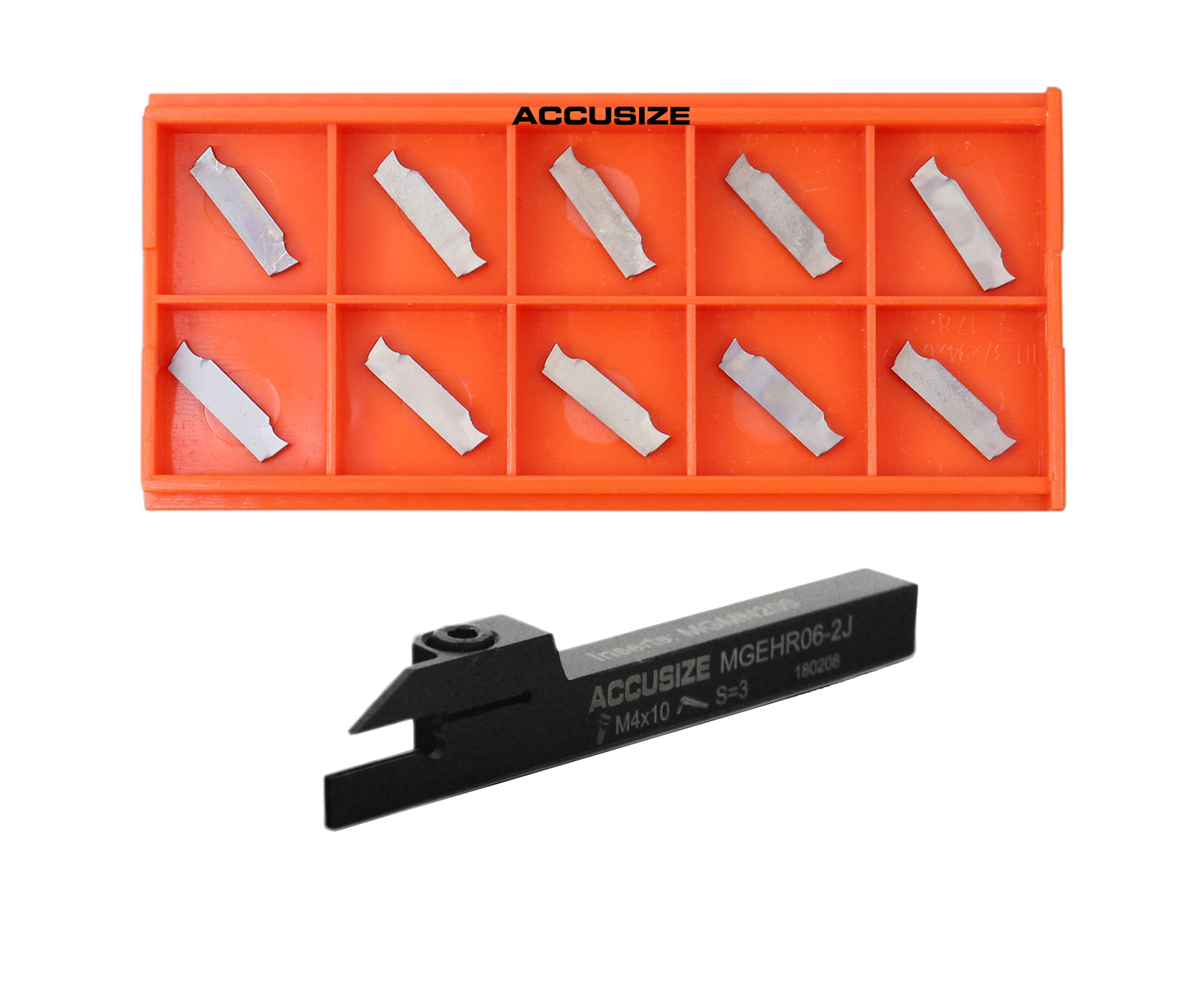

| 2387-0003INSA | 3/8'' x 3/8" | MGEHR06-2J | MGGN200-LH | 2387-4023 | Aluminum |

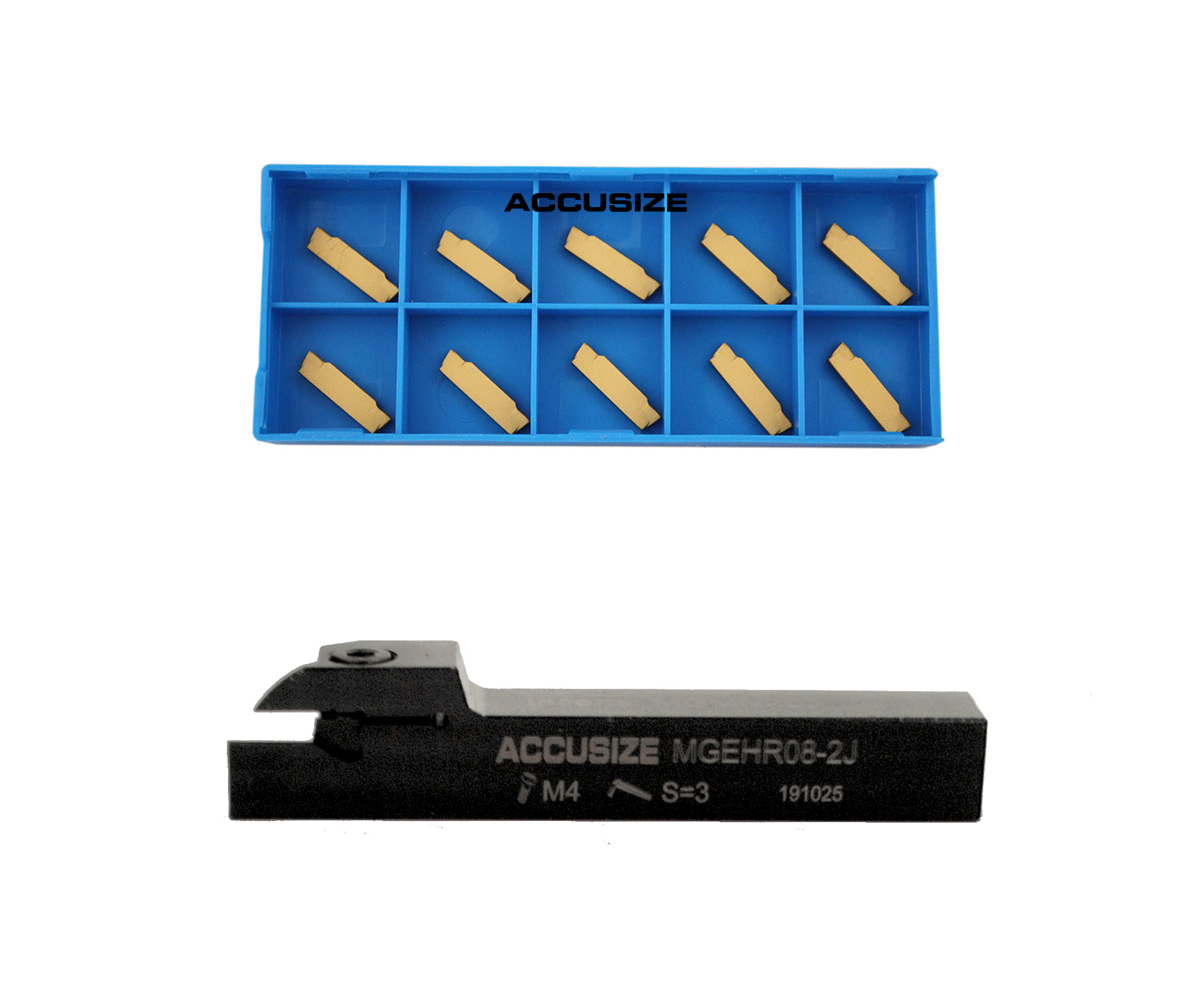

| 2387-0004INS | 1/2" x 1/2" | MGEHR08-2J | MGMN200 | 2387-4022 | Steel |

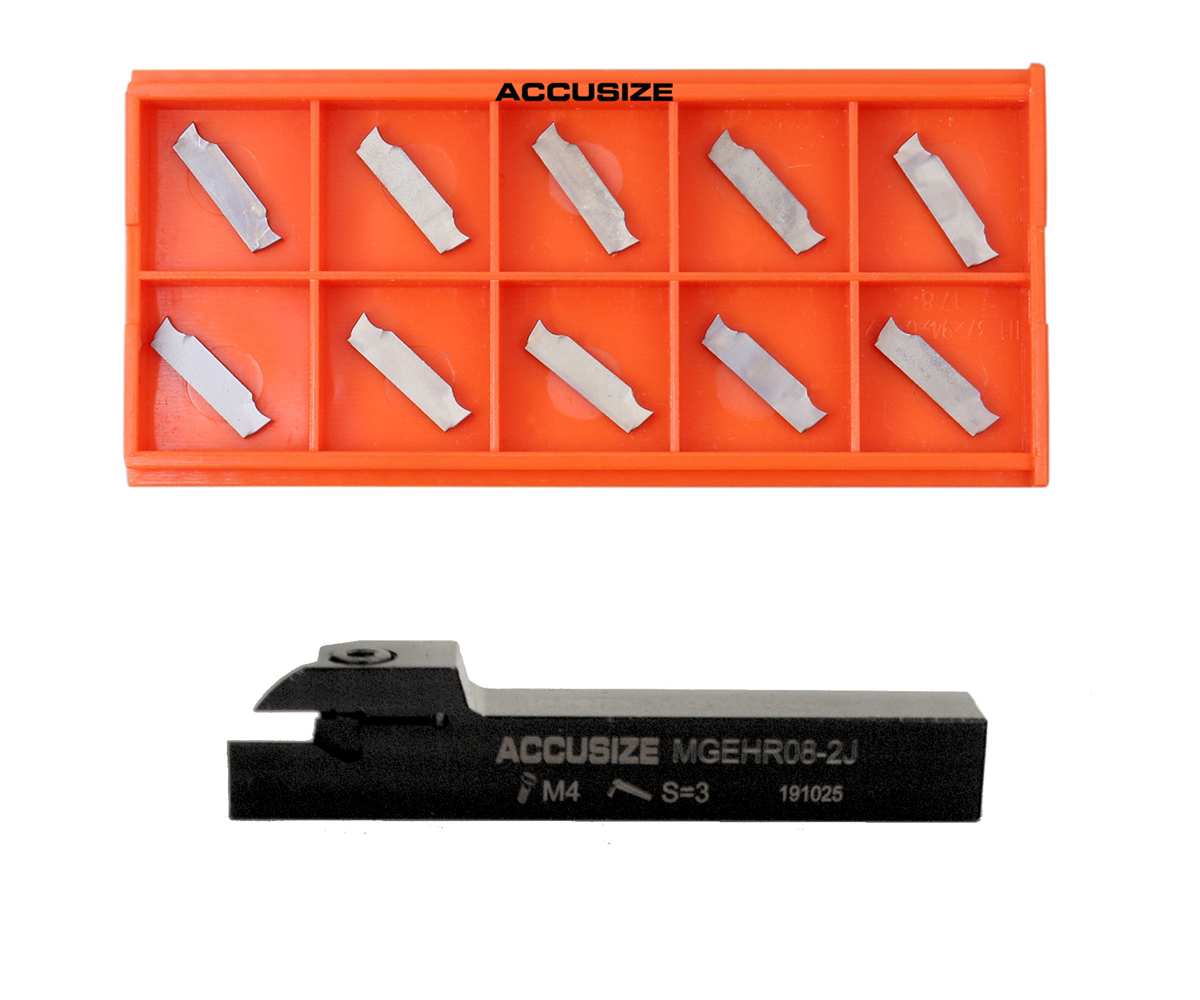

| 2387-0004INSA | 1/2" x 1/2" | MGEHR08-2J | MGGN200-LH | 2387-4023 | Aluminum |

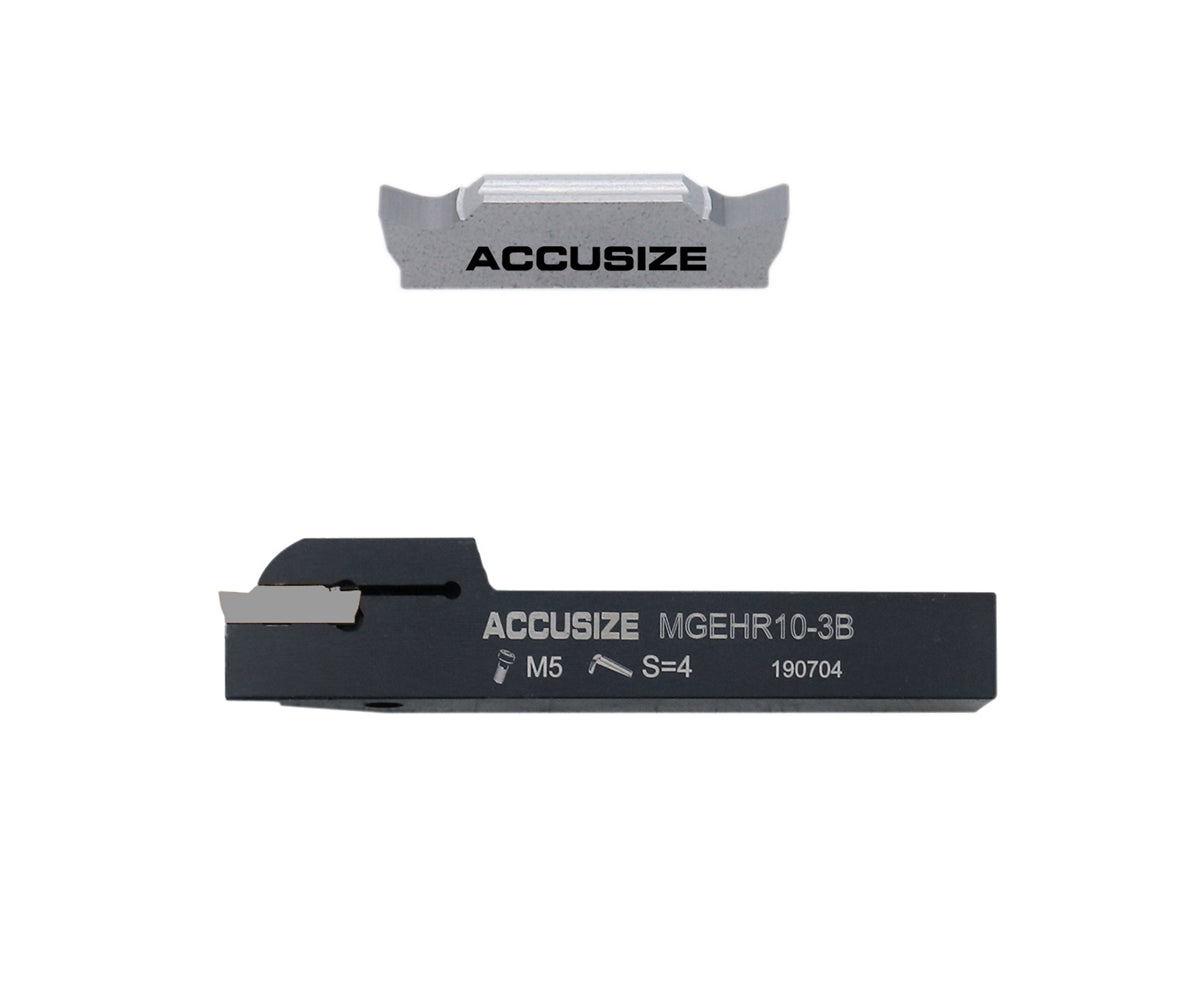

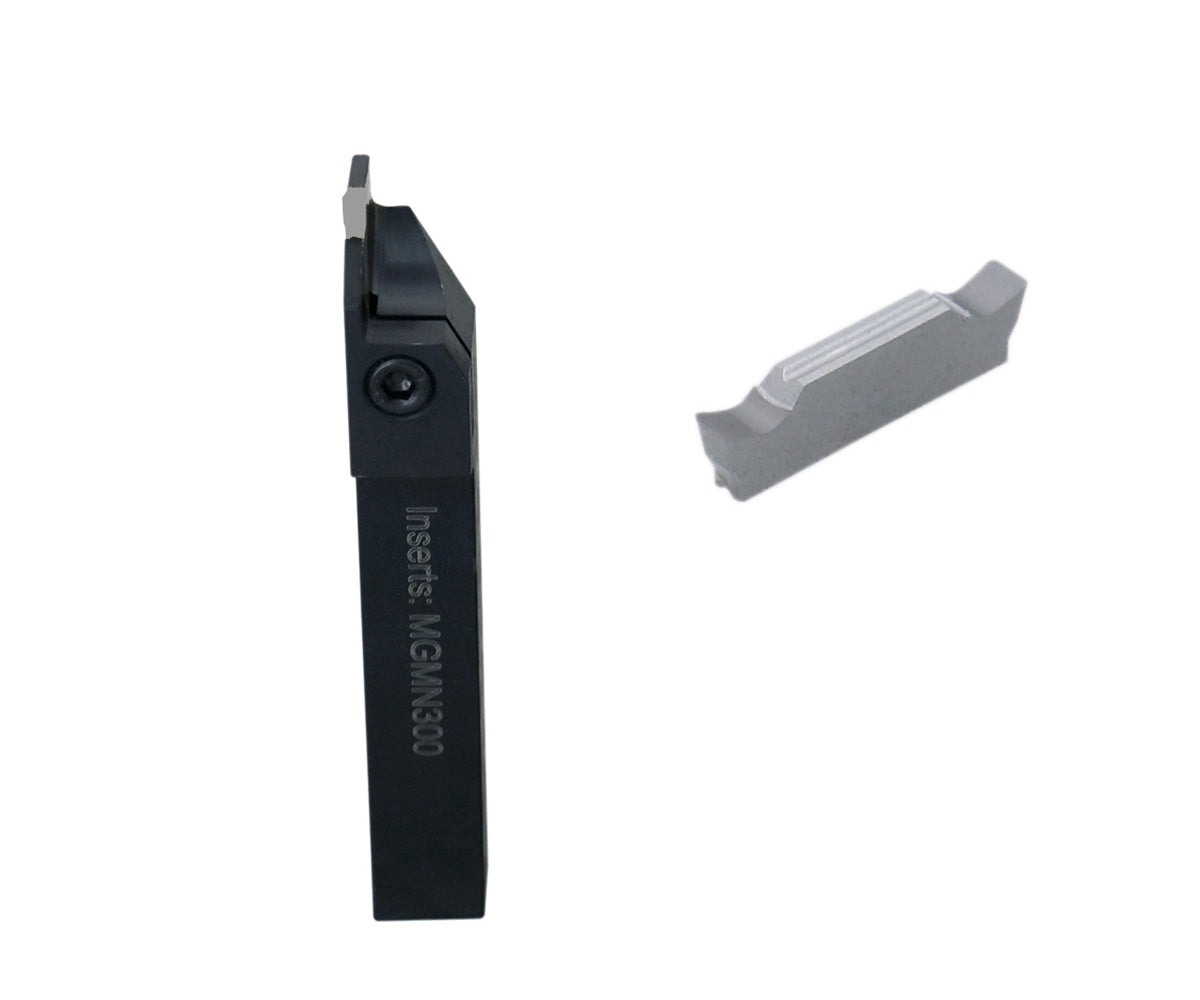

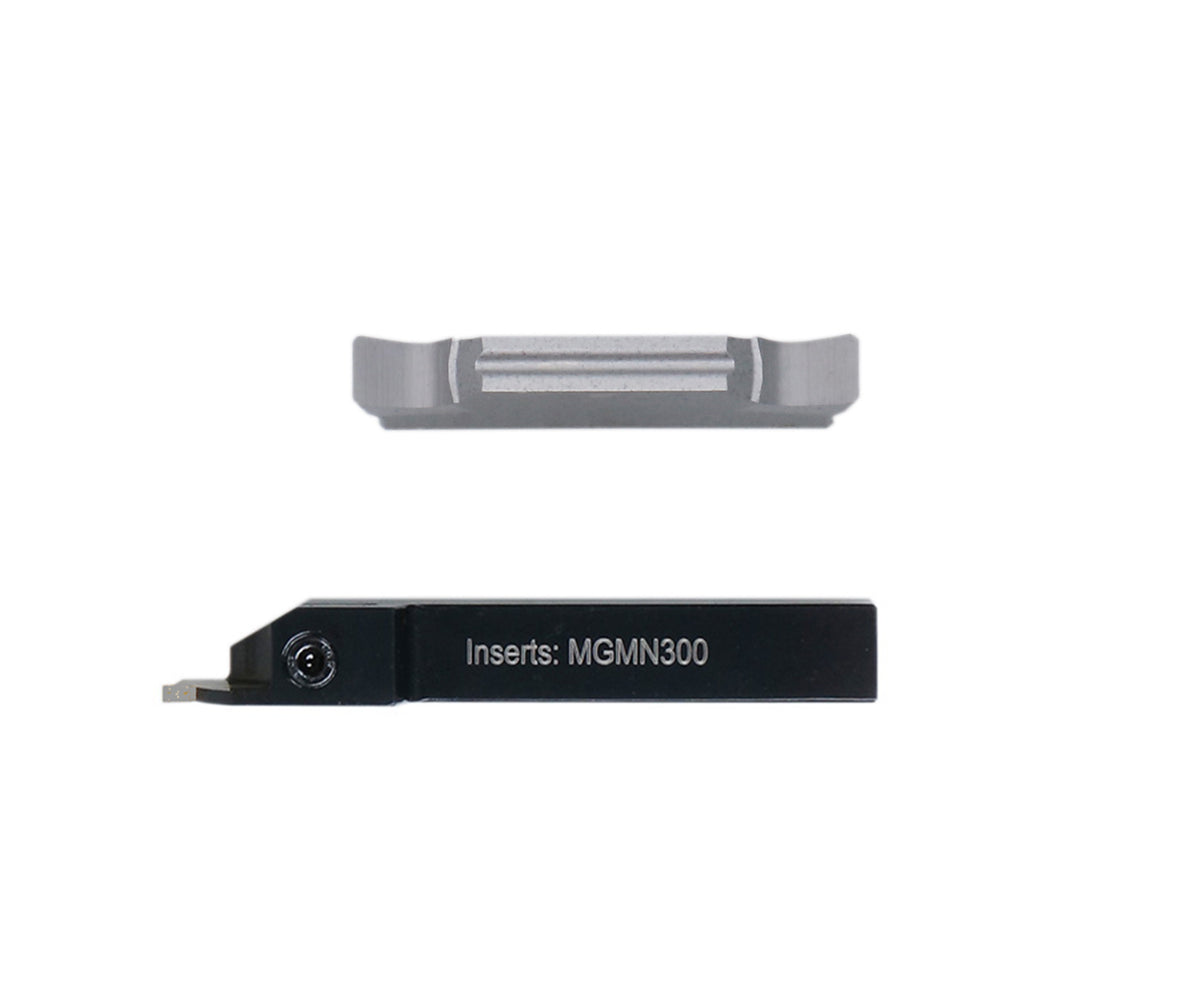

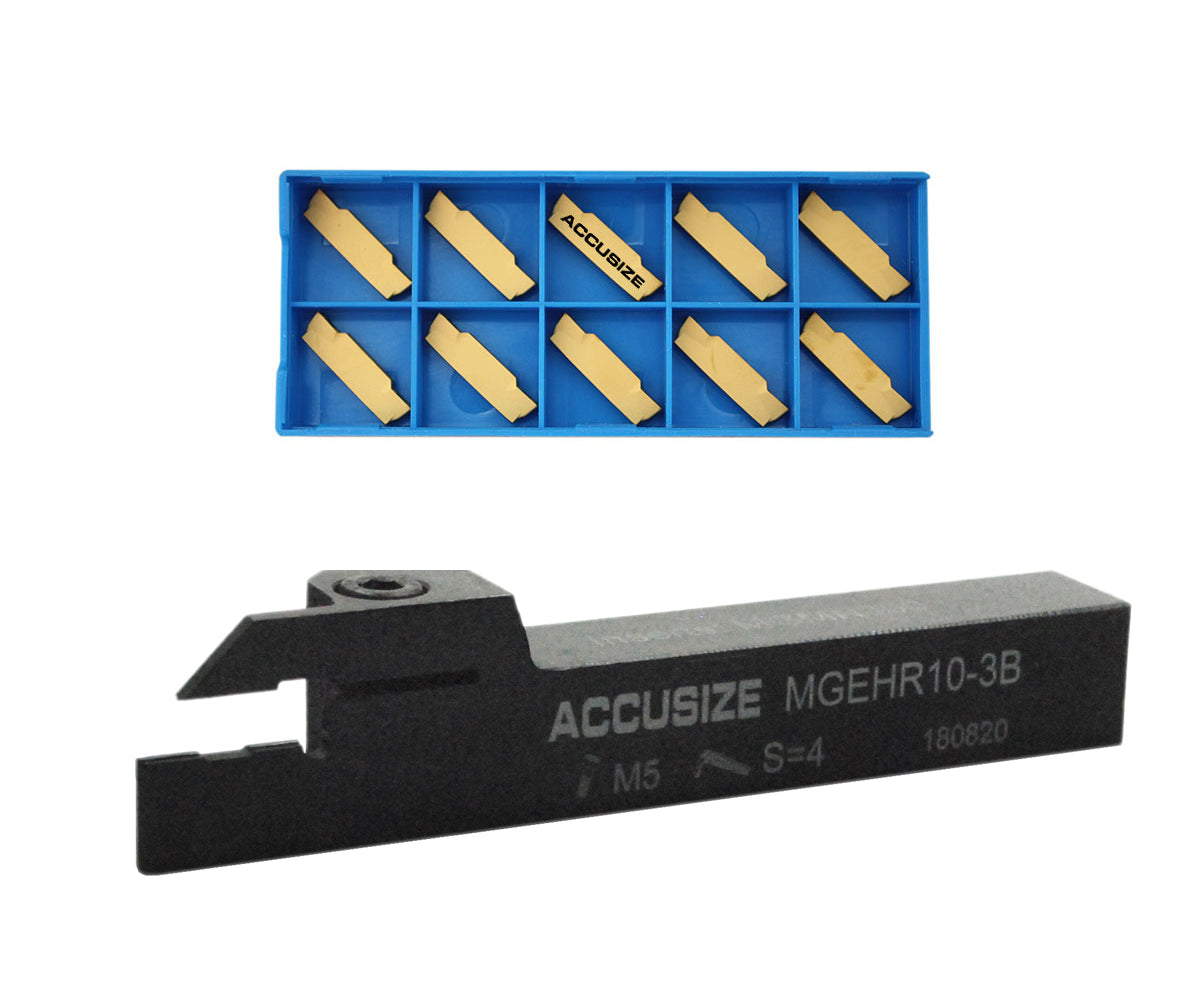

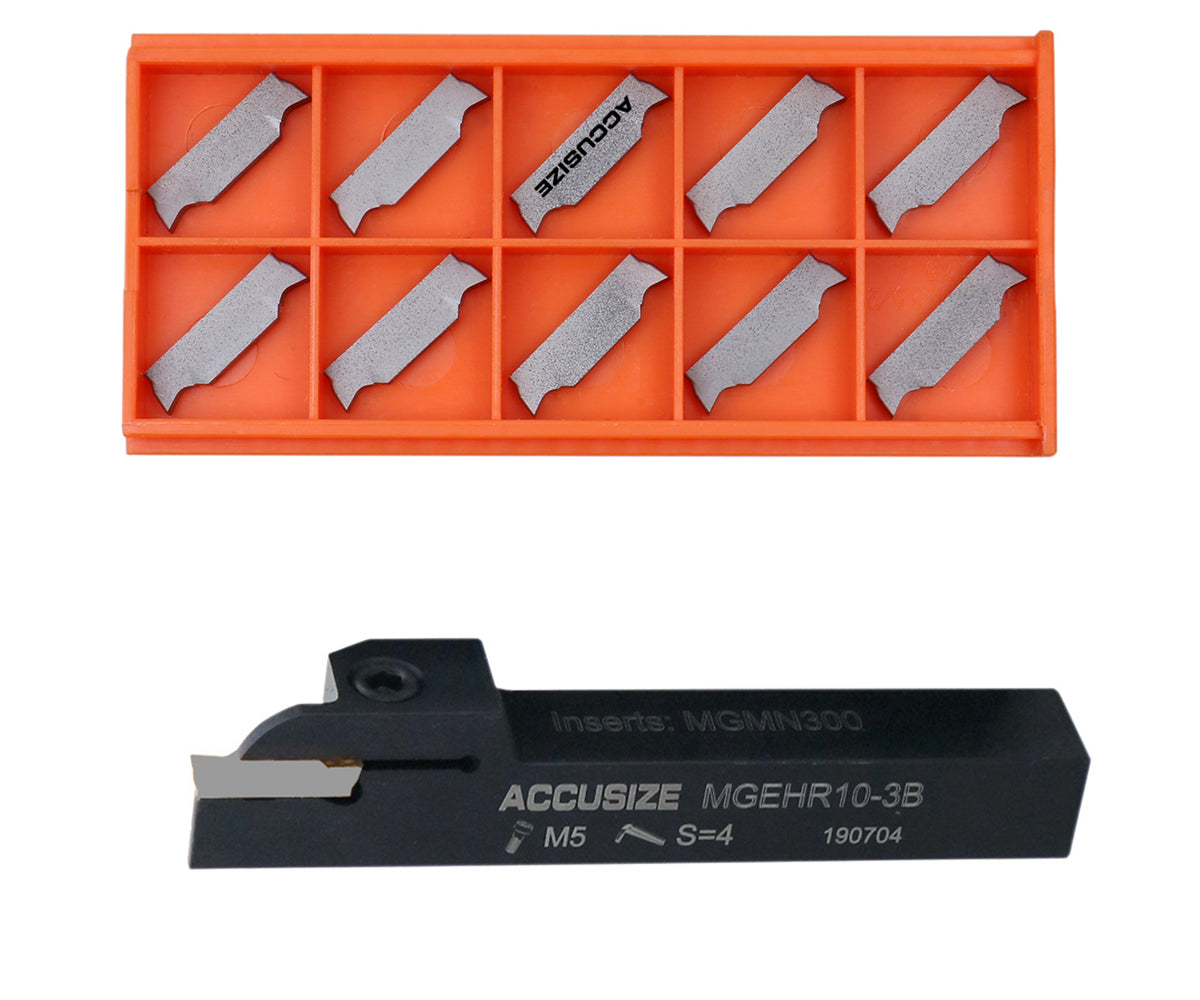

| 2387-0005INS | 5/8" x 5/8" | MGEHR10-3B | MGMN300 | 2387-4026 | Steel |

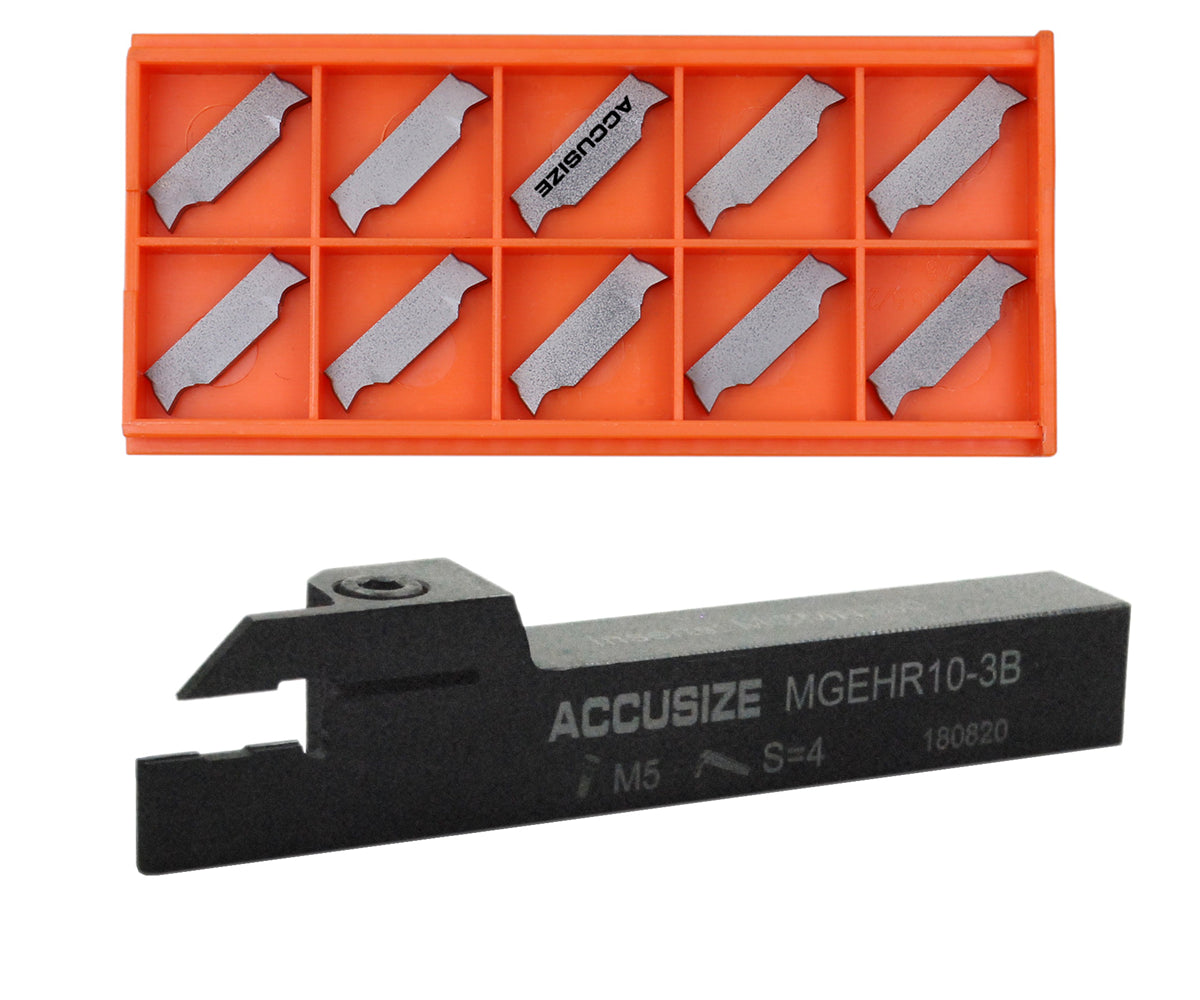

| 2387-0005INSA | 5/8" x 5/8" | MGEHR10-3B | MGGN300-LH | 2387-4027 | Aluminum |

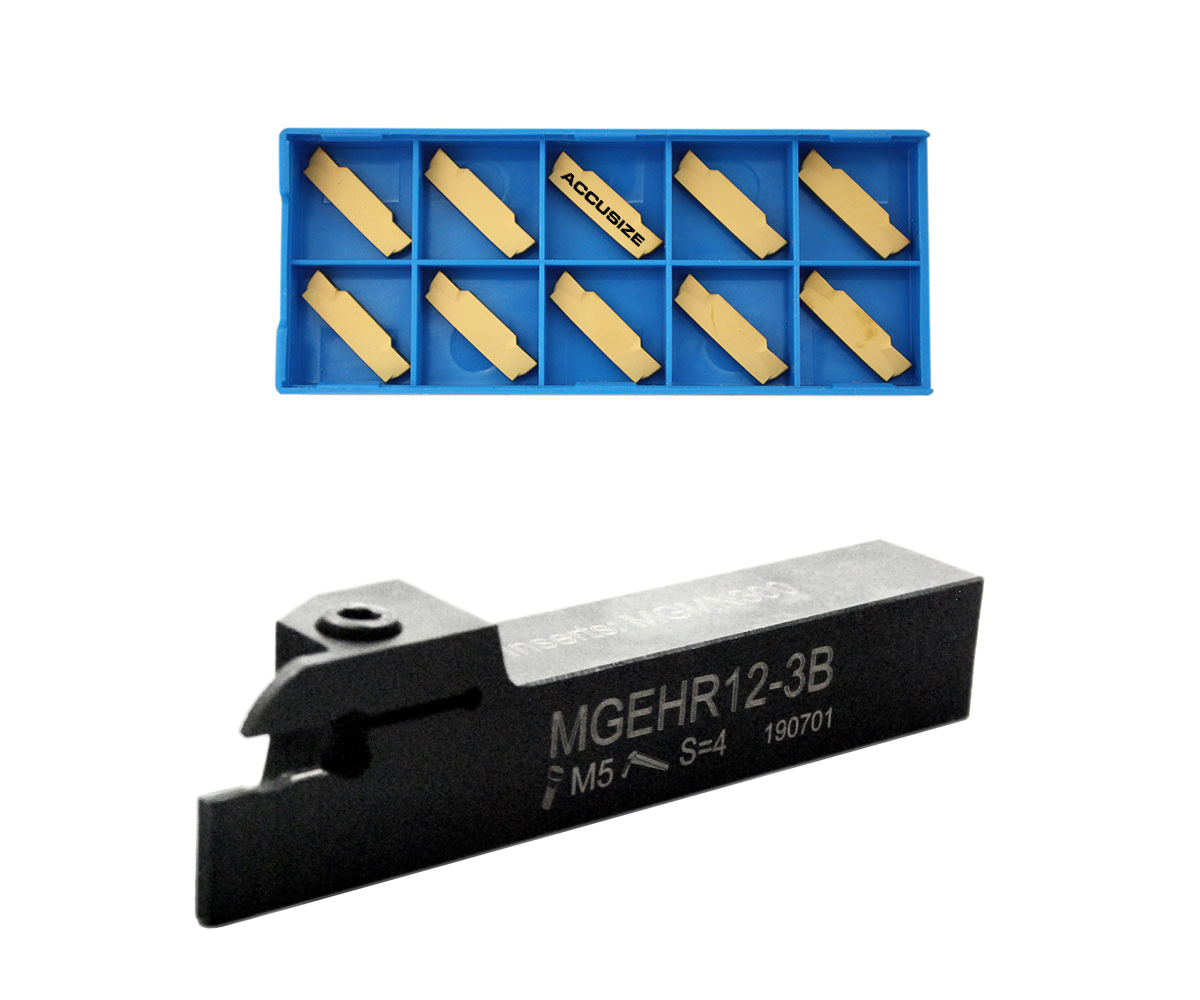

| 2387-0006INS | 3/4" x 3/4" | MGEHR12-3B | MGMN300 | 2387-4026 | Steel |

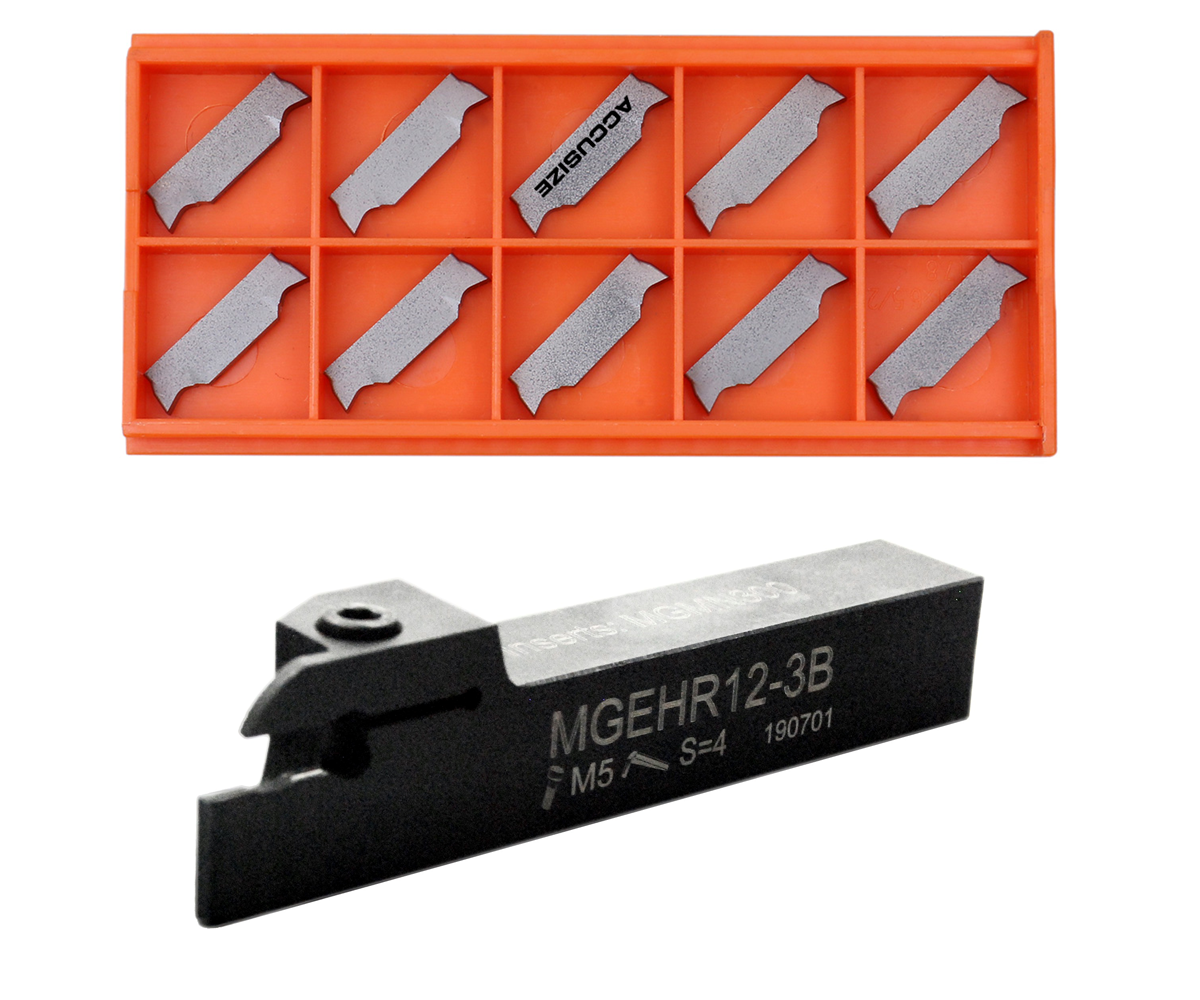

| 2387-0006INSA | 3/4" x 3/4" | MGEHR12-3B | MGGN300-LH | 2387-4027 | Aluminum |
Please note the cutting parameters are for reference only
| Cutting Parameters |
Feed Speed 0.003~0.012in |
|
| MGEHR04-2 | Alloy Steel | 23~43 in/min |
| Low-Carbon Steel | 31~59 in/min | |
| Carbon Steel �HB200 | 39~78 in/min | |
| Carbon Steel �HB200 | 39~59 in/min | |
| MGEHR06-2J | Alloy Steel | 196~360 ft/min |
| Low-Carbon Steel | 262~492 ft/min | |
| Carbon Steel �HB200 | 328~656 ft/min | |
| Carbon Steel �HB200 | 328~492 ft/min | |
| MGEHR08-2J | Alloy Steel | 196~360 ft/min |
| Low-Carbon Steel | 262~492 ft/min | |
| Carbon Steel �HB200 | 328~656 ft/min | |
| Carbon Steel �HB200 | 328~492 ft/min | |
| MGEHR10-3B | Alloy Steel | 196~360 ft/min |
| Low-Carbon Steel | 262~492 ft/min | |
| Carbon Steel �HB200 | 328~656 ft/min | |
| Carbon Steel �HB200 | 328~492 ft/min | |
| MGEHR12-3B | Alloy Steel | 196~360 ft/min |
| Low-Carbon Steel | 262~492 ft/min | |
| Carbon Steel �HB200 | 328~656 ft/min | |
| Carbon Steel �HB200 | 328~492 ft/min |
