L-00 Type Adaptors
Regular price
From
$215.00 CAD
Unit price
/
Unavailable

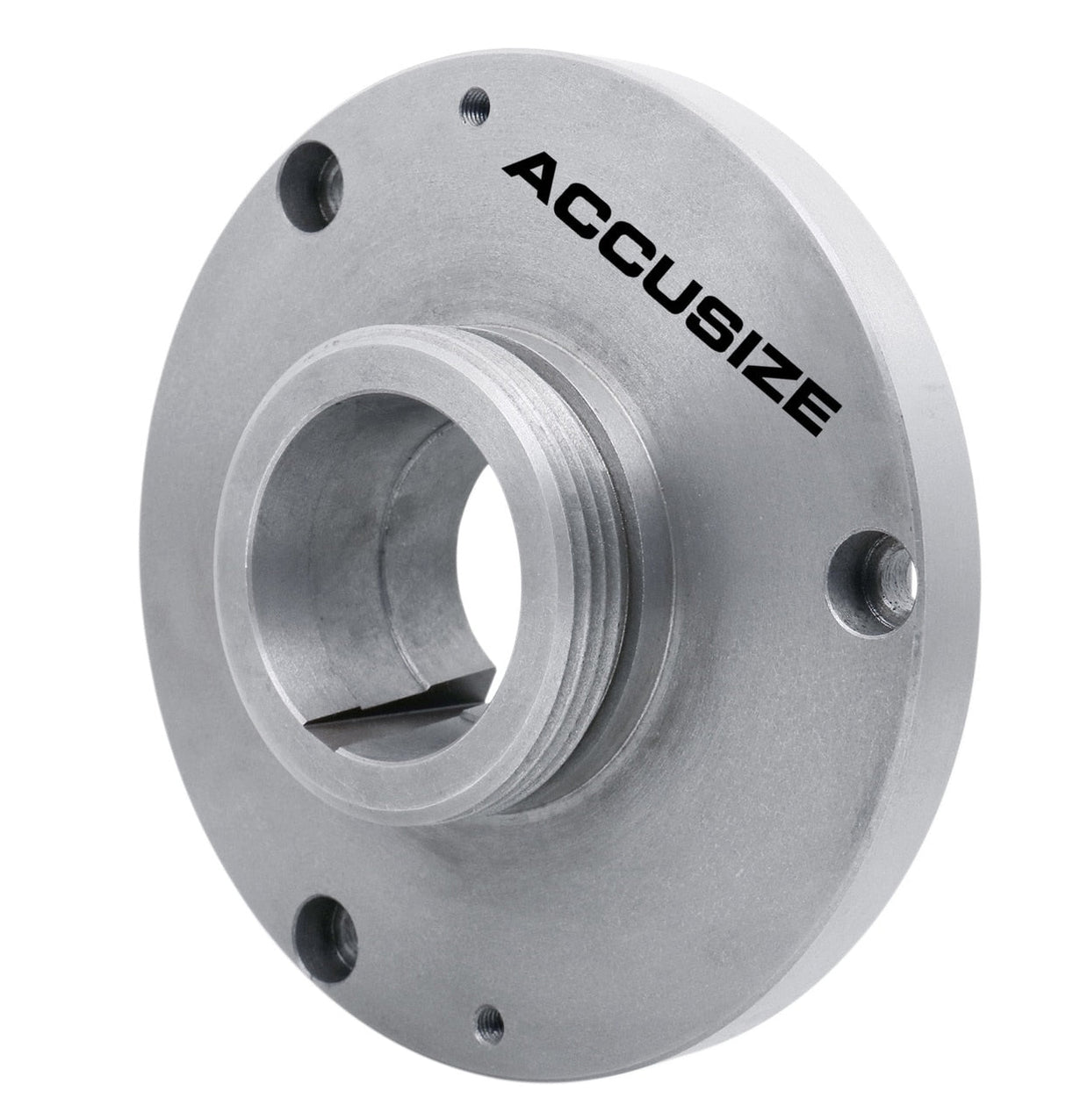

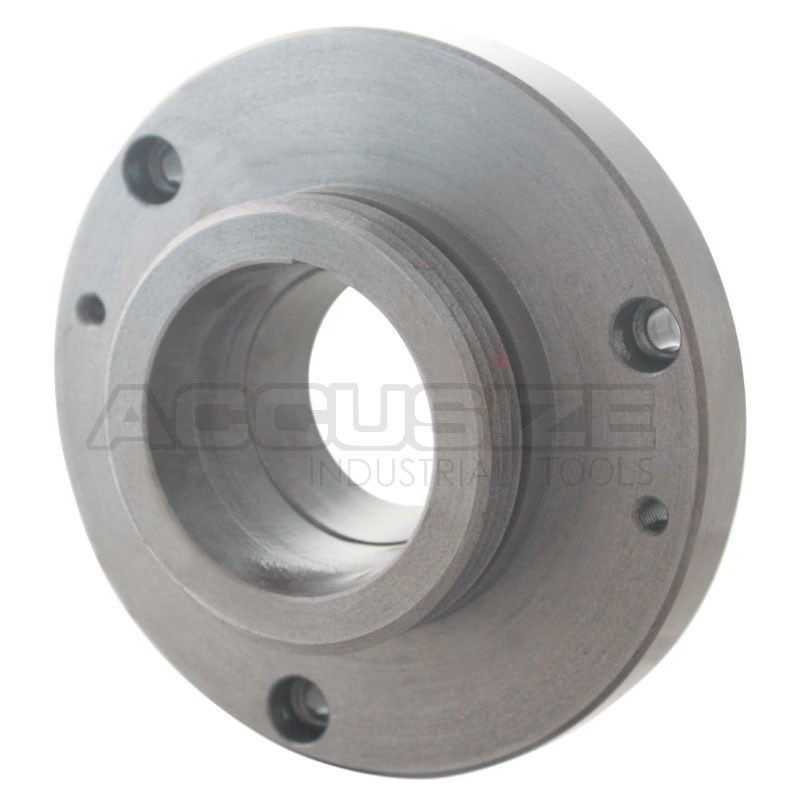

L-00 Type Adaptors
- Spindle Taper: L-00
- Does not have extra bolts
- Mounting Bolt Circle Size:
- L00-6": M8
- L00-8": M10
- L00-10": M12
- The diameter of the bolt circle mounting pattern:
- L00-6": 142mm
- L00-8": 180mm
- L00-10": 226mm

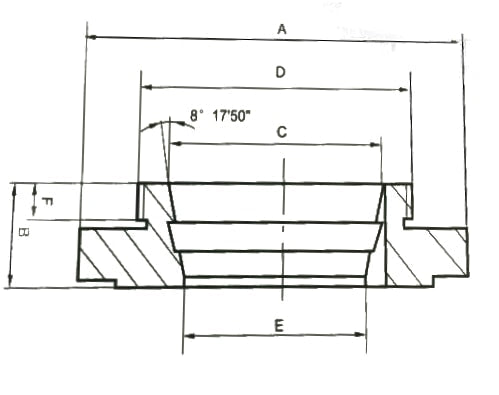

| Item | Chuck Dia. | A | B | C | D | E | F |
| 2700-0500 | 6" | 160mm | 54mm | 69.85mm | 3-3/4"-6 | 56mm | 14mm |
| 2700-0501 | 8" | 200mm | 54mm | 69.85mm | 3-3/4"-6 | 56mm | 14mm |
| 2700-0502 | 10" | 250mm | 54mm | 69.85mm | 3-3/4"-6 | 56mm | 14mm |
