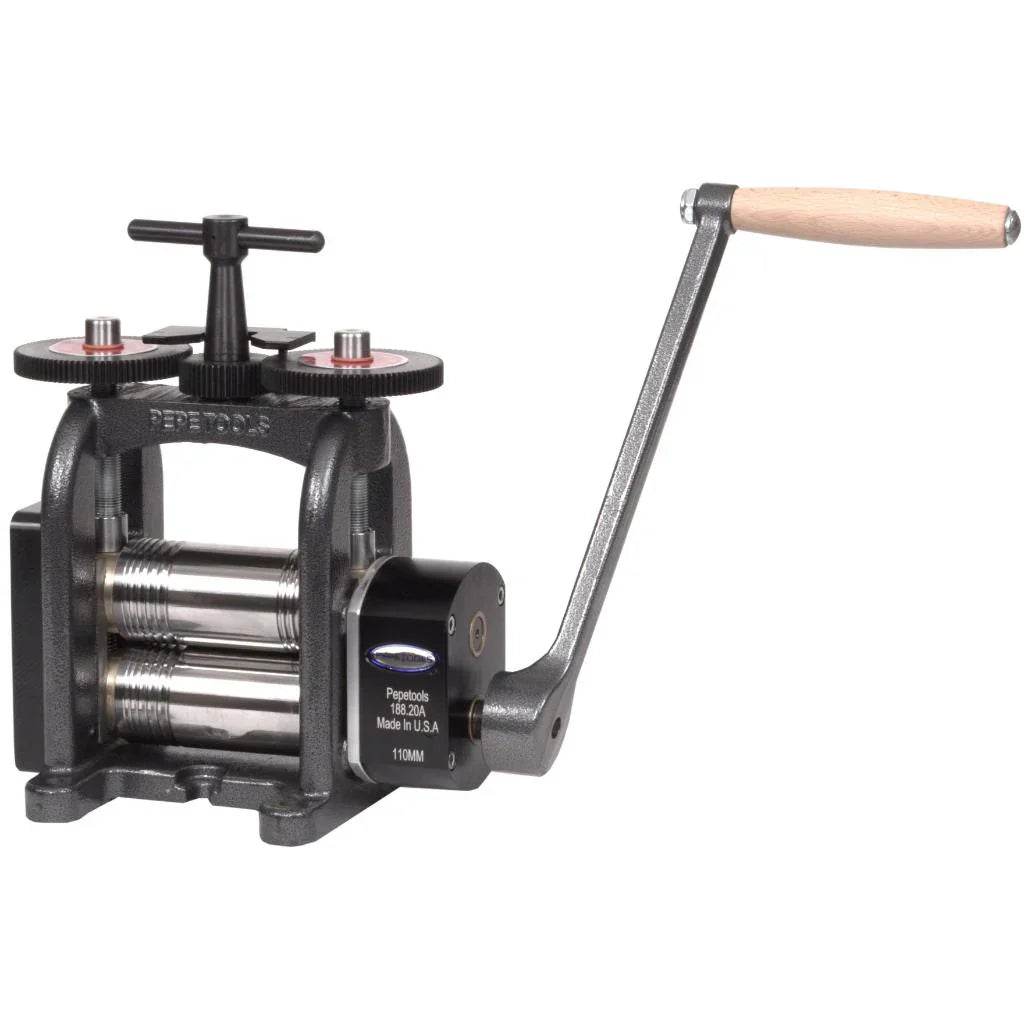

PEPETOOLS® Ultra Rolling Mills -110MM Combo, Ductile Frame
The Ultra Series of Rolling Mills from PEPETOOLS were designed with the customer in mind right down to the shipping process!
The Ultra Series is proudly manufactured in the USA and made stronger with a one-year warranty. Mills are offered in three basic configurations: Flat only, Combo which provides half round (elliptical) and square wire as well as flat, and Wire only which allows production of half round (elliptical) and square wire as well as round and comfort wire profiles.
With their sleek look and ultra-precision stance, all models (Flat, Combo and Wire) are equipped with a 4:1 reduction gear box, high strength housing, forged steel handle (not casted), and weighs half of the other competitive models on the market thus making it less expensive for a customer to have them shipped.
Rolls are first strategically induction hardened and then the rolls are given a highly polished mirror finish. All parts are manufactured and the final assembly are ALL done in the USA!
Features:
- Gear ratio 4:1
- Roller width - 110mm
- Roller diameter - 55mm
- Maximum opening - 5mm
- Flat area (+/- 0.01mm) - 57mm
- Square wire (+/- 0.01mm) : 1.0, 2.0, 3.0, 4.0
- Ring shank - half round ellipsis: 2.5 x 1:3 x 1.25 ; 4 x 1.5
- Capable of producing metal foil as thin as .001"
- All models equipped with 4:1 reduction gear box
- Custom designed heavy duty packaging
- Precision hobbed gears from solid steel - no casted gears
- High strength housing
- Custom designed maintenance free bronze bushings
- Induction hardened in strategic areas to 65HRC hardness
- Polished and machined rolls to achieve a mirror finish
