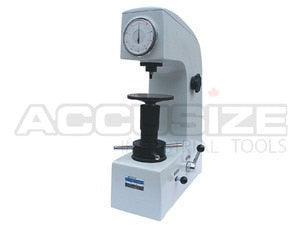

RT90-0330, HR 150A 3R TYPE ROCKWELL HARDNESS TESTER

HR150A 3R type Rockwell hardness tester #RT90-0330

• Designed measuring hardness of metal and alloys of all kinds, hard or soft whether flat, round or irregular in shape.
• Simple in design and easy to operate, yet sensitive and accurate testing results can be obtained with these testers.
• The are ideally suitable for schools, labortories,tool rooms, inspection and heat treatment departments & factories.
• Conform to IS: 3804-1966 and part I and part II for Rockwell test.
• STANDARD ACCESSORIES:
  • 5-3/4" TESTING TABLE
  • 2-3/16" TESTING TABLE
  • 2-3/16" TESTING TABLE w/V-GROOVE
  • 120 DEGREE DIAMOND PENETRATOR
  • 1/16" STEEL BALL PENETRATOR
  • ROCKWELL A TEST BLOCK(1PC)
  • ROCKWELL B TEST BLOCK(1PC)
  • ROCKWELL C TEST BLOCK (3PCS)
  • SCREWDRIVER(1 PC)
  • COMPLETE UNSTRUCTION MANUAL
  • DUSPROOF PLASTIC COVER

LOADS AND INDICATORS

• MAX LOAD:150 kg.
• LOAD RANGE: 60, 100, AND 150 kg.
• INITIAL LOAD RANGE: 10 kg.
• MAX TEST HT.: 6 3/4"
• THROAT DEPTH: 5 1/4"
• MAX DEPTH OF SPINDLE BELOW BASE: 2"
• BASE SIZE : 7" X 18"
• MACHINE HEIGHT: 24.5"
• APPROX WEIGHT: 200 lbs.

Download the Mannual----->Download

In order to make it easier for customer to Package Opening, Transportation, Installation and Commissioning & III. Normal Operation, MFG has taken some photos to show how to unload the shipping protection devices while customer start to use this machine.----->Download

MFG even took photos of these STEPS for the above instructions, as the enclosed Photos

Small Leveler----->Download

Step 1----->Download

Step 2----->Download

Step 3----->Download

Step 4----->Download

Step 5----->Download

Step 6----->Download

Or read the manual online

Part I

Part II

Part III

Part IV
