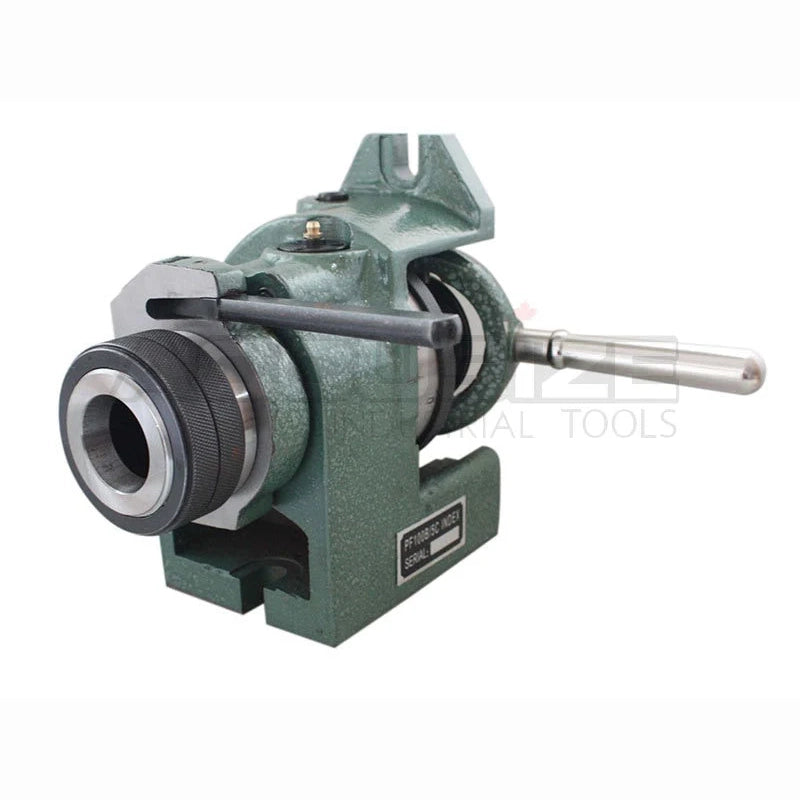

5C Horizontal/Vertical Collet Index

Features:

• Rapid Opening and closing is performed with a lever collet closer with a leverage ratio of 100 to 1.
• Convenient ratchet mounted on front of spindle provides rapid indexing
• Utilizes 5C collets
• Single lever action activates the indexing mechanism
• Precision ground index plate has 24 indexing locations in greater versatility
• Spindle manufactured with a taper seat in body frame.
• Index plate has 24 index locations at 15 degree increments, any of these may be masked off for greater variety in applications.
• Dividing spindle concentricity: +-0.0004"
• Cylindrical center bore / per 1" concentricity: +-0.0008"
• Spindle center ine parallelism: +-0.0008"
• Base to face squareness: +-0.0008"
• Center Slot to dividing spindle concentricity: +-0.0008"
• Approximate weight:35 lbs.
• Threaded Spindle is hardened and ground 2-1/4"-8 TPI
• The height from the base to the center of the spindle is 100 mm
