0251-0000, 5"-8" OXA Wedge Type Quick Change Tool
$296.00 CAD
Unit price
/
Unavailable
5"-8" OXA Wedge Type Quick Change Tool, #0251-0000
- Made from high quality, heat treated tool steel.
- Wedge Type.
- Wedge type tool post are precision engineered to assure repeatability accuracy
- Wedge type tool post Have the Maximum rigidity to get the chatter free performance
- No time wasted with shims
- All working parts hardened and precision ground
- The tool post comes with a blank T-Nut plate, the customer have to do some machining work to make it fit into their own specific lathe T- slot
- Perfect for 7 x 10", 7 x 12", 7 x 14" mini lathe, such as Enco, Grizzly, little Machine, Harbor Freight and many oversea made
- Lathe Swing: 5"-8"

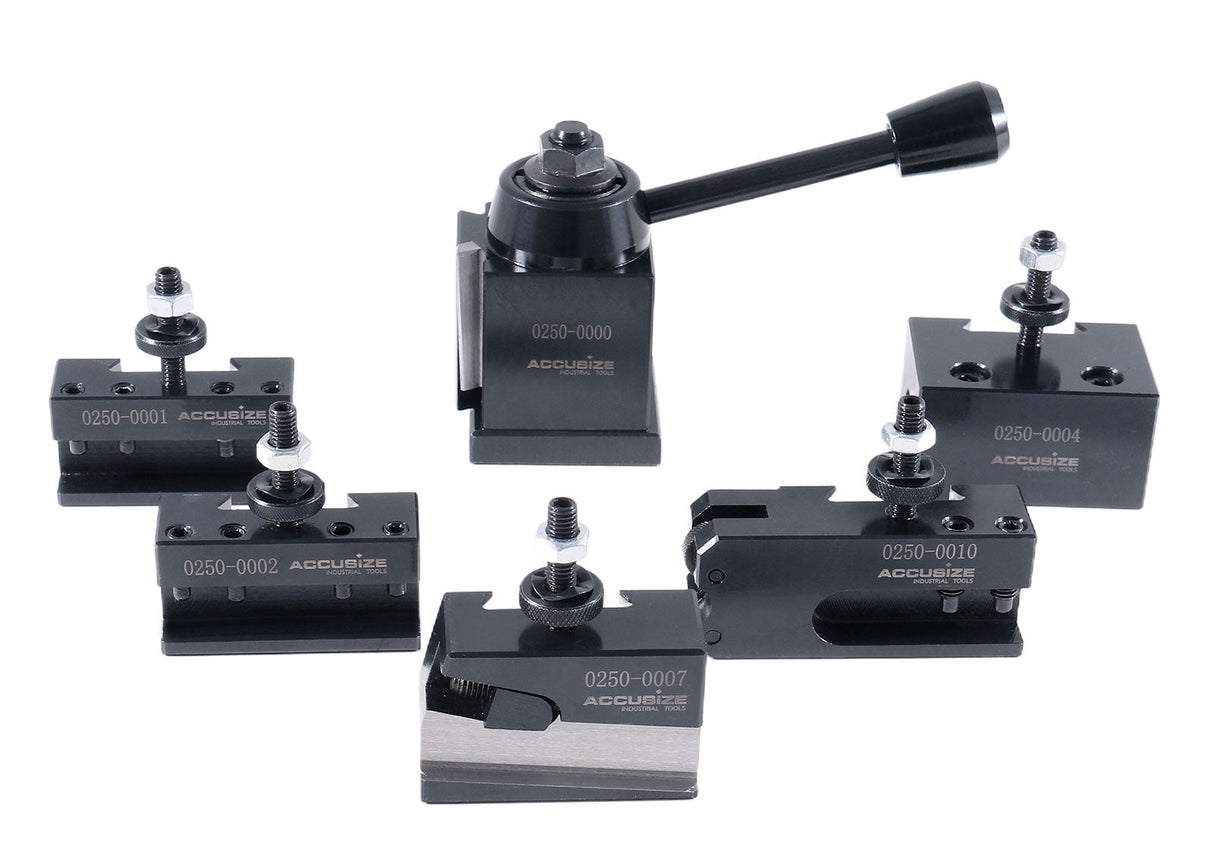

Whole set includes one each of
0250-0000 Wedge Type Tool Post
0250-0001 Turning Tool Holder
0250-0002 Boring, Turning Tool Holder
0250-0004 Heavy Duty Boring Bar Holder, can use two size boring bars 3/8" & 1/2"
0250-0007 Parting Blade Tool Holder, use 1/2" high parting blades
0250-0010 Knurling and Turning Tool Holder
| Item | Model | A | B | C | D |
|
0250-0000
|
OXA
|
1.750"
|
2.953"
|
1.230"
|
0.394"
|
|
0250-0001
|
OXA
|
0.661"
|
0.512"
|
0.327"
|
1.102"
|
|
0250-0002
|
OXA
|
0.661"
|
0.512"
|
0.327"
|
1.102"
|
|
0250-0004
|
OXA
|
0.472"
|
1.181"
|
0.375"
|
0.500"
|
|
0250-0007
|
OXA
|
0.551"
|
0.551"
|
0.126"
|
1.378"
|
|
0250-0010
|
OXA
|
0.535"
|
1.772"
|
1.181"
|
0.512"
|
