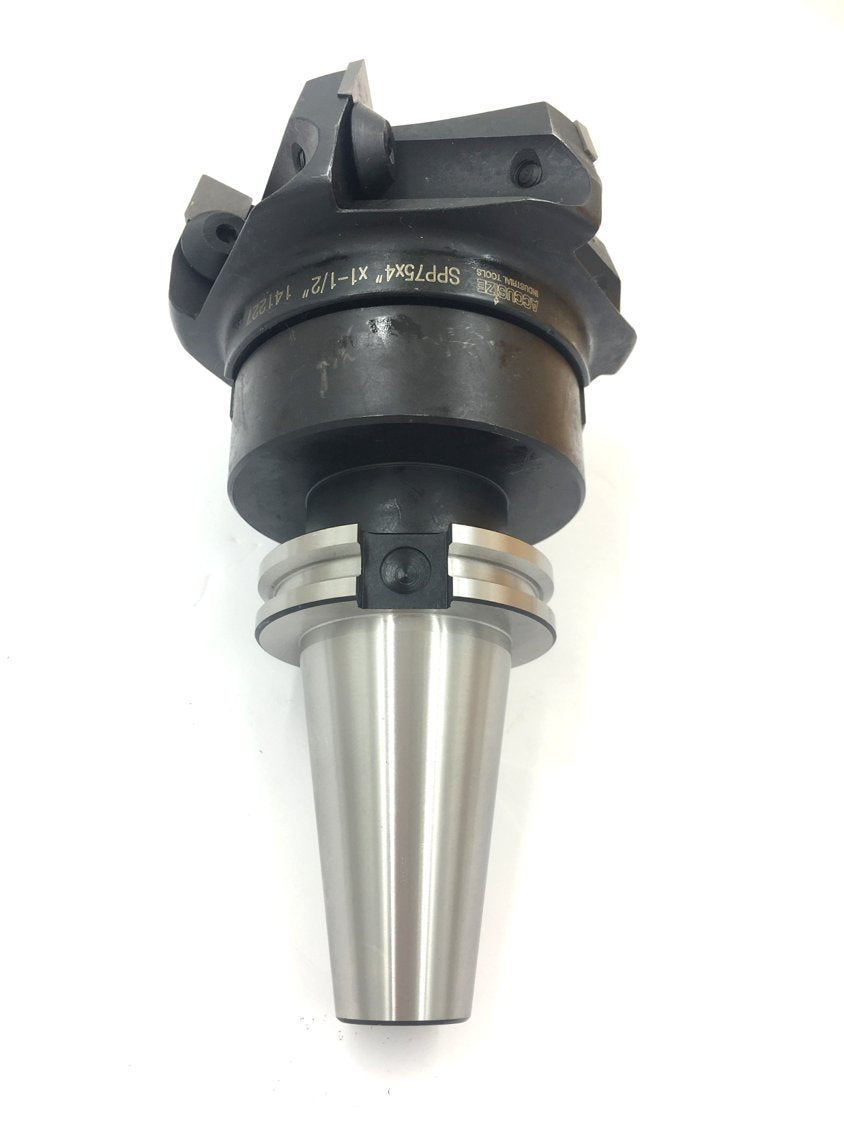

1-1/2'' Caterpillar V-Flange CAT40 Shell Mill Holder with a...
$317.00 CAD
Unit price
/
Unavailable
Features of the 75-deg Indexable Face Milling Cutter:
- Uses standard SPG422 carbide inserts
- 75 Degree positive rake
- Right-hand cut
- Black Oxide Surface Treatment
- The face milling cutter can be purchased separately with SKU#2509-0014
** To purchase additional inserts for the cutter, you may find the corresponding Insert SKU below:
| Cutting Dia. | Bore Dia. | No. of Inserts | Insert | Locking Screw |
|---|---|---|---|---|
| 4" | 1-1/2" | 6 |
SPG 42 (TiN Coated SPG422, 2136-1026) |
SM6x12 (0045-6012) |
Features of the CAT40 V-Flange Tool Holder:
- Interchangeable with brown & sharp, Burgmaster, Carboloy, Cincinnati Milacron, De Vlieg, Erickson, Excello, Moog, Pratt & Whitney, Universal, Valenite, White Sund Strand and other machining centers.
- Made from alloy steel hardened to HRC 52-56
- Taper accurately ground exceeding AT3 standard
- Drawbar thread: CAT40 5/8"-11.
- The face milling cutter can be purchased separately with SKU#6780-7108
| D | L1 | L | A | B | d | M |
|---|---|---|---|---|---|---|
| 1-1/2" | 2-13/32" | 6-1/32" | 15/16" | 3-5/64" | 1.874" | 3/4"-16UNF |
