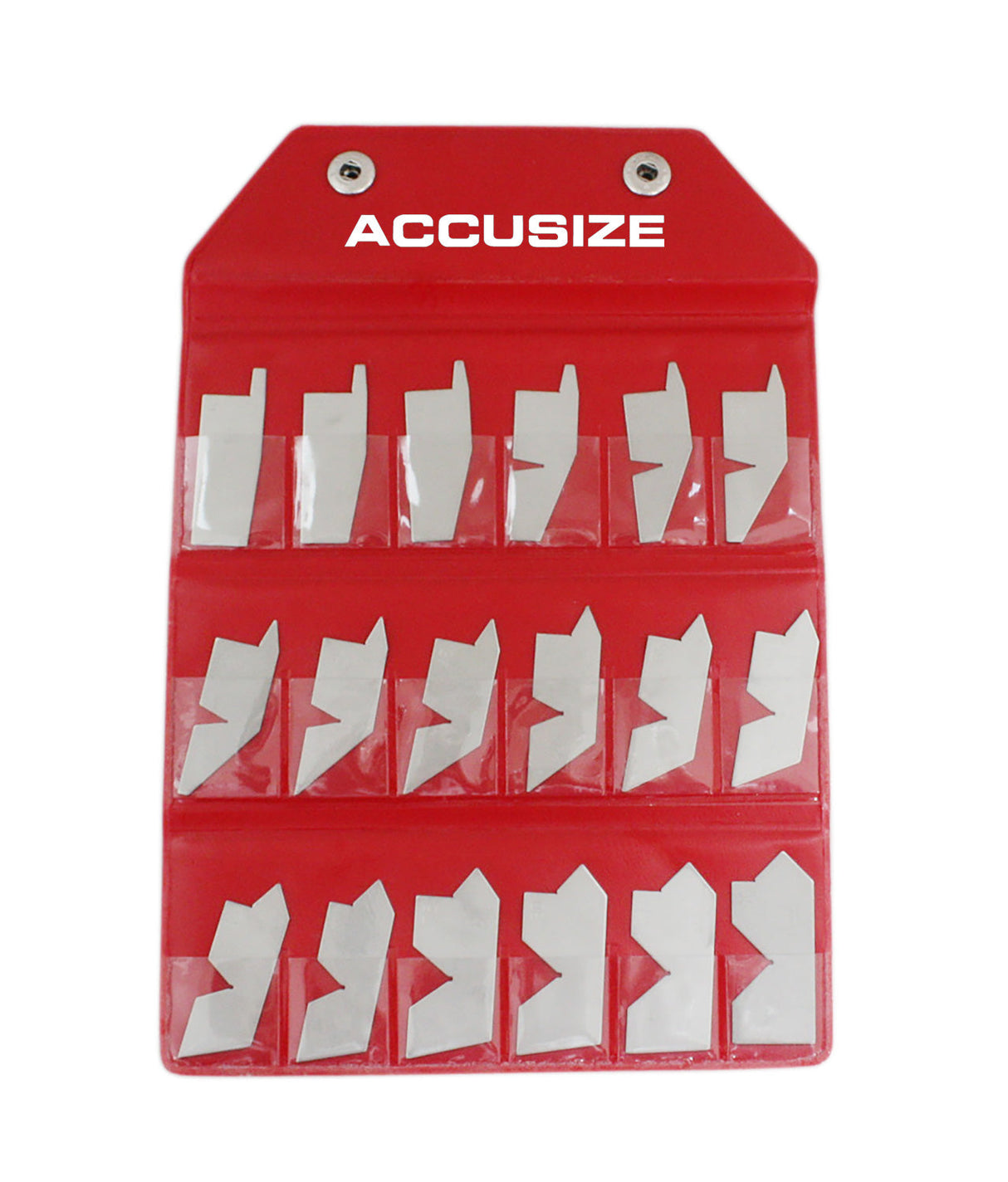

18 ps/set, Angle Gage Set, #3602-5050

18 Piece/Set Angle Gage Set Angle Gages, #3602-5050

• Manufactured from stainless steel, satin finished.
• 18 individual gages for easy use.
• Eight gaging surfaces per gage.
• Precision finished edges for accurate checking.
• Each gage checks primary, 1/2 primary and complimentary angels.
• Quick and accurate inspection of angels and I.D.or O.D. chamfers in or out of the machine.
• Positioning of lathe tools for chamfers.
• Inspecting angles on ground from tools and cutters.
• Fast set-ups and fixture of workpieces.
• Eliminates time-consuming measuring set-ups.
• Indispensable? for every inspector, toolmaker, machinist, layout and draftsman.
• Complete with fitted case.

Parameters:

Type A	Type B
Angles 1 & 2 are primary Angle 3 is supplementary Angles 4 & 5 are 1/2 primary	Angles 1, 2, 3 & 4 are primary Angles 5 & 6 are supplementary Angles 7 & 8 are 1/2 primary
