2-Axis DRO Milling Machine Packages (X, Y)
From
$978.00 CAD
Unit price
/
Unavailable
2-Axis DRO Milling Machine Packages, 0.0002" Resolution, Glass Scales
Features
- Voltage 90V-240V
- Power DC 5v (15%) 80 MA
- Two mounting brackets are each located at either end of the scale
- Resolution selection: 0.0002"/0.005mm
- Zero setting
- Half calculating, locating workpiece center
- Inch/Metric conversion and INC/ABS conversion
- Diameter/radius selection
- Simple & Smooth "R" function
- Divide the perimeter of circle # (Bolt Circle Drilling)
- Hole Drilling Along An Oblique Line
- Save 200 work piece zero points
- Angular Surface Processing
- Progressive Processing of Rectangular Inner Chamber
- To reach objective values stop
- Cone measure
- Number percolate
- Takes 16 bits & 32 bits CPU technology
- 200 cutlery memory
- Power failure memory

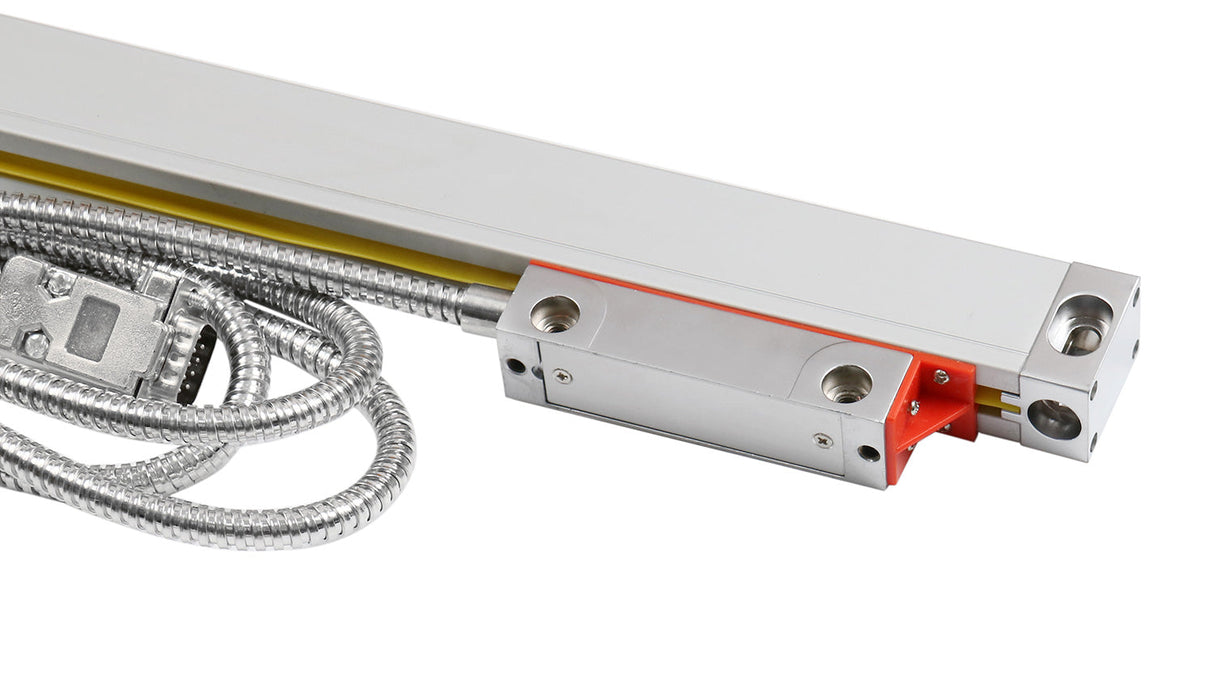

- KA-300 series small size encoder

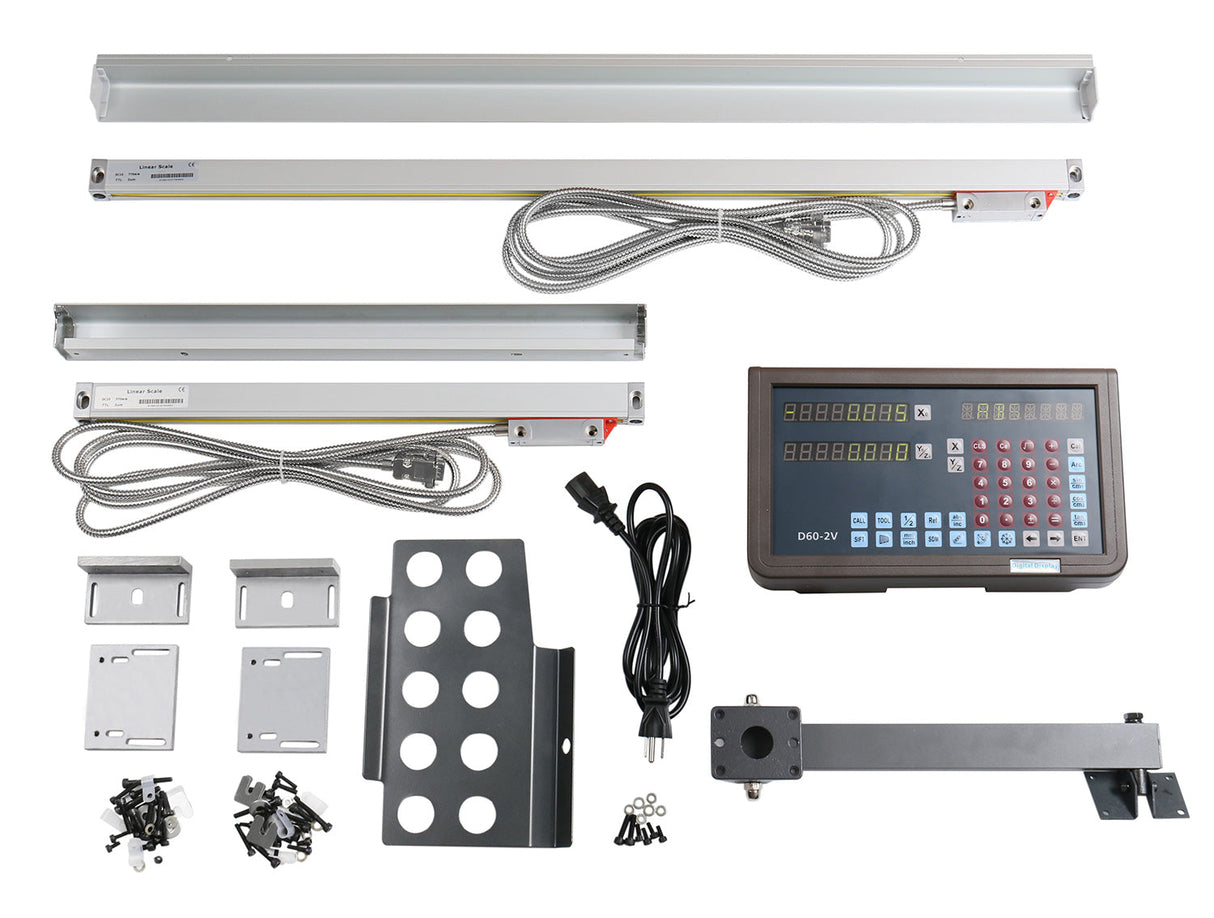

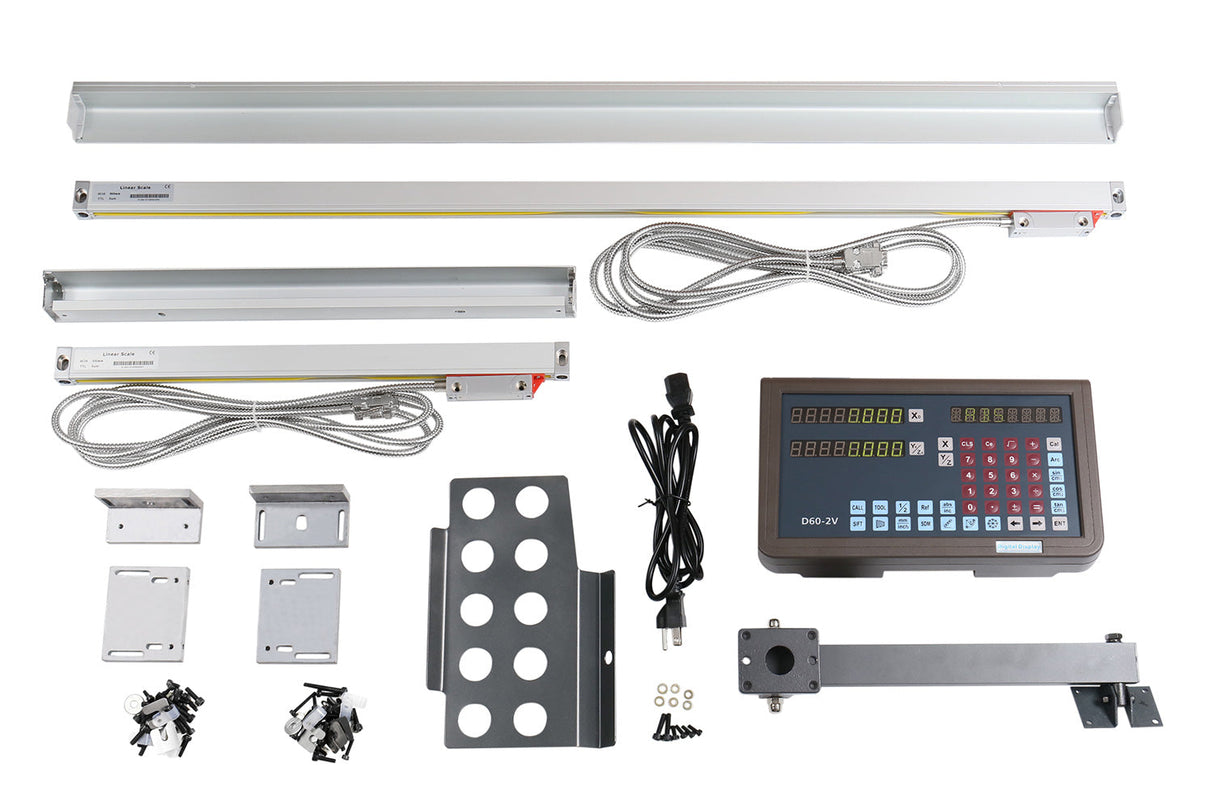

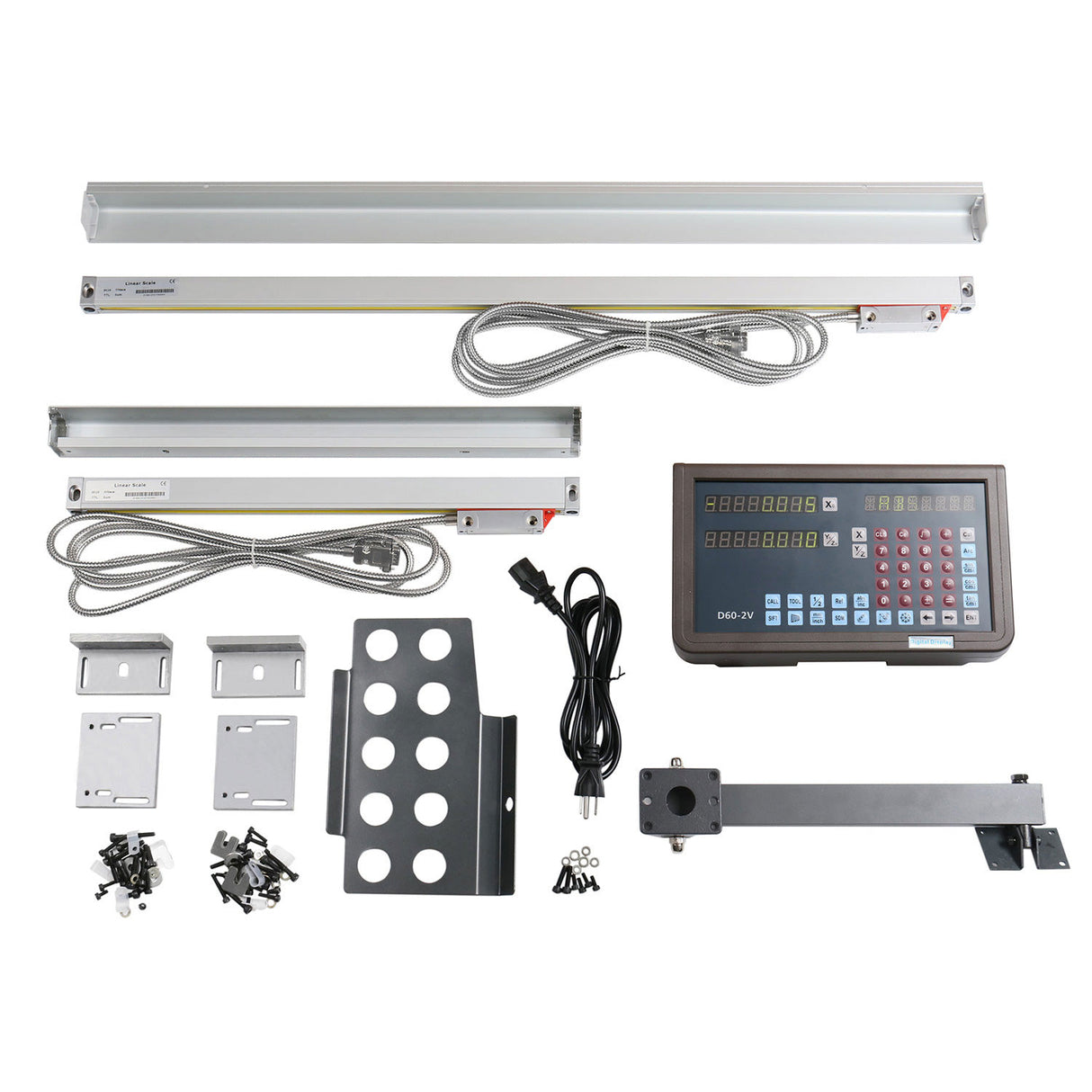

- All mounting hardware
- 1 standard DRO Counter

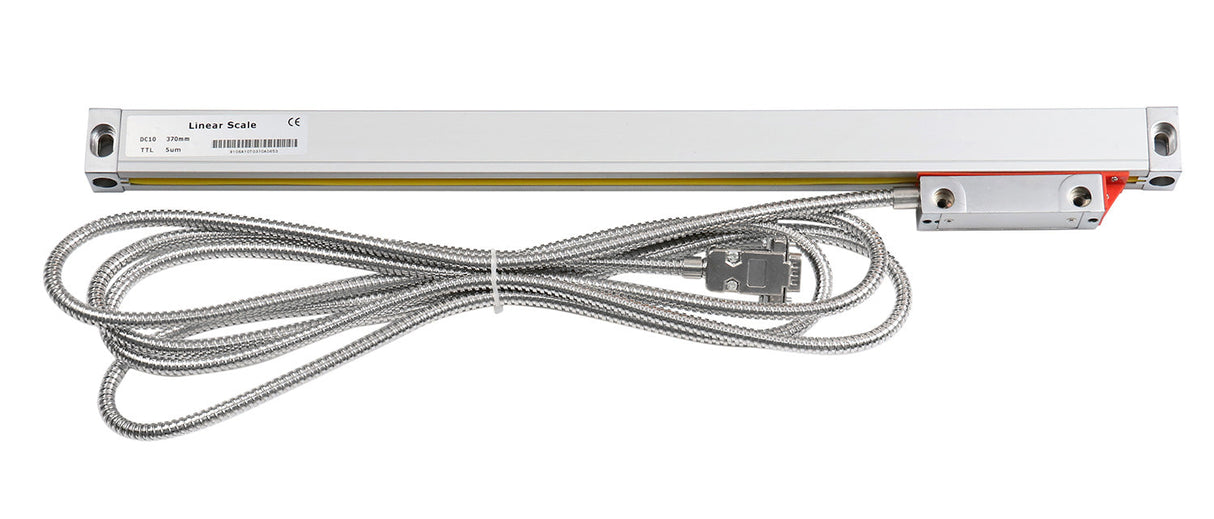

- 2 Linear glass scales, cross slide scale is slim style model
- Operating manual
-
Resolution 0.0002"/0.005mm
-
Max. response speeds:47 in./sec. -
Aluminum outside case with double
-
rubber seals -
Over 10" connecting cable
| Item No. | Mill Size | Travel | Overall Length of Scale |
| SINS-1001 | 8'' x 36'' | 12'' x 30'' | 17'' x 35'' |
| SINS-1002 | 9'' x 42'' | 14'' x 30 '' | 19'' x 35'' |
| SINS-1003 | 9'' x 49'' | 14'' x 36'' | 19'' x 40'' |
| SINS-1004 | 10'' x 54'' | 16'' x 40'' | 21'' x 45'' |
