SKU: 2250-2080

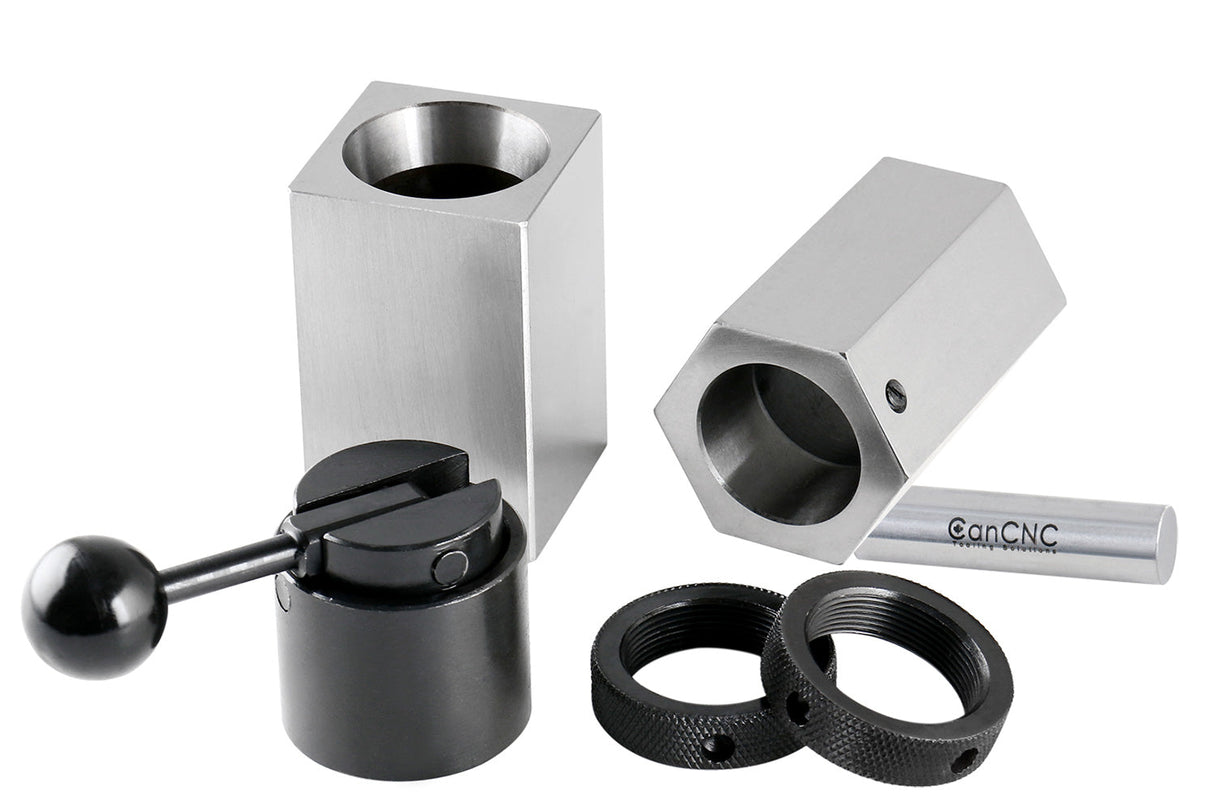

2250-2080, Collet Block Chucks for 5C collets

$120.00 CAD

Applications:

Designed for the popular 5C round,hex or square collet.
An effective short run jig for machining parallel,square or hex shapes as well as cross hole drilling at 60°, 90° or 120°.
Blocks can be held directly on a magnetic chuck or in a machine vise.

Each block weighs 1 lb.and dimensions area approximately 1-3/4" x 1-3/4" x 2-3/4" long.
Capacity:1/16" thru 1-1/8"
Made of high quality tool steel,hardened.
Precision ground, ground, parallel and square to within 0.0005".
Set consisting of 1 square,1Hex,and 1 collet closer,
( Collet not included. )
