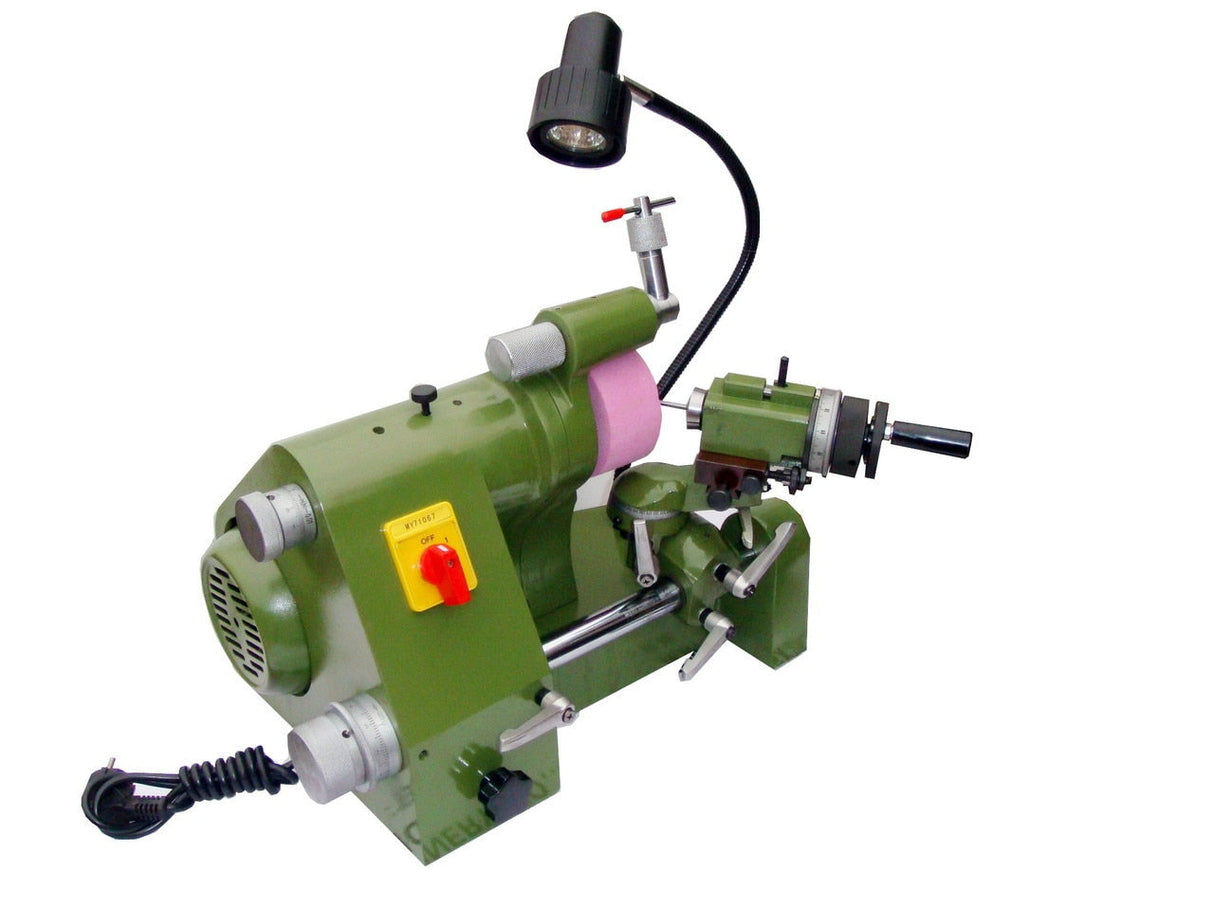

2301-1007, MY-30A Universal Cutter Grinder with Standard Accessories, 110v, 60hz

MY-30A Universal Cutter Grinder with Standard Accessories, 110v, 60hz

Features

• It is the finest, top-of-the-line, and the most complete sharpener available at a surprisingly low cost!
• For grinding HSS and solid carbide end mills, drills, tool bits as well as engraving cutters of various shapes, angles and diameters.
• There is a fine feed adjustable on the grinding spindle.
• Available for 1/16â€?1â€?R8 collet.
  • This universal cutter grinder can grind the drills size from 3mm-18mm ( 1/8" - 11/16").
  • can grinding end mills size from 2-25mm
  • can grind the lathe turning tools size from 20X20 mm

Technical Data
Max. Collet Capacity	Φ1"
Max. Grinding Dia.	Φ 4"
Taper Angle	0°-180°
Relief Angle	0°-45°
Negative Angle	0°-26°
Grinding Spindle	5200r.p.m.
Cup Grinding Wheel	4"x2"x3/4"
Motor Volt	110V/60Hz
Net Weight	45kgs

Standard Accessories(1)
Wheel dresser with diamond	1pc
R8 collet 1/2", 1/4", 1/8", 3/8", 5/16"	5pcs
Drive belt	1pc
Lamp	1pc
Tools	1pc
Magnifier(5x)	1pc
Operating information	1pc

Standard Accessories(2)
Twist Drill Grinding Attachment (1pc)	End Mill Grinding Attachment (1pc)	Lathe Tool GrindingAttachment (1pc)

Technical Note:

• For grinding HSS and carbide engraving cutters as well as single-lip or multiple-lip cutters of various shapes such as radiuses cutters or negative taper angle of cutters.

• The universal index head is provided at 24 positions so that any particular angle of shape can be obtained. Free 3600 or 100 rotation is allowed for grinding end mills, twist drills, and lathe tools.

• Only need to replace the attachments to the index head without any complex setup.

Extra Accessories
Item	Description
2301-1007-1	Diamond grinding wheel #320
2301-1007-2	Diamond grinding wheel #600
2301-1007-3	Regular grinding wheel PA80#
2301-1007-4	Belt
2301-1007-5	MY30A end mills grinding accessories
2301-1007-6	MY30A lathe tool grinding accessories
2301-1007-7	MY30A Drills grinding accessories
