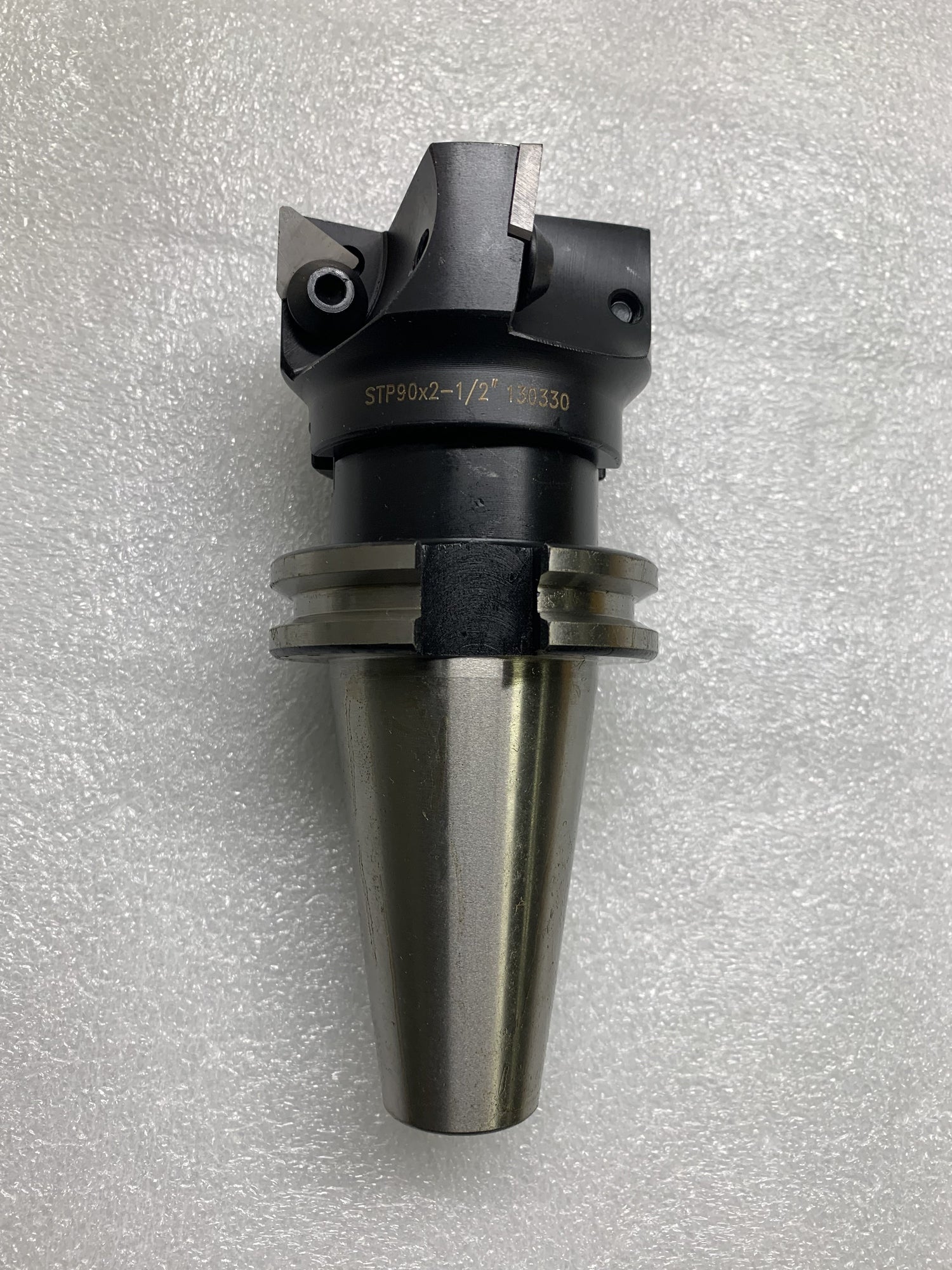

3/4'' Caterpillar V-Flange CAT40 Shell Mill Holder with a 2...
$192.00 CAD
Unit price
/
Unavailable
Features of the 90° Indexable Face Milling Cutter
- Uses standard TPG322 carbide inserts
- 90° positive rake
- Right-hand cut
- Oxide finish body
- Black Oxide Surface Treatment
- The face milling cutter can be purchased separately with SKU#2508-0016
** For purchasing additional inserts, you may find the corresponding Insert SKU below:
| Cutting Dia. | Bore Dia. | No. of Inserts | Insert Coated, (SKU) | Locking Screw |
|---|---|---|---|---|
| 2-1/2" | 3/4" | 4 |
TPG 32 (TiN Coated TPG321, 2127-1026) (TiN Coated TPG322, 2127-1028) (TiN Coated TPG32, 2127-1029) |
SM6 x 12 (0045-6012) |
Features of the CAT40 V-Flange Tool Holder:
- Interchangeable with brown & sharp, Burgmaster, Carboloy, Cincinnati Milacron, De Vlieg, Erickson, Excello, Moog, Pratt & Whitney, Universal, Valenite, White Sund Strand and other machining centers.
- Made from alloy steel hardened to HRC 52-56
- Taper accurately ground exceeding AT3 standard
- Drawbar thread: CAT40 5/8"-11.
- The CAT40 holder can be purchased separately with SKU#6780-7102
| D | L1 | L | A | B | d | M |
|---|---|---|---|---|---|---|
| 3/4" | 1-3/8" | 4-3/4" | 11/16" | 1-49/64" | 0.563" | 3/8"-24UNF |
