SKU: NMTB-4518

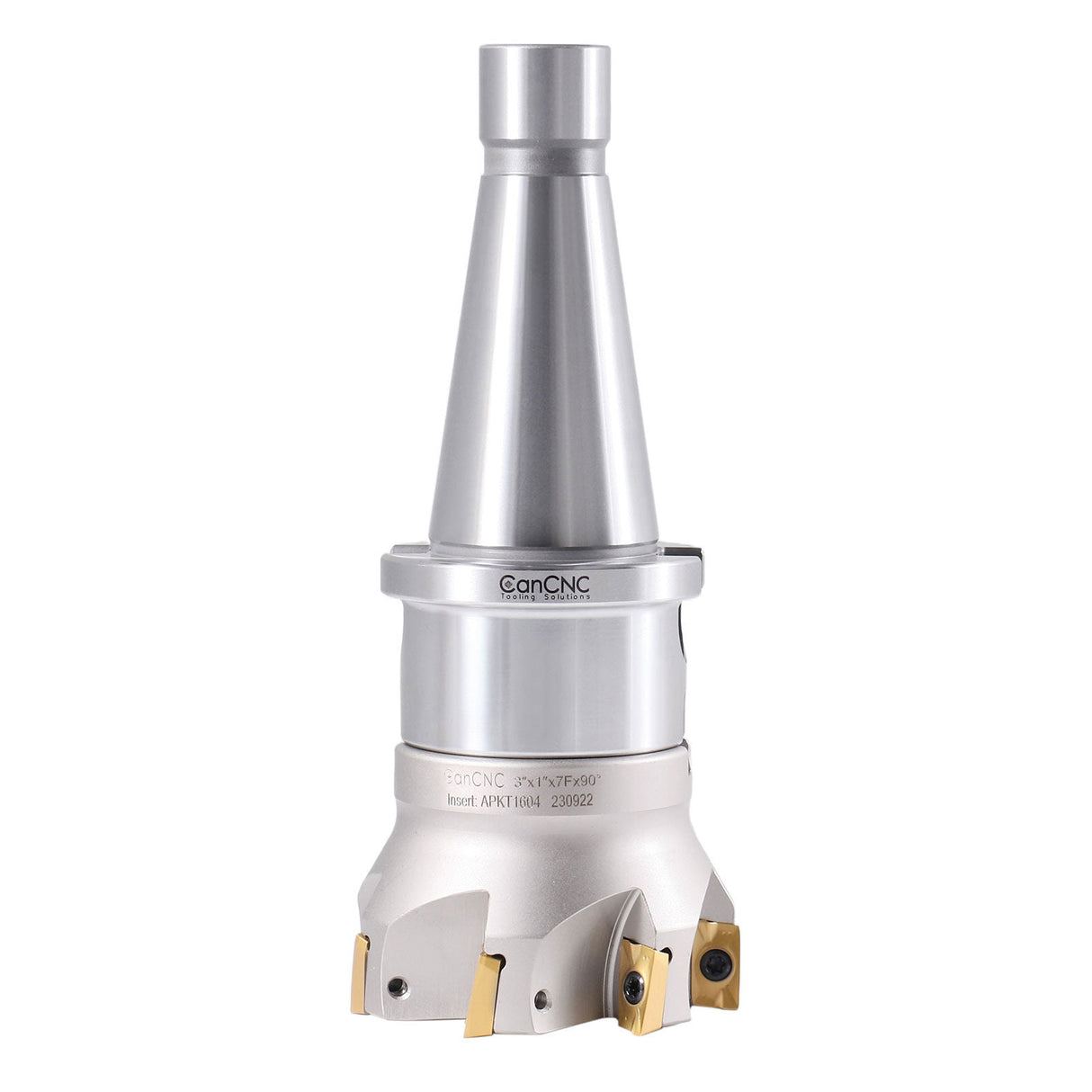

3" 90° Square Shoulder Indexable Face Mill with an NMTB40 Face Mill Holder #NMTB-4518

$268.00 CAD


Description

3 inch Cutting Diameter, 7 Flute, 90° Square Shoulder Indexable Face Mill with 7pc APKT1604 Inserts Installed with an NMTB40 Face Mill Holder, #NMTB-4518

3" X 1" ARBOR HOLE, 7 FLUTE WITH 7 APKT1604 INSERTS 90° SQUARE SHOULDER INDEXABLE FACE MILL WITH APKT INSERT

  • 90° cutting angle
  • Screw down inserts
  • Radial rake angle: -10°
  • Axial rake angle: +7°
  • All types of square shoulder face milling, side milling and full slot milling (shaft end mills) of steels, alloyed steels, stainless and heat resistant steels, case irons and aluminum alloys.
  • Fitted with 10° positive rectangular insert allow high depth of cut and feed per tooth
  • Uses APKT / APHW / APKR_APHT / APMT insert (sold separately)
  • Cutting Diameter: 3"
  • Arbor Hole d: 1"
  • Overall Length: 2.00"
  • ap: 0.551:
  • No. of Inserts: 7
  • Screw: M4 x 8.4
  • Inserts: APKT1604
  • You can order item #4508-0018 to purchase the face milling cutter only.




NMTB 40 SHELL END FACE MILL HOLDER

  • Drawbar Thread: 5/8"-11
