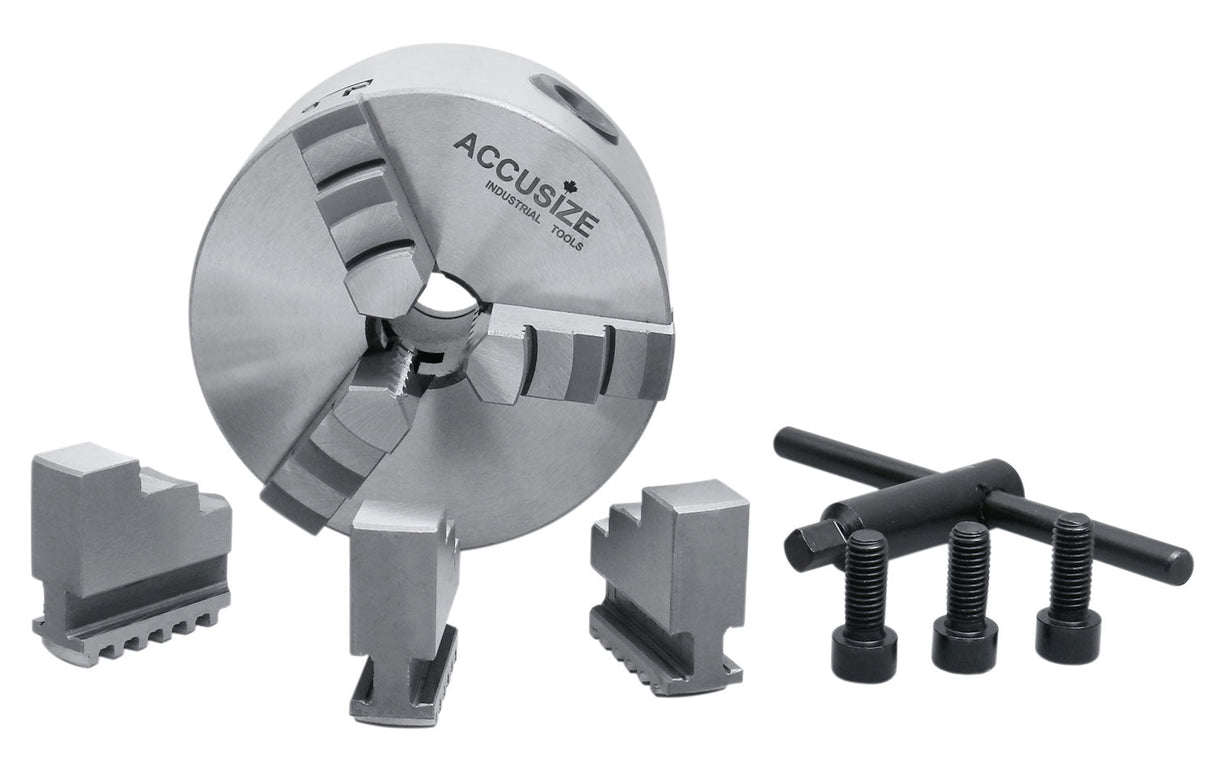

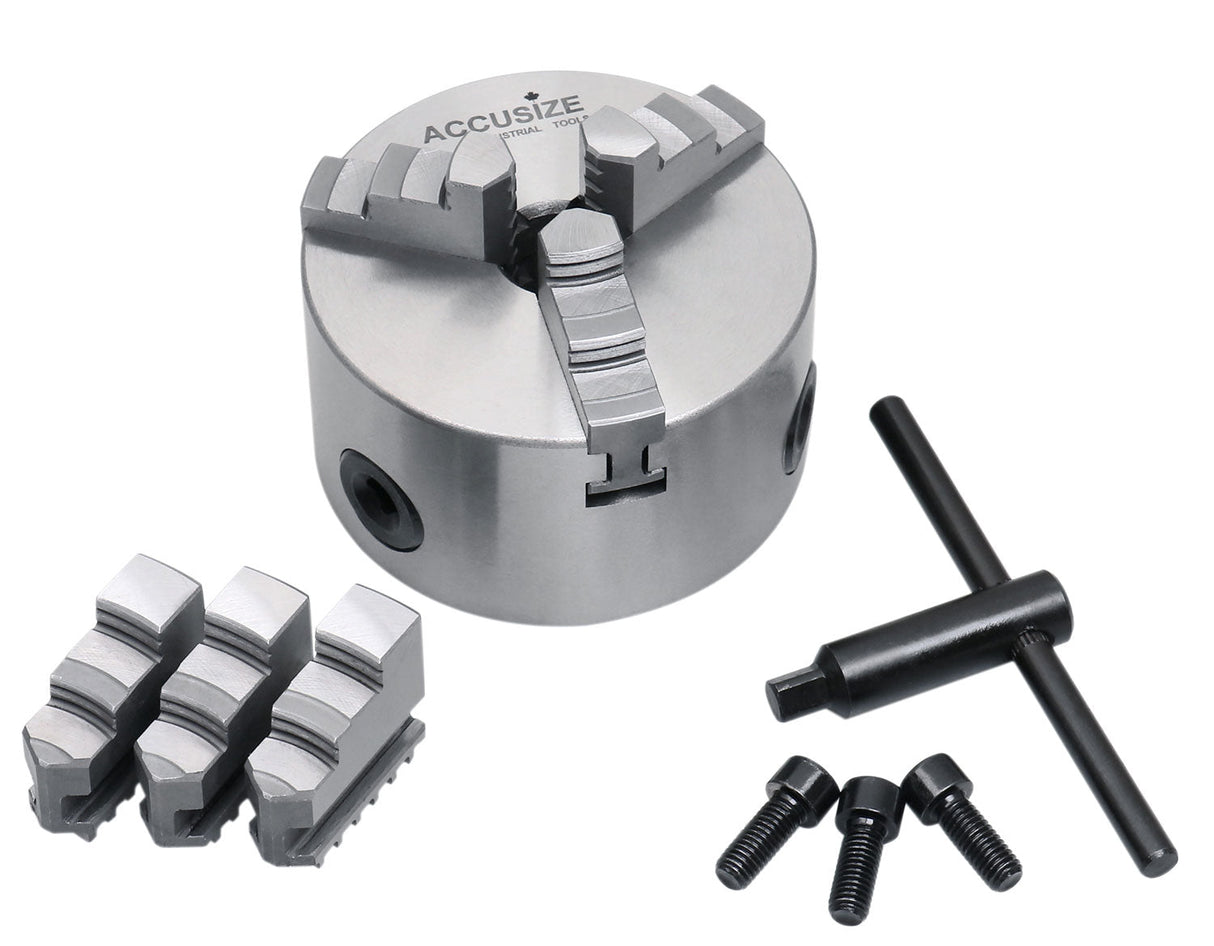

3-Jaw Chucks (Plain Back)
From
$171.00 CAD
Unit price
/
Unavailable
3-Jaw Chucks (Plain Back)
- 0.003" T.I.R.
- Semi-steel body.
- Two sets of jaws: Outside & Inside.
- All jaws are hardened.
| Item | Diameter | Center Hole | D1 | D2 | D3 | H | H1 | h | z-d | Max Input Torque (Nm) | Max Speed(r/min) |
| 0559-0110 | 3"/80mm | 0.630" | 2.165" | 2.598" | 0.630" | 2.598" | 1.969" | 0.138" | 3-M6 | 40 | 4800 |
| 0559-0111 | 4"/100mm | 0.866" | 2.835" | 3.307" | 0.866" | 2.933" | 2.165" | 0.138" | 3-M8 | 60 | 4000 |
| 0559-0112 | 5"/125mm | 1.181" | 3.740" | 4.252" | 1.181" | 3.071" | 2.165" | 0.138" | 3-M8 | 100 | 3800 |
