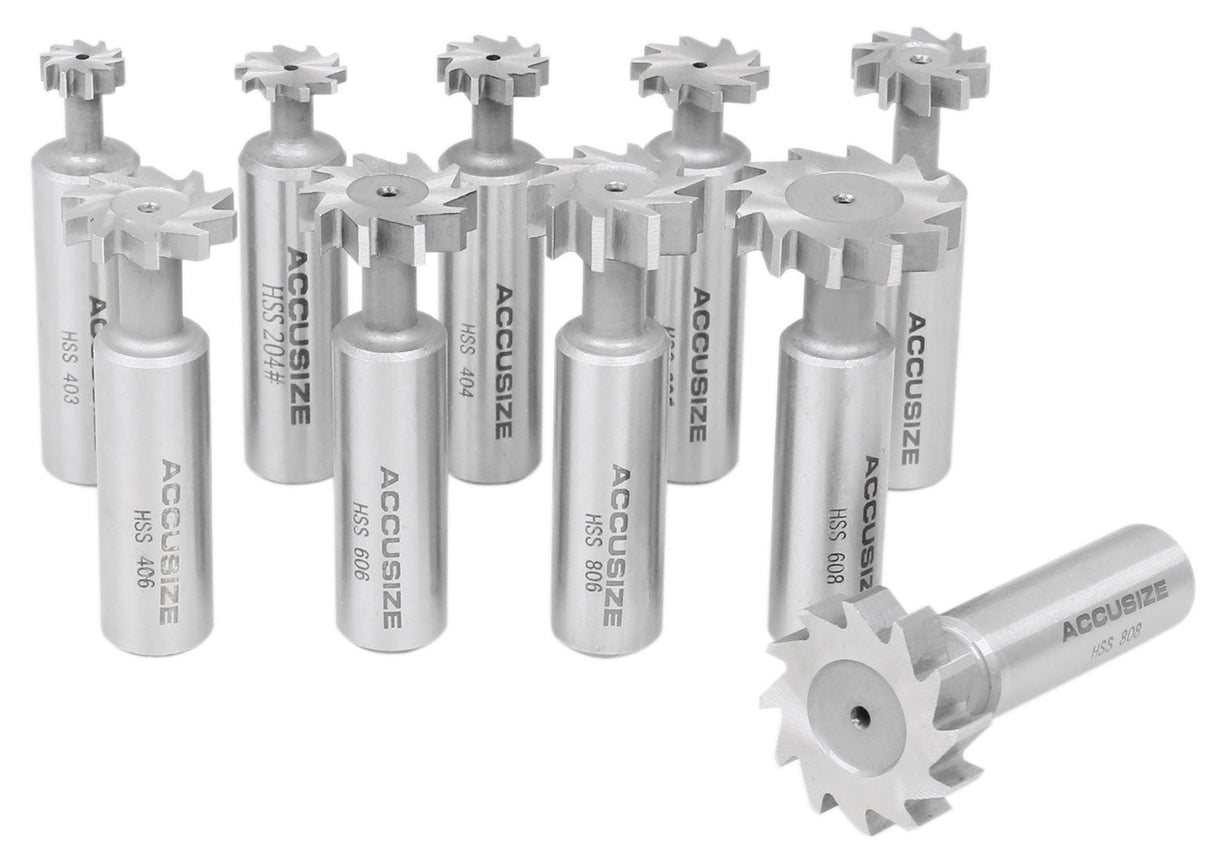

3800-1101, 10 PCS WOODRUFF KEY CUTTER SET
$230.00 CAD
Unit price
/
Unavailable
10 PS WOODRUFF KEY CUTTER SET #3800-1101
- High speed steel.
- 1/2'' straight shanks.
- Straight tooth cutters
- Set includes the following plus hardwood stand:
AM STD SIZE
403 3/8'' x 1/8''
204 1/2'' x 1/16''
404 1/2'' x 1/8''
305 5/8'' x 3/32''
505 5/8'' x 5/32''
605 3/4'' x 1/8''
406 3/4'' x 3/16''
606 3/4'' x 1/4''
806 1'' x 3/16''
608 1'' x 1/4''
CUTTING PARAMETERS IN MM
| Specification | Cutting Diameter * Tooth Width | Spindle Speed(r/min) | Feed(mm/rev) | Cutting Speed(m/min) |
| 403# | 3/8*1/8 | 200-500 | 0.1-0.25 | 6-15 |
| 204# | 1/2*1/16 | 150-400 | 0.1-0.25 | 6-15 |
| 404# | 1/2*1/8 | 150-400 | 0.1-0.25 | 6-15 |
| 305# | 5/8*3/32 | 120-300 | 0.1-0.25 | 6-15 |
| 505# | 5/8*5/32 | 120-300 | 0.1-0.25 | 6-15 |
| 406# | 3/4*1/8 | 100-250 | 0.1-0.25 | 6-15 |
| 606# | 3/4*3/16 | 100-250 | 0.1-0.25 | 6-15 |
| 806# | 3/4*1/4 | 100-250 | 0.1-0.25 | 6-15 |
| 608# | 1*3/16 | 75-180 | 0.1-0.25 | 6-15 |
| 808# | 1*1/4 | 75-180 | 0.1-0.25 | 6-15 |
CUTTING PARAMETERS IN INCH
| Specification | Cutting Diameter * Tooth Width | Spindle Speed(r/min) | Feed(inch/rev) | Cutting Speed(ft/min) |
| 403# | 3/8*1/8 | 200-500 | 0.0004" - 0.0098" | 20 - 45ft |
| 204# | 1/2*1/16 | 150-400 | 0.0004" - 0.0098" | 20 - 45ft |
| 404# | 1/2*1/8 | 150-400 | 0.0004" - 0.0098" | 20 - 45ft |
| 305# | 5/8*3/32 | 120-300 | 0.0004" - 0.0098" | 20 - 45ft |
| 505# | 5/8*5/32 | 120-300 | 0.0004" - 0.0098" | 20 - 45ft |
| 406# | 3/4*1/8 | 100-250 | 0.0004" - 0.0098" | 20 - 45ft |
| 606# | 3/4*3/16 | 100-250 | 0.0004" - 0.0098" | 20 - 45ft |
| 806# | 3/4*1/4 | 100-250 | 0.0004" - 0.0098" | 20 - 45ft |
| 608# | 1*3/16 | 75-180 | 0.0004" - 0.0098" | 20 - 45ft |
| 808# | 1*1/4 | 75-180 | 0.0004" - 0.0098" | 20 - 45ft |
