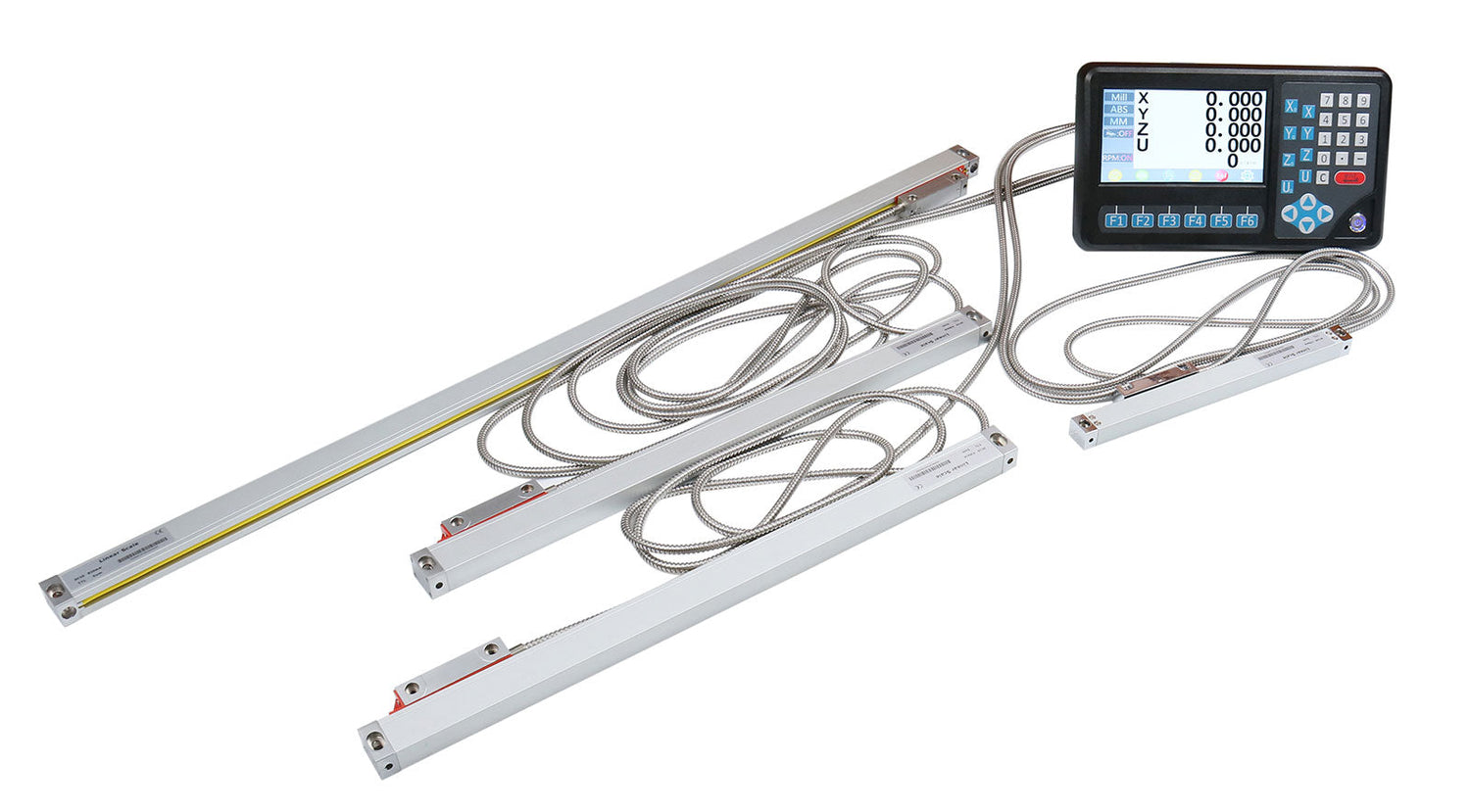

4-Axis DRO for Milling Machine Package on Quill, Glass Scale, DITRON
$1,420.00 CAD
Unit price
/
Unavailable
4-Axis DRO for Milling Machine Package on Quill, Glass Scale, DITRON
Features:
- Voltage 90V-240V
- Power DC 5V (15%) 80 MA
- Two mounting brackets are located at each end of the scale
- Resolution selection: 0.0002"/0.005mm
- Zero setting
- Half calculating, locating workpiece center
- Inch/mm conversion and INC/ABS conversion
- Diameter/radius selection
- Simple & smooth “Râ€?function
- Divide the perimeter of circle # (Bolt Circle Drilling)
- Hole drilling along an oblique line
- Save 200 workpiece zero points
Angular surface processing
- Progressive processing of rectangular inner chamber
- To reach objective values stop
- Cone measure
- Number percolate
- Takes 16 bits & 32 bits CPU technology
- 200 cutlery memory
- Power failure memory
- DC10-F series small size encoder

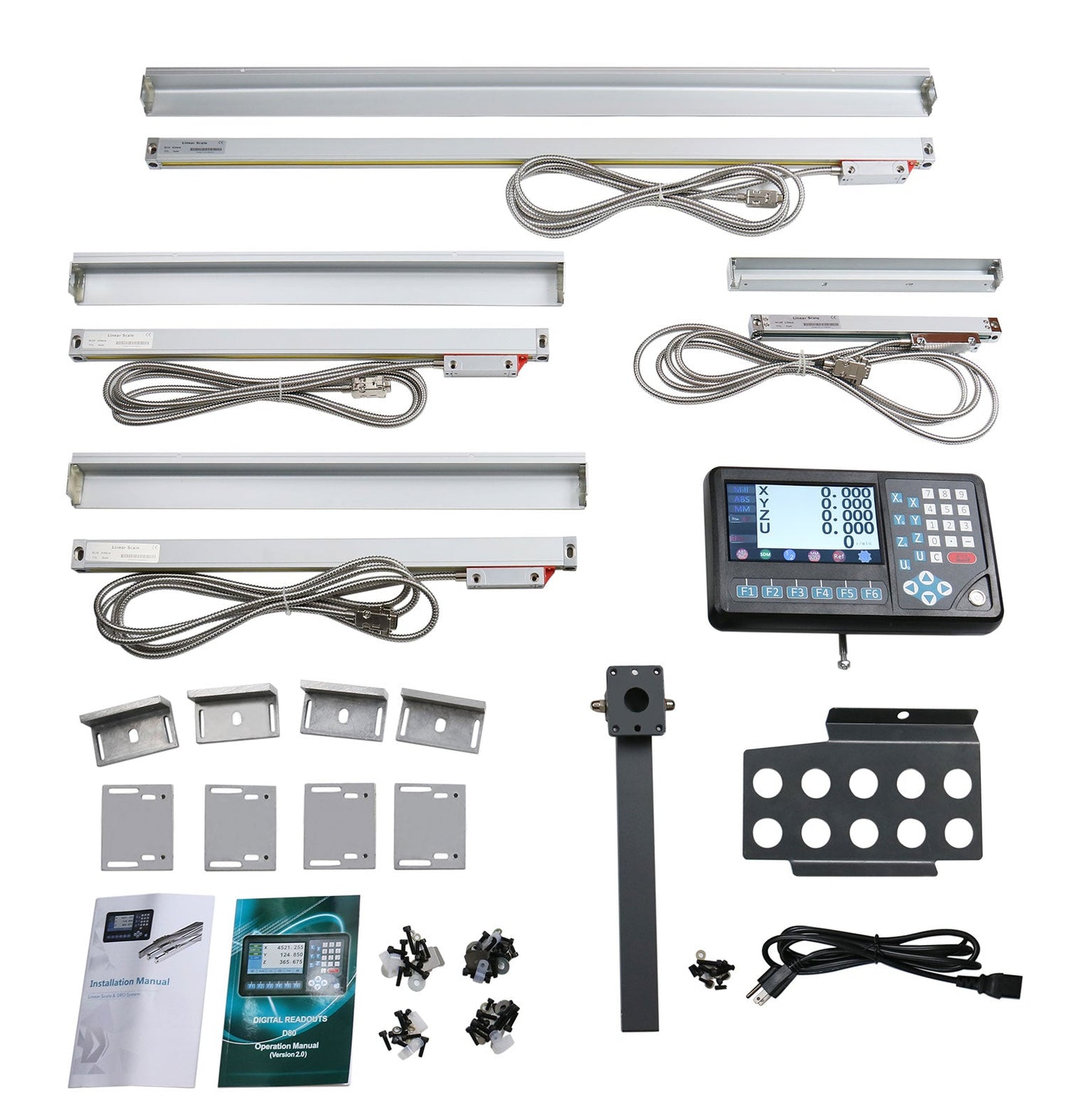

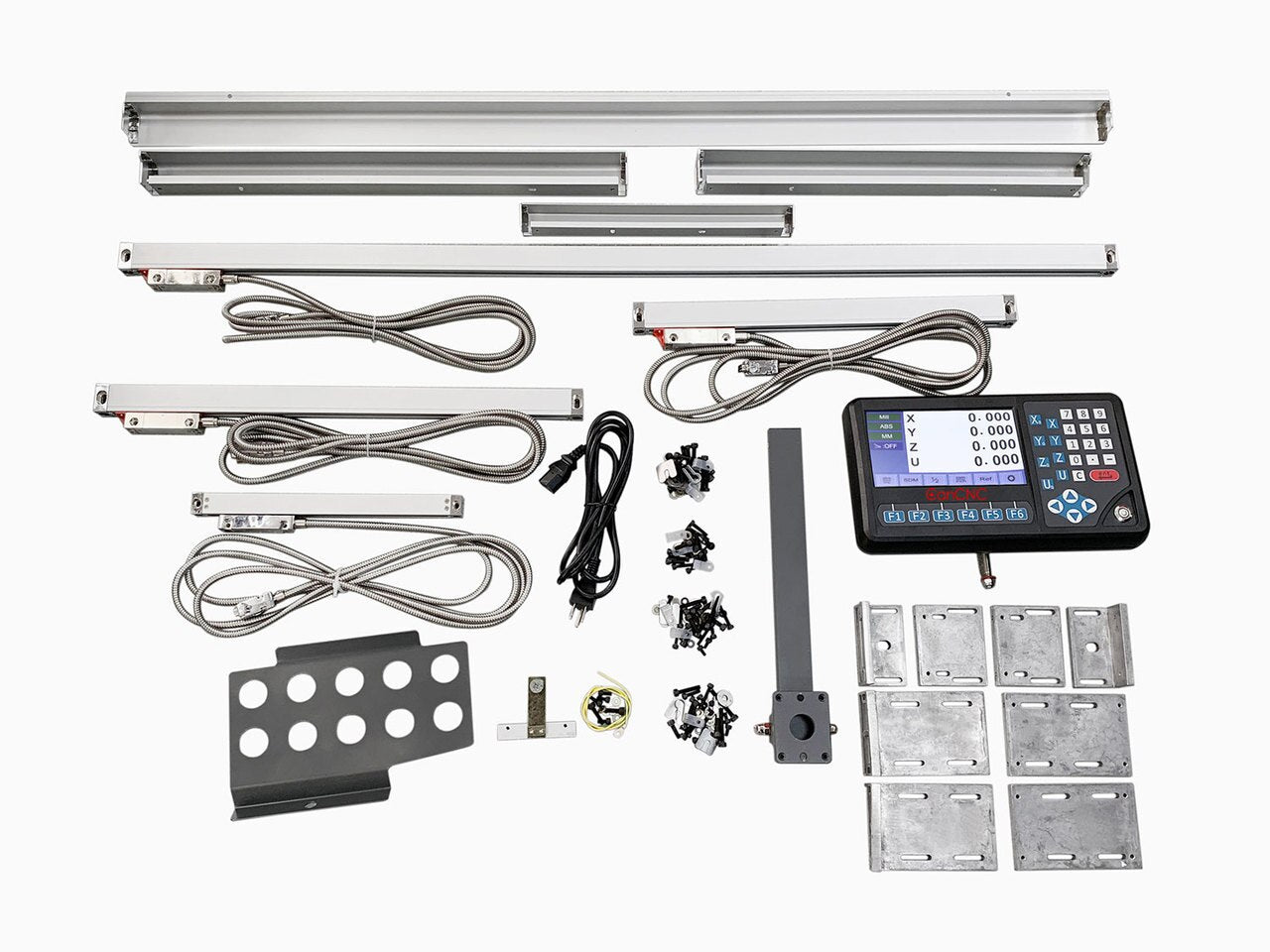

Each Set Includes:
- All mounting hardware
- 3 Linear glass scales
- I standard DRO Counter
- Operating manual

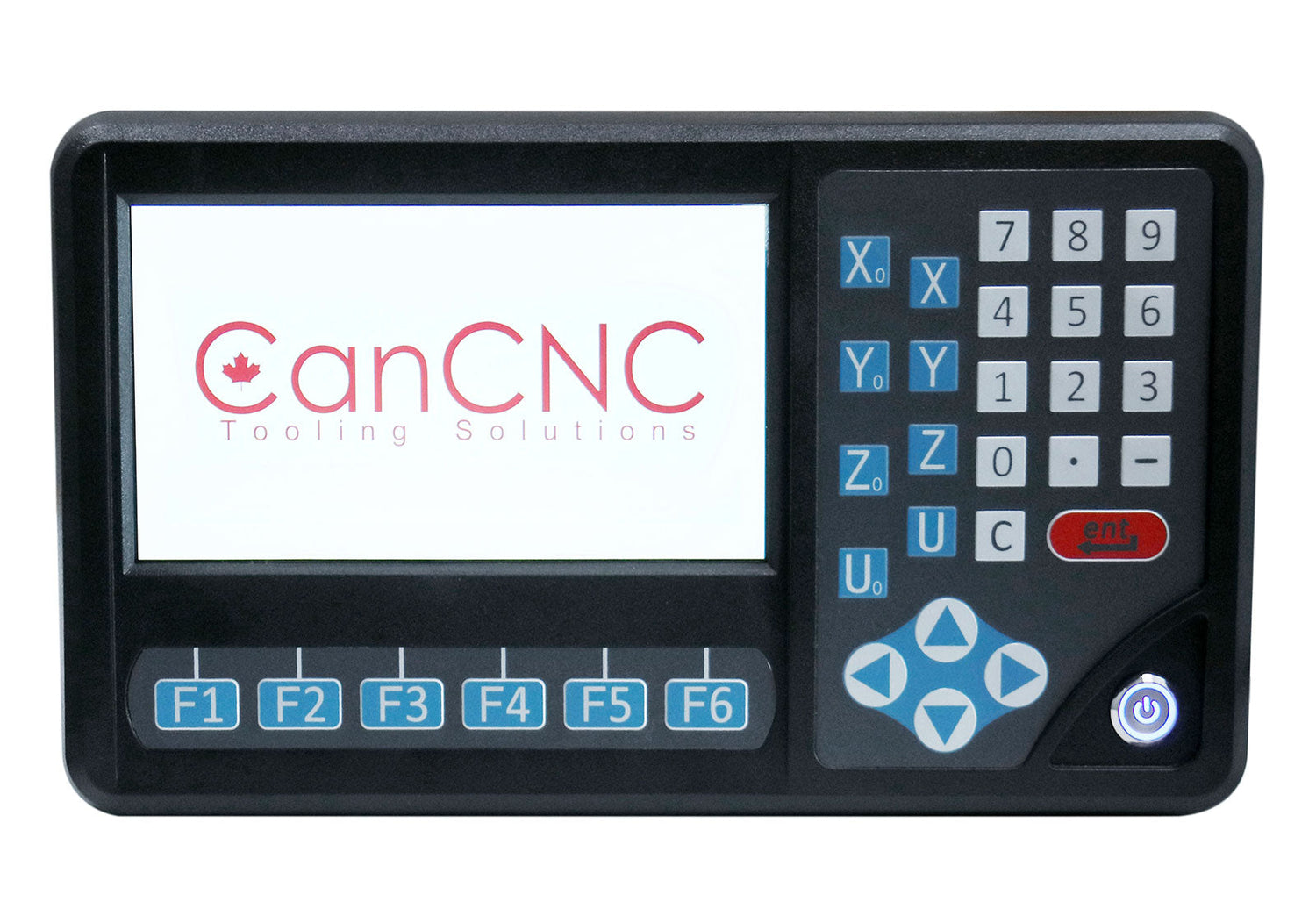

- 1pc D80-4V 4-Axis DRO counter
- 4pcs glass scales(0.005mm)
Specifications of Each Set:
| Item | Mill Size | Travel | Overall Length of Scale |
| 4028-1632 | 10 x 42" | 16 x 32 x 16 x 6" | 21 x 37 x 21 x 10.6" |
| 4028-1636 | 10 x 54" | 16 x 36 x 16 x 6" | 21 x 41 x 21 x 10.6" |
| 4028-1640 | 10 x 58" | 16 x 40 x 16 x 6" | 21 x 45 x 21 x 10.6" |
