SKU: 3300-1628

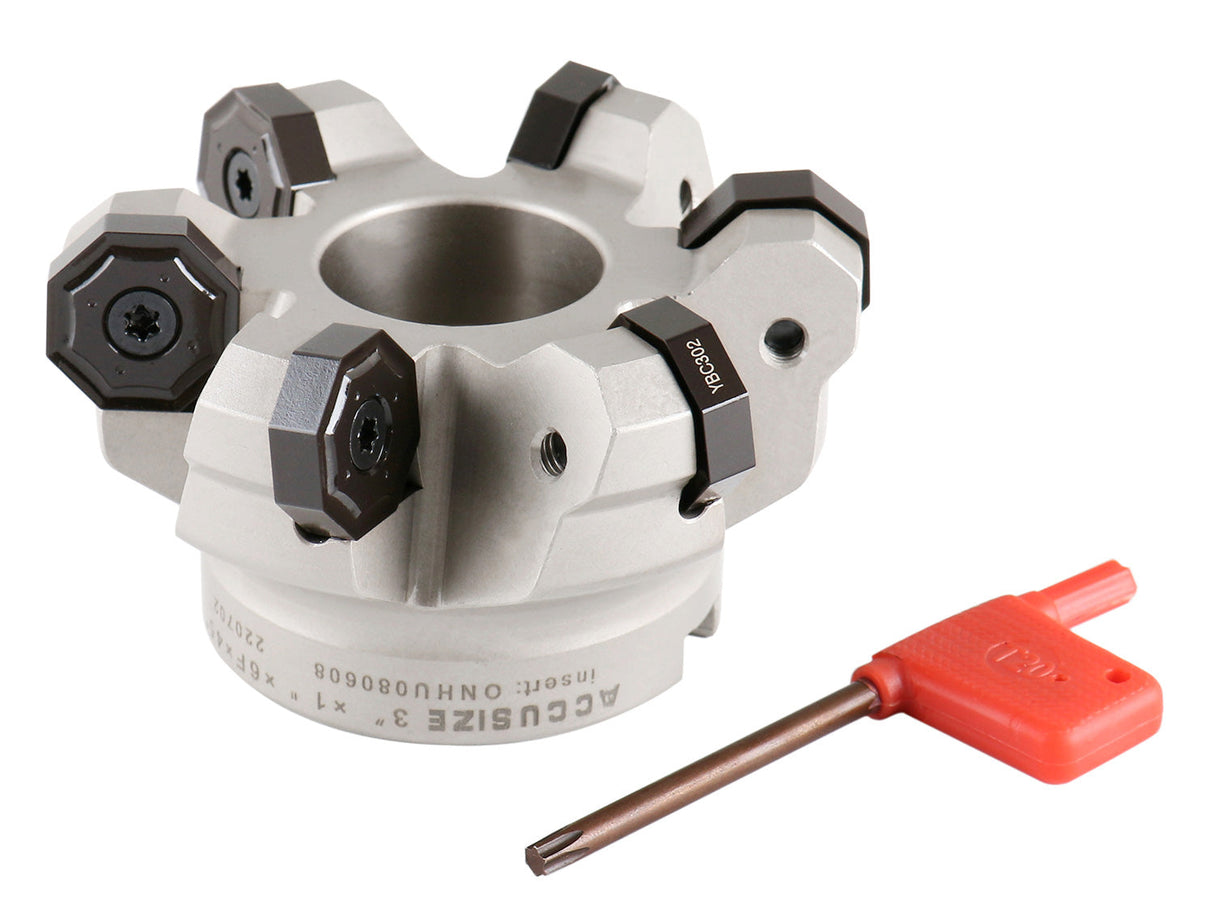

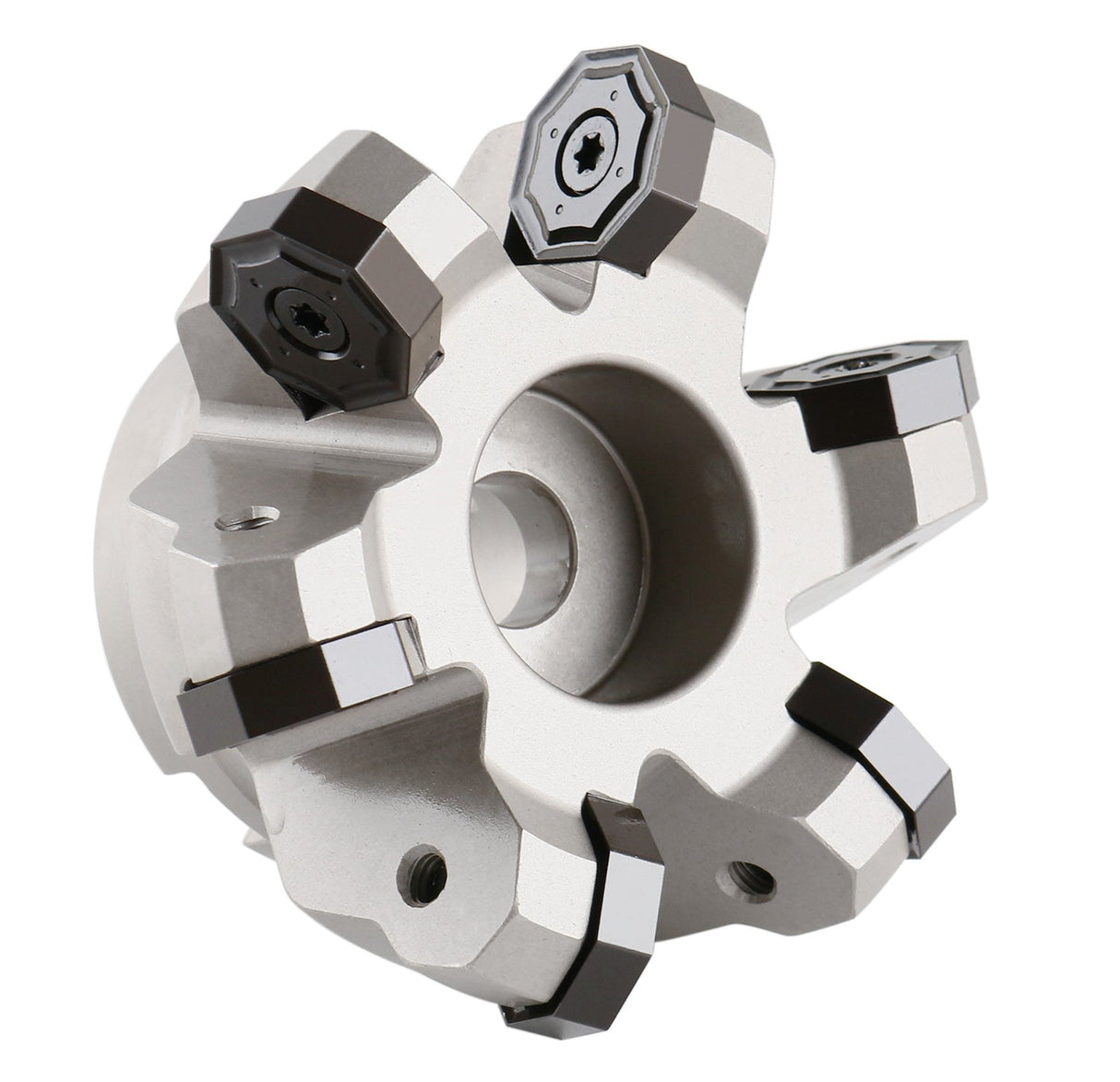

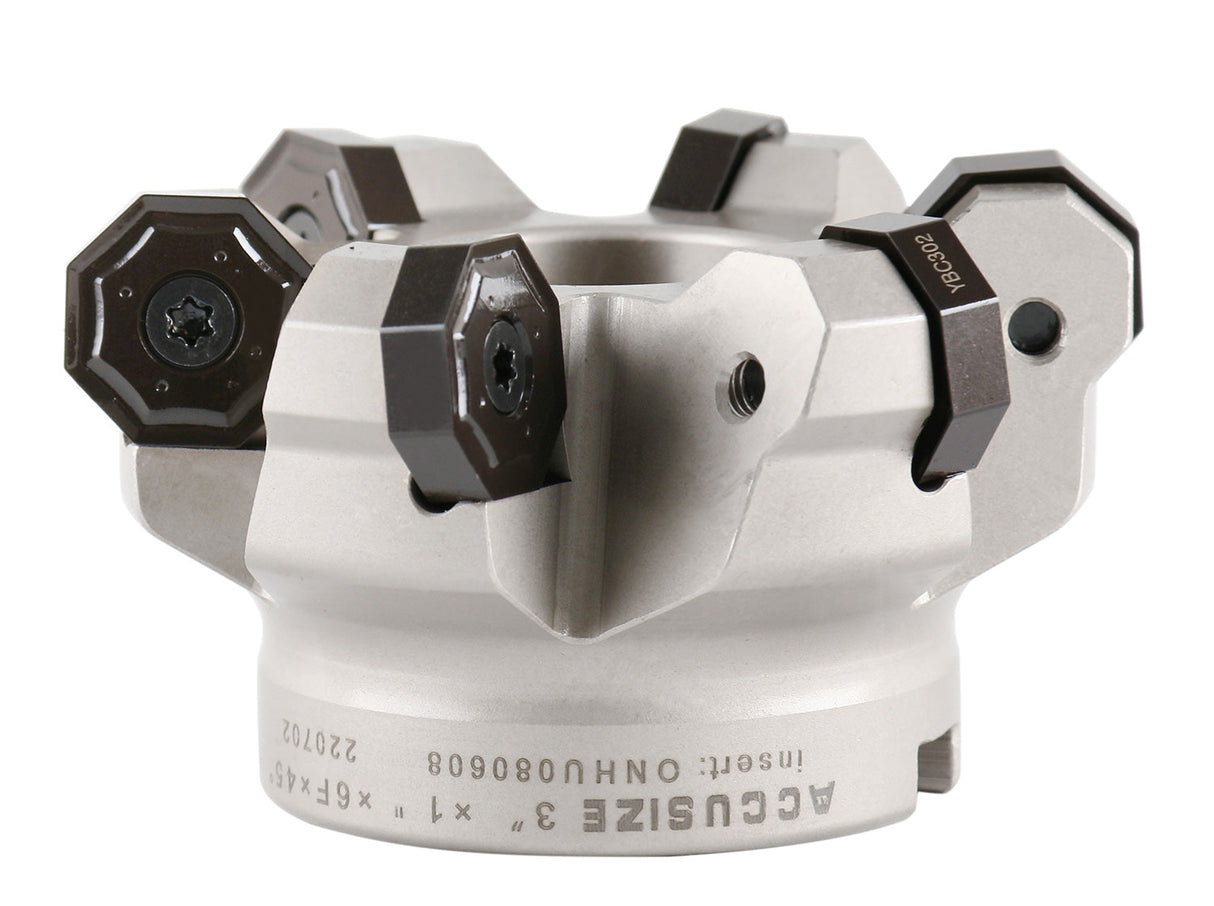

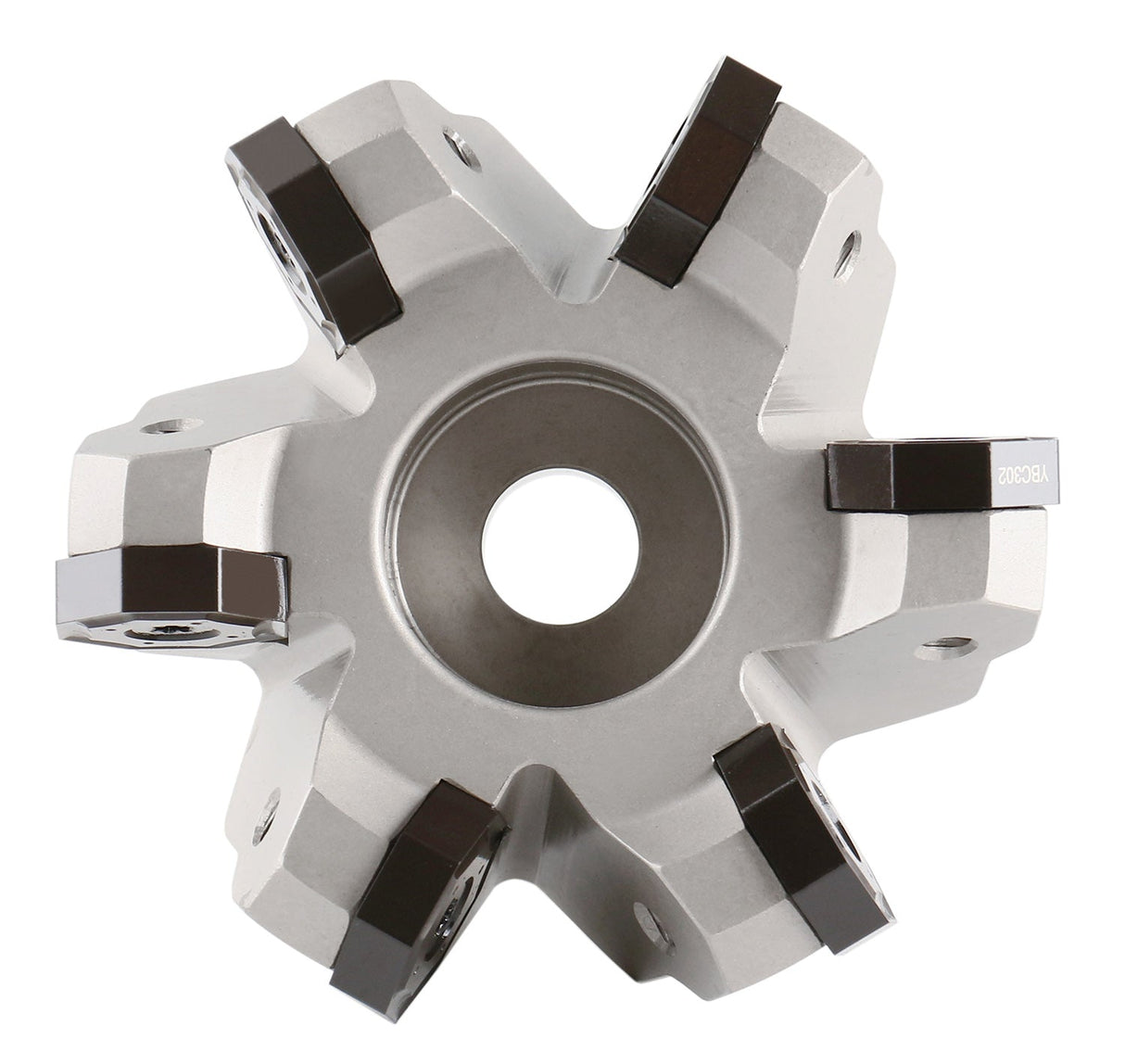

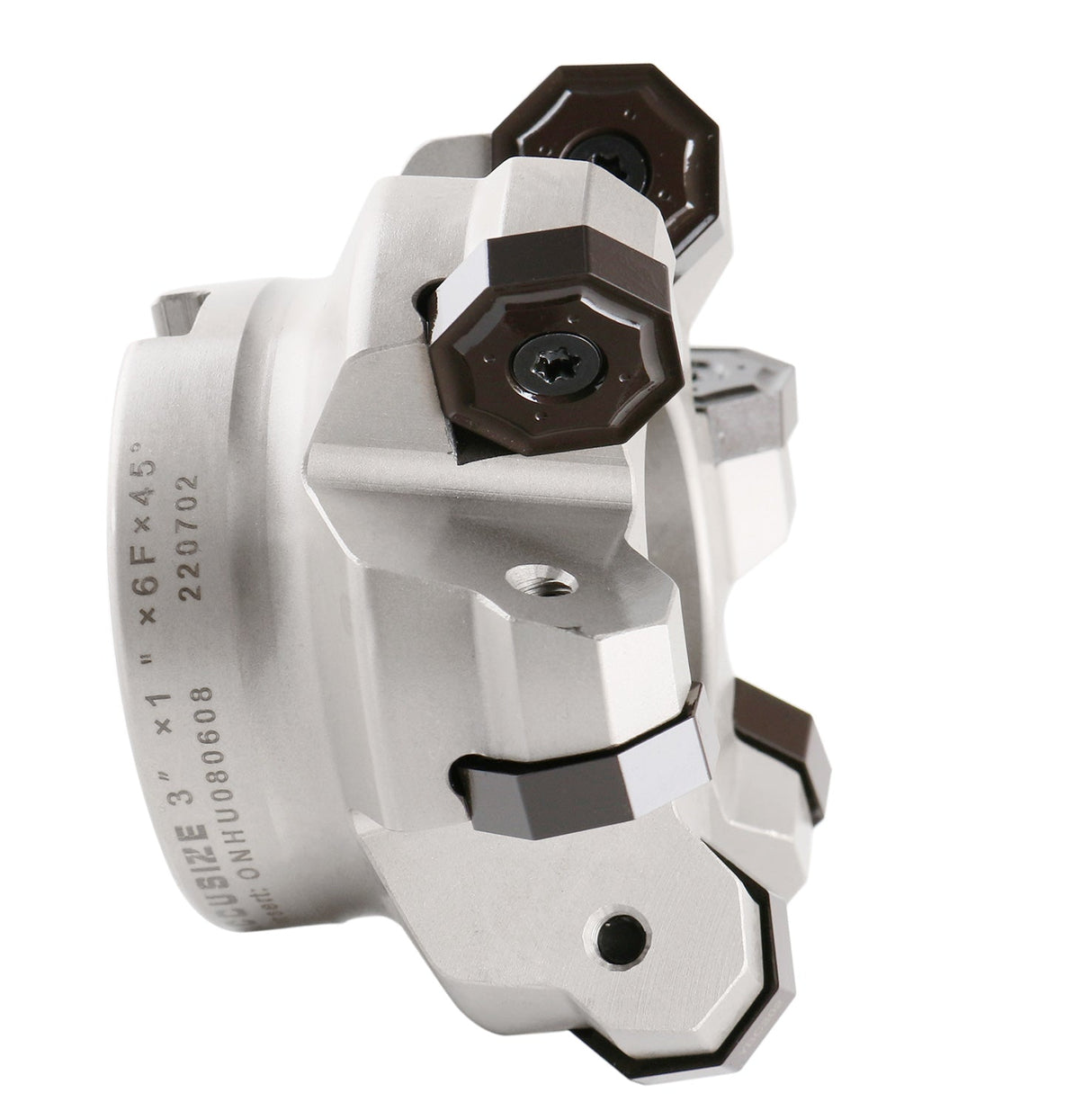

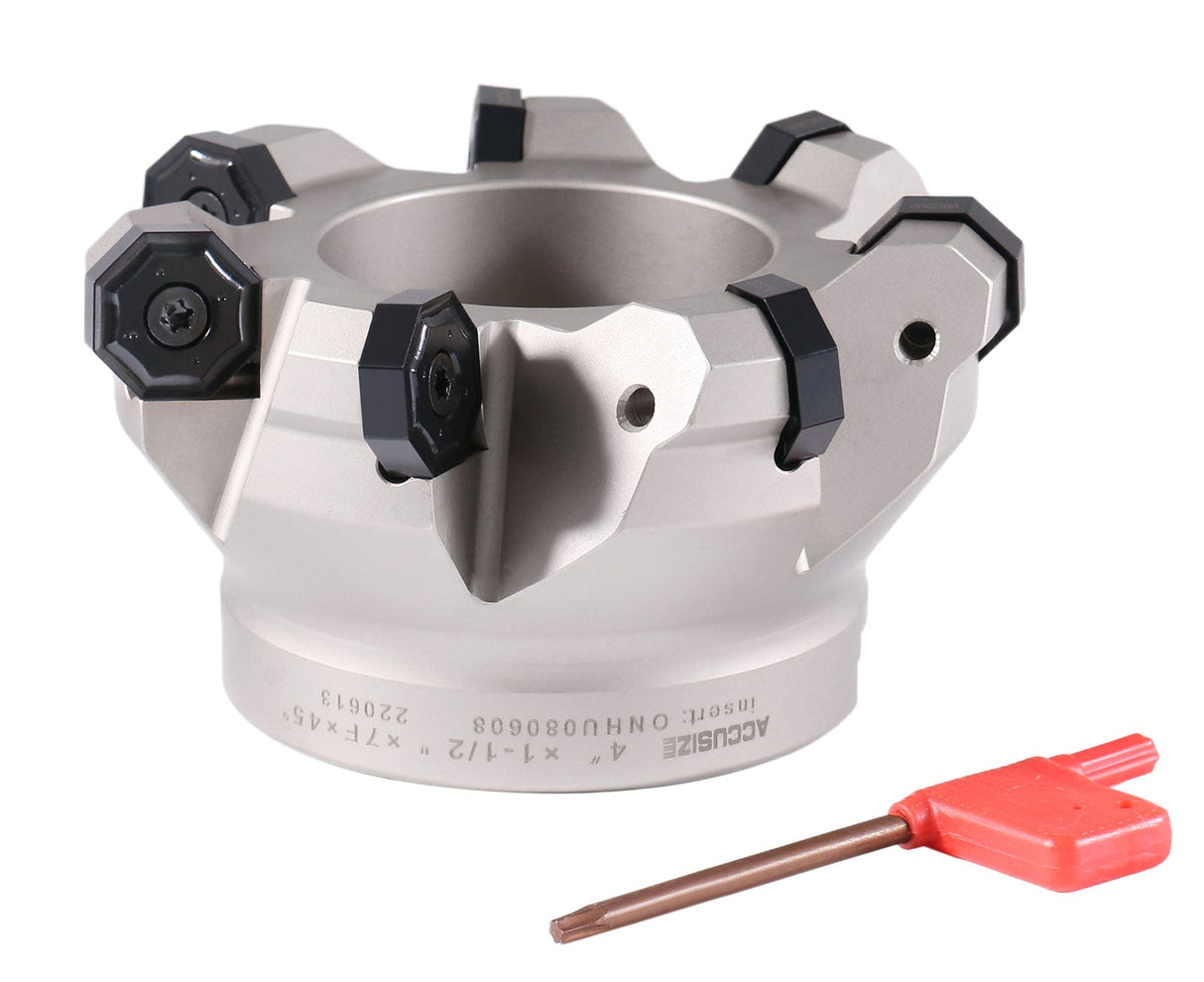

45 Degree Indexable Face Mill with ONHU08T508 Inserts, OCTAGONAL Double-Side Inserts with 16 Cutting Edges

$328.00 CAD

Cutting Diameter:

45 Degree Indexable Face Mill with ONHU08T508 Inserts, OCTAGONAL Double-Side Inserts with 16 Cutting Edges

  • Octagonal double-side insert with 16 cutting edges is the most economical insert on the market for face machining application
  • Negative radial rake angle and axial rake angle structure combined with a thick ONHU insert body improves cutter's overall resistance to impact and toughness
  • Unique insert screw hole design to improve clamping rigidness
  • Insert available for semi-finishing and roughing application
  • Suitable for most face milling applications on steel, stainless steel, and cast iron
  • Reduces vibration on long overhang applications
  • Screw and wedge insert clamping
    Item Cutting Diameter
    D
    Arbor Hole
    d
    Flute Insert Insert screw
    3300-1628 2-1/2" 3/4" 5 ONHU080608 M5 x 12
    3300-1629 3" 1" 6 ONHU080608 M5 x 12
    3300-1630 4" 1-1/2" 7 ONHU080608 M5 x 12
    3300-1631 5" 1-1/2" 8 ONHU080608 M5 x 12
    3300-1632 8" 2-1/2" 12 ONHU080608 M5 x 12
