5100-0001, No.00 Precision H.S.S. Keyway Broach Sets
$183.00 CAD
Unit price
/
Unavailable

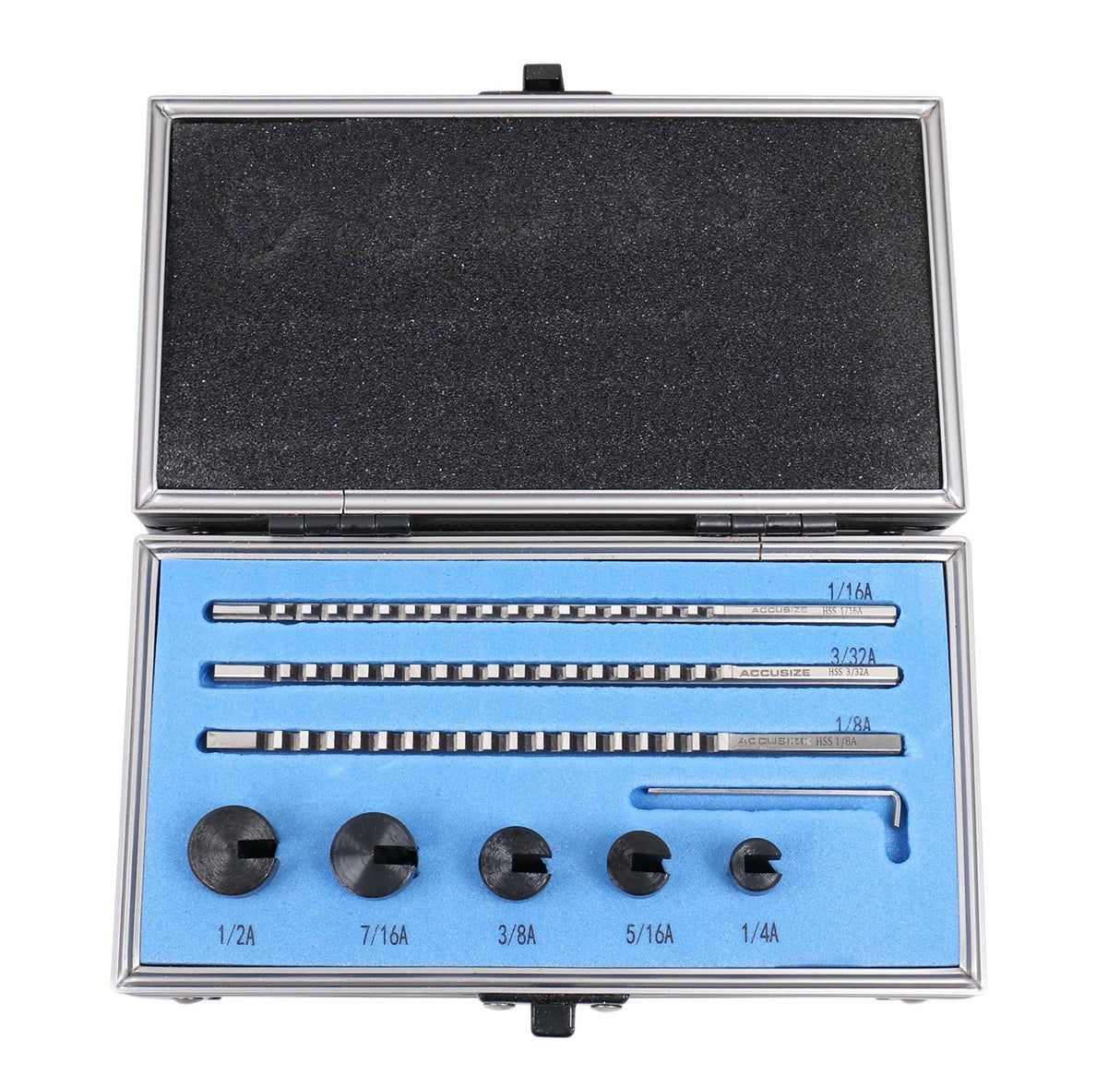

No.00 Precision H.S.S. Keyway Broach Sets, #5100-0001
- All broach sets are furnished in handsome varnished boxes, and come complete with precision roaches, slotted bushings, and necessary shims.
- The most common keyway combinations for small keyways and bores.
- 3 broaches by 5 bushings equals 15 combinations.
- Keyway size 1/16", 3/32", 1/8"
- Bushing Dia. Bore Size 1/4", 5/16", 3/8", 7/16", 1/2"
- In Fitted wooden box
| Keyway Size | Broach Size | Bushing Diameters Bore Sizes- Collared |
|---|---|---|
| 1/16" | A | |
| 3/32" | A | 1/4", 5/16", 3/8", 7/16", 1/2" |
| 1/8" | A |
Technical data:
- Manufactured from H.S.S.
- Ground from solid.
- Straight teeth on one edge of the broach.
- Made to cut either inch or millimeter size keyways.
- Bright finish.
Features:
- Hardened and ground bars with cutting teeth on one side.
- Sized and proportioned to afford a good cutting range and ample rigidity.
- Replacement shims are also available.
Applications:
- Specialty tools designed for cutting keyways in machined holes.
- Typically used manually with an arbor press to produce the keyways.
- Well suited for use in a variety of ferrous and non-ferrous materials.
| Item | Broach Size | Tolerances Dec. Equiv. | Dimensions | Shims Required | Length of cut |
| 5000-0002 | 1/16"-A | 0.0625-0.0635 | 1/8"x5" | 0 | 13/64"-1-1/8" |
| 5000-0004 | 3/32"-A | 0.0938-0.0948 | 1/8"x5" | 0 | 13/64"-1-1/8" |
| 5000-0006 | 1/8"-A | 0.1252-0.1262 | 1/8"x5" | 1 | 13/64"-1-1/8" |
