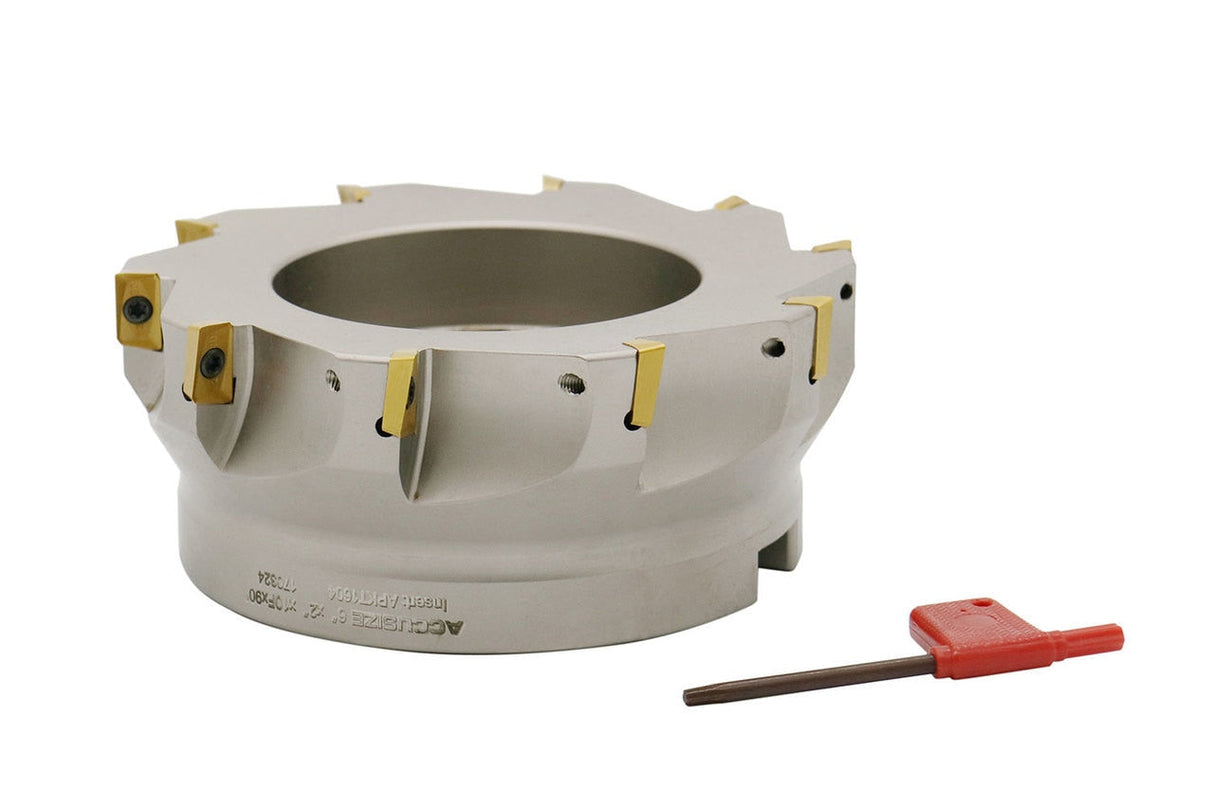

6" x 2" 90 Deg. Square Shoulder Indexable Face Mill w/ 10...
$438.00 CAD
Unit price
/
Unavailable
4508-0024, 6" x 2'' 90 Deg. Square Shoulder Indexable Face Mill w/ 10 Pieces APKT1604 Inserts
- 90° cutting angle
- Screw down inserts
- Radial rake angle: -10°
- Axial rake angle: +7°
- All types of square shoulder face milling, side milling and full slot milling (shaft end mills) of steels, alloyed steels, stainless and heat resistant steels, case irons and aluminum alloys.
- Fitted with 10° positive rectangular insert allow high depth of cut and feed per tooth
- Uses APKT / APHW / APKR_APHT / APMT insert (sold separately)
- Cutting Diameter: 6"
- Arbor Hole d: 2"
- Overall Length: 2-31/64"
- ap: 0.433''
- No. of Inserts: 10
- Screw: M4 x 8
- Inserts: APKT1604
Recommend Cutting Speed:
| Materials | Hardness(HB) | Cutting parameter | ||
| V（m/minï¼?/td> | f（mm/Zï¼?/td> | ae | ||
| Low-carbon Steel | �80 | 40-80 | 0.2�.1-0.2�/td> | �.5D |
| High-carbon Steel, Alloy Steel | 180-280 | 40-80 | 0.2�.1-0.2�/td> | �.5D |
| Tool Steel | 280-350 | 30-60 | 0.2�.1-0.2�/td> | �.5D |
**ABOVE CUTTING PARAMETERS PROVIDED FOR REFERENCE ONLY **
