SKU: 4508-0026

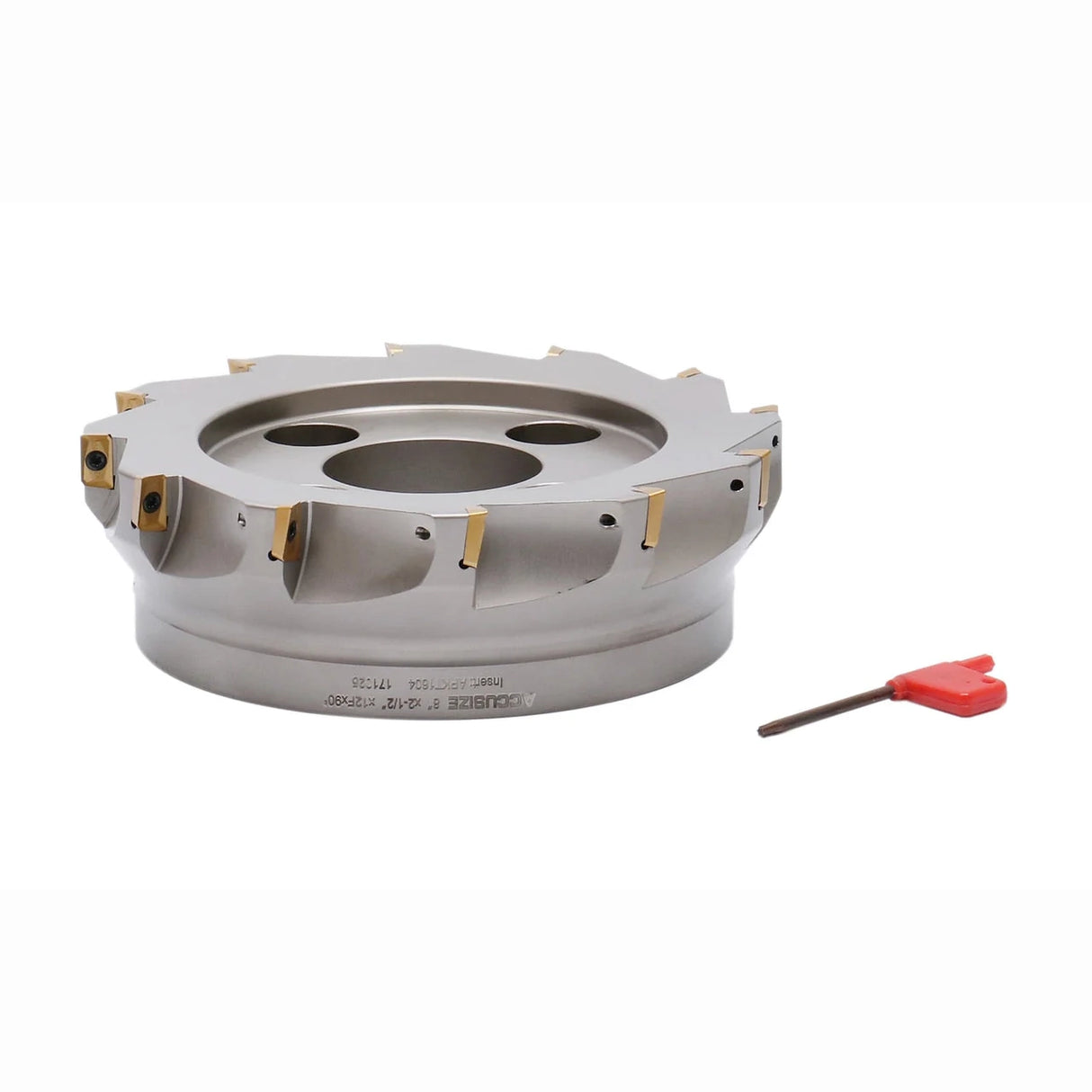

8" x 2-1/2" Square Shoulder Indexable Face Mill

$619.00 CAD


  • 90° cutting angle
  • Screw down inserts
  • Radial rake angle: -10°
  • Axial rake angle: +7°
  • All types of square shoulder face milling, side milling and full slot milling (shaft end mills) of steels, alloyed steels, stainless and heat resistant steels, case irons and aluminum alloys.
  • Fitted with 10° positive rectangular inserts allow high depth of cut and feed per tooth
  • Uses APKT / APHW / APKR_APHT / APMT insert (sold separately)
  • Cutting Diameter: 8"
  • Arbor Hole d: 2-1/2"
  • Overall Length: 2-31/64"
  • ap: 0.433''
  • No. of Inserts: 12
  • Screw: M4 x 8
  • Inserts: APKT1604



Materials Hardness(HB) Cutting parameter
VV(ft /min) f(inch/Z) ae
Low-carbon Steel 180 40-80 0.2(0.1-0.2) 0.5D
High-carbon Steel, Alloy Steel 180-280 40-80 0.2(0.1-0.2) 0.5D
Tool Steel 280-350 30-60 0.2(0.1-0.2) 0.5D



**ABOVE CUTTING PARAMETERS PROVIDED FOR REFERENCE ONLY **
