SKU: 2652-0015

Carbide Threading Inserts, TiN Coated, 10 Pcs/Box

$90.00 CAD

Please Select the Size of AG60 Inserts

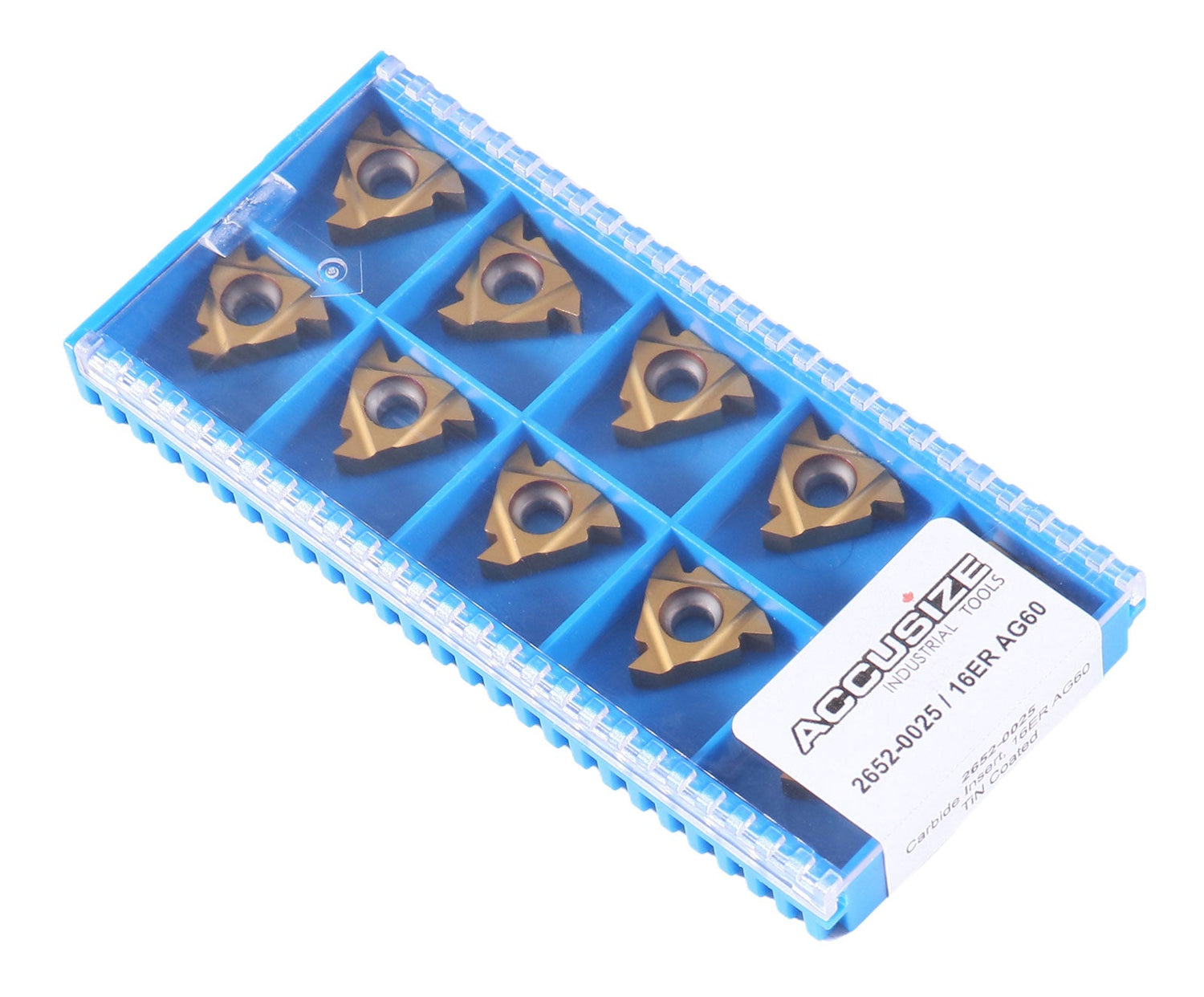

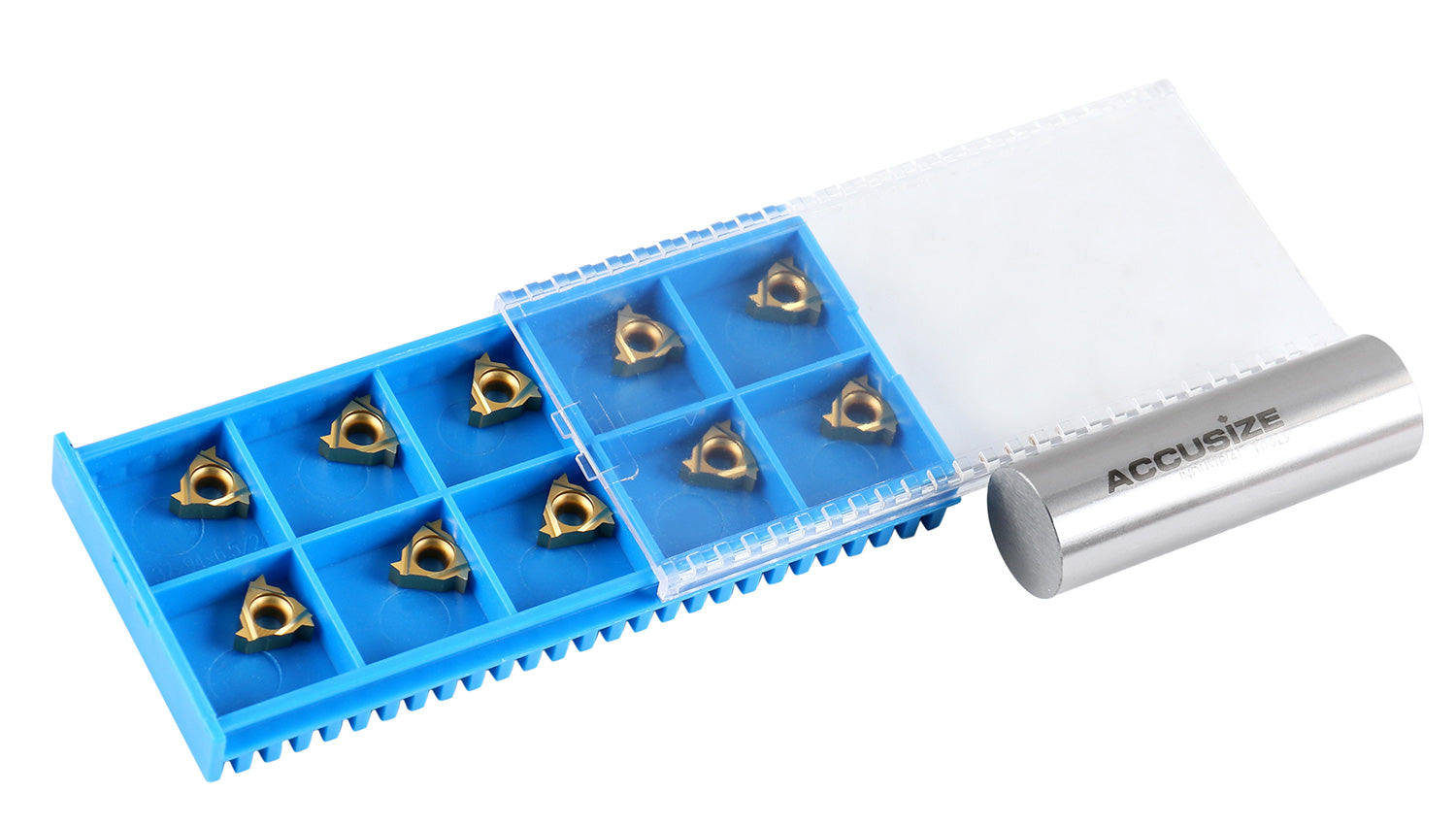

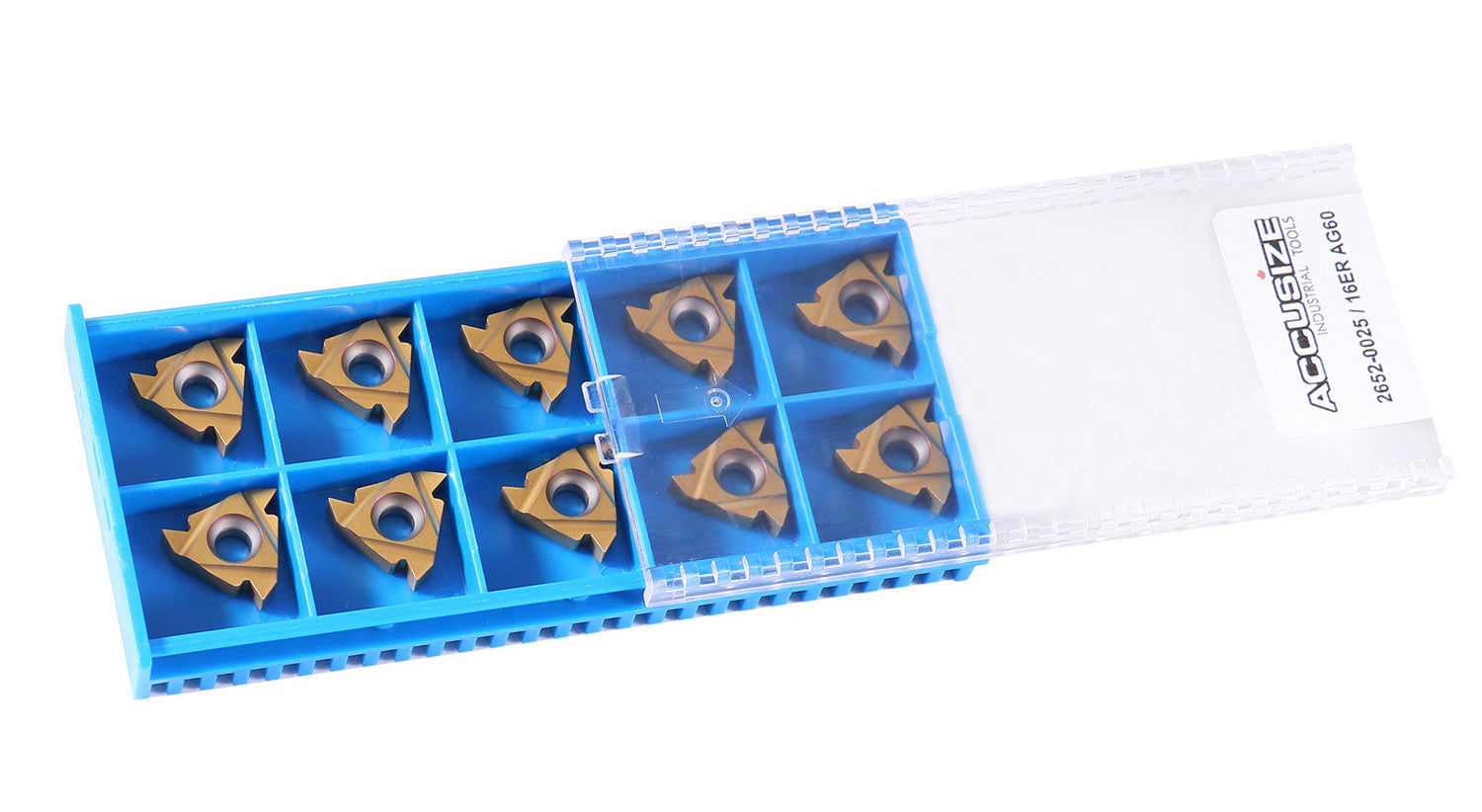

AG60, A60, Carbide Threading Inserts, TiN Coated, 10 Pcs/Box

TiN coated inserts work longer and are able to run at faster speeds than uncoated inserts. When a cutting edge becomes dull, you just need to rotate the insert in the holder to use the sharp edge. When you buy the replacement inserts, be noted that the larger nose angles and larger tip radii enable a stronger cutting edge, but they result in increased vibration and a rougher finish.

  • Carbide Inserts
  • C5 Grade Coated
Item # Product # Insert Coating I.C(d) Thickness Hole X Y
6152-0860 2652-0860 08ER A60 TiN  3/16" 0.087" 0.098" 0.031" 0.035"
6152-0015 2652-0015 11ER A60 TiN  1/4" 1/8" 0.120" 0.031" 0.035"
6152-0025 2652-0025 16ER AG60 TiN  3/8" 0.144" 0.156" 0.047" 0.067"

Diagram of Accusize Threading Inserts

Accusize Industrial

Carbide Threading Inserts, TiN Coated, 10 Pcs/Box

From $90.00 CAD

AG60, A60, Carbide Threading Inserts, TiN Coated, 10 Pcs/Box

TiN coated inserts work longer and are able to run at faster speeds than uncoated inserts. When a cutting edge becomes dull, you just need to rotate the insert in the holder to use the sharp edge. When you buy the replacement inserts, be noted that the larger nose angles and larger tip radii enable a stronger cutting edge, but they result in increased vibration and a rougher finish.

Item # Product # Insert Coating I.C(d) Thickness Hole X Y
6152-0860 2652-0860 08ER A60 TiN  3/16" 0.087" 0.098" 0.031" 0.035"
6152-0015 2652-0015 11ER A60 TiN  1/4" 1/8" 0.120" 0.031" 0.035"
6152-0025 2652-0025 16ER AG60 TiN  3/8" 0.144" 0.156" 0.047" 0.067"

Diagram of Accusize Threading Inserts

Please Select the Size of AG60 Inserts

  • 11ER A60 (2652-0015)
  • 16ER AG60 (2652-0025)
  • 08ER AG60 (2652-0860)
View product
