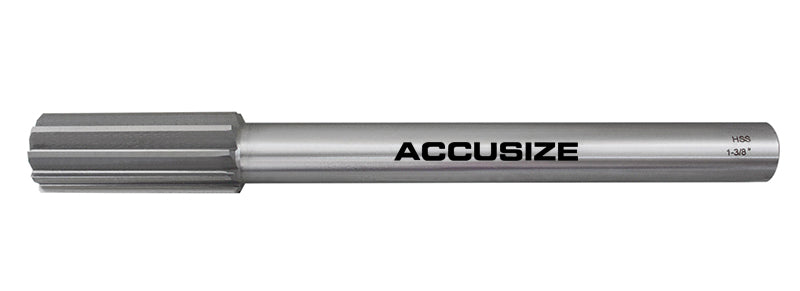

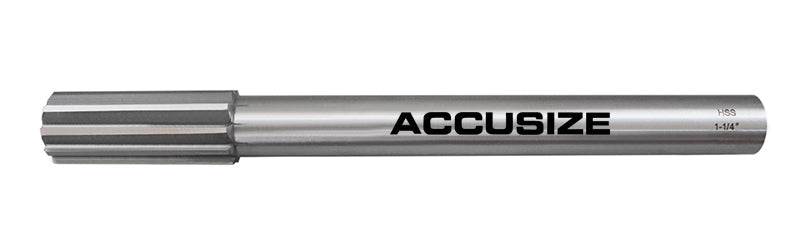

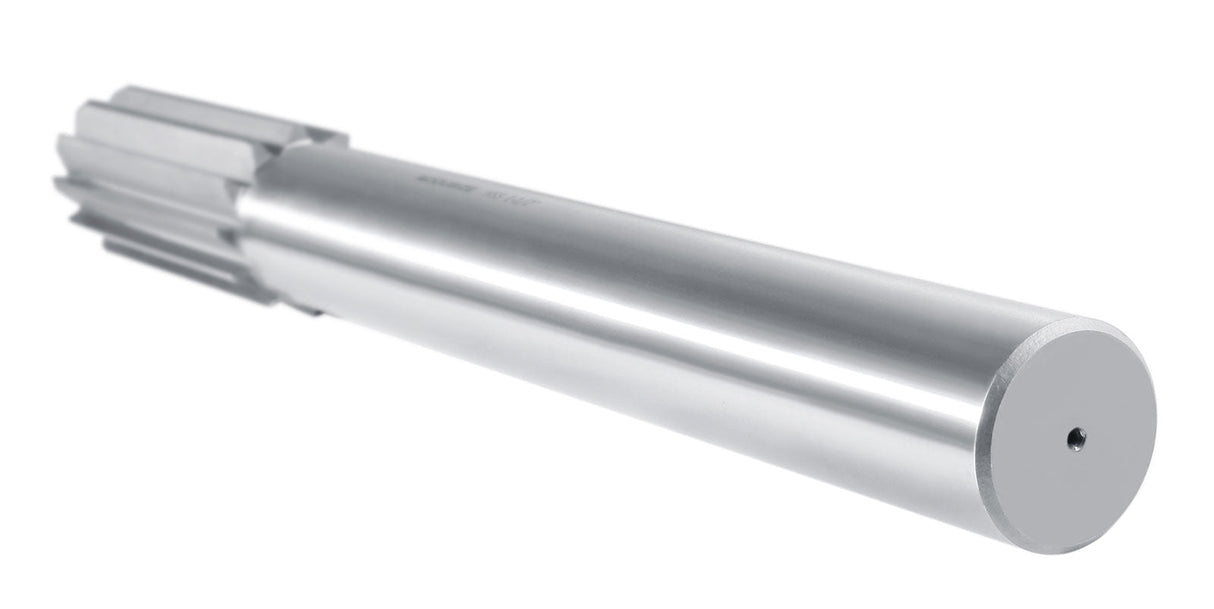

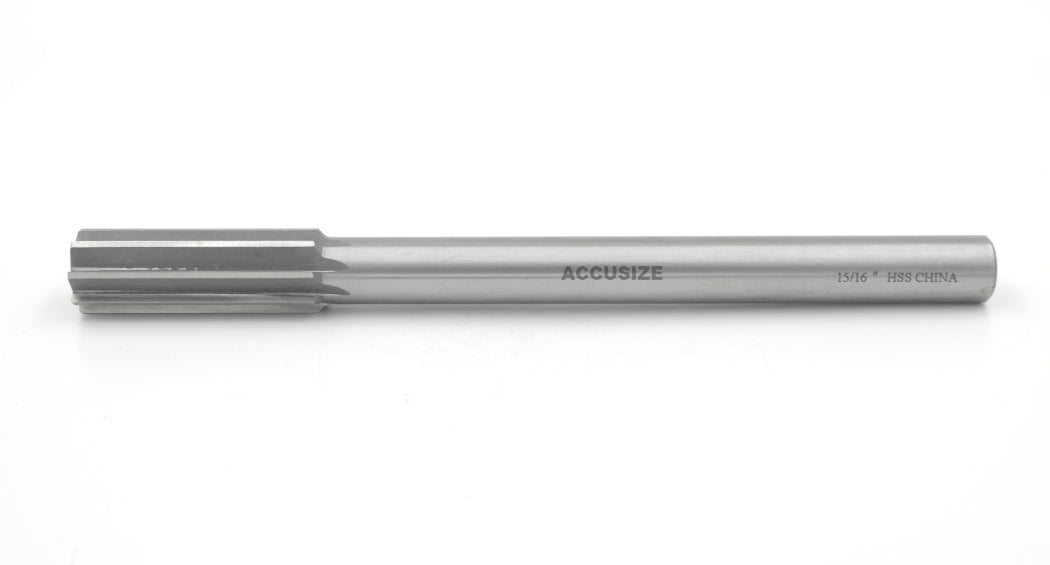

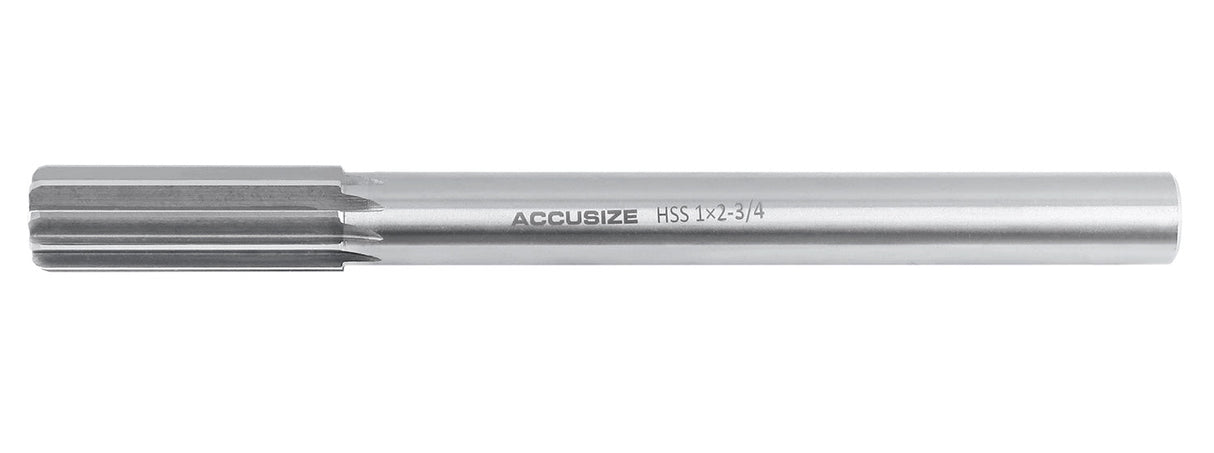

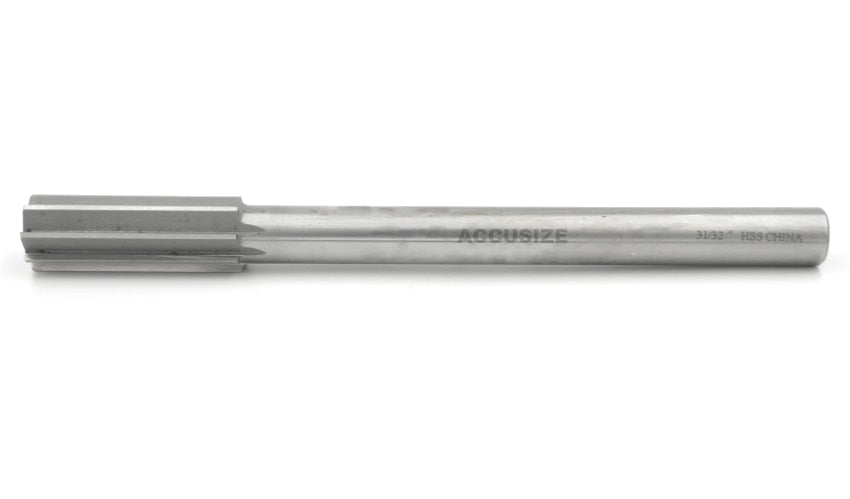

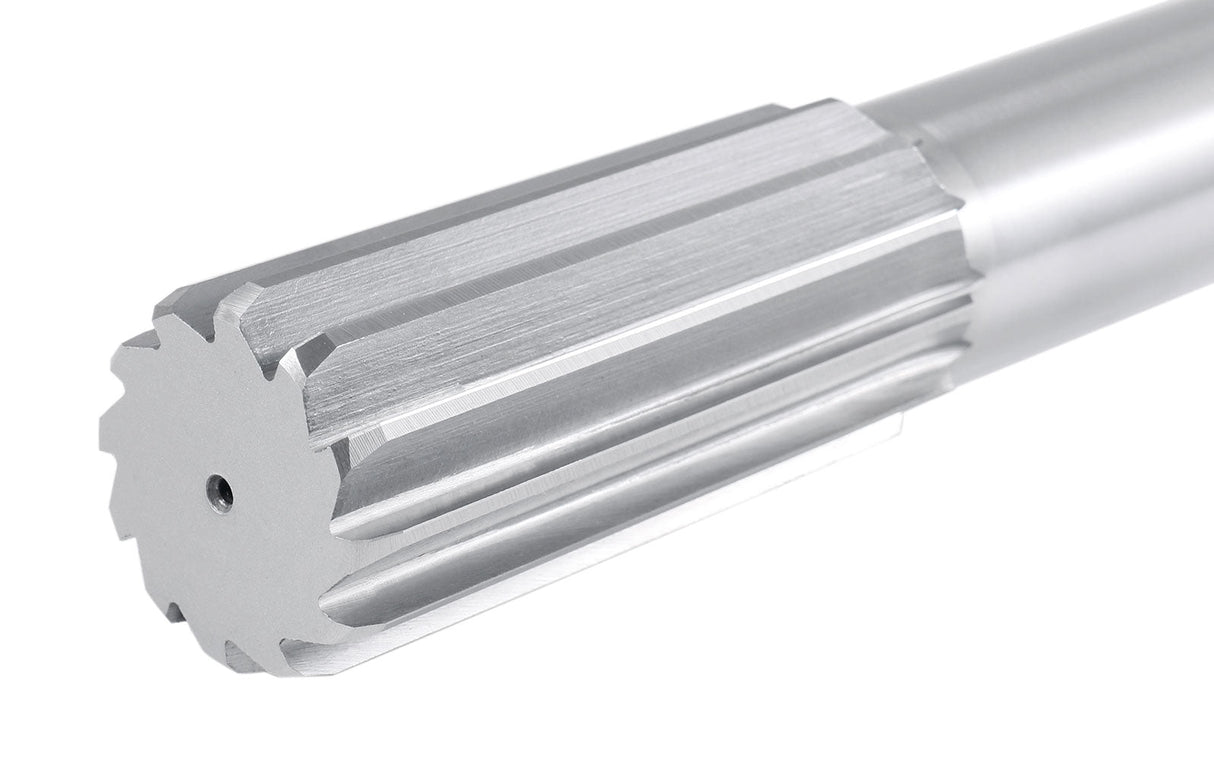

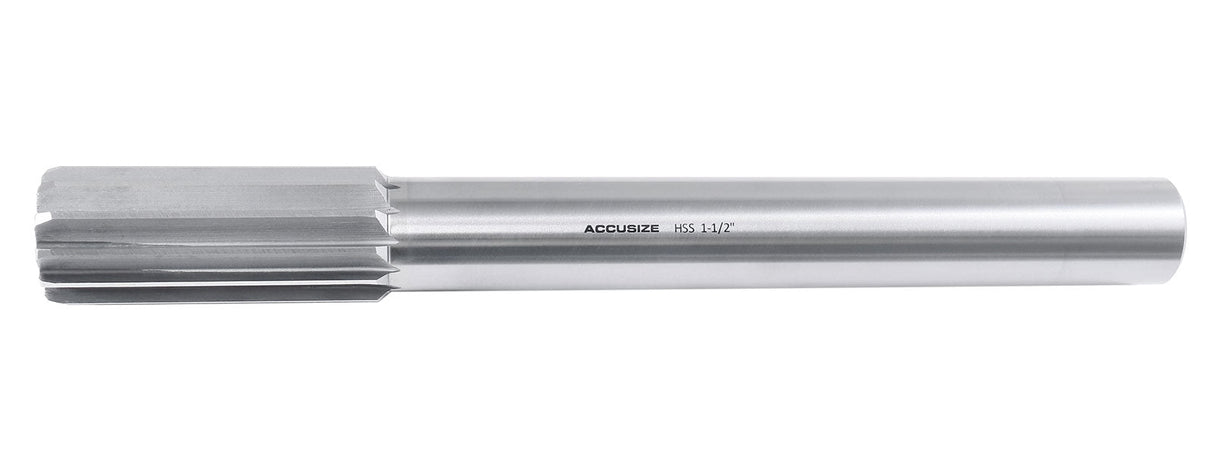

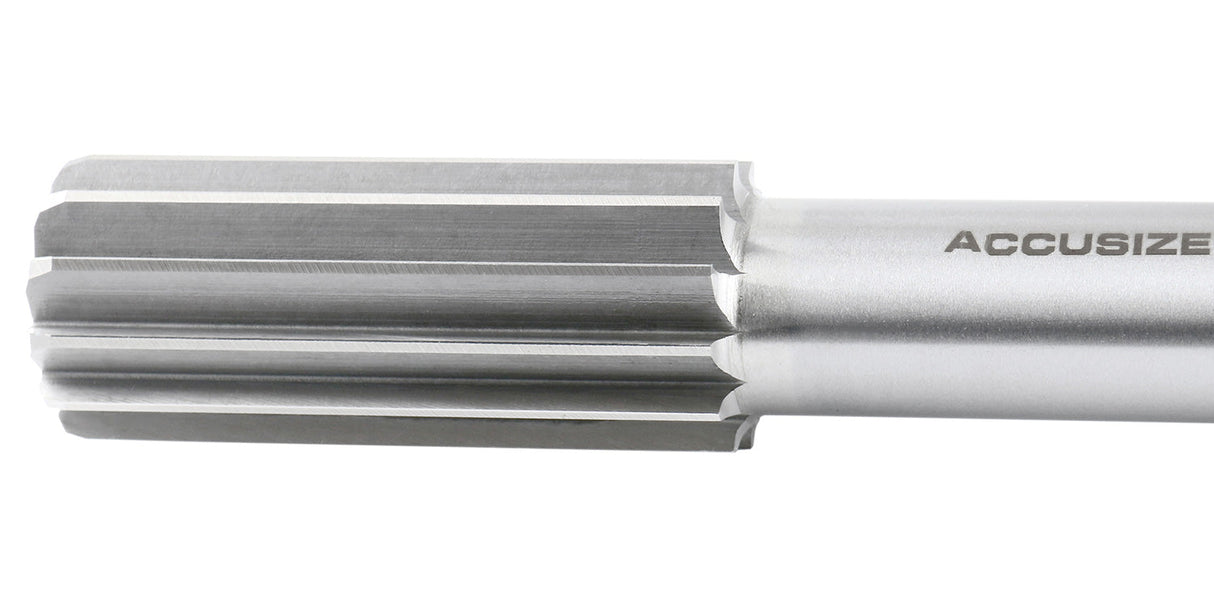

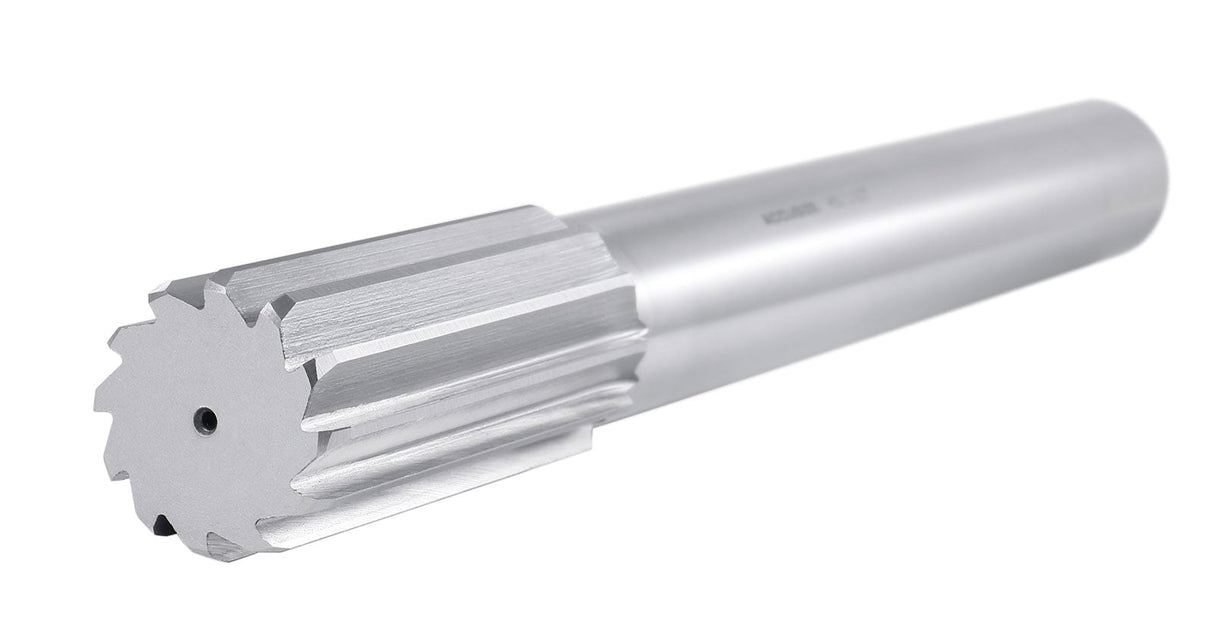

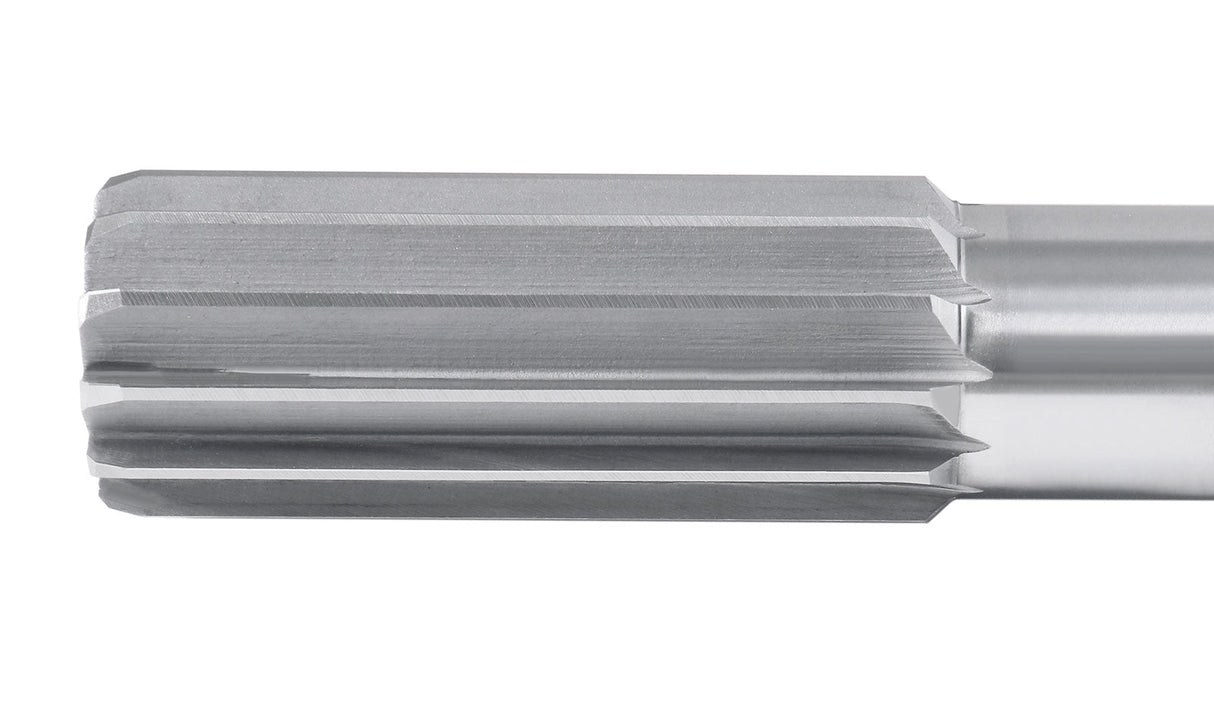

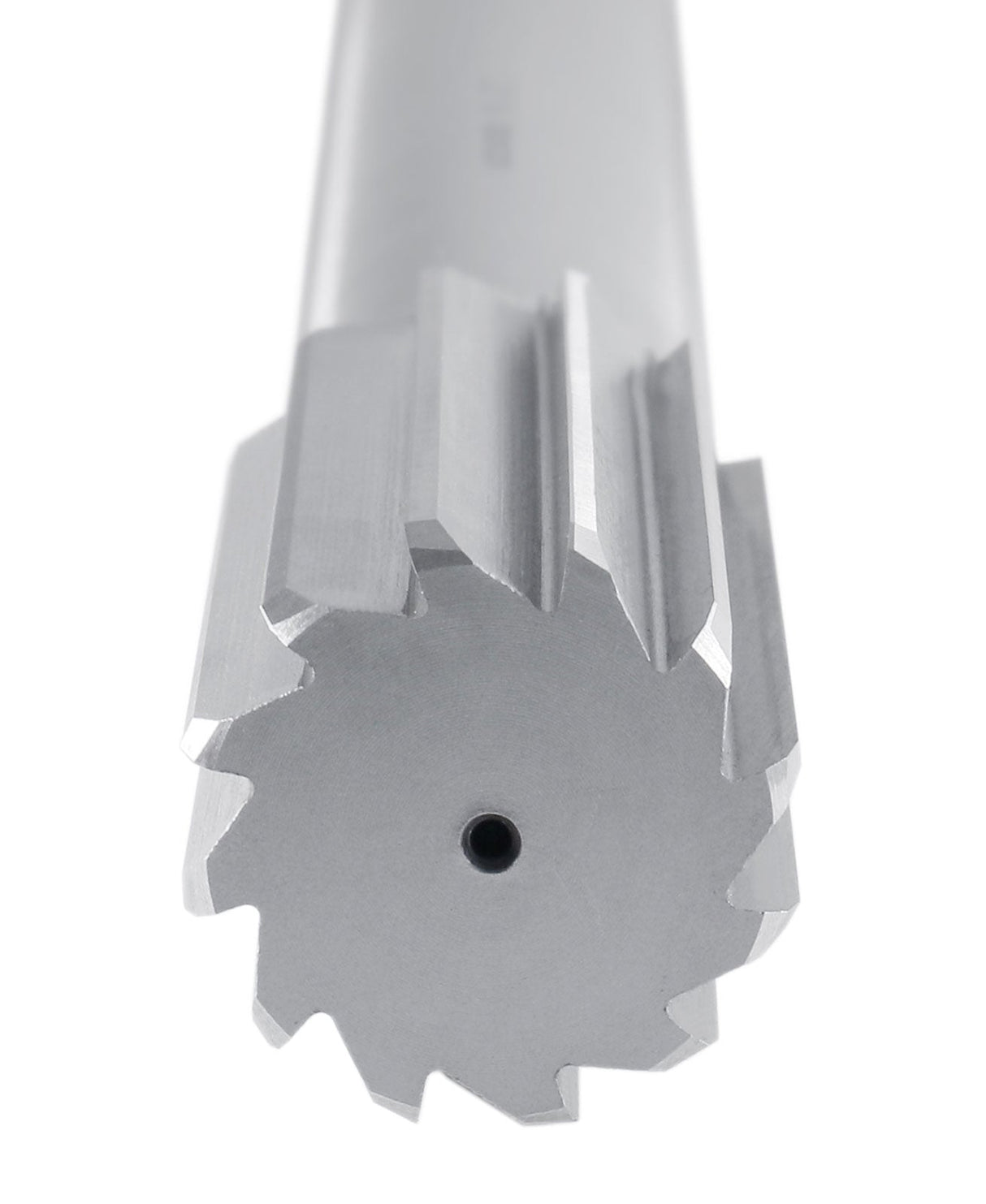

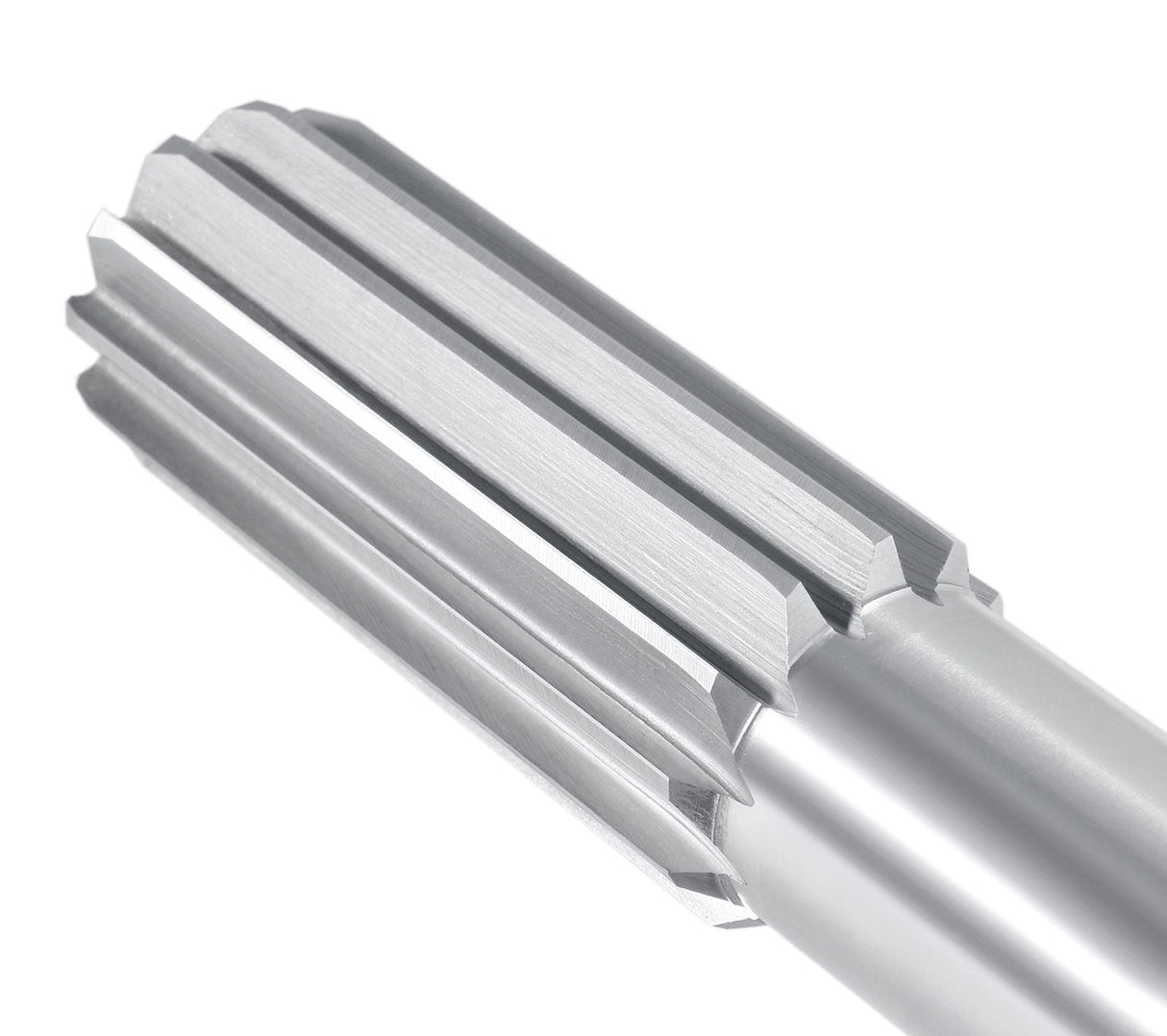

ANSI HSS M2 Single Straight Flute Chucking Reamers
From
$19.00 CAD
Unit price
/
Unavailable
ANSI HSS M2 Straight Flute Chucking Reamer, Straight Shank, Right Hand
- Standard 45° chamfered cutting edges
- Straight flute design
- Bright finished
- Right hand
- Straight Shank
Diameter / Tolerance:
- Thru 1/4" diameter
- +0.0001" to +0.0004"
-0.0000" - Above 1/4" to 1"
- +0.0001" to +0.0005"
-0.0000" - Above 1" to 1-1/2"
- +0.0002" to +0.0006"
-0.0000"
| Item | Size | Flute No. | Dec. Dia. | Flute Lenght | Overall Length |

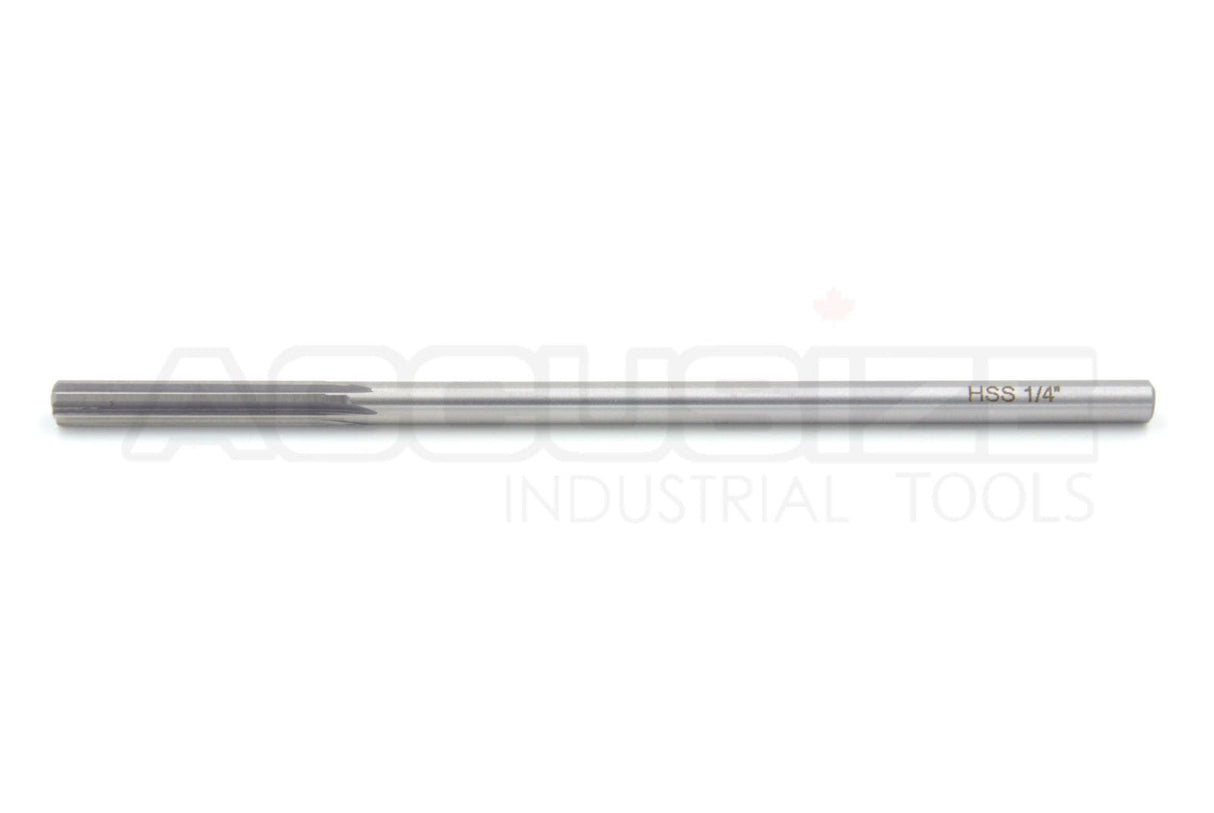

| 5015-0045 | 1/4" | 6 | 0.2500" |
1-1/2" | 6" |

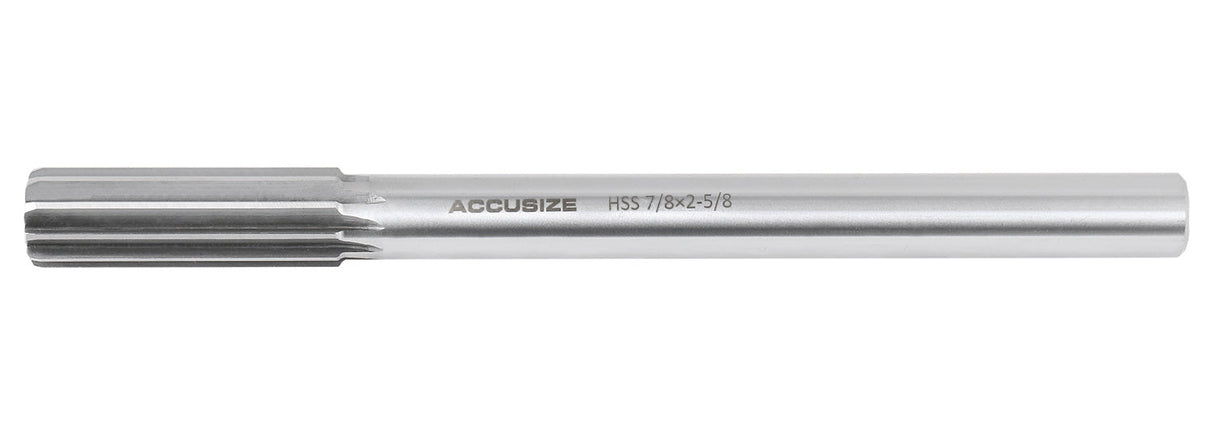

| 5015-0245 | 7/8" | 8 | 0.8750" |
2-5/8" | 10" |
| 5015-0265 | 15/16" | 8 | 0.9375" | 2-5/8" | 10" |
| 5015-0275 | 31/32" | 8 | 0.96875" | 2-5/8" | 10" |
| 5015-0285 | 1" | 8 | 1.0000" |
2-3/4" | 10-1/2" |
| 5015-0305 | 1-1/8" | 10 | 1.1250" |
2-7/8" | 11" |
| 5015-0320 | 1-1/4" | 10 | 1.2500" |
3" | 11-1/2" |

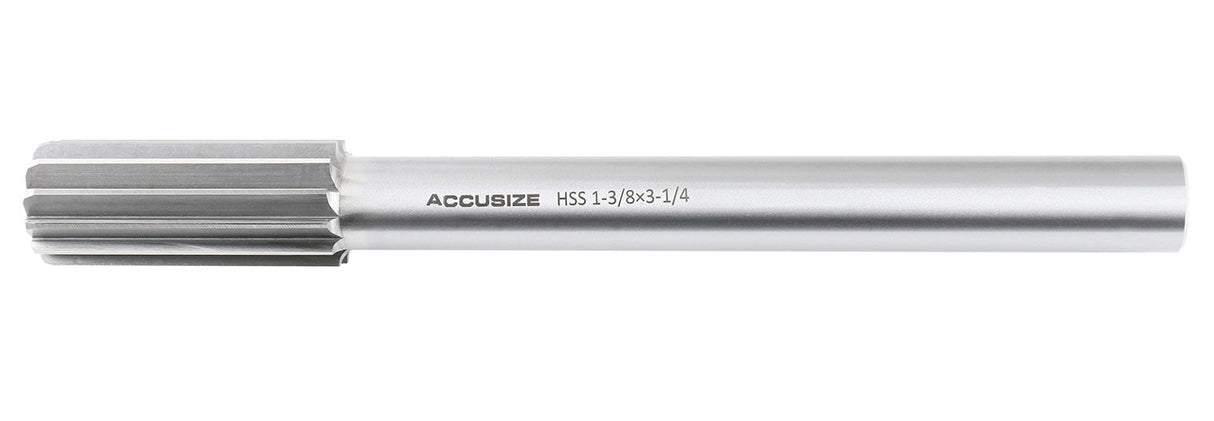

| 5015-0330 | 1-3/8" | 10 | 1.3750" |
3-1/4" | 12" |
| 5015-0340 | 1-1/2" | 12 | 1.5000" |
3-1/2" | 12-1/2" |
