Boring, Turning and Facing Holders
Regular price
From
$32.00 CAD
Unit price
/
Unavailable

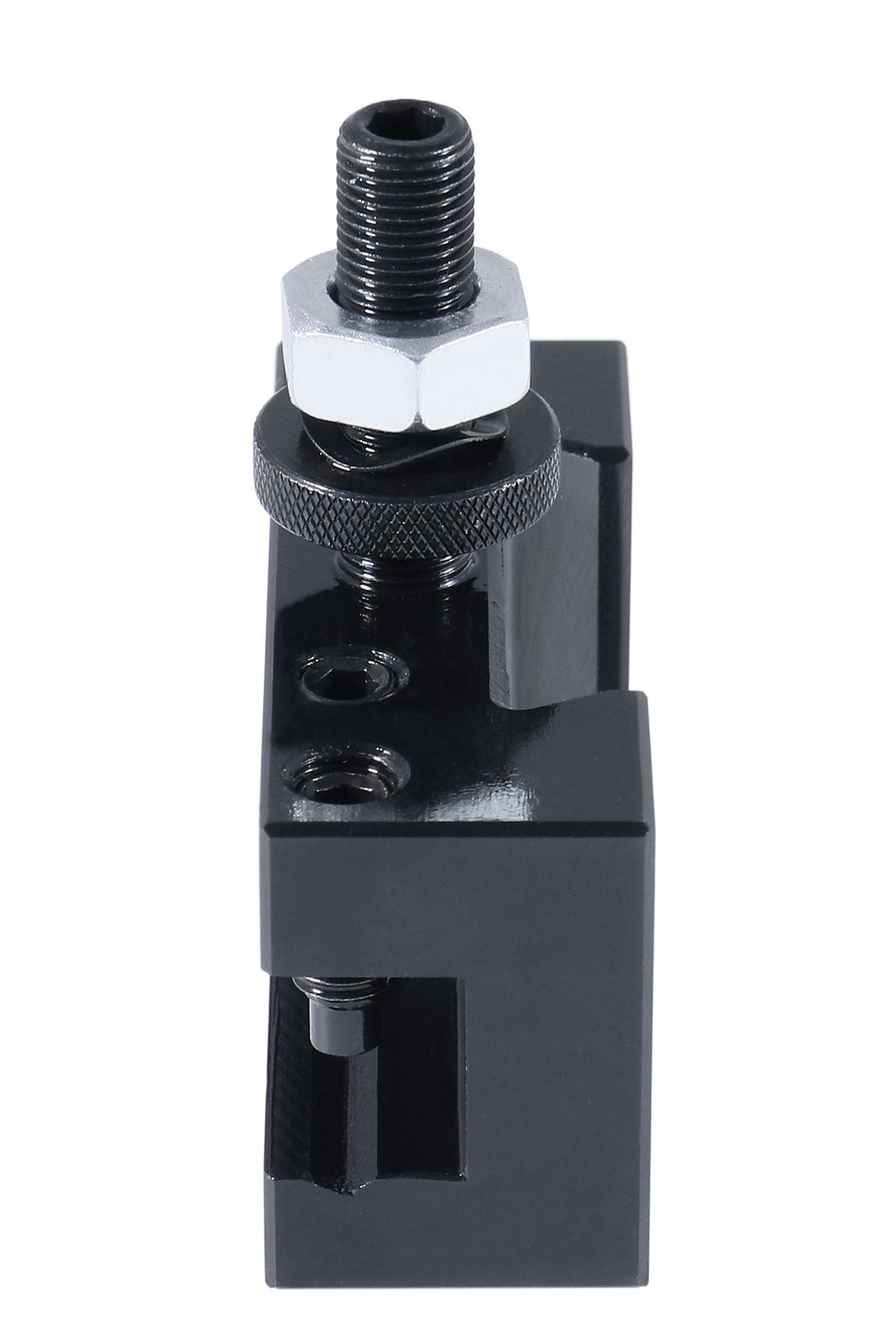

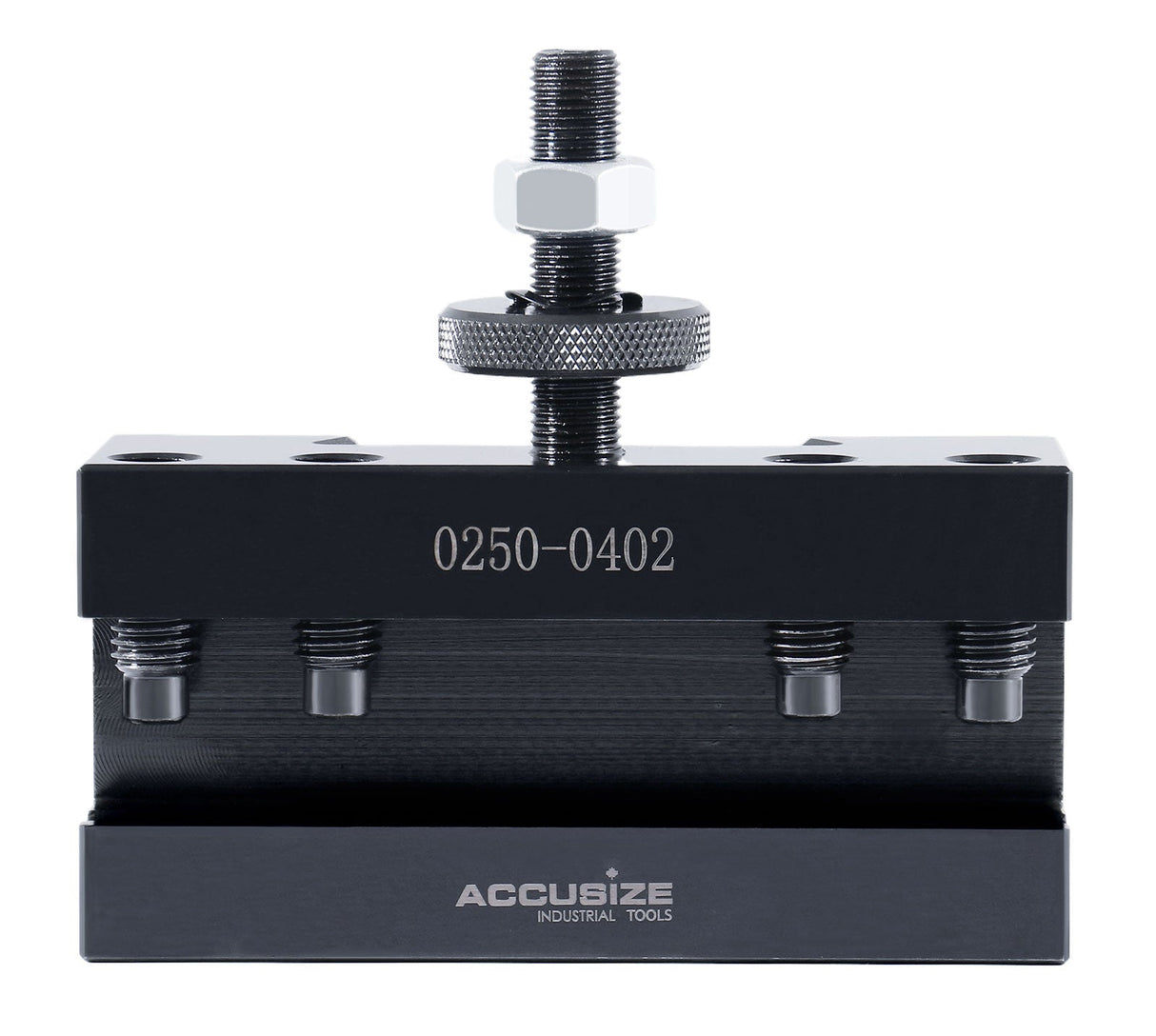

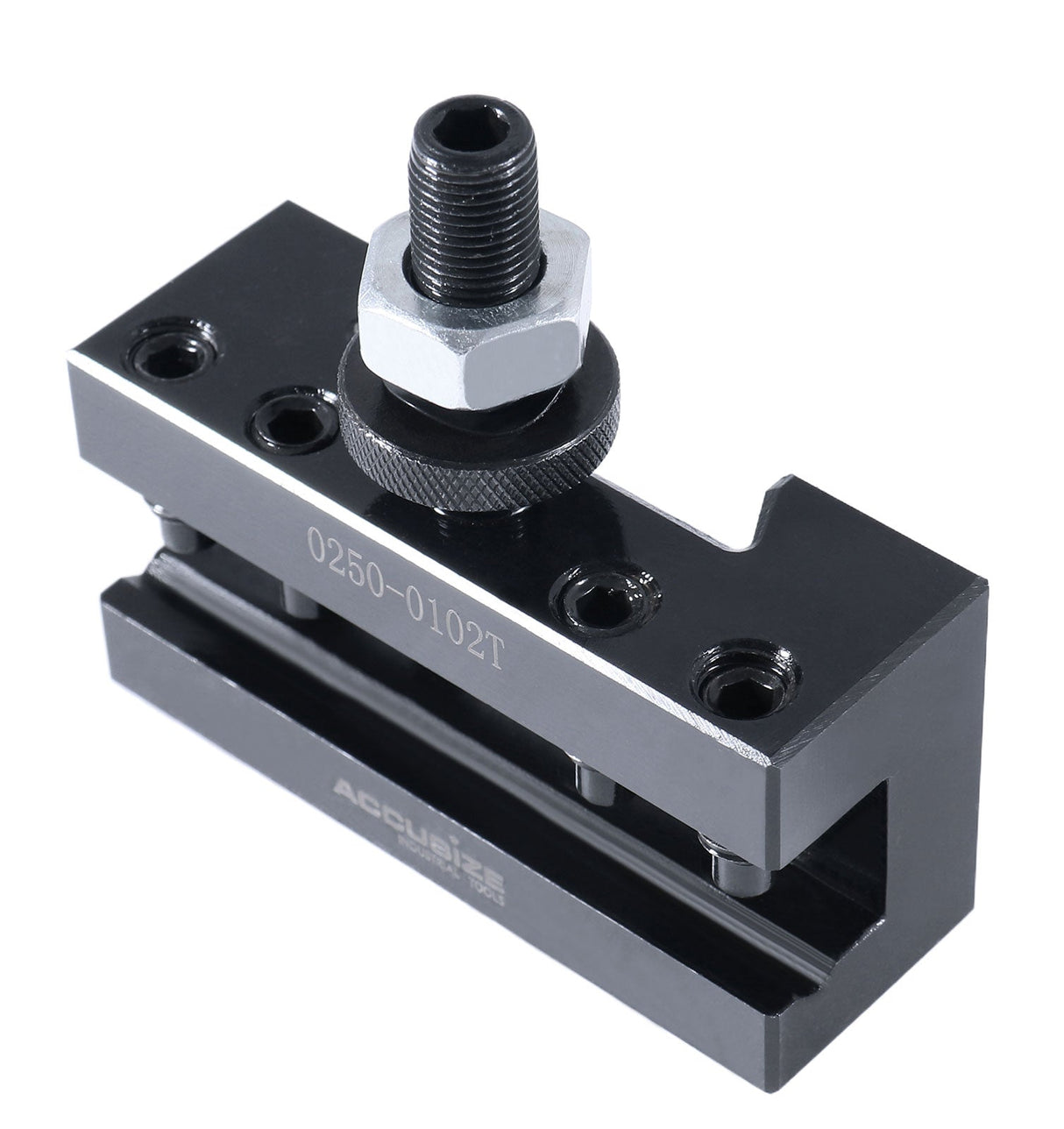

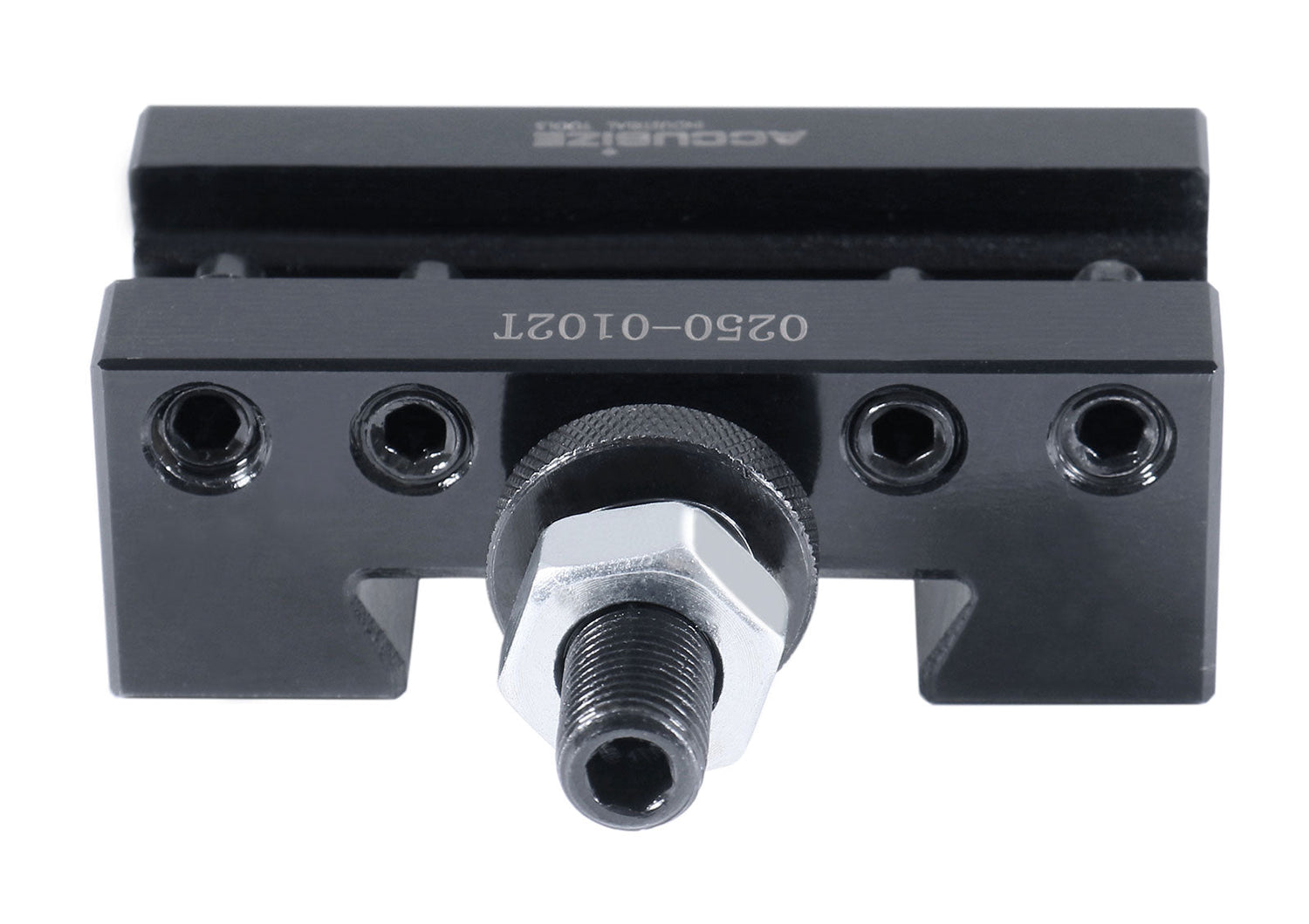

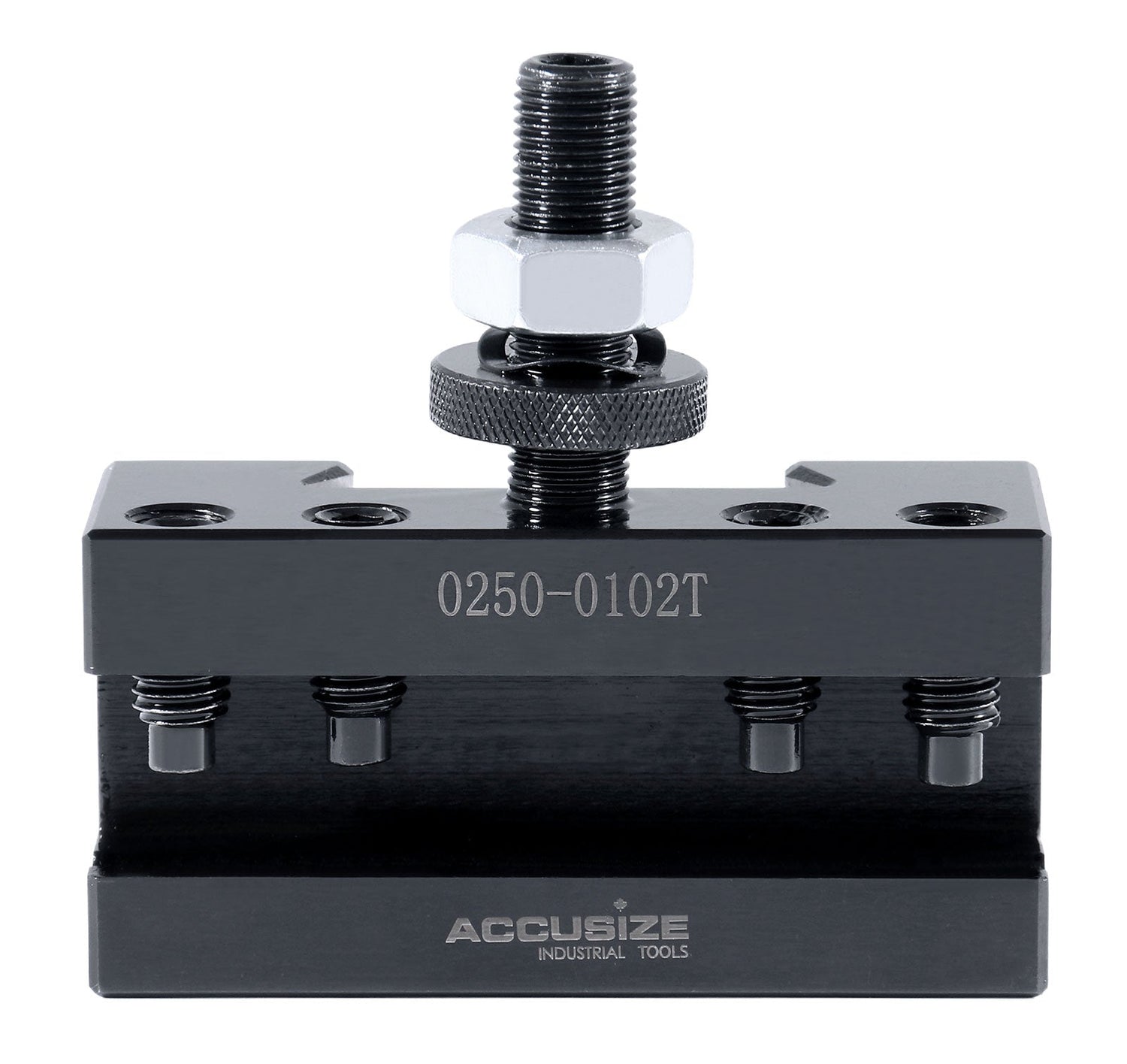

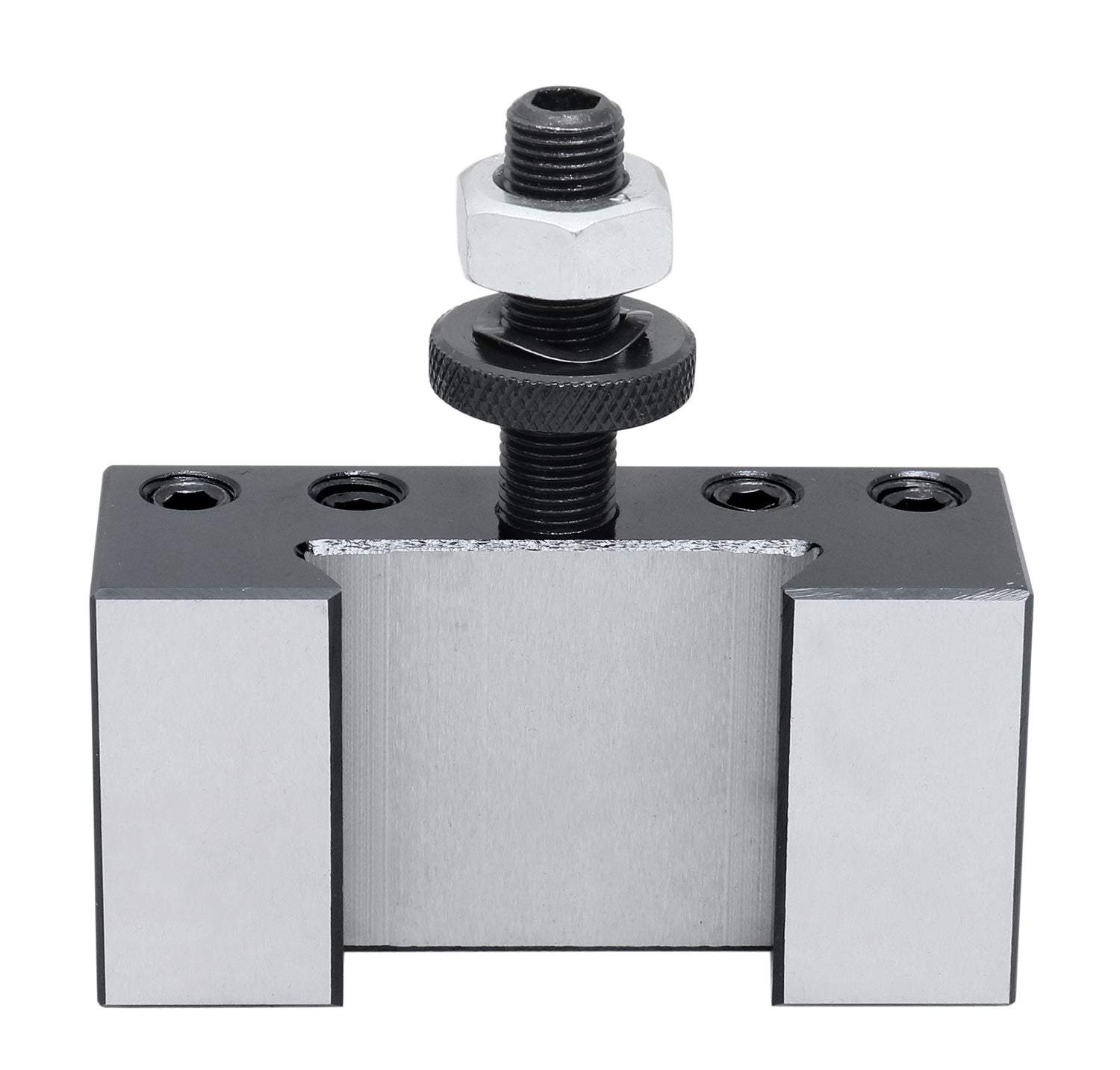

Boring, Turning, and Facing Holders #2
- V-groove holds round shank boring bars and tools as well as square tool bits.
- Made of Steel
- Boring bar not included.
| Item | Model | A | B | C | D | Tool Bit | Shank | L1 | L2 | H |

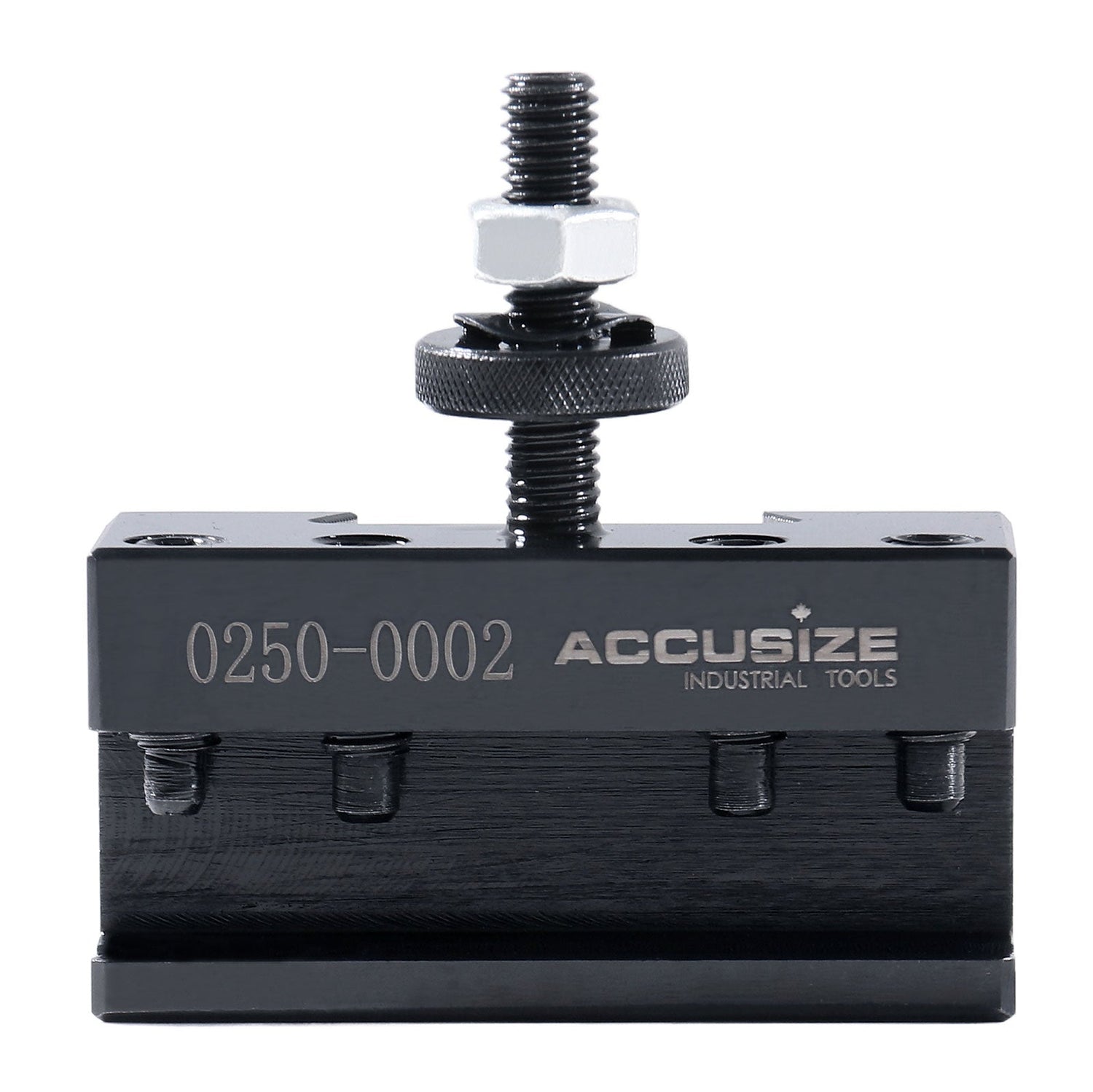

| 0250-0002 | OXA | 0.66" | 0.50" | 0.327" | 1" | |||||

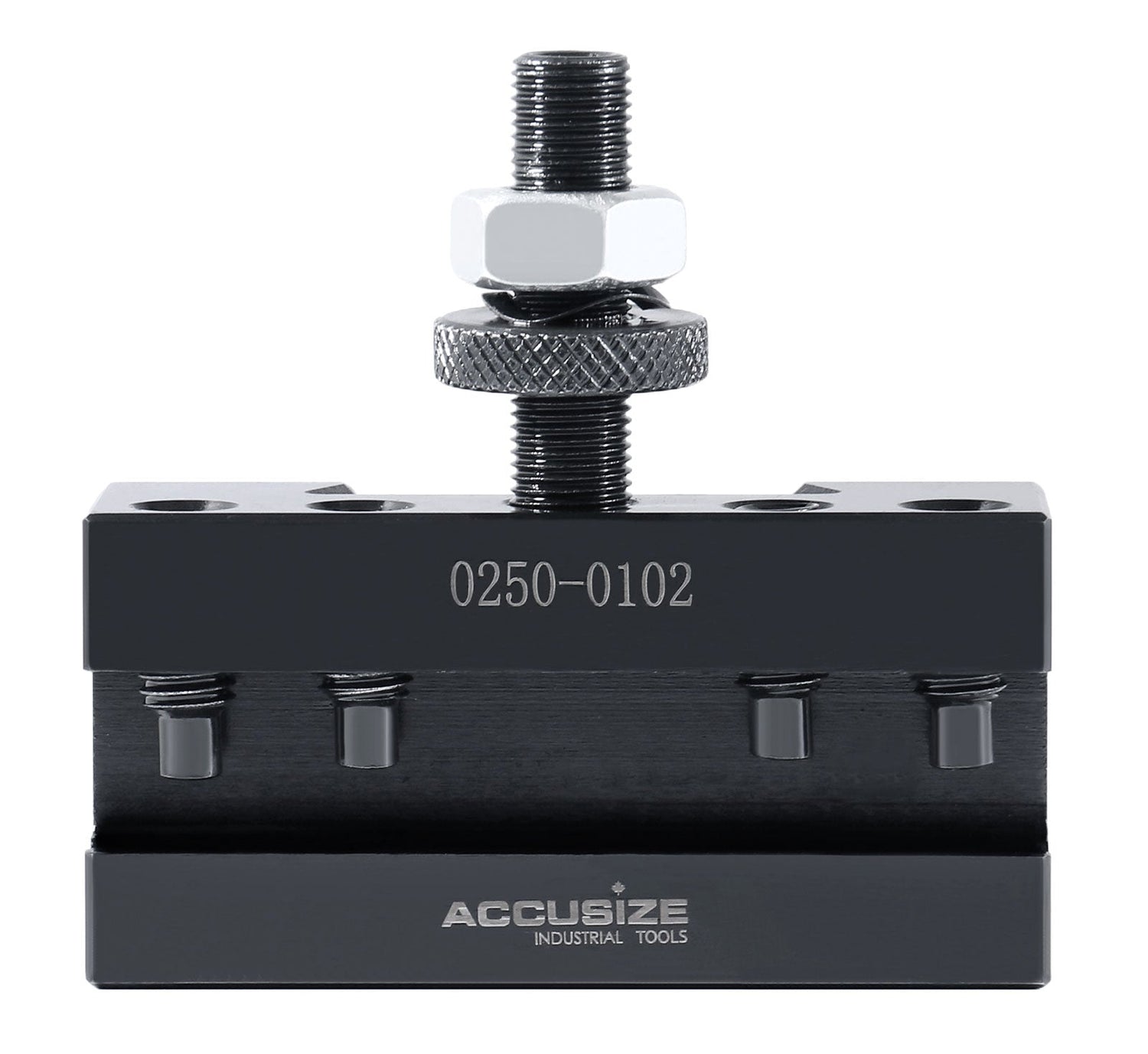

| 0250-0102 | AXA | 15/16" | 1/2" | 7/16" | 1-1/2" | 3/16"-1/2" | 7/16" | 1.691" | 1.250" | 0.382" |

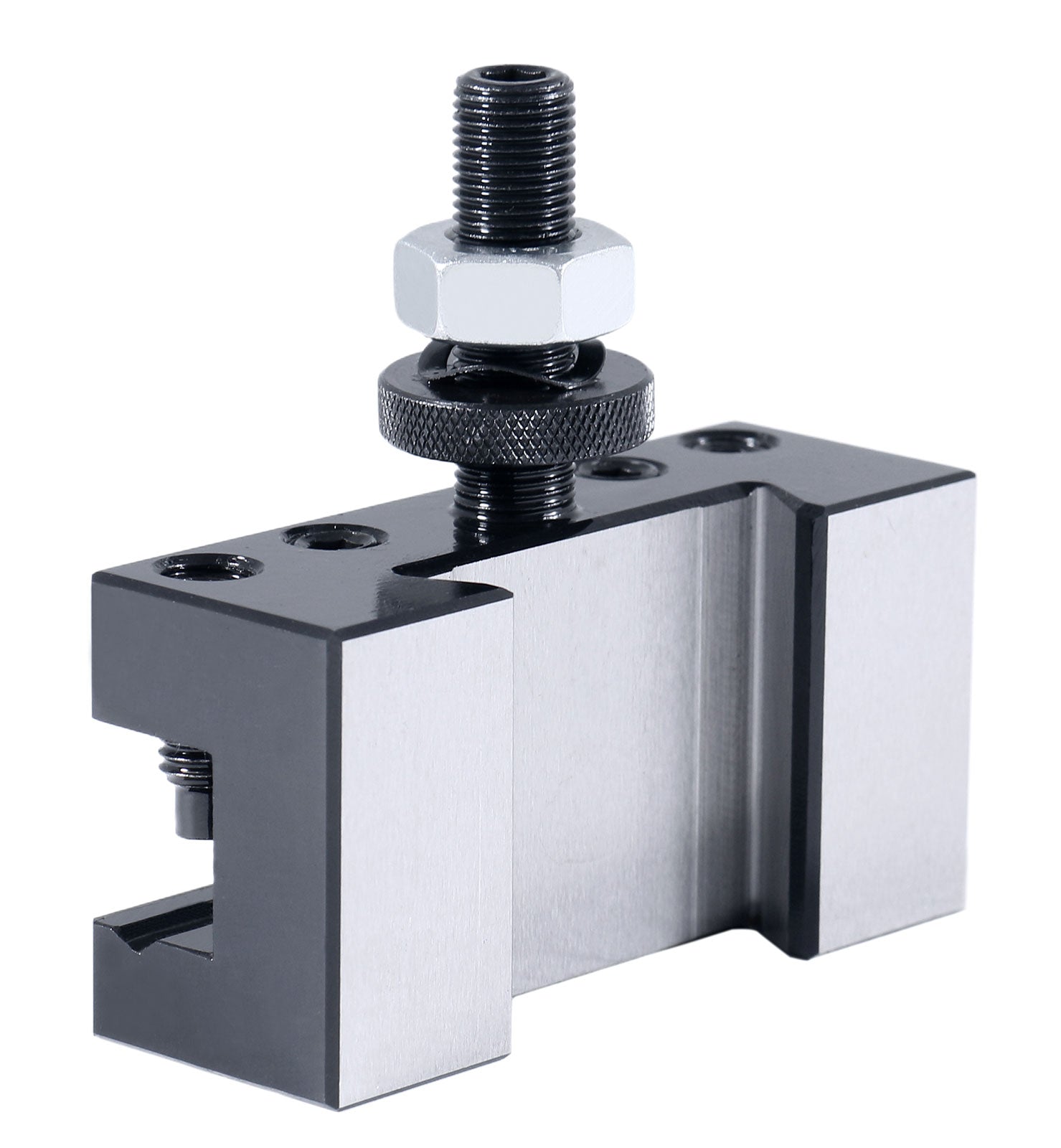

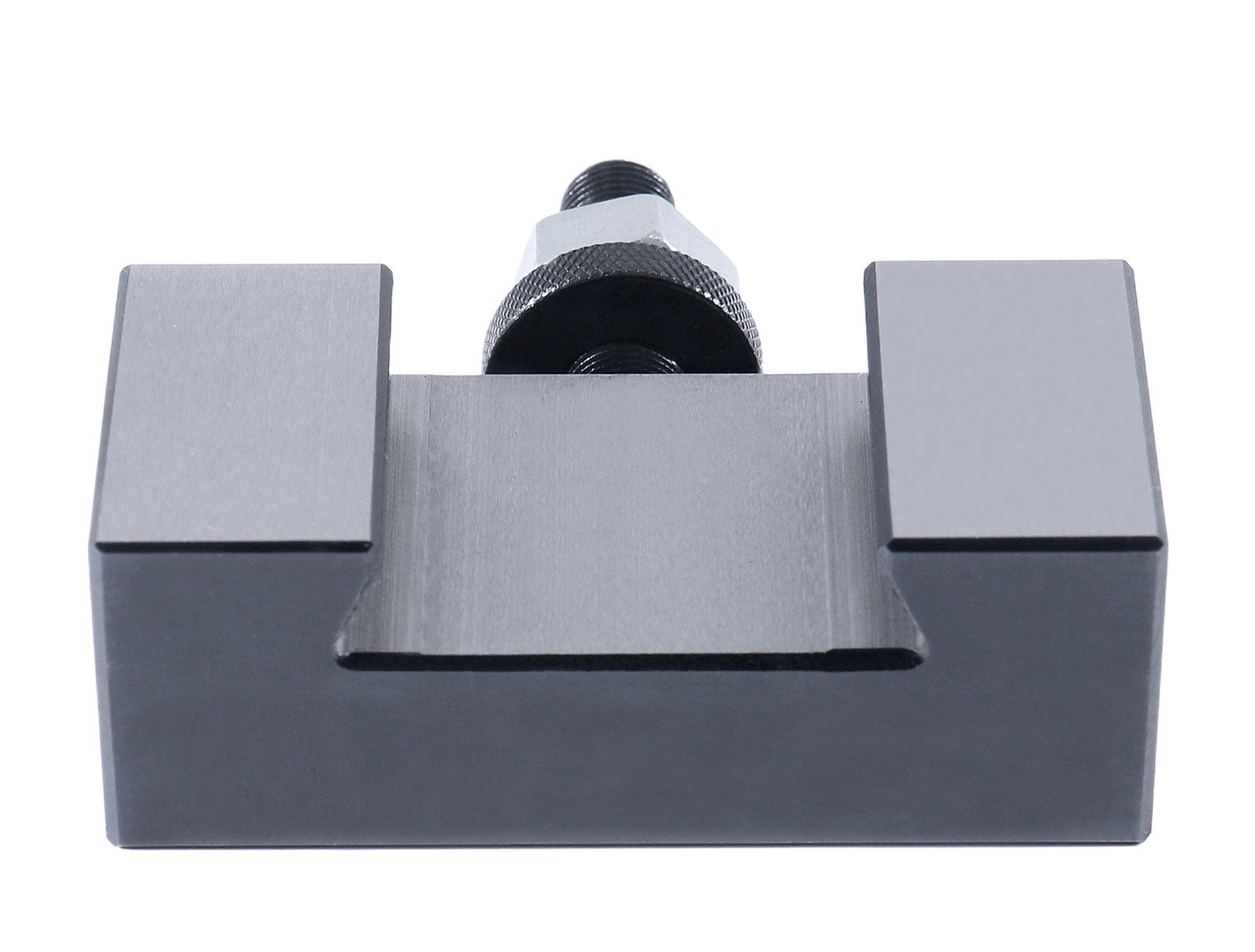

| 0250-0102T | AXA | 1-1/16" | 5/8" | 17/32" |
1-5/8" | 3/16"-5/8" | 7/16" | 1.691" | 1.250" | 0.382" |

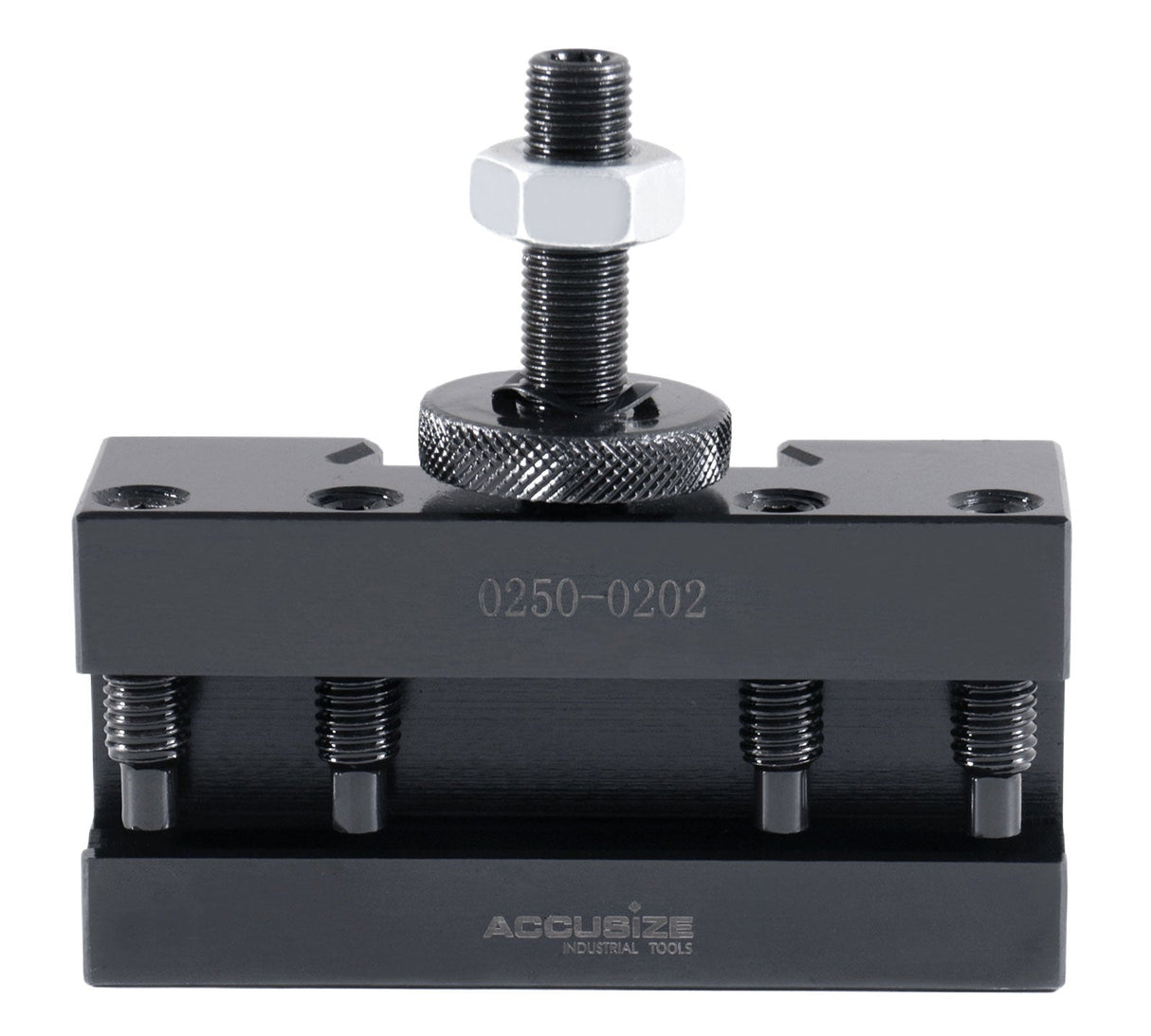

| 0250-0202 | BXA | 1-1/8" | 5/8" | 1/2" | 1-3/4" | 1/4"-5/8" | 1/2" | 1.761" | 1.265" | 0.409" |

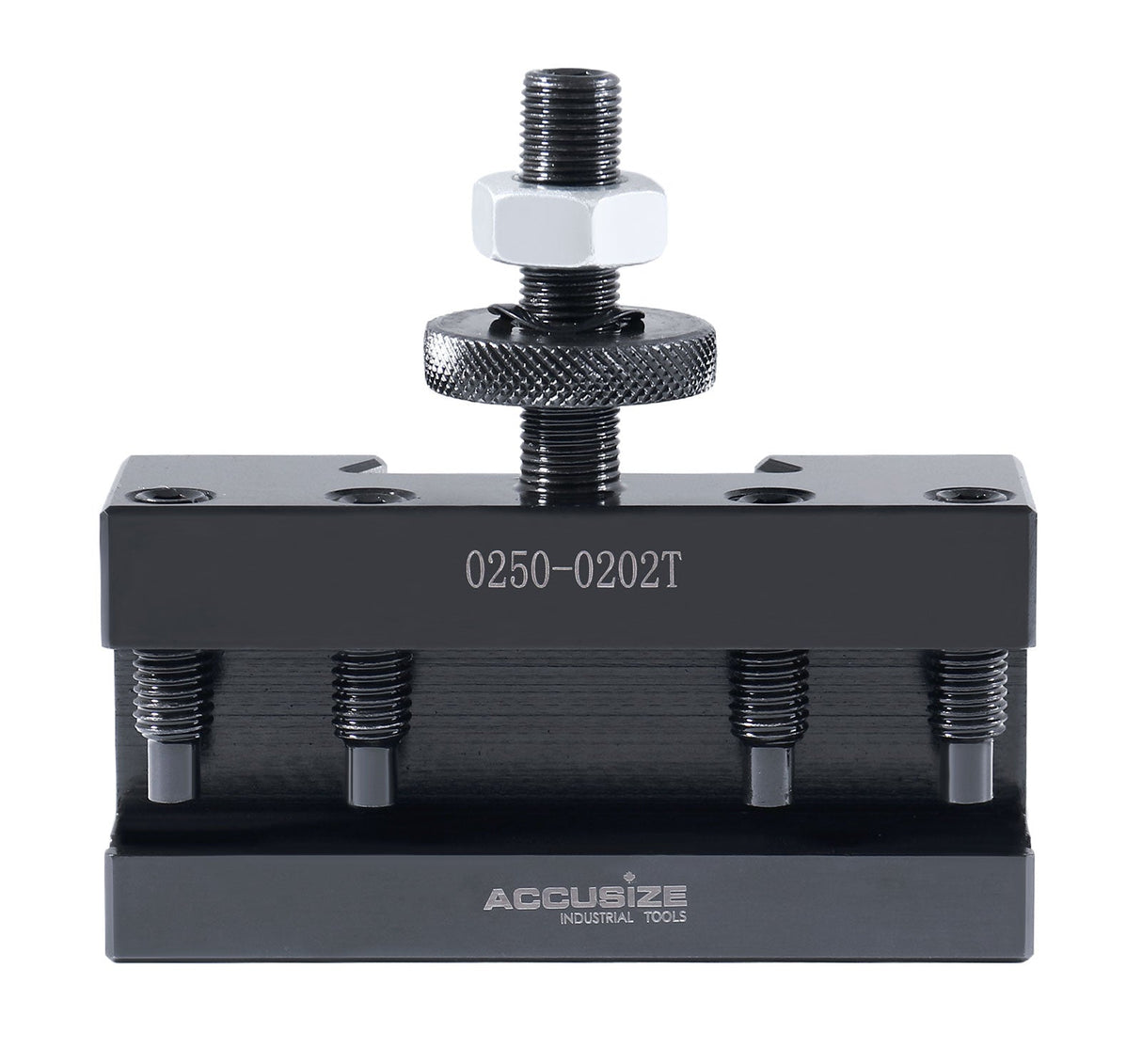

| 0250-0202T | BXA | 1-1/4" |
3/4" | 5/8" | 1-7/8" | 1/4"-3/4" | 1/2" | 1.761" | 1.265" | 0.409" |

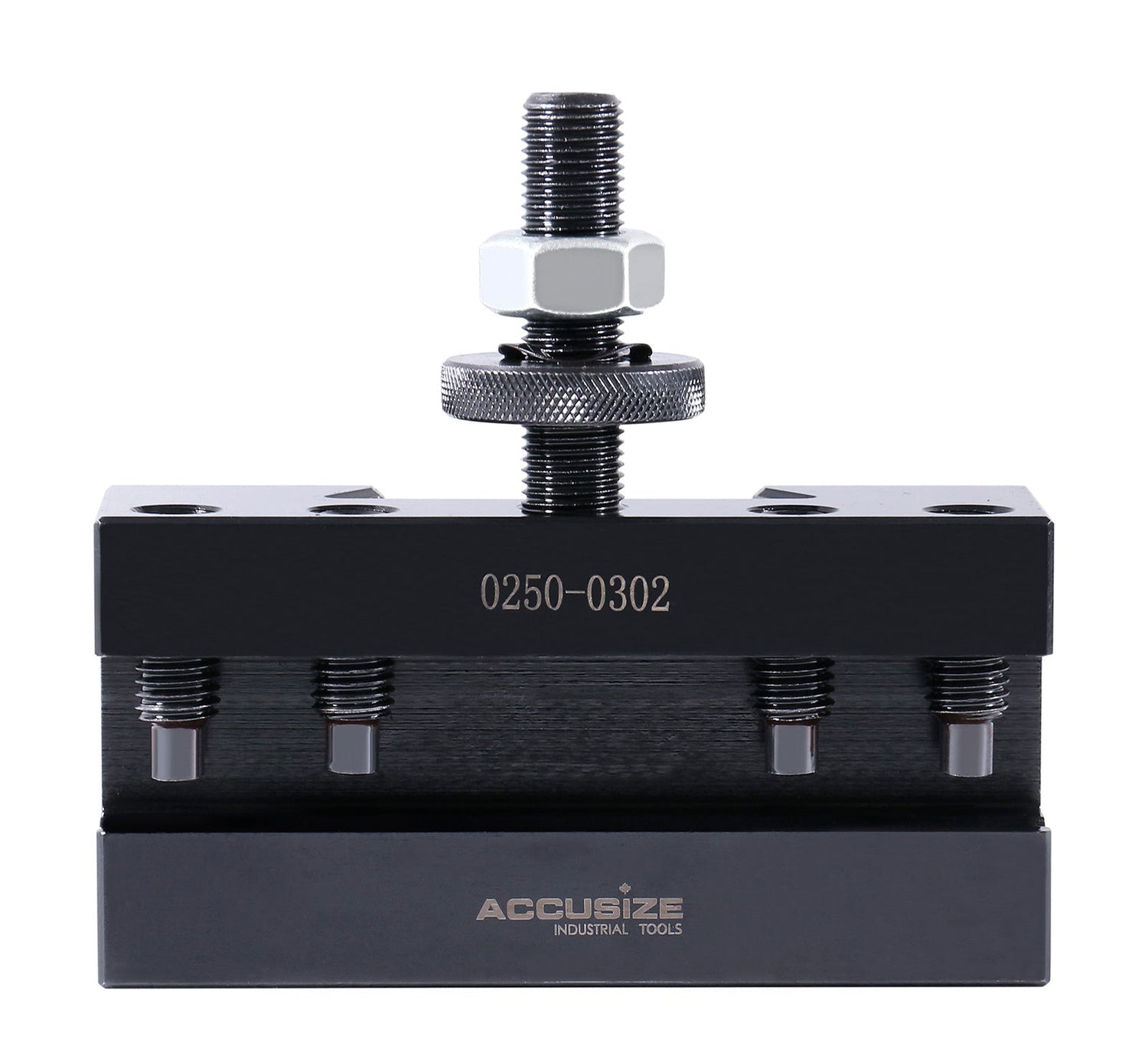

| 0250-0302 | CXA | 1-7/16" | 3/4" | 5/8" | 2-1/8" | 1/2"-3/4" | 3/4" | 2.208" | 1.567" | 0.555" |

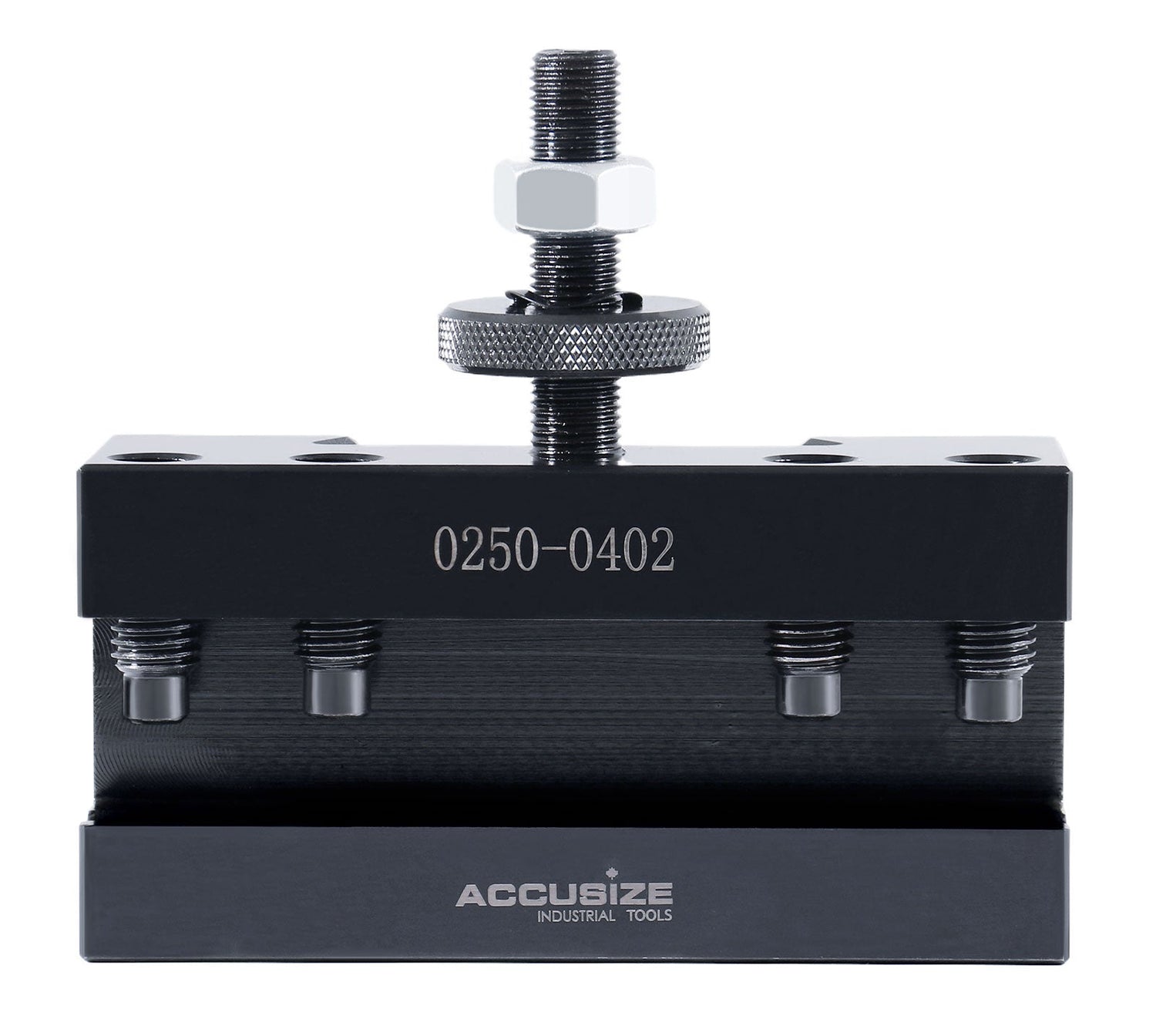

| 0250-0402 | CA | 1-11/16" | 1" | 3/4" | 2-1/2" | 1/2"-1" | 13/16" | 2.663" | 2.100" | 0.488" |
