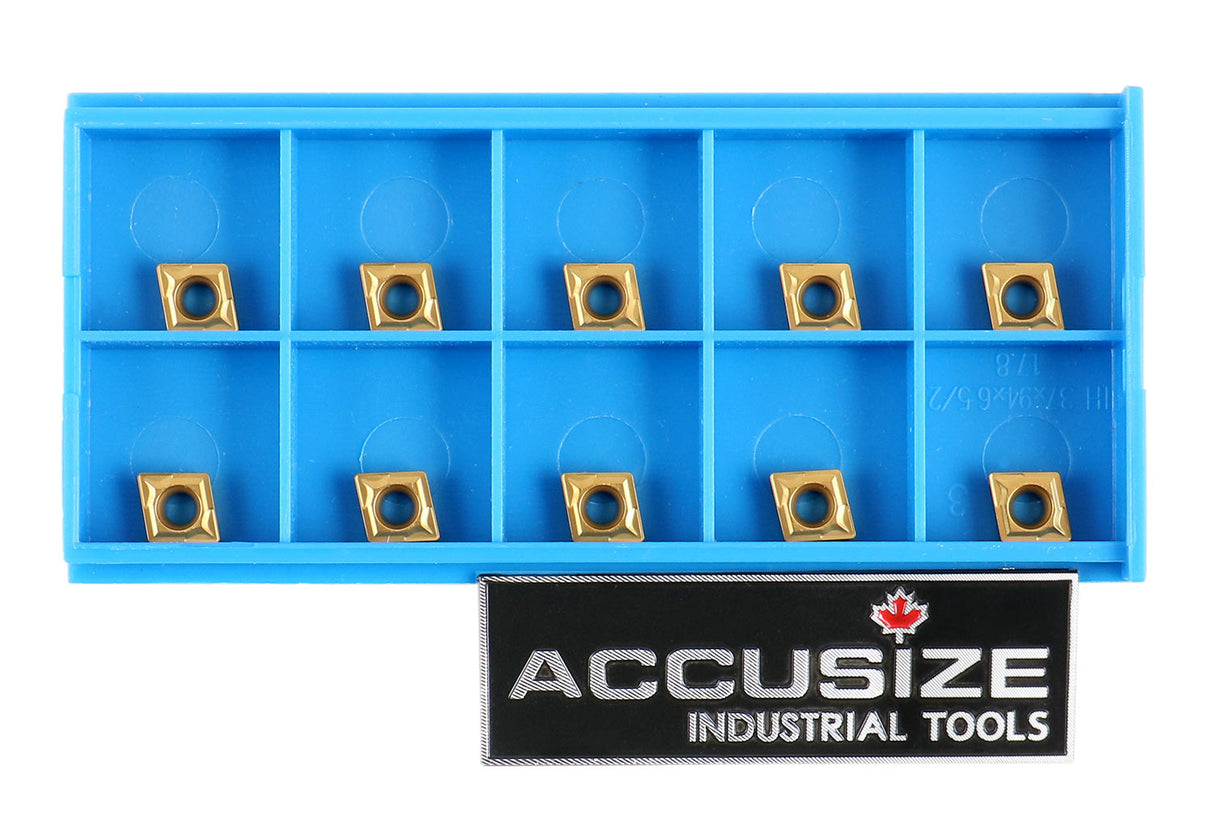

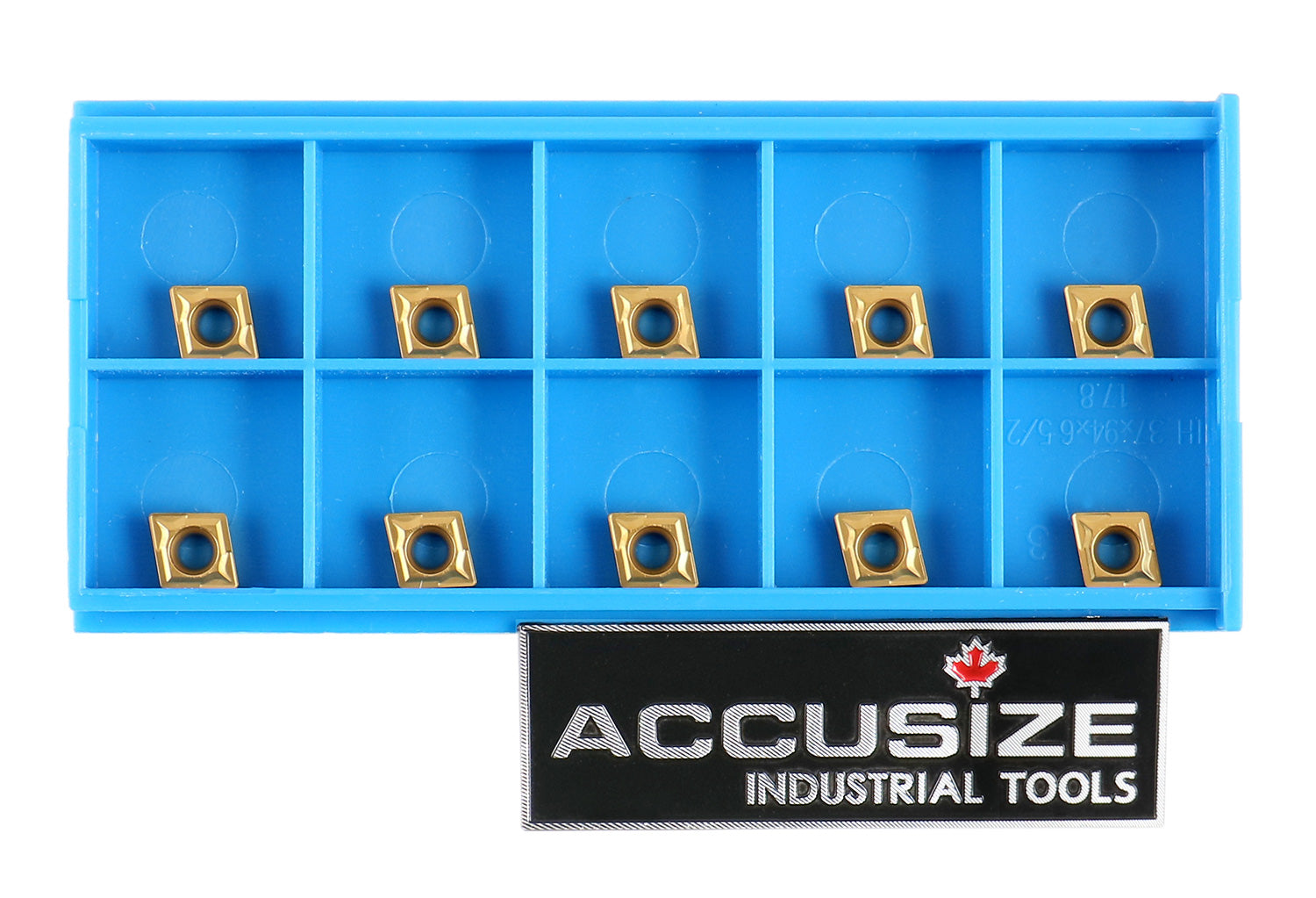

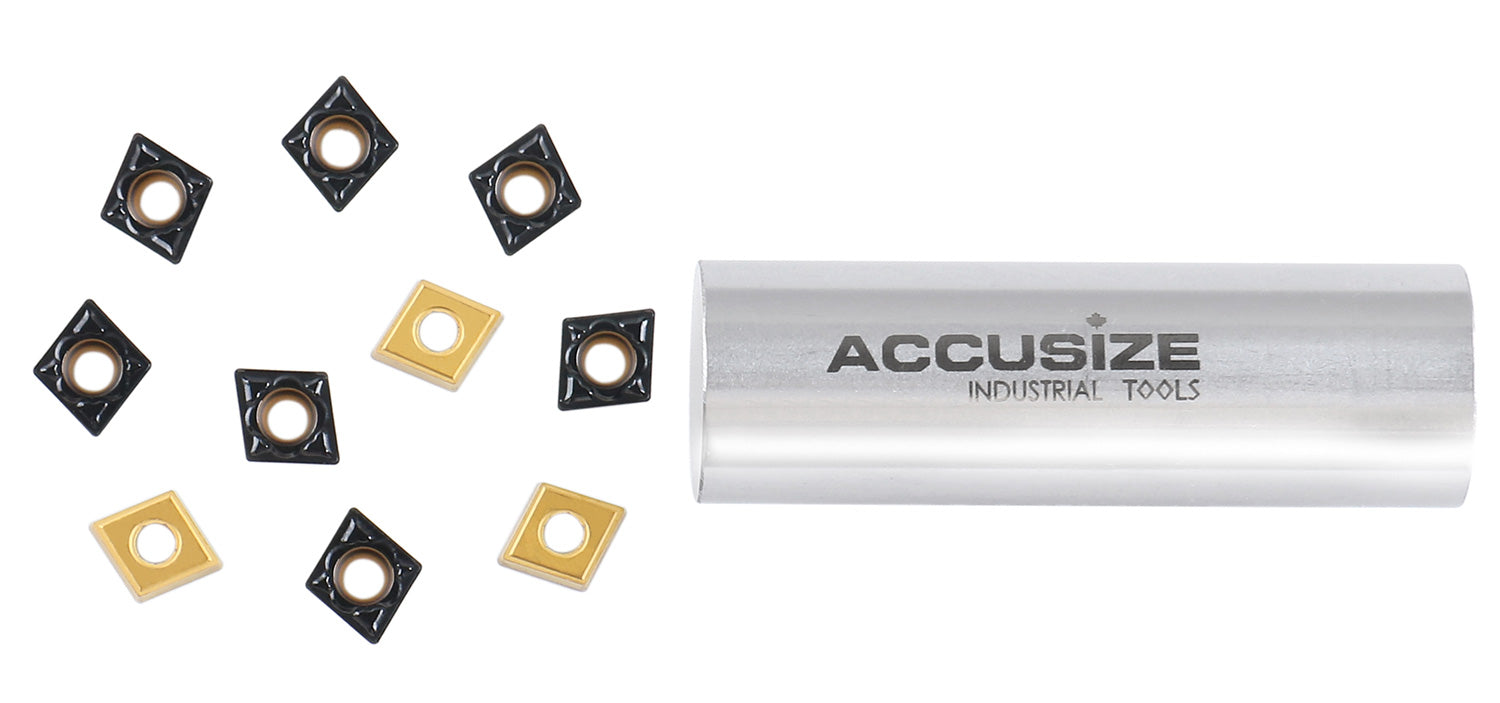

Carbide inserts, CVD Coating, CCMT, Black/Yellow, 10 ps/box
Regular price
From
$55.00 CAD
Unit price
/
Unavailable
Carbide Inserts, CVD Coating, CCMT, Black/Yellow, 10 ps/box
- Insert Style: CCMT
- 7 degree
- Insert Grade: BPS101
- Chip Breaker: MD
- Material: Carbide
- Coating: CVD Al2O3 TICN
- Machining Parts Material: Steel
- Machining Process: Finish
Product features
- BPS101 Black/Yellow Coating Grade
- CVD coated carbide grade, wear-resistance materials coated on the gradient sintered substrate which has both good hardness, toughness
- Can bear high temperatures
- For steel and steel castings finishing to roughing processing
- Continue cutting to light interrupted cutting
- Machining of gray and ductile iron at low to medium cutting speed
- For hard materials, continuous cutting and light interrupted cutting from finishing to roughing
- Wet and dry processing
- Combination of fibrous TICN and fine-grained Al2O3 increases abrasion resistance and anti-chipping
- Preferred choice chip breaker on General Purpose Finishing
Features of chipbreaker
- For medium-duty turning with broad capability for steel, stainless steel, grey, and nodular cast-iron
- Operations: turning, facing, and profiling
- Advantages: all-round, reliable with problem-free machining
- Limitations: depth of cut and feed, risk of overloading the cutting edge
- Components typically: axles, shafts, hubs, gears, etc.
| Item # | Product # | Coating | ANSI # | I.S.O. # | I.C | Thickness | Hole | Radius |
| 6200-1008 |

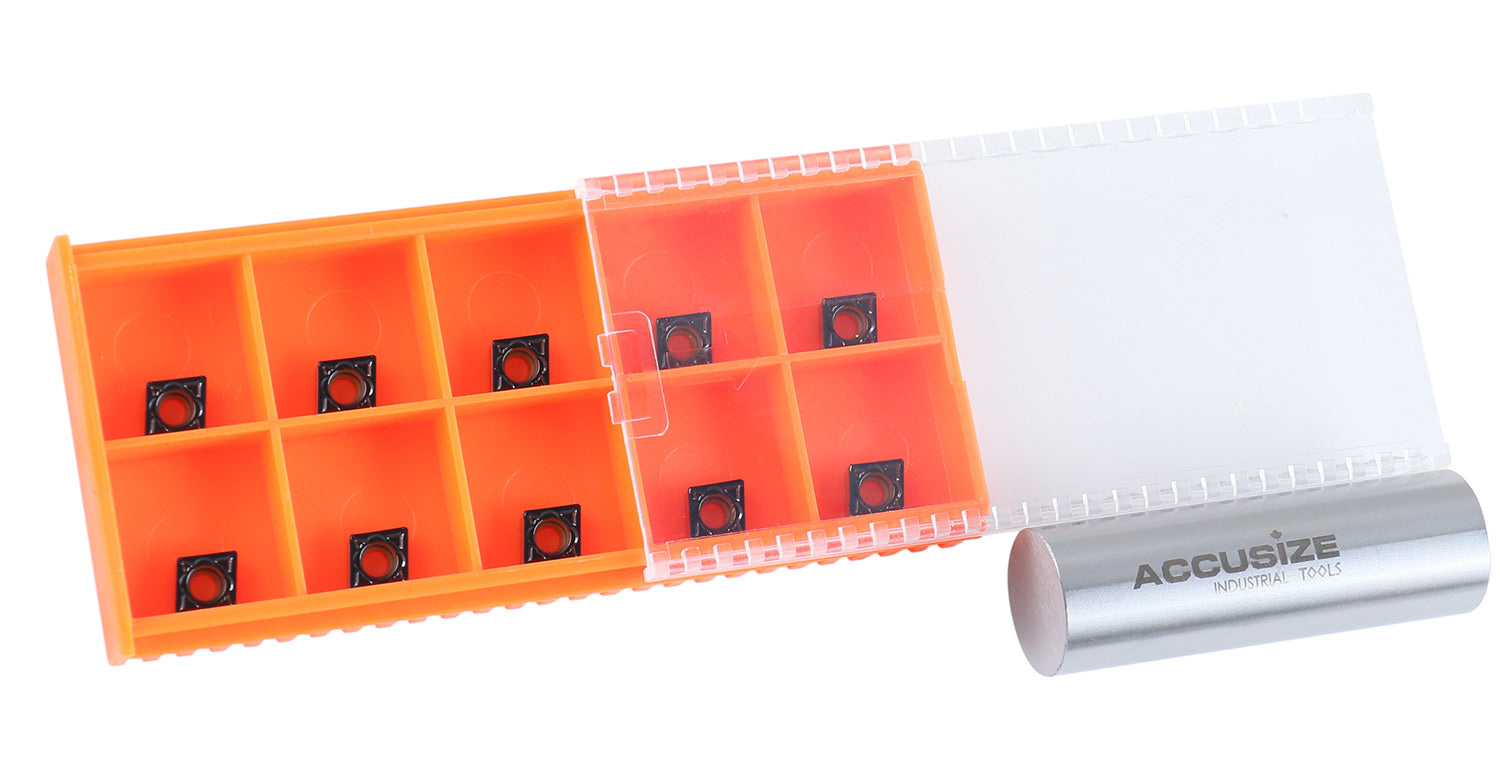

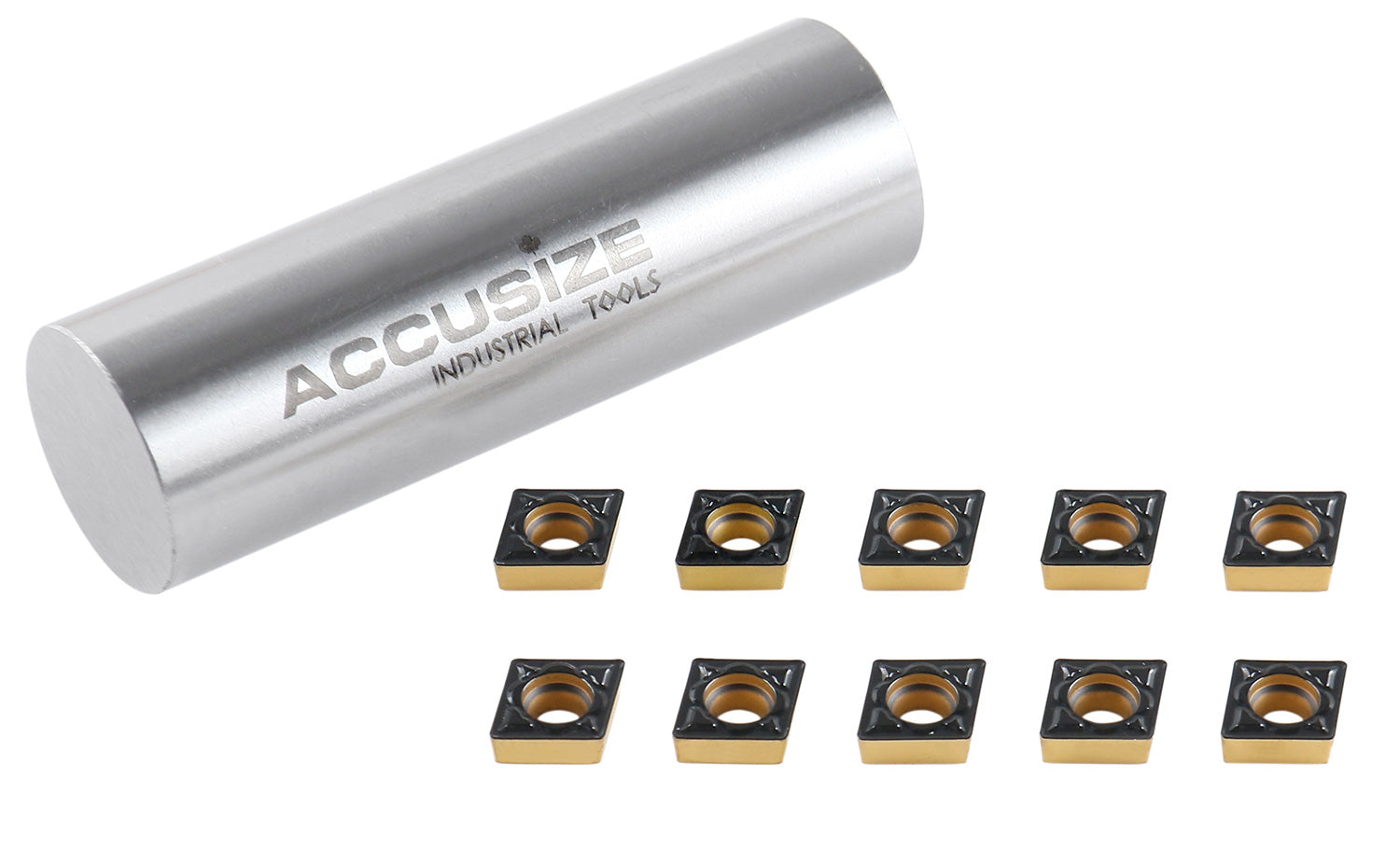

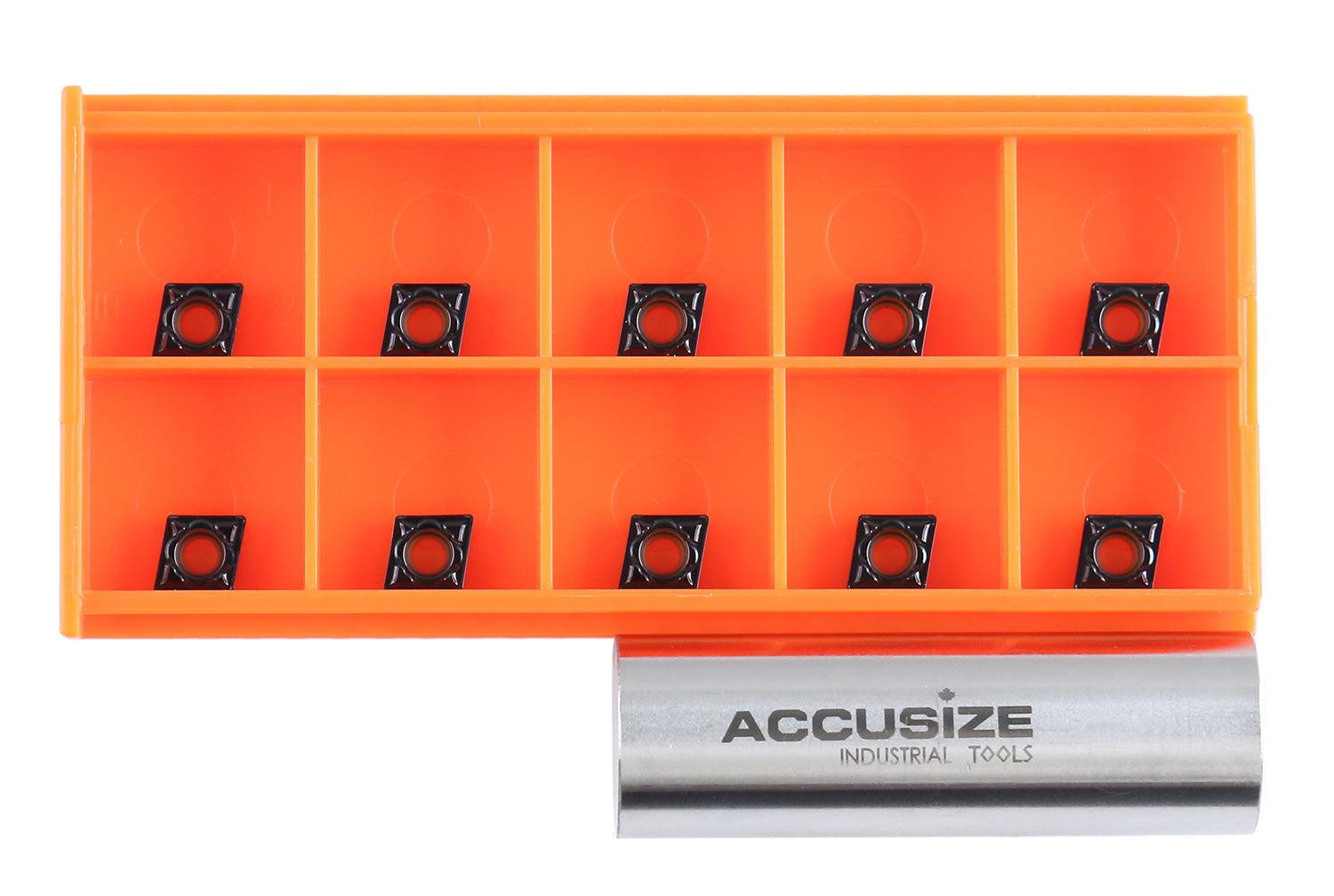

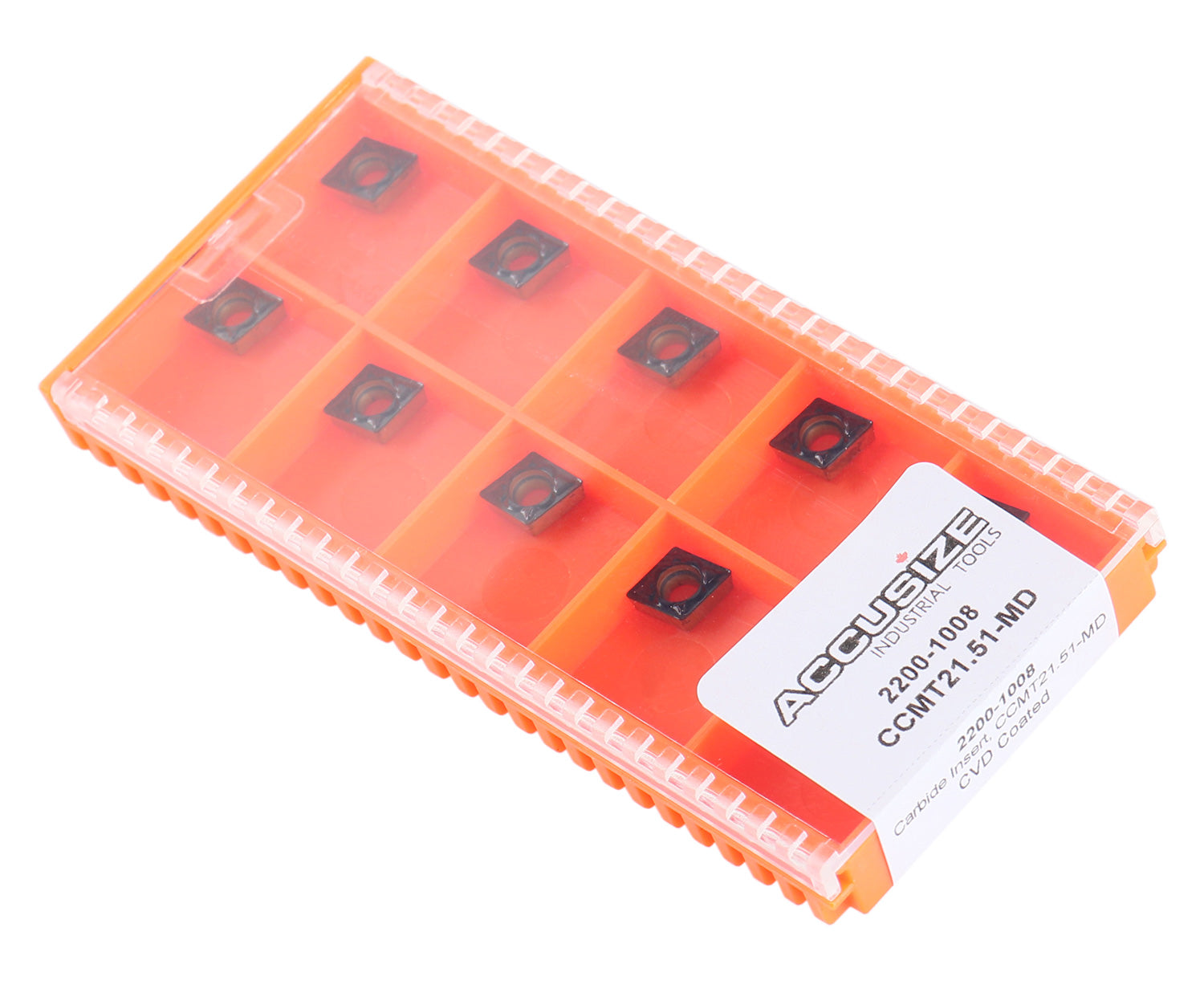

2200-1008 | CVD | CCMT21.51-MD | CCMT060204-MD | 1/4" | 3/32" | 0.110" | 1/64" |
| 6100-1008 |
2100-1008 | TiN | CCMT21.51 | CCMT060204 | 1/4" | 3/32" | 0.110" | 1/64" |
| 6200-1014 |

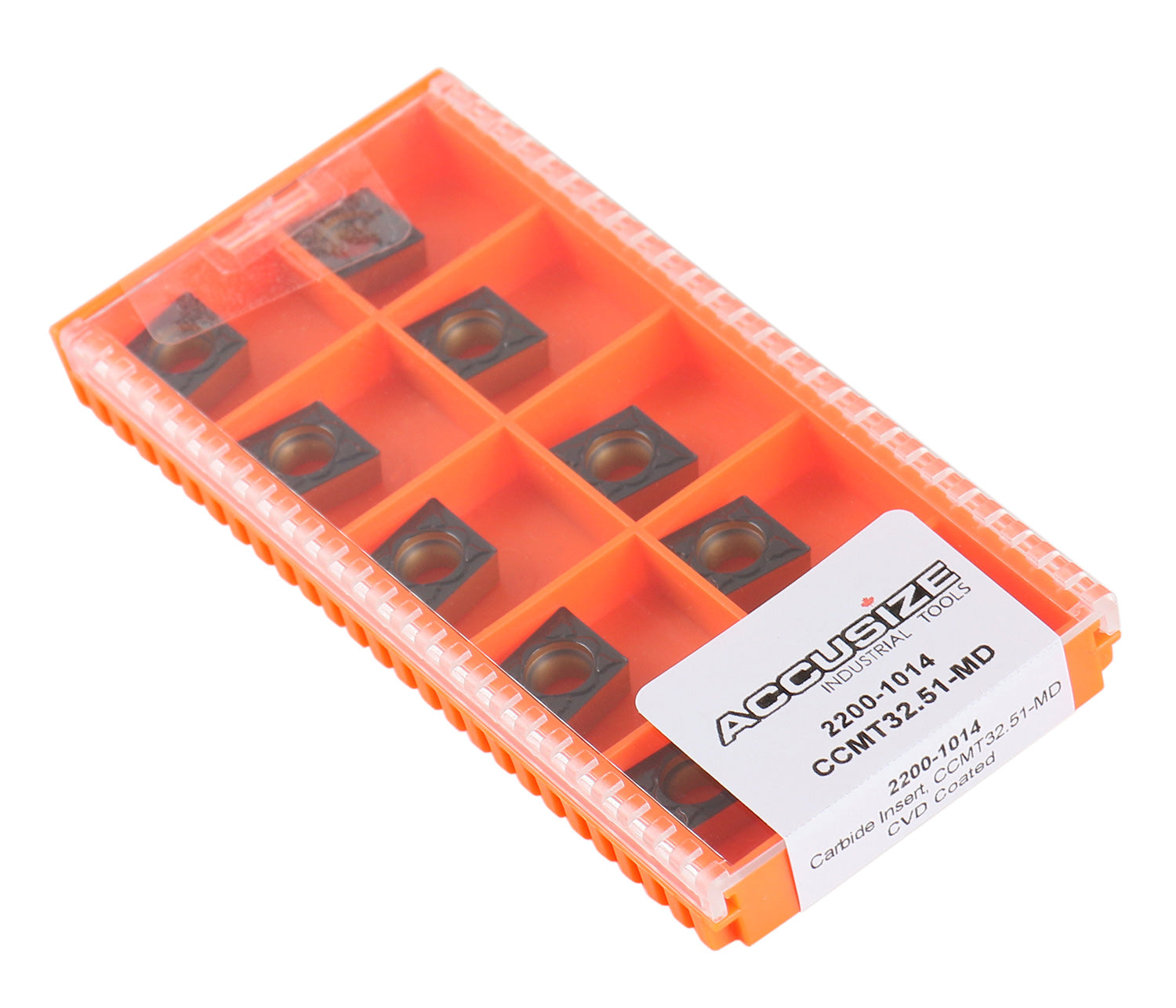

2200-1014 | CVD | CCMT32.51-MD | CCMT09T304-MD | 3/8" | 5/32" | 0.173" | 1/64" |
| 6200-1016 |
2200-1016 | CVD | CCMT32.52-MD | CCMT09T308-MD | 3/8" | 5/32" | 0.173" | 1/32" |
| 6200-1020 |
2200-1020 | CVD | CCMT432-MD | CCMT120408-MD | 1/2" | 3/16" | 0.216" | 1/32" |
Recommended Cutting Parameter
| Item # / Product # |
Depth of Cut ap |
Feed Speed fn=inch/r |
Cutting Speed Vc(ft/min) |
| 6200-1008 / 2200-1008 | |||
| 6200-1014 / 2200-1014 | 0.014-0.098 inch | .004-0.012 ipr | 393-1181 sfm |
| 6200-1016 / 2200-1016 | |||
| 6200-1020 / 2200-1020 |
