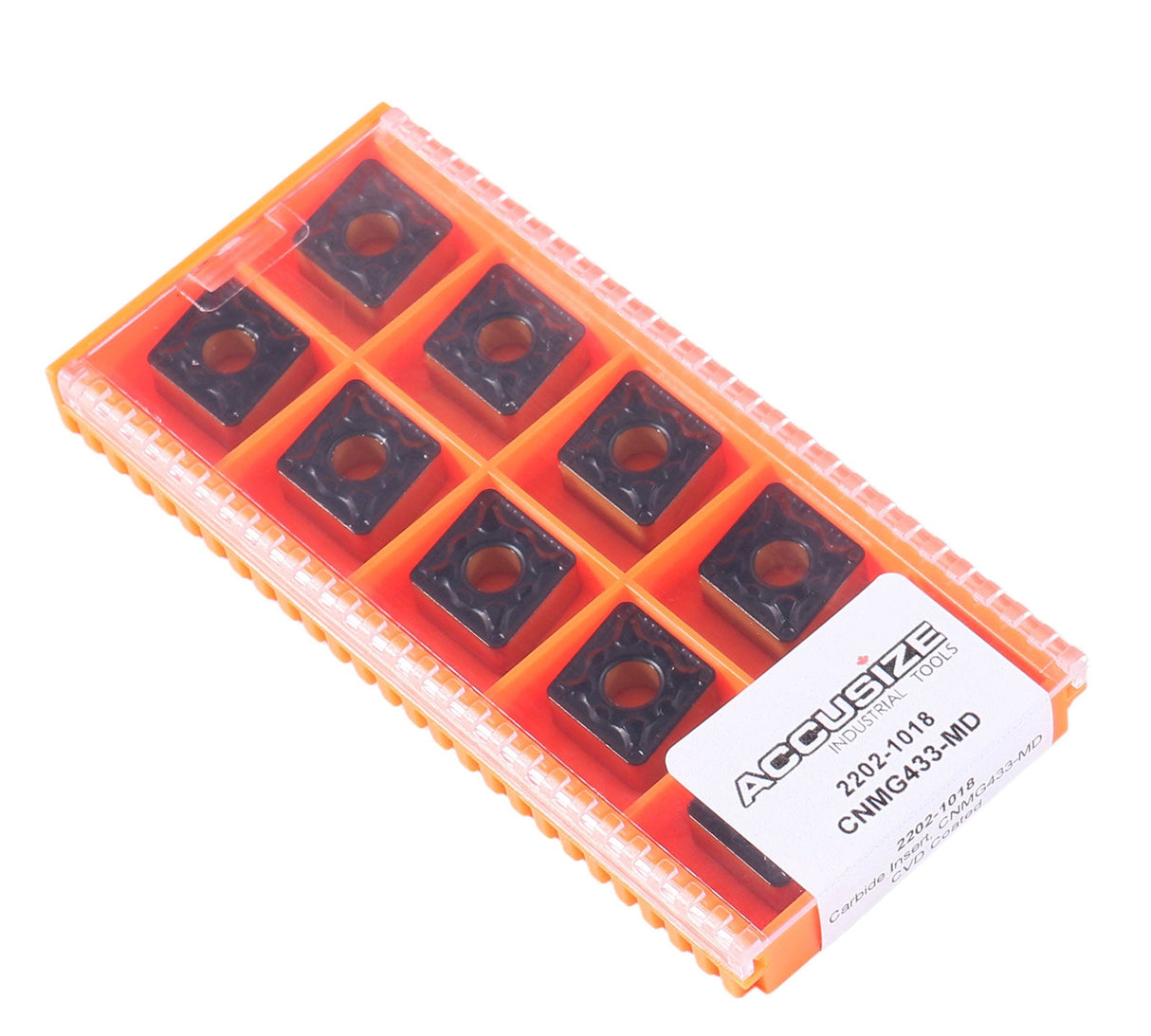

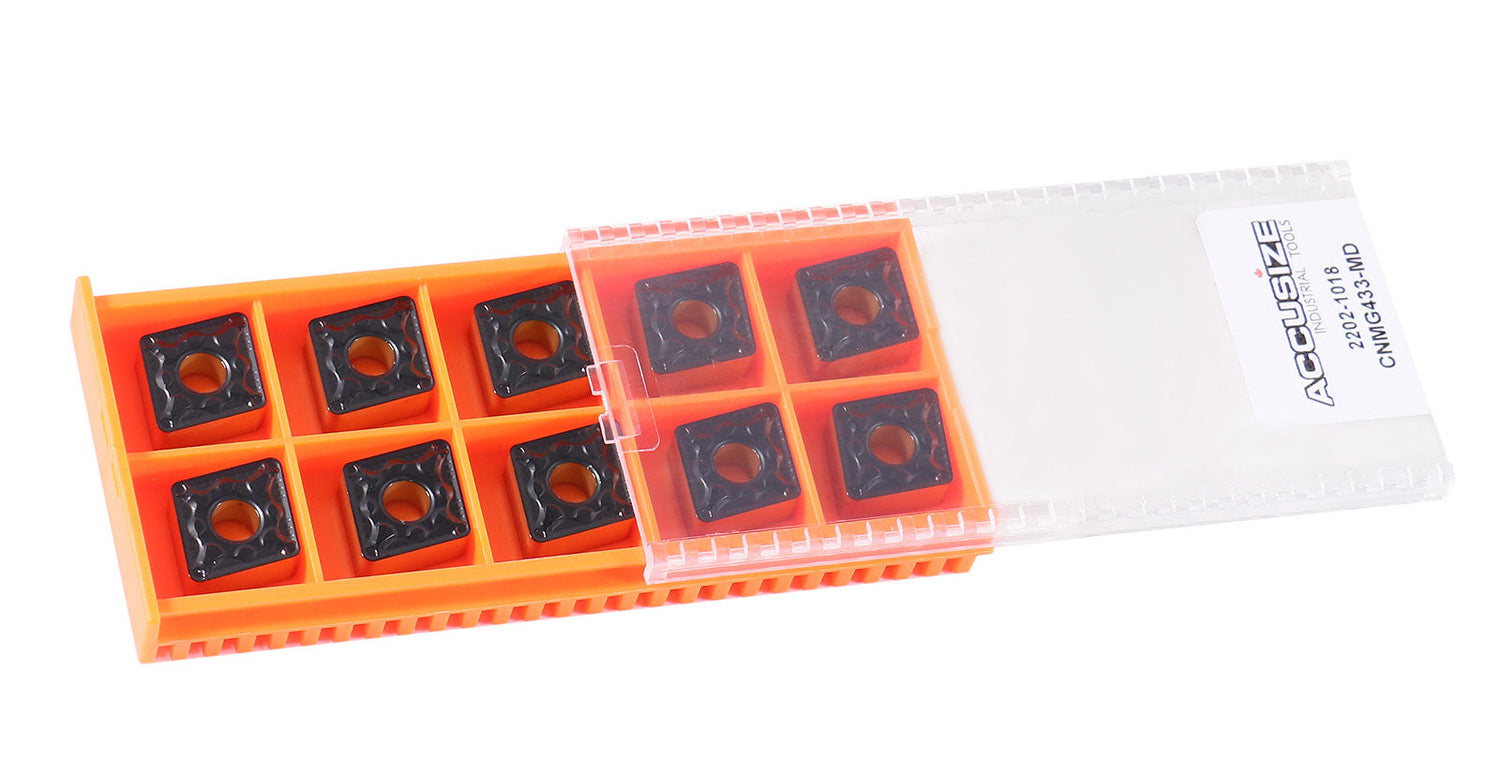

Carbide inserts, CVD Coating, CNMG, Black/Yellow, 10 ps/box

Carbide inserts, CVD Coating, CNMG, Black/Yellow, 10 ps/box

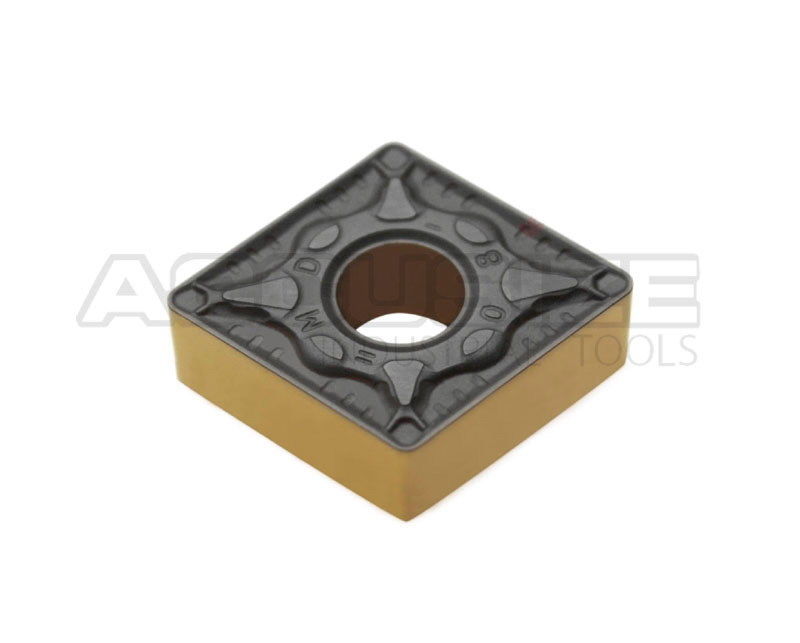

CNMG inserts are diamond and trapezoidal carbide inserts. When a cutting edge of the CNMG turning / boring insert becomes dull, you just need to rotate the insert in the holder to use the sharp edge.  The CVD coating enables the inserts to have a much longer tool life than uncoated inserts.

• ANSI #: CNMG432
• ISO #: CNMG120408
• Insert Style: CNMG
• Insert Size: 43
• For Turning & Boring
• IC: 1/2"
• Thickness: 3/16"
• Radius: 1/32
• Insert Grade: BPS101
• Chip Breaker: MD
• Material: Carbide
• Coating: CVD Al2O3 TICN
• Machining Parts Material: Steel
• Machining Process: finish

Product features

• BPS101 Black/Yellow Coating Grade
• CVD coated carbide grade, wear-resistance materials coated on the gradient sintered substrate which has both good hardness, toughness
• Can bear high temperatures
• For steel and steel castings finishing to roughing processing
• Continue cutting to light interrupted cutting
• Machining of gray and ductile iron at low to medium cutting speed
• For hard materials continuous cutting and light interrupted cutting from finishing to roughing
• Wet and dry processing
• Combination of fibrous TICN and fine grained Al2O3 increases abrasion resistance and anti-chipping
• Preferred choice chip breaker on General Purpose Finishing

Features of chipbreaker

• For medium-duty turning
• With broad capability for steel, stainless steel, grey and nodular cast-iron
• Operations: turning, facing and profiling
• Advantages: all-round, reliable with problem-free machining
• Limitations: depth of cut and feed, risk of overloading the cutting edge
• Components typically: axles, shafts, hubs, gears, etc
