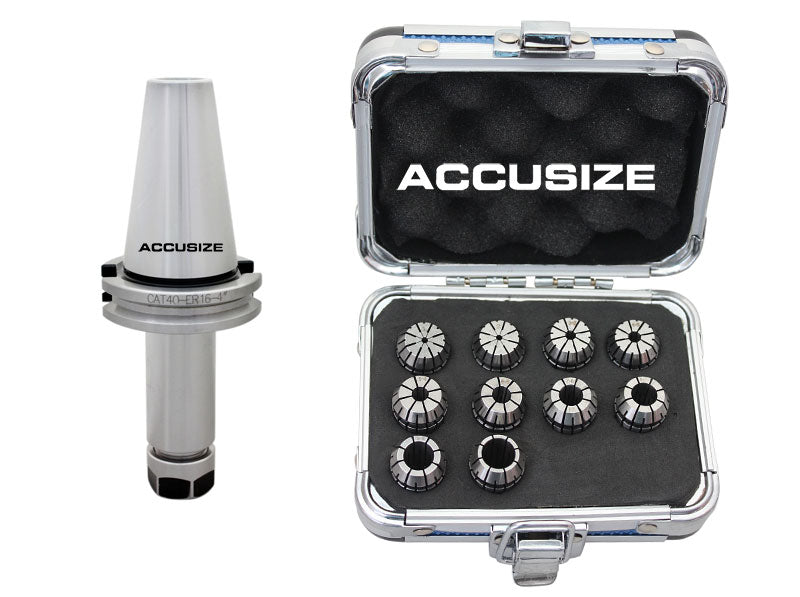

CAT40-ER16 4" Collet Chuck & ER16 10ps/set Metric Collet Set, Range: 1.0- 10.0mm

Metric ER Collet 1 mm to 10 mm by 1 mm ER-16 Collet 10 Pcs/Set in Fitted Strong Aluminium Box, #3350-0582

• Size from 1mm to 10mm by 1 mm
• Total 10 ps/set
• Features:
  • Range of 0.039''
  • Made from alloy spring steel and hardened to HRC 44-48
  • All collets are checked its runout individually on 4 points on a testing rod
  • For size 3.0mm and larger the runout is 0.0003'' (0.008mm)
• Under size 3.0mm the runout is 0.00059'' (0.015mm)
• In fitted strong Aluminium Box

CAT40 ER16 V-Flange Collet Chuck Projection Length 4'', Range 1/8''-7/16'', #1601-0010

• For ER16 Collet
• Made of alloy forged steel, hardened to HRC 52-56
• Draw Bar Thread 5/8-11
• Taper: CAT40; Collet Series: ER16; Projection Length: 4''; Range: 1/8''-7/16''
• All critical surface are precision ground
• Concentricity is less than 0.0001'' from taper to end mill pocket
• Packed in Fitted Box
• 8000 RPM
