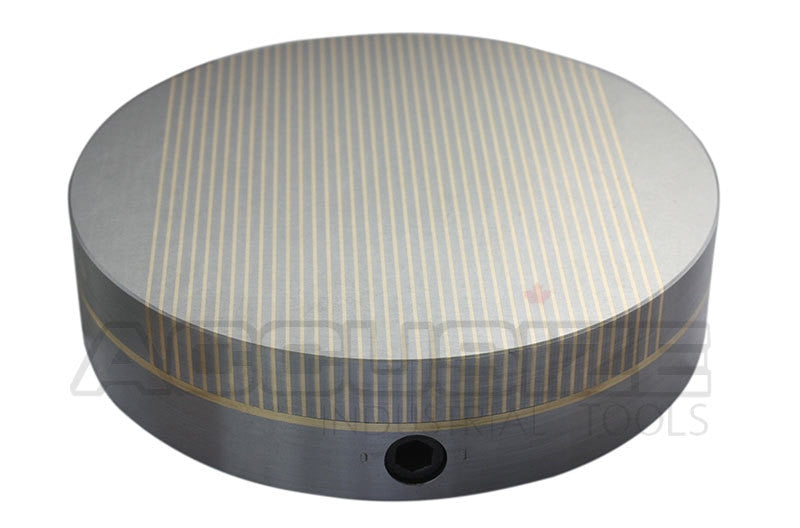

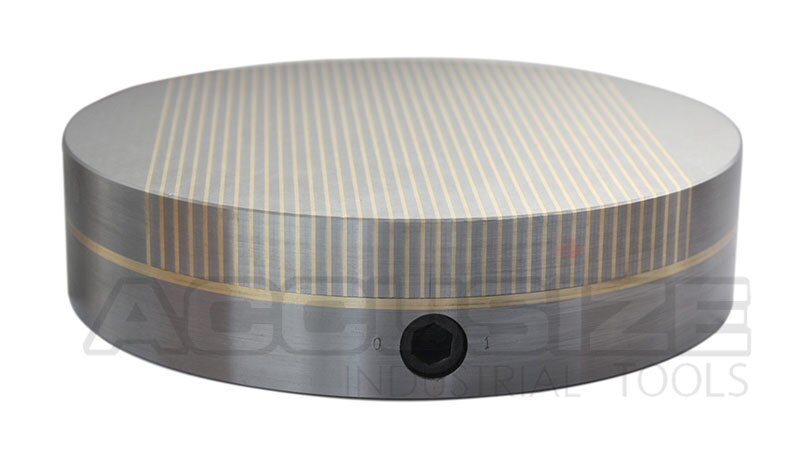

Circular Permanent Magnetic Chucks
From
$560.00 CAD
Unit price
/
Unavailable
Circular Permanent Magnetic Chucks
- The round fine pitch permanent magnet chuck is suitable for grinder and lathe, clamping of small and thin to the medium-sized workpiece.
- High holding power: max 140lbs/sq.in.
- Steel pole spacing: 1/16", brass pole spacing: 1/32"
| Item | D | H | K | C | E | Z-M | Weight |
| 1151-1150 | 6.299" | 1.929" | 0.079" | 4.921" | 5.512" | 4xM8 | 6.5kg |
| 1151-2200 | 7.874" | 2.008" | 0.079" | 6.299" | 7.087" | 4xM8 | 10kg |
*Kindly note that the actual Dia. of #1151-1150 is 6.3'' / 160mm; The actual Dia. of #1151-2200 is 7.874'' / 200.00 mm
