SKU: JD21-0001

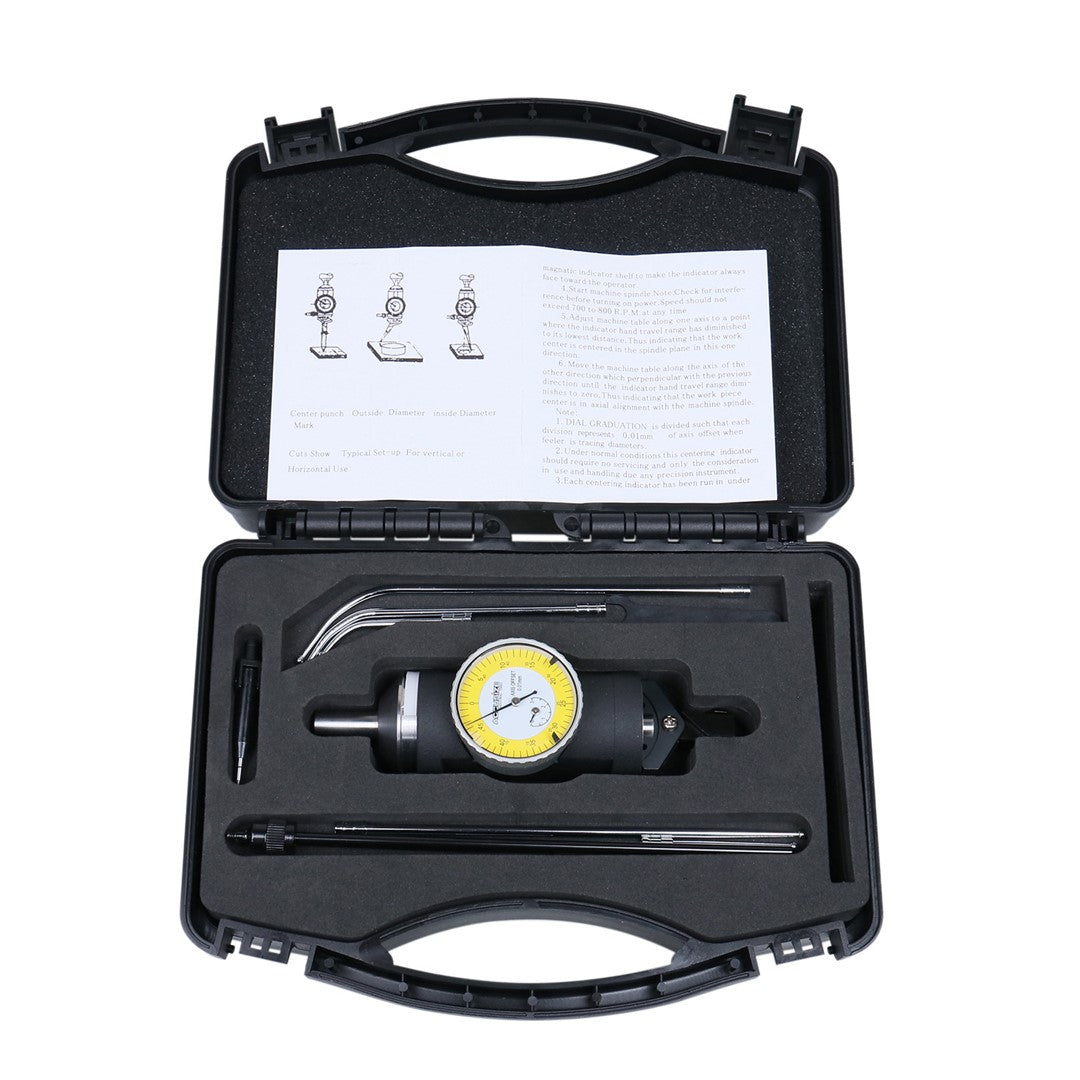

CO-AX Indicators, White and Yellow Face, mm and inch

$198.00 CAD
Description

Co-Ax Indicator X 0.0005" Graduation

    • Measuring Range: 0 ~ 4-1/4"
    • External Capacity Diameter: 0" to 4-1/4"
    • Accuracy: 0.0002"
Item Range of Per Rev. Length of Straight Feeler Length of Center Point Feeler Length of Curved Feeler Face Type Description

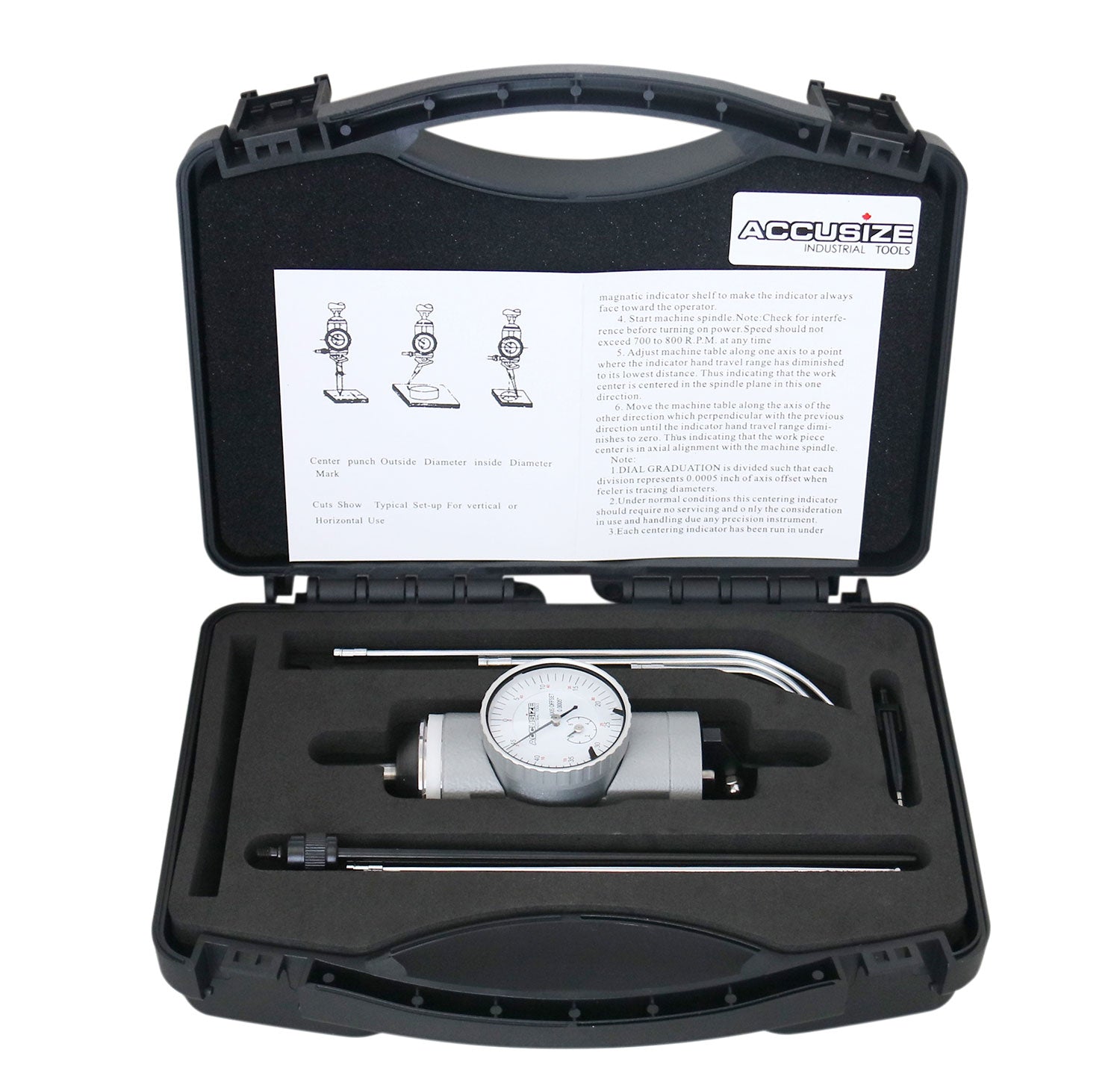

JD21-0001 0-0.12" 1.77", 4", 6.06" 2.07" 1.81", 4", 6.06" White
  • Restraining Rod
  • Centerpoint feeler
  • The Centering Indicator provides a simplified method for centering a workpiece or fixture on horizontal or vertical machines, external or internal diameters
  • Indicator dial remains stationary while the machine spindle rotates
  • Operates at any angle from horizontal to vertical without any change and from internal to external by simply changing the feeler
  • No walking around the machine necessary, no mirrors required, no contortions. Exact chucking not needed
  • All points and feelers included
  • Length of straight feeler: 1.77'', 4'', 6.06''
  • Length of center point feeler: 2.07''
  • Length of curved feeler: 1.81'', 4'', 6.06''
  • Mounting Shank: 3/8''
JD21-0002 0-3 mm 45, 100, 154mm 52.5mm 46, 100, 154mm Yellow
  • With Yellow Dial
  • Convenient tool to find and set up the position of a workpiece on vertical and horizontal machines. It can also be used to determine the position of a workpiece when the spindle is rotated by hand or automatic. Easy read-out from stationary dial indicator. The instrument with compact dimensions.
  • Scale read-out per rotation: 0-3 mm.
  • Graduation: 0.01 mm
  • Max range of use: 300 mm.
  • Centering inside and outside with various probes.

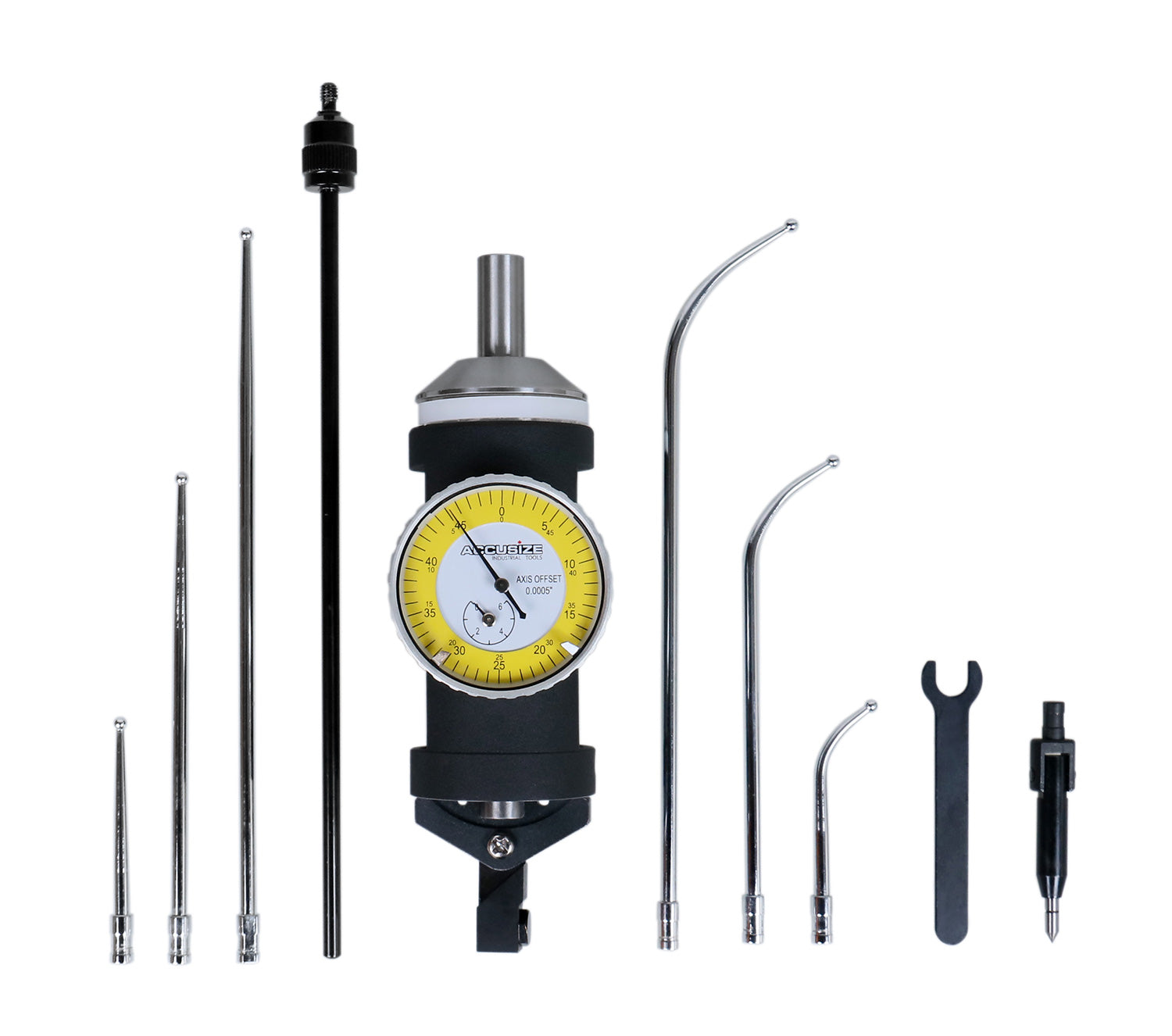

  • 3 straight and 3 banded probes included.
  • Center feeler included.
  • Spindle rotating speed max. 800 rpm.
  • Compact dimensions.
  • For horizontal and vertical use suitable.
  • Stem: φ10 mm.

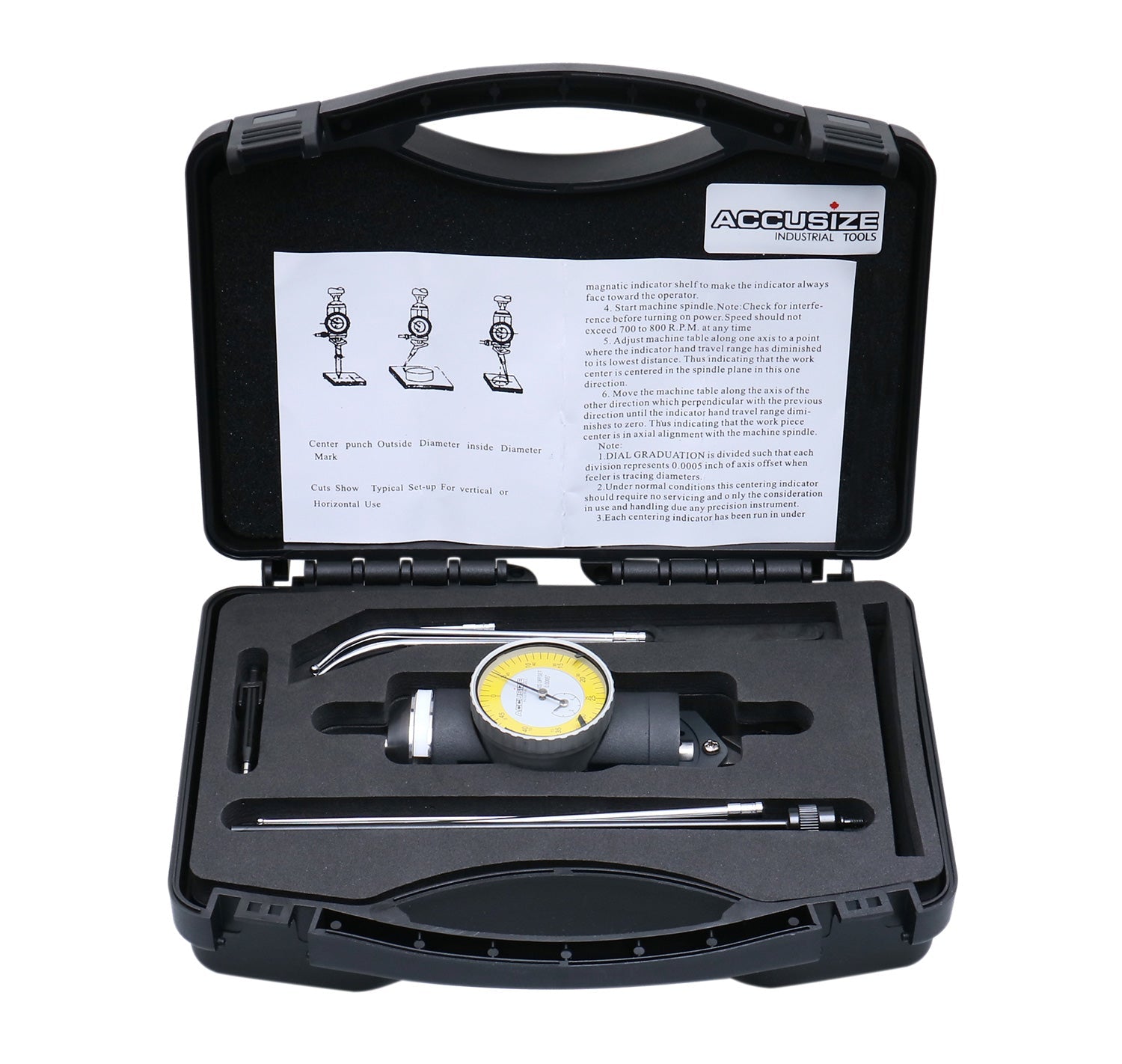

  • Delivery in a case.

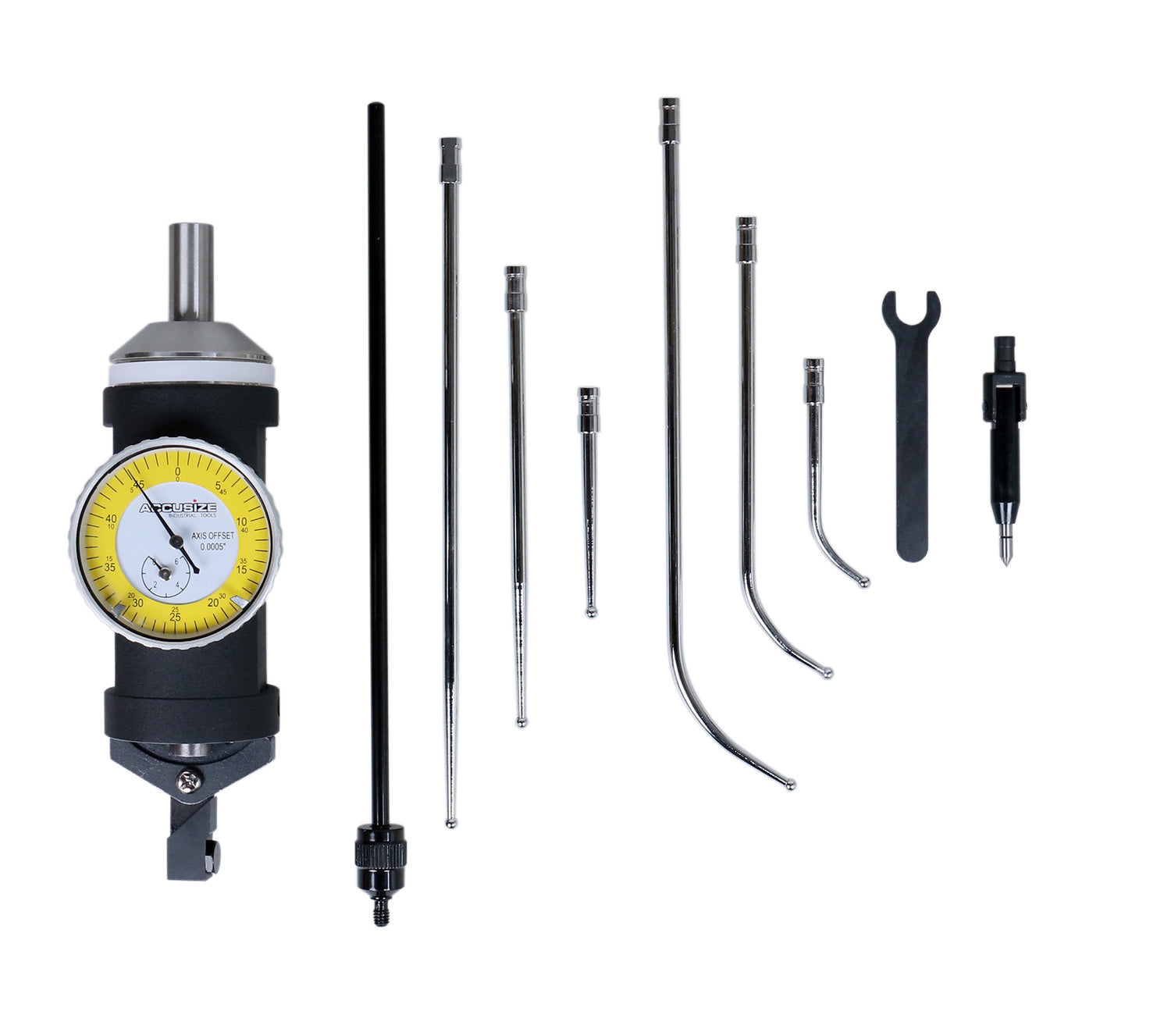

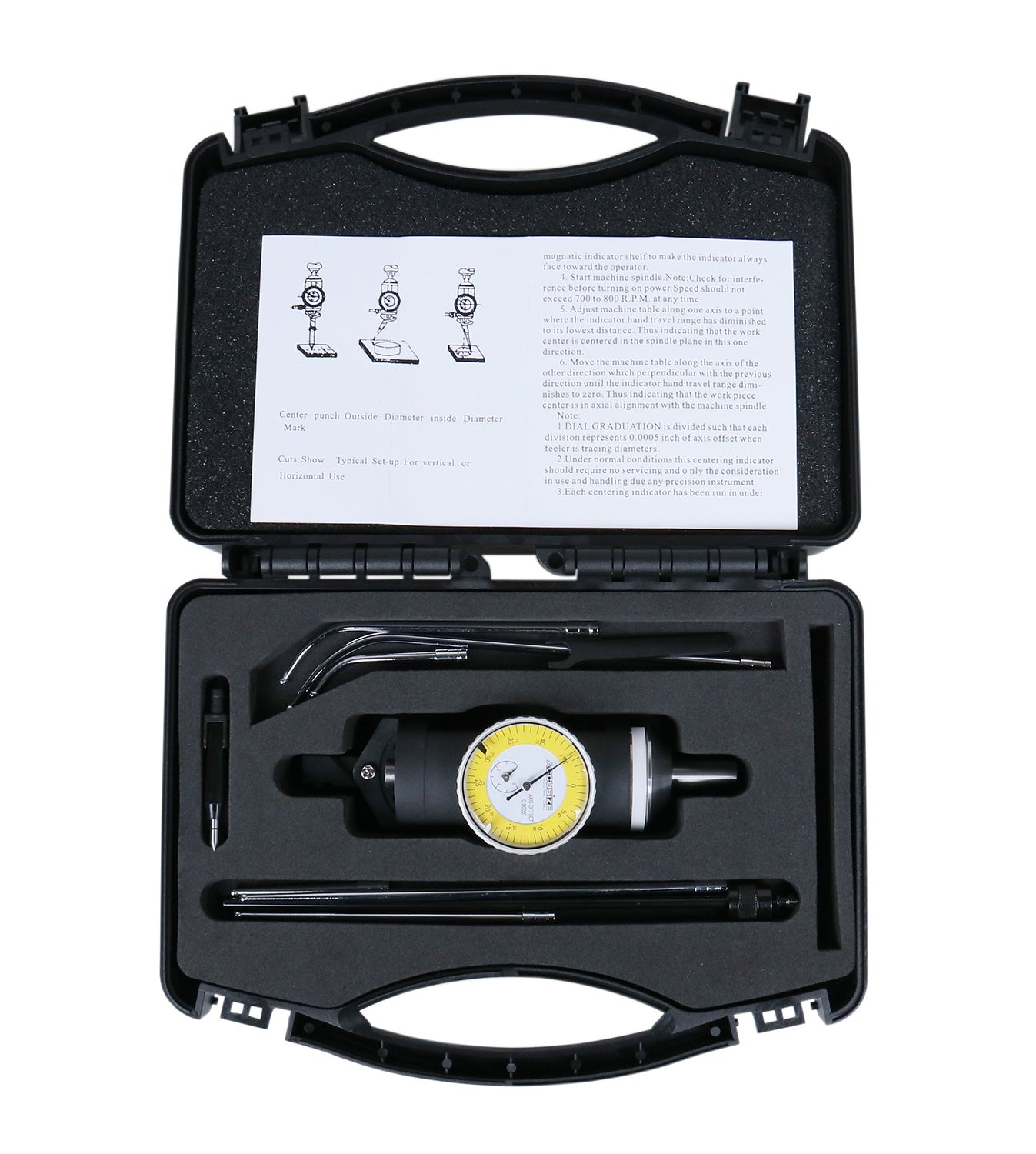

JD21-0003 0-0.12" 1.77", 4", 6.06" 2.07" 1.81", 4", 6.06" Yellow
  • Restraining Rod
  • Centerpoint feeler
  • The Centering Indicator provides a simplified method for centering a workpiece or fixture on horizontal or vertical machines, external or internal diameters
  • Indicator dial remains stationary while the machine spindle rotates
  • Operates at any angle from horizontal to vertical without any change, and from internal to external by simply changing the feeler
  • No walking around the machine necessary, no mirrors required, no contortions. Exact chucking not needed
  • All points and feelers included Free
  • Length of straight feeler: 1.77'', 4'', 6.06''
  • Length of center point feeler: 2.07''
  • Length of curved feeler: 1.81'', 4'', 6.06''
  • Yellow Dial Face
  • Fitted nice wooden box

  • Fast delivery Canada-wide
