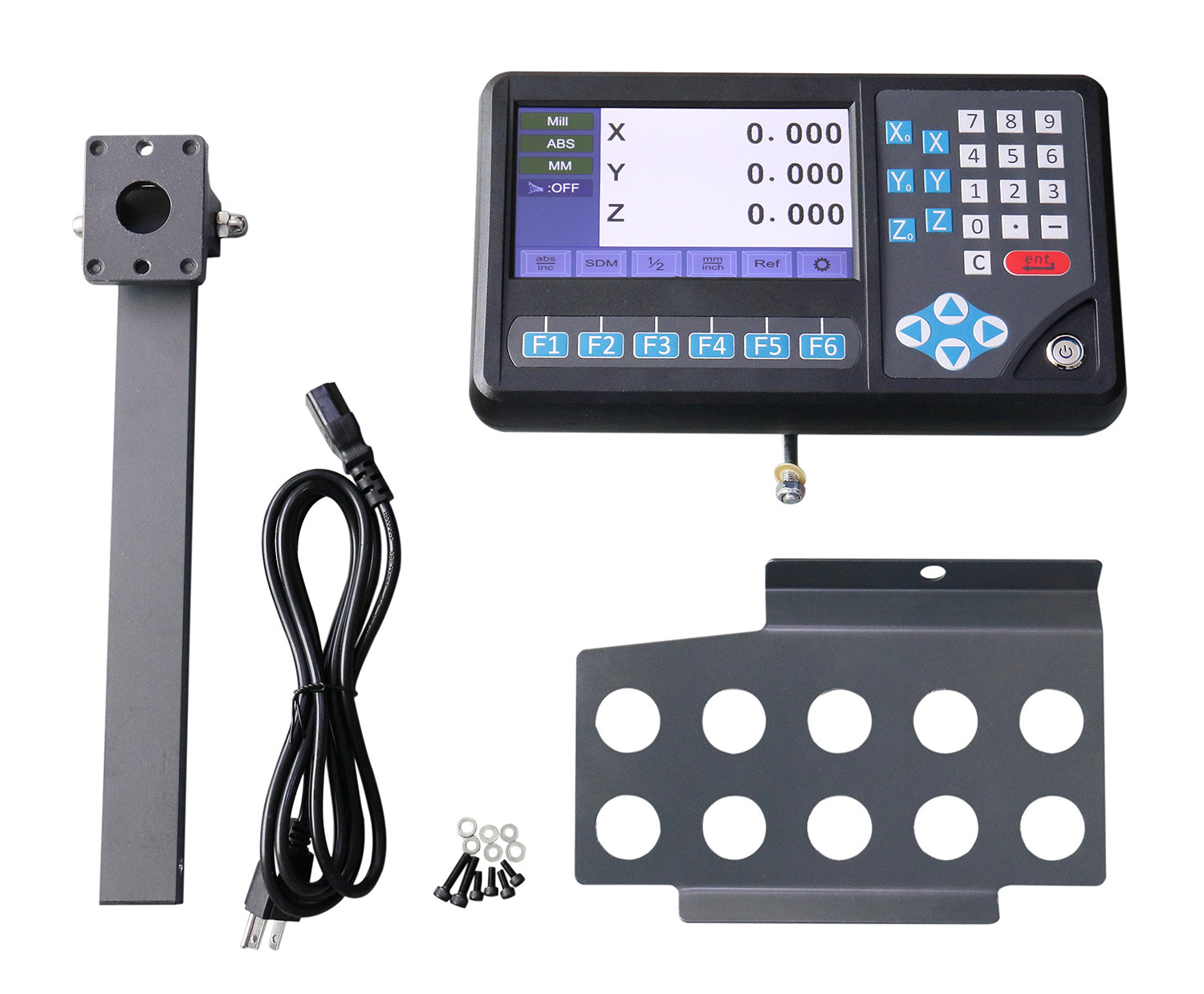

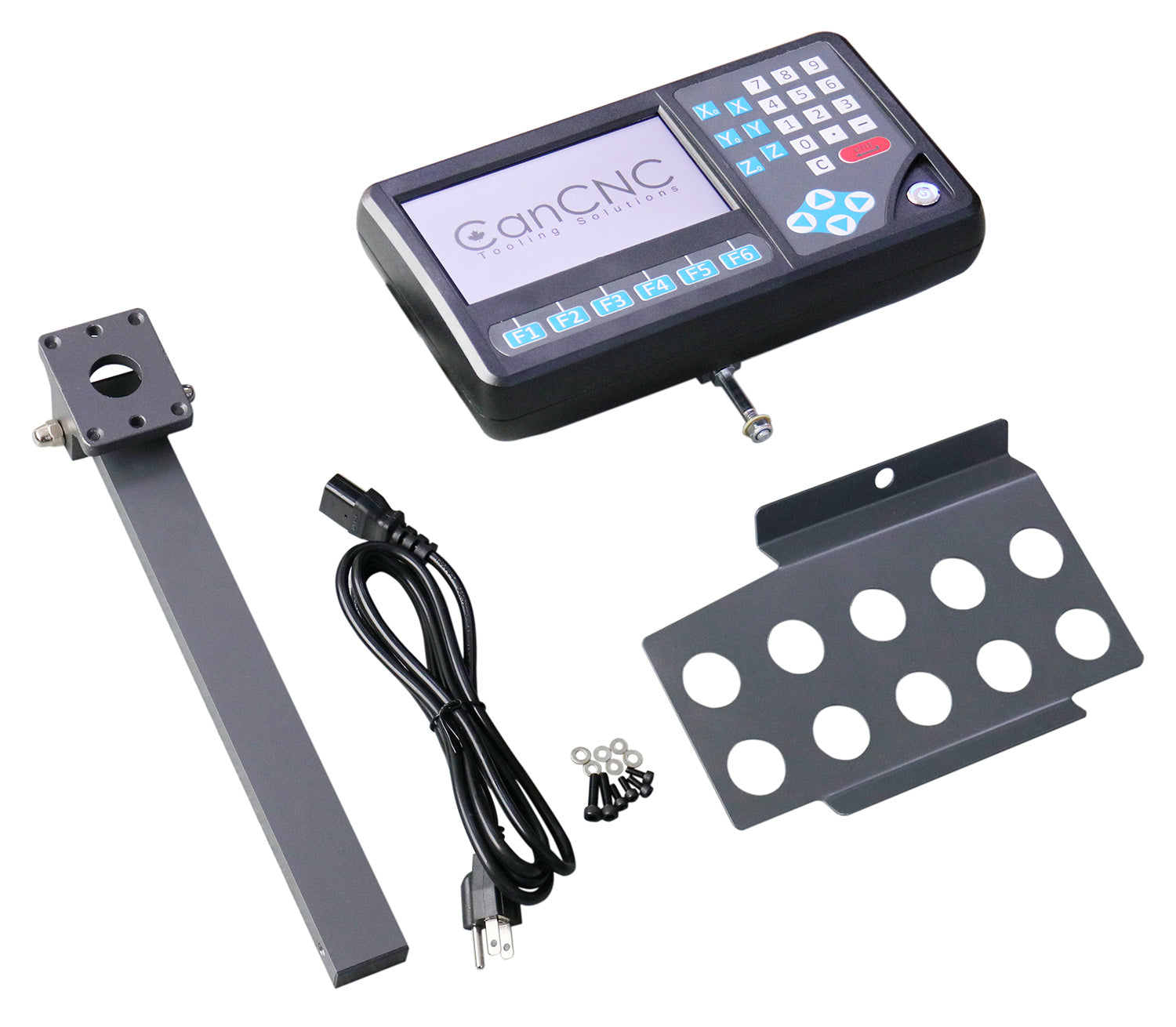

D80 Digital Readout, Digital Scale Display, 3-Axis and 4-Axis

D80 Digital Readout, Digital Scale Display, 3-Axis and 4-Axis

• Voltage range: AC80V-260V/50HZ-60HZ.
• Power dissipation: 15W(D80, D100).
• Working temperature: -10°C - 60°C.
• Coordinate display: D80(Max.5 Axes).
• Times frequency: 4X.
• Input signal: 5v TTL/RS422.
• Input frequency: ≤4MHZ.
• Operating keypad: mechanical keypad.
• Resolution: 0.1μm, 0.2μm, 0.5μm, 1μm, 2μm, 2.5μm, 5μm, 10μm, & 50μm.
• 7" true color LCD screen, easy to read.
• The DRO can save drawings, which makes the machining progress be more convenient
• for the operators.
• After all the parameters are set, a preview of the machining work to be done is available, which makes the machining.
• The DRO also displays the tool bits' current position during the machining process, which makes the machining process easier.
• Press the help button to get help while any troubles occur during the machining process.
• Operators can customize the shortcut keys according to personal habits.
